◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11719 - FVZ AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-11 - FRONT HUB AND DRUM OR ROTOR ▶
4-11 — FRONT HUB AND DRUM OR ROTOR (#170056) — 18 parça

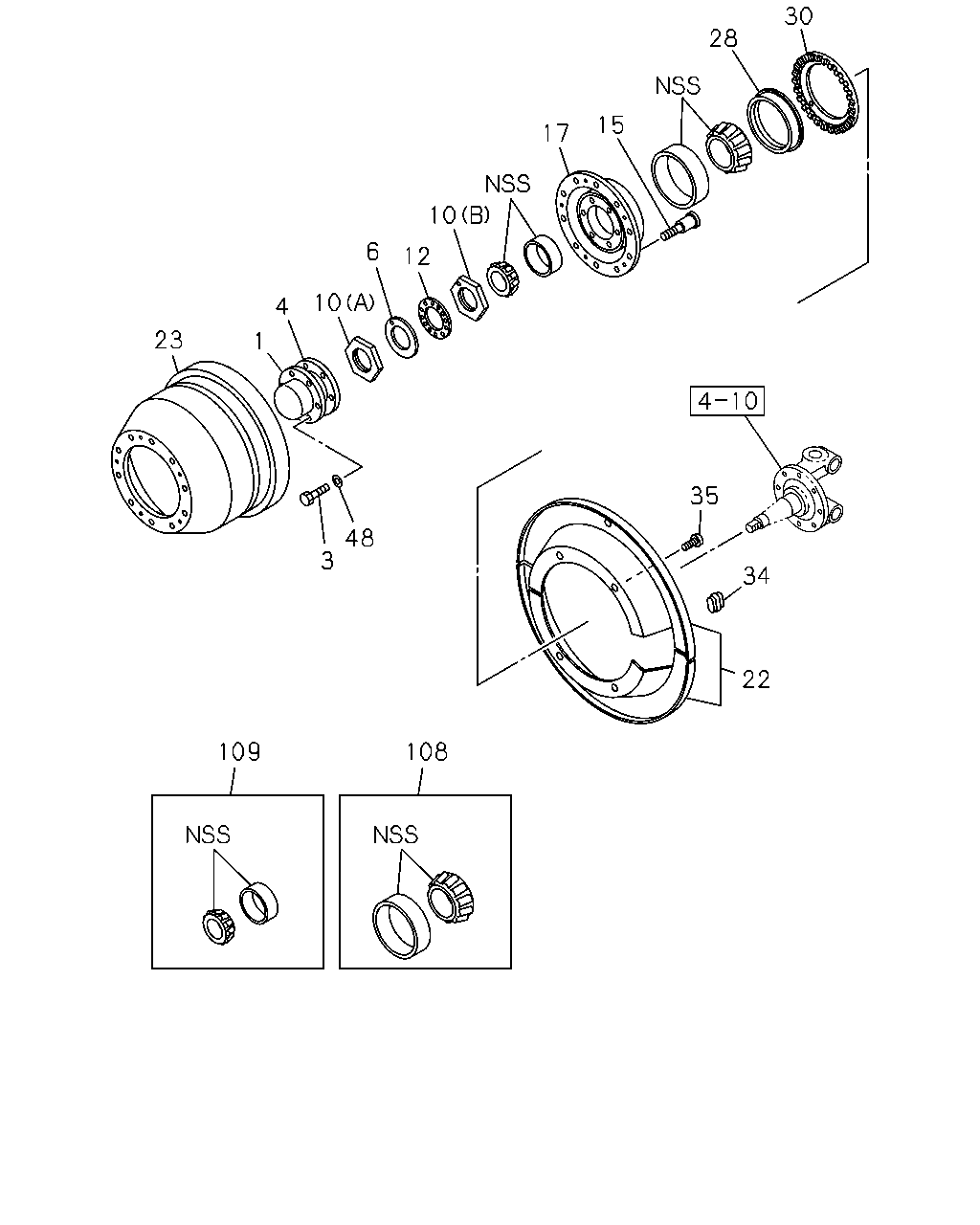

çizim 502773
23 4 6 1 10 10 12 17 15 28 30 3 35 34 22 48 108 109
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAP; HUB,FRT AXLE 8-98329-296-0 02 1 1511- ● ●
3 BOLT; HUB CAP,FRT WHEEL 1-42319-189-0 12 1 1511- ● ●
4 GASKET; HUB CAP,FRT WHEEL 8-98329-302-0 02 1 1511- ● ●
6 WASHER; LK,FRT HUB 1-42329-018-0 02 1 1511- ● ●
10 NUT; FRT HUB BRG
(A) 		1-42329-016-0 02 1 1511- ● ●
10 NUT; FRT HUB BRG
(B) 		1-42329-017-0 02 1 1511- ● ●
12 WASHER; LK,FRT HUB BRG 1-42329-015-0 02 1 1511- ● ●
15 PIN; WHEEL,FRT AXLE 1-42337-063-0 20 1 1511- ● ●
17 HUB; FRT AXLE 1-42311-163-0 02 1 1511- ● ●
22 COVER SET; FRT BRK DRUM 1-47151-708-0 02 1 1511- ● ●
23 DRUM; BRK,FRT 1-42315-420-0 02 1 1511- ● ●
28 SEAL; OIL,FRT HUB 1-09625-636-0 02 1 1511- ● ●
30 RING; EXCITER,FRT HUB 1-42319-223-0 02 1 1511- ● ●
34 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 1511- ● ●
35 BOLT; DRUM COVER 1-47159-176-0 12 1 1511- ● ●
48 WASHER; LK,HUB CAP,FRT WHEEL 1-41519-055-0 12 1 1511- ● ●
108 BEARING SET; HUB,INNER 1-85573-010-0 02 1 1511- ● ●
109 BEARING SET; HUB,OUTER 1-85573-011-0 02 1 1511- ● ●
