Sayfa 4-01 - Isuzu EPC

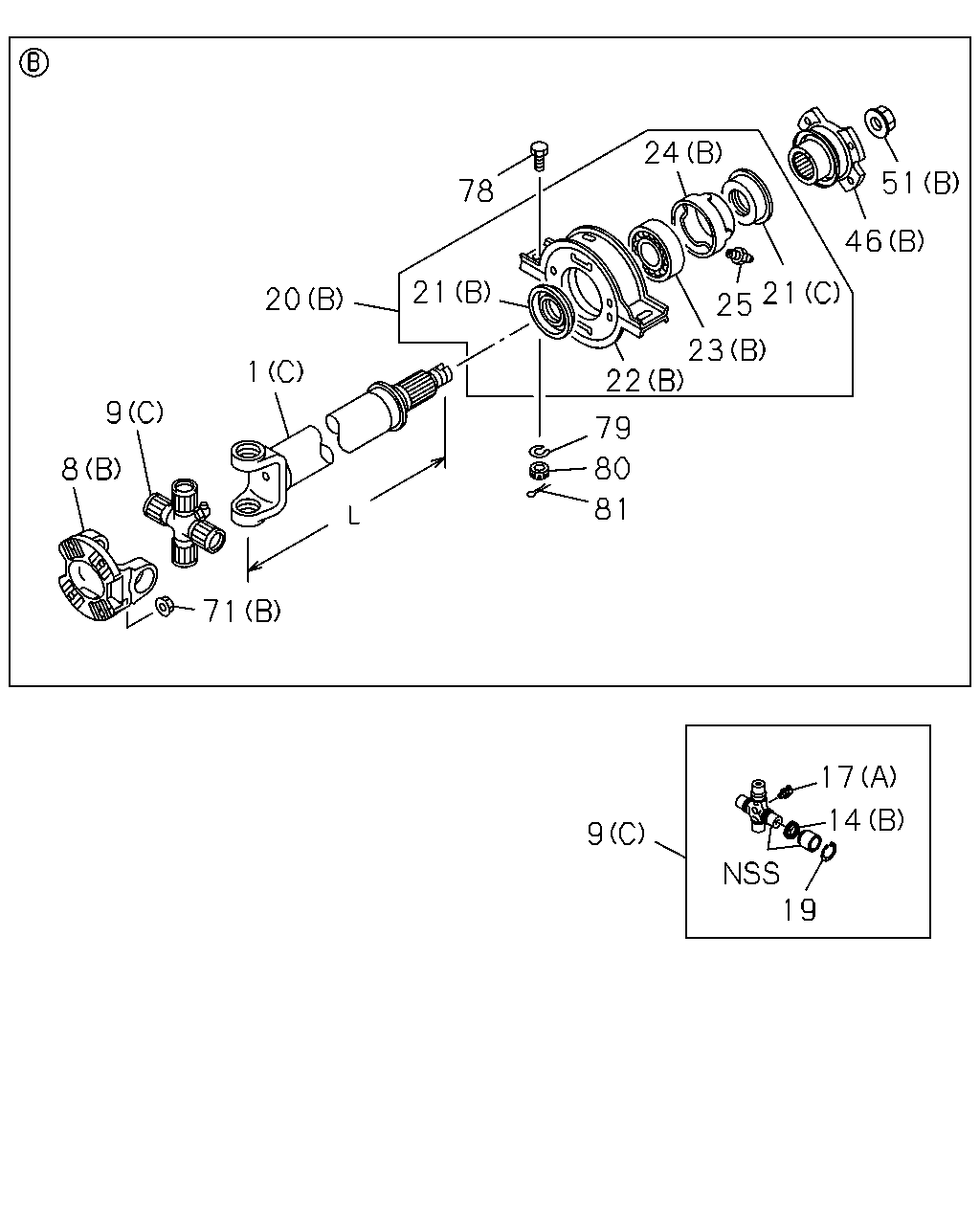

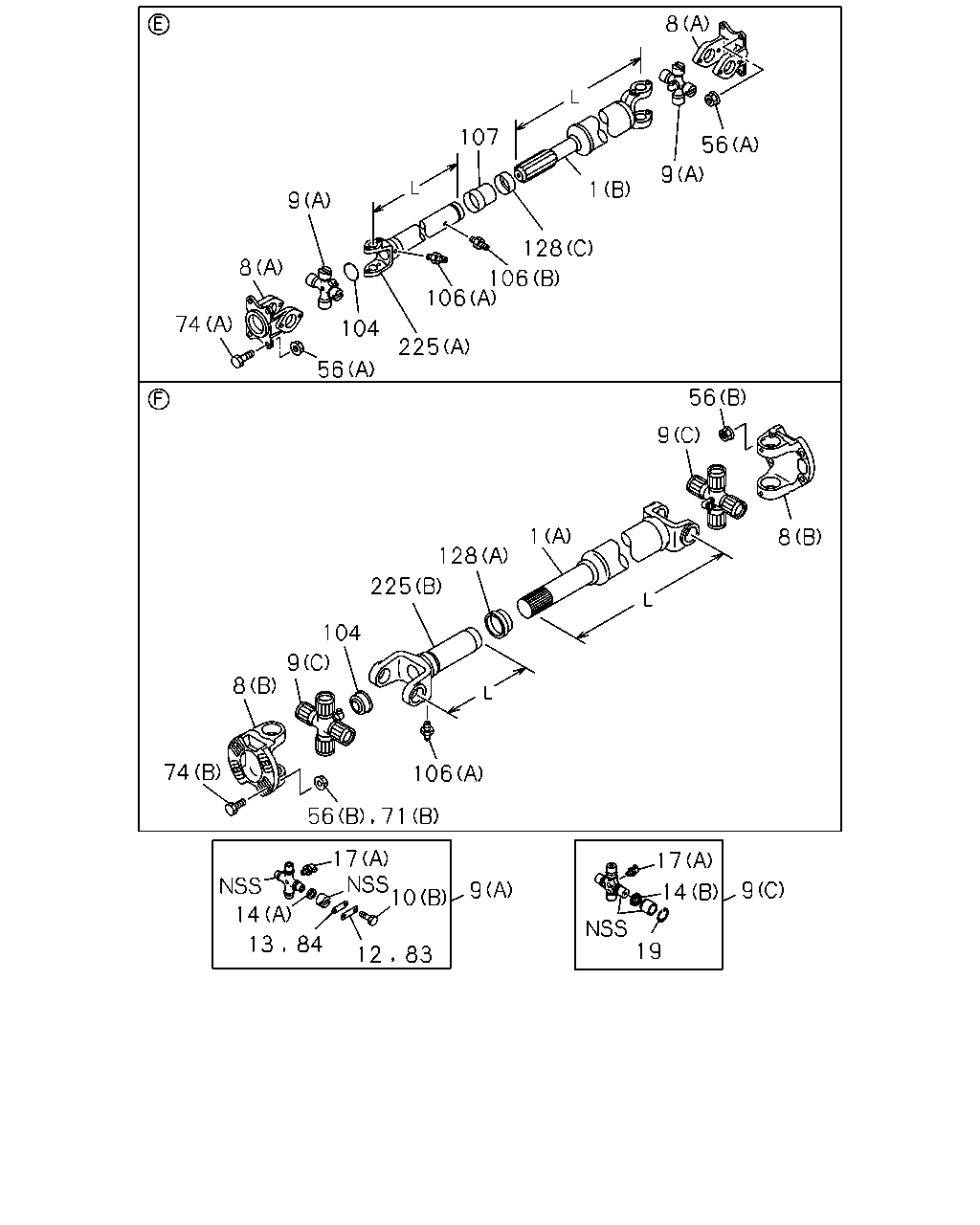

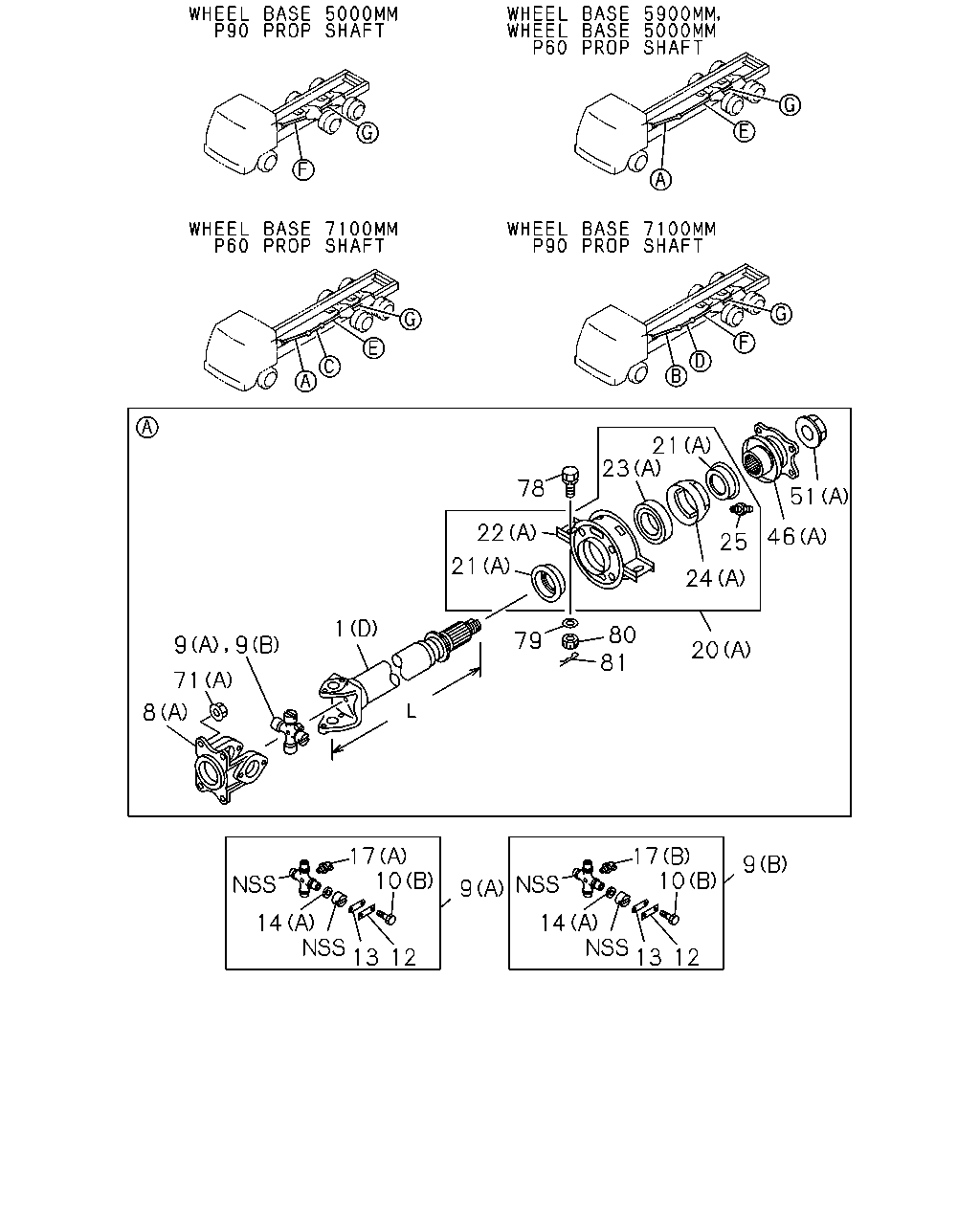

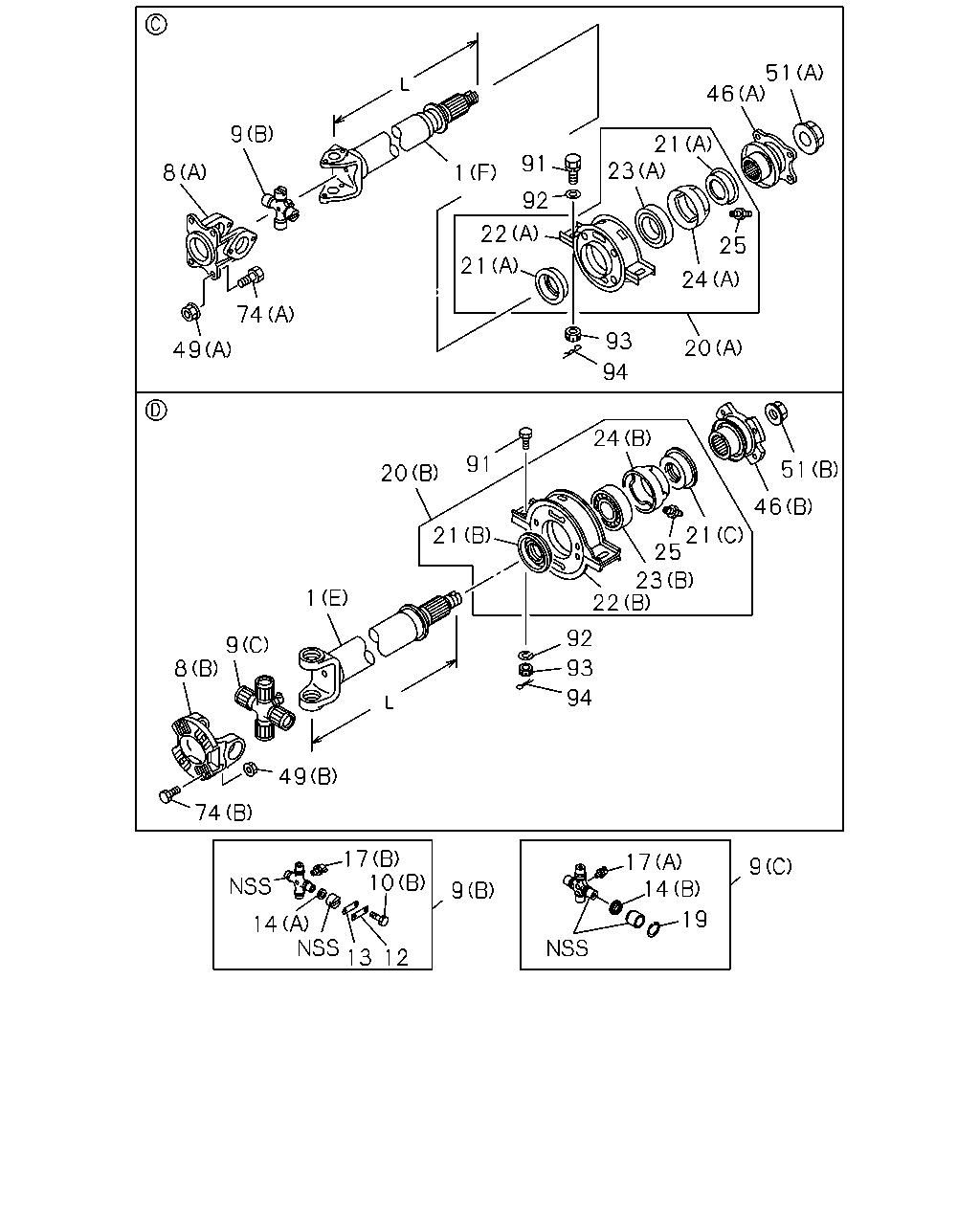

4-01 — PROPELLER SHAFT (#170054) — 470 parça

8 49 9 74 1 91 22 21 23 21 46 51 25 24 20 93 94 19 14 17 9 9 12 13 10 17 14 74 8 1 49 20 21 91 92 93 94 24 22 25 23 21 46 51 9 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP P60 PROP SHAFT(C2M) (B) L=649	1-37124-842-0	01	1	1511-	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (A) L=1354	8-98092-531-1	01	1	1511-	●
1	SHAFT; PROP AIR SUS(FGY***) P60 PROP SHAFT(C2M) (D) L=644	8-98171-501-0	01	1	1511-	●
1	SHAFT; PROP LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (D) L=644	8-98144-464-0	01	1	1511-	●
1	SHAFT; PROP (G) L=441	1-37124-191-0	01	1	1511-	●	●	●
1	SHAFT; PROP (B) L=1164	8-98091-322-0	01	1	1511-		●
1	SHAFT; PROP (D) L=1014	8-98201-571-0	01	1	1511-		●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (F) L=1226	1-37151-722-0	01	1	1511-			●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (B) L=919	8-98091-321-0	01	1	1511-			●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (D) L=1149	8-98201-572-0	01	1	1511-			●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (E) L=1210	8-98092-403-1	01	1	1511-			●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (C) L=1090	8-98092-523-1	01	1	1511-			●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (A) L=944	8-98092-526-1	01	1	1511-			●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	01	1	1511-	●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-072-1	01	1	1511-		●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	02	1	1511-	●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-072-1	02	1	1511-		●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	02	1	1511-	●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	04	1	1511-			●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	01	1	1511-			●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	03	1	1511-			●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (C) END	1-37300-110-0	02	1	1511-	●
9	JOURNAL ASM; PROP SHAFT LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (B) 1ST	1-37300-095-1	01	1	1511-	●
9	JOURNAL ASM; PROP SHAFT (D) REAR	1-37300-090-0	02	1	1511-	●	●	●
9	JOURNAL ASM; PROP SHAFT AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) 1ST	1-37300-094-1	01	1	1511-	●
9	JOURNAL ASM; PROP SHAFT (A) 1ST	1-37300-094-1	01	1	1511-		●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (A) 1ST	1-37300-094-1	01	1	1511-			●
9	JOURNAL ASM; PROP SHAFT AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) 2ND	1-37300-094-1	01	1	1511-			●
9	JOURNAL ASM; PROP SHAFT AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) END	1-37300-094-1	02	1	1511-	●		●
9	JOURNAL ASM; PROP SHAFT (A) END	1-37300-094-1	02	1	1511-		●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (C) 1ST	1-37300-110-0	01	1	1511-			●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (C) 2ND END	1-37300-110-0	03	1	1511-			●
10	BOLT; UJT P60 PROP SHAFT(C2M) (B) M10X20	0-20951-020-0	08	1	1511-	●
10	BOLT; UJT (B) M10X20	0-20951-020-0	08	1	1511-		●
10	BOLT; UJT P60 PROP SHAFT(C2M) (B) M10X20	0-20951-020-0	16	1	1511-	●
10	BOLT; UJT (B) M10X20	0-20951-020-0	16	1	1511-		●
10	BOLT; UJT (A)	1-09087-046-0	08	1	1511-	●	●	●
10	BOLT; UJT P60 PROP SHAFT(C2M) (B) M10X20	0-20951-020-0	32	1	1511-			●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M)	1-37356-010-0	04	1	1511-	●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M)	1-37356-010-0	04	1	1511-	●
12	PLATE; LK,FRT UJT,PROP SHAFT	1-37356-010-0	04	1	1511-		●
12	PLATE; LK,FRT UJT,PROP SHAFT	1-37356-010-0	04	1	1511-		●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M)	1-37356-010-0	12	1	1511-			●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M) T=6	1-37355-022-0	04	1	1511-	●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M) T=6	1-37355-022-0	04	1	1511-	●
13	COVER; FRT UJT,PROP SHAFT T=6	1-37355-022-0	04	1	1511-		●
13	COVER; FRT UJT,PROP SHAFT T=6	1-37355-022-0	04	1	1511-		●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M) T=6	1-37355-022-0	12	1	1511-			●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	04	1	1511-	●
14	COVER; DUST,SPIDER (A)	9-37352-023-0	04	1	1511-		●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	08	1	1511-	●
14	COVER; DUST,SPIDER (A)	9-37352-023-0	08	1	1511-		●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	08	1	1511-	●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	16	1	1511-			●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	04	1	1511-			●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	12	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT (A) END PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1511-	●	●
17	NIPPLE; GREASE,PROP SHAFT AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) 1ST PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1511-	●
17	NIPPLE; GREASE,PROP SHAFT (A) 1ST PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1511-		●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) 1ST PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (B) 1ST PT1/8 ELBOW	0-90301-610-0	01	1	1511-	●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (A) 1ST,2ND,END PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) 2ND,3RD PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	03	1	1511-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) T=2.2	1-09587-102-1	08	1	1511-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) T=2.2	1-09587-102-1	04	1	1511-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) T=2.2	1-09587-102-1	12	1	1511-			●
20	BEARING ASM; CTR,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37510-093-3	01	1	1511-	●
20	BEARING ASM; CTR,PROP SHAFT (A)	1-37510-093-3	01	1	1511-		●
20	BEARING ASM; CTR,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37510-093-3	02	1	1511-			●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT(C5T) (B) ID=60	1-37510-115-0	01	1	1511-			●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT(C5T) (B) ID=60	1-37510-115-0	01	1	1511-			●
21	SEAL; OIL,CENTER BRG P60 PROP SHAFT(C2M) (A) D=120	1-09625-126-0	02	1	1511-	●
21	SEAL; OIL,CENTER BRG (A) D=120	1-09625-126-0	02	1	1511-		●
21	SEAL; OIL,CENTER BRG P60 PROP SHAFT(C2M) (A) D=120	1-09625-126-0	04	1	1511-			●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (B) D=120	1-09625-127-0	01	1	1511-			●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (B) D=120	1-09625-127-0	01	1	1511-			●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (C)	1-09625-621-0	01	1	1511-			●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (C)	1-09625-621-0	01	1	1511-			●
22	RUBBER; CUSHION,CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37516-047-2	01	1	1511-	●
22	RUBBER; CUSHION,CENTER BRG,1ST (A)	1-37516-047-2	01	1	1511-		●
22	RUBBER; CUSHION,CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37516-047-2	02	1	1511-			●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT(C5T) (B)	1-37516-048-2	01	1	1511-			●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT(C5T) (B)	1-37516-048-2	01	1	1511-			●
23	BEARING; CENTER,PROP SHAFT P60 PROP SHAFT(C2M) (A)	9-00090-292-0	01	1	1511-	●
23	BEARING; CENTER,PROP SHAFT (A)	9-00090-292-0	01	1	1511-		●
23	BEARING; CENTER,PROP SHAFT P60 PROP SHAFT(C2M) (A)	9-00090-292-0	02	1	1511-			●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT(C5T) (B)	9-00090-256-0	01	1	1511-			●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT(C5T) (B)	9-00090-256-0	01	1	1511-			●
24	RETAINER; CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37529-039-0	01	1	1511-	●
24	RETAINER; CENTER BRG,1ST (A)	1-37529-039-0	01	1	1511-		●
24	RETAINER; CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37529-039-0	02	1	1511-			●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT(C5T) (B)	1-37529-109-0	01	1	1511-			●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT(C5T) (B)	1-37529-109-0	01	1	1511-			●
25	NIPPLE; GREASE,CENTER BRG P60 PROP SHAFT(C2M) MT6 STRAIGHT	1-09380-006-0	01	1	1511-	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1511-		●
25	NIPPLE; GREASE,CENTER BRG P90 PROP SHAFT(C5T) MT6 STRAIGHT	1-09380-006-0	01	1	1511-			●
25	NIPPLE; GREASE,CENTER BRG P90 PROP SHAFT(C5T) MT6 STRAIGHT	1-09380-006-0	01	1	1511-			●
25	NIPPLE; GREASE,CENTER BRG P60 PROP SHAFT(C2M) MT6 STRAIGHT	1-09380-006-0	02	1	1511-			●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT(C2M) (A)	1-37245-283-1	01	1	1511-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST (A)	1-37245-283-1	01	1	1511-		●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT(C2M) (A)	1-37245-283-1	02	1	1511-			●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (B)	1-37245-348-0	01	1	1511-			●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (B)	1-37245-348-0	01	1	1511-			●
49	NUT; YOKE P60 PROP SHAFT(C2M) (A) M16 FLANGE	1-09449-065-0	04	1	1511-			●
49	NUT; YOKE P90 PROP SHAFT(C5T) (B) M14 FLANGE	8-97365-444-0	04	1	1511-			●
51	NUT; FLANGE,SPLINED P60 PROP SHAFT(C2M) (A) M33 FLANGE	1-09449-051-0	01	1	1511-	●
51	NUT; FLANGE,SPLINED (A) M33 FLANGE	1-09449-051-0	01	1	1511-		●
51	NUT; FLANGE,SPLINED P60 PROP SHAFT(C2M) (A) M33 FLANGE	1-09449-051-0	02	1	1511-			●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT(C5T) (B) M39 FLANGE	1-09440-046-0	01	1	1511-			●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT(C5T) (B) M39 FLANGE	1-09440-046-0	01	1	1511-			●
74	BOLT; YOKE,TRANS P60 PROP SHAFT(C2M) (A) M16X48	1-09000-383-0	08	1	1511-	●		●
74	BOLT; YOKE,TRANS (A) M16X48	1-09000-383-0	08	1	1511-		●
74	BOLT; YOKE,TRANS P90 PROP SHAFT(C5T) (B) M14X50	1-09000-645-0	04	1	1511-	●		●
74	BOLT; YOKE,TRANS P60 PROP SHAFT(C2M) (A) M16X48	1-09000-383-0	04	1	1511-			●
74	BOLT; YOKE,TRANS P90 PROP SHAFT(C5T) (B) M14X50	1-09000-645-0	08	1	1511-			●
91	BOLT; HOLDER SET,CTR BRG M16X45	1-09042-030-0	02	1	1511-			●
92	WASHER; LK,HOLDER SET,CTR BRG ID=17	1-09503-241-1	02	1	1511-			●
93	NUT; HOLDER SET,CTR BRG M16 SLOTTED	8-98049-689-0	02	1	1511-			●
94	PIN; SPLIT,HOLDER SET CTR BRG OD=3.7 L=25	0-81124-025-0	02	1	1511-			●

13 84 12 83 9 10 17 14 19 14 9 17 71 56 74 8 104 106 225 128 1 9 8 56 56 225 106 106 128 1 9 56 8 107 104 74 8 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP P60 PROP SHAFT(C2M) (B) L=649	1-37124-842-0	01	1	1511-	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (A) L=1354	8-98092-531-1	01	1	1511-	●
1	SHAFT; PROP AIR SUS(FGY***) P60 PROP SHAFT(C2M) (D) L=644	8-98171-501-0	01	1	1511-	●
1	SHAFT; PROP LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (D) L=644	8-98144-464-0	01	1	1511-	●
1	SHAFT; PROP (G) L=441	1-37124-191-0	01	1	1511-	●	●	●
1	SHAFT; PROP (B) L=1164	8-98091-322-0	01	1	1511-		●
1	SHAFT; PROP (D) L=1014	8-98201-571-0	01	1	1511-		●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (F) L=1226	1-37151-722-0	01	1	1511-			●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (B) L=919	8-98091-321-0	01	1	1511-			●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (D) L=1149	8-98201-572-0	01	1	1511-			●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (E) L=1210	8-98092-403-1	01	1	1511-			●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (C) L=1090	8-98092-523-1	01	1	1511-			●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (A) L=944	8-98092-526-1	01	1	1511-			●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	01	1	1511-	●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-072-1	01	1	1511-		●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	02	1	1511-	●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-072-1	02	1	1511-		●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	02	1	1511-	●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	04	1	1511-			●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	01	1	1511-			●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	03	1	1511-			●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (C) END	1-37300-110-0	02	1	1511-	●
9	JOURNAL ASM; PROP SHAFT LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (B) 1ST	1-37300-095-1	01	1	1511-	●
9	JOURNAL ASM; PROP SHAFT (D) REAR	1-37300-090-0	02	1	1511-	●	●	●
9	JOURNAL ASM; PROP SHAFT AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) 1ST	1-37300-094-1	01	1	1511-	●
9	JOURNAL ASM; PROP SHAFT (A) 1ST	1-37300-094-1	01	1	1511-		●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (A) 1ST	1-37300-094-1	01	1	1511-			●
9	JOURNAL ASM; PROP SHAFT AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) 2ND	1-37300-094-1	01	1	1511-			●
9	JOURNAL ASM; PROP SHAFT AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) END	1-37300-094-1	02	1	1511-	●		●
9	JOURNAL ASM; PROP SHAFT (A) END	1-37300-094-1	02	1	1511-		●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (C) 1ST	1-37300-110-0	01	1	1511-			●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (C) 2ND END	1-37300-110-0	03	1	1511-			●
10	BOLT; UJT P60 PROP SHAFT(C2M) (B) M10X20	0-20951-020-0	08	1	1511-	●
10	BOLT; UJT (B) M10X20	0-20951-020-0	08	1	1511-		●
10	BOLT; UJT P60 PROP SHAFT(C2M) (B) M10X20	0-20951-020-0	16	1	1511-	●
10	BOLT; UJT (B) M10X20	0-20951-020-0	16	1	1511-		●
10	BOLT; UJT (A)	1-09087-046-0	08	1	1511-	●	●	●
10	BOLT; UJT P60 PROP SHAFT(C2M) (B) M10X20	0-20951-020-0	32	1	1511-			●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M)	1-37356-010-0	04	1	1511-	●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M)	1-37356-010-0	04	1	1511-	●
12	PLATE; LK,FRT UJT,PROP SHAFT	1-37356-010-0	04	1	1511-		●
12	PLATE; LK,FRT UJT,PROP SHAFT	1-37356-010-0	04	1	1511-		●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M)	1-37356-010-0	12	1	1511-			●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M) T=6	1-37355-022-0	04	1	1511-	●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M) T=6	1-37355-022-0	04	1	1511-	●
13	COVER; FRT UJT,PROP SHAFT T=6	1-37355-022-0	04	1	1511-		●
13	COVER; FRT UJT,PROP SHAFT T=6	1-37355-022-0	04	1	1511-		●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M) T=6	1-37355-022-0	12	1	1511-			●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	04	1	1511-	●
14	COVER; DUST,SPIDER (A)	9-37352-023-0	04	1	1511-		●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	08	1	1511-	●
14	COVER; DUST,SPIDER (A)	9-37352-023-0	08	1	1511-		●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	08	1	1511-	●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	16	1	1511-			●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	04	1	1511-			●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	12	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT (A) END PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1511-	●	●
17	NIPPLE; GREASE,PROP SHAFT AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) 1ST PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1511-	●
17	NIPPLE; GREASE,PROP SHAFT (A) 1ST PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1511-		●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) 1ST PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (B) 1ST PT1/8 ELBOW	0-90301-610-0	01	1	1511-	●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (A) 1ST,2ND,END PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) 2ND,3RD PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	03	1	1511-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) T=2.2	1-09587-102-1	08	1	1511-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) T=2.2	1-09587-102-1	04	1	1511-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) T=2.2	1-09587-102-1	12	1	1511-			●
56	NUT; YOKE P90 PROP SHAFT(C5T) (B) M14 FLANGE	8-97365-444-0	04	1	1511-	●
56	NUT; YOKE P60 PROP SHAFT(C2M) (A) M16 FLANGE	1-09449-065-0	08	1	1511-	●		●
56	NUT; YOKE (A) M16 FLANGE	1-09449-065-0	08	1	1511-		●
56	NUT; YOKE P90 PROP SHAFT(C5T) (B) M14 FLANGE	8-97365-444-0	08	1	1511-			●
71	NUT; YOKE P60 PROP SHAFT(C2M) (A) M16 FLANGE	1-09449-065-0	04	1	1511-	●		●
71	NUT; YOKE (A) M16 FLANGE	1-09449-065-0	04	1	1511-		●
71	NUT; YOKE P90 PROP SHAFT(C5T) (B) M14 FLANGE	8-97365-444-0	04	1	1511-	●		●
74	BOLT; YOKE,TRANS P60 PROP SHAFT(C2M) (A) M16X48	1-09000-383-0	08	1	1511-	●		●
74	BOLT; YOKE,TRANS (A) M16X48	1-09000-383-0	08	1	1511-		●
74	BOLT; YOKE,TRANS P90 PROP SHAFT(C5T) (B) M14X50	1-09000-645-0	04	1	1511-	●		●
74	BOLT; YOKE,TRANS P60 PROP SHAFT(C2M) (A) M16X48	1-09000-383-0	04	1	1511-			●
74	BOLT; YOKE,TRANS P90 PROP SHAFT(C5T) (B) M14X50	1-09000-645-0	08	1	1511-			●
83	PLATE; LK,UJT,PROP SHAFT P60 PROP SHAFT(C2M)	1-37356-010-0	04	1	1511-	●		●
83	PLATE; LK,UJT,PROP SHAFT	1-37356-010-0	04	1	1511-		●
84	COVER; UJT,PROP SHAFT P60 PROP SHAFT(C2M) T=6	1-37355-022-0	04	1	1511-	●		●
84	COVER; UJT,PROP SHAFT T=6	1-37355-022-0	04	1	1511-		●
104	PLUG; SLEEVE YOKE	1-09600-067-0	01	1	1511-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	1511-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT	1-09380-006-0	01	1	1511-	●		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (B) MT6 STRAIGHT	1-09380-006-0	01	1	1511-		●
107	COVER; RET,SLEEVE P60 PROP SHAFT(C2M)	1-37249-137-1	01	1	1511-	●		●
107	COVER; RET,SLEEVE	1-37249-137-1	01	1	1511-		●
128	SEAL; SLEEVE (B)	1-37247-017-0	01	1	1511-	●	●	●
128	SEAL; SLEEVE P60 PROP SHAFT(C2M) (C)	1-37247-021-0	01	1	1511-	●		●
128	SEAL; SLEEVE (C)	1-37247-021-0	01	1	1511-		●
128	SEAL; SLEEVE P90 PROP SHAFT(C5T) (A)	1-37247-019-0	01	1	1511-	●		●
225	YOKE; SLEEVE,PROP SHAFT P60 PROP SHAFT(C2M) (A) L=332	1-37241-109-1	01	1	1511-	●		●
225	YOKE; SLEEVE,PROP SHAFT (A) L=332	1-37241-109-1	01	1	1511-		●
225	YOKE; SLEEVE,PROP SHAFT P90 PROP SHAFT(C5T) (B) L=330	1-37241-124-0	01	1	1511-	●		●

10 9 96 198 102 128 1 96 198 9 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP P60 PROP SHAFT(C2M) (B) L=649	1-37124-842-0	01	1	1511-	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (A) L=1354	8-98092-531-1	01	1	1511-	●
1	SHAFT; PROP AIR SUS(FGY***) P60 PROP SHAFT(C2M) (D) L=644	8-98171-501-0	01	1	1511-	●
1	SHAFT; PROP LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (D) L=644	8-98144-464-0	01	1	1511-	●
1	SHAFT; PROP (G) L=441	1-37124-191-0	01	1	1511-	●	●	●
1	SHAFT; PROP (B) L=1164	8-98091-322-0	01	1	1511-		●
1	SHAFT; PROP (D) L=1014	8-98201-571-0	01	1	1511-		●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (F) L=1226	1-37151-722-0	01	1	1511-			●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (B) L=919	8-98091-321-0	01	1	1511-			●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (D) L=1149	8-98201-572-0	01	1	1511-			●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (E) L=1210	8-98092-403-1	01	1	1511-			●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (C) L=1090	8-98092-523-1	01	1	1511-			●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (A) L=944	8-98092-526-1	01	1	1511-			●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (C) END	1-37300-110-0	02	1	1511-	●
9	JOURNAL ASM; PROP SHAFT LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (B) 1ST	1-37300-095-1	01	1	1511-	●
9	JOURNAL ASM; PROP SHAFT (D) REAR	1-37300-090-0	02	1	1511-	●	●	●
9	JOURNAL ASM; PROP SHAFT AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) 1ST	1-37300-094-1	01	1	1511-	●
9	JOURNAL ASM; PROP SHAFT (A) 1ST	1-37300-094-1	01	1	1511-		●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (A) 1ST	1-37300-094-1	01	1	1511-			●
9	JOURNAL ASM; PROP SHAFT AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) 2ND	1-37300-094-1	01	1	1511-			●
9	JOURNAL ASM; PROP SHAFT AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) END	1-37300-094-1	02	1	1511-	●		●
9	JOURNAL ASM; PROP SHAFT (A) END	1-37300-094-1	02	1	1511-		●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (C) 1ST	1-37300-110-0	01	1	1511-			●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (C) 2ND END	1-37300-110-0	03	1	1511-			●
10	BOLT; UJT P60 PROP SHAFT(C2M) (B) M10X20	0-20951-020-0	08	1	1511-	●
10	BOLT; UJT (B) M10X20	0-20951-020-0	08	1	1511-		●
10	BOLT; UJT P60 PROP SHAFT(C2M) (B) M10X20	0-20951-020-0	16	1	1511-	●
10	BOLT; UJT (B) M10X20	0-20951-020-0	16	1	1511-		●
10	BOLT; UJT (A)	1-09087-046-0	08	1	1511-	●	●	●
10	BOLT; UJT P60 PROP SHAFT(C2M) (B) M10X20	0-20951-020-0	32	1	1511-			●
96	BOLT; PROP SHAFT	1-09088-006-0	08	1	1511-	●	●	●
102	YOKE; TRANSFER TO AXLE L=303.3	1-37241-094-0	01	1	1511-	●	●	●
128	SEAL; SLEEVE (B)	1-37247-017-0	01	1	1511-	●	●	●
128	SEAL; SLEEVE P60 PROP SHAFT(C2M) (C)	1-37247-021-0	01	1	1511-	●		●
128	SEAL; SLEEVE (C)	1-37247-021-0	01	1	1511-		●
128	SEAL; SLEEVE P90 PROP SHAFT(C5T) (A)	1-37247-019-0	01	1	1511-	●		●
198	PLATE; PROP SHAFT	1-37319-009-0	04	1	1511-	●	●	●

8 9 20 78 21 1 71 24 51 46 21 25 23 22 79 80 81 9 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP P60 PROP SHAFT(C2M) (B) L=649	1-37124-842-0	01	1	1511-	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (A) L=1354	8-98092-531-1	01	1	1511-	●
1	SHAFT; PROP AIR SUS(FGY***) P60 PROP SHAFT(C2M) (D) L=644	8-98171-501-0	01	1	1511-	●
1	SHAFT; PROP LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (D) L=644	8-98144-464-0	01	1	1511-	●
1	SHAFT; PROP (G) L=441	1-37124-191-0	01	1	1511-	●	●	●
1	SHAFT; PROP (B) L=1164	8-98091-322-0	01	1	1511-		●
1	SHAFT; PROP (D) L=1014	8-98201-571-0	01	1	1511-		●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (F) L=1226	1-37151-722-0	01	1	1511-			●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (B) L=919	8-98091-321-0	01	1	1511-			●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (D) L=1149	8-98201-572-0	01	1	1511-			●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (E) L=1210	8-98092-403-1	01	1	1511-			●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (C) L=1090	8-98092-523-1	01	1	1511-			●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (A) L=944	8-98092-526-1	01	1	1511-			●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	01	1	1511-	●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-072-1	01	1	1511-		●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	02	1	1511-	●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-072-1	02	1	1511-		●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	02	1	1511-	●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	04	1	1511-			●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	01	1	1511-			●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	03	1	1511-			●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (C) END	1-37300-110-0	02	1	1511-	●
9	JOURNAL ASM; PROP SHAFT LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (B) 1ST	1-37300-095-1	01	1	1511-	●
9	JOURNAL ASM; PROP SHAFT (D) REAR	1-37300-090-0	02	1	1511-	●	●	●
9	JOURNAL ASM; PROP SHAFT AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) 1ST	1-37300-094-1	01	1	1511-	●
9	JOURNAL ASM; PROP SHAFT (A) 1ST	1-37300-094-1	01	1	1511-		●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (A) 1ST	1-37300-094-1	01	1	1511-			●
9	JOURNAL ASM; PROP SHAFT AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) 2ND	1-37300-094-1	01	1	1511-			●
9	JOURNAL ASM; PROP SHAFT AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) END	1-37300-094-1	02	1	1511-	●		●
9	JOURNAL ASM; PROP SHAFT (A) END	1-37300-094-1	02	1	1511-		●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (C) 1ST	1-37300-110-0	01	1	1511-			●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (C) 2ND END	1-37300-110-0	03	1	1511-			●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	04	1	1511-	●
14	COVER; DUST,SPIDER (A)	9-37352-023-0	04	1	1511-		●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	08	1	1511-	●
14	COVER; DUST,SPIDER (A)	9-37352-023-0	08	1	1511-		●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	08	1	1511-	●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	16	1	1511-			●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	04	1	1511-			●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	12	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT (A) END PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1511-	●	●
17	NIPPLE; GREASE,PROP SHAFT AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) 1ST PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1511-	●
17	NIPPLE; GREASE,PROP SHAFT (A) 1ST PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1511-		●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) 1ST PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (B) 1ST PT1/8 ELBOW	0-90301-610-0	01	1	1511-	●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (A) 1ST,2ND,END PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) 2ND,3RD PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	03	1	1511-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) T=2.2	1-09587-102-1	08	1	1511-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) T=2.2	1-09587-102-1	04	1	1511-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) T=2.2	1-09587-102-1	12	1	1511-			●
20	BEARING ASM; CTR,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37510-093-3	01	1	1511-	●
20	BEARING ASM; CTR,PROP SHAFT (A)	1-37510-093-3	01	1	1511-		●
20	BEARING ASM; CTR,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37510-093-3	02	1	1511-			●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT(C5T) (B) ID=60	1-37510-115-0	01	1	1511-			●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT(C5T) (B) ID=60	1-37510-115-0	01	1	1511-			●
21	SEAL; OIL,CENTER BRG P60 PROP SHAFT(C2M) (A) D=120	1-09625-126-0	02	1	1511-	●
21	SEAL; OIL,CENTER BRG (A) D=120	1-09625-126-0	02	1	1511-		●
21	SEAL; OIL,CENTER BRG P60 PROP SHAFT(C2M) (A) D=120	1-09625-126-0	04	1	1511-			●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (B) D=120	1-09625-127-0	01	1	1511-			●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (B) D=120	1-09625-127-0	01	1	1511-			●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (C)	1-09625-621-0	01	1	1511-			●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (C)	1-09625-621-0	01	1	1511-			●
22	RUBBER; CUSHION,CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37516-047-2	01	1	1511-	●
22	RUBBER; CUSHION,CENTER BRG,1ST (A)	1-37516-047-2	01	1	1511-		●
22	RUBBER; CUSHION,CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37516-047-2	02	1	1511-			●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT(C5T) (B)	1-37516-048-2	01	1	1511-			●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT(C5T) (B)	1-37516-048-2	01	1	1511-			●
23	BEARING; CENTER,PROP SHAFT P60 PROP SHAFT(C2M) (A)	9-00090-292-0	01	1	1511-	●
23	BEARING; CENTER,PROP SHAFT (A)	9-00090-292-0	01	1	1511-		●
23	BEARING; CENTER,PROP SHAFT P60 PROP SHAFT(C2M) (A)	9-00090-292-0	02	1	1511-			●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT(C5T) (B)	9-00090-256-0	01	1	1511-			●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT(C5T) (B)	9-00090-256-0	01	1	1511-			●
24	RETAINER; CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37529-039-0	01	1	1511-	●
24	RETAINER; CENTER BRG,1ST (A)	1-37529-039-0	01	1	1511-		●
24	RETAINER; CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37529-039-0	02	1	1511-			●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT(C5T) (B)	1-37529-109-0	01	1	1511-			●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT(C5T) (B)	1-37529-109-0	01	1	1511-			●
25	NIPPLE; GREASE,CENTER BRG P60 PROP SHAFT(C2M) MT6 STRAIGHT	1-09380-006-0	01	1	1511-	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1511-		●
25	NIPPLE; GREASE,CENTER BRG P90 PROP SHAFT(C5T) MT6 STRAIGHT	1-09380-006-0	01	1	1511-			●
25	NIPPLE; GREASE,CENTER BRG P90 PROP SHAFT(C5T) MT6 STRAIGHT	1-09380-006-0	01	1	1511-			●
25	NIPPLE; GREASE,CENTER BRG P60 PROP SHAFT(C2M) MT6 STRAIGHT	1-09380-006-0	02	1	1511-			●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT(C2M) (A)	1-37245-283-1	01	1	1511-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST (A)	1-37245-283-1	01	1	1511-		●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT(C2M) (A)	1-37245-283-1	02	1	1511-			●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (B)	1-37245-348-0	01	1	1511-			●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (B)	1-37245-348-0	01	1	1511-			●
51	NUT; FLANGE,SPLINED P60 PROP SHAFT(C2M) (A) M33 FLANGE	1-09449-051-0	01	1	1511-	●
51	NUT; FLANGE,SPLINED (A) M33 FLANGE	1-09449-051-0	01	1	1511-		●
51	NUT; FLANGE,SPLINED P60 PROP SHAFT(C2M) (A) M33 FLANGE	1-09449-051-0	02	1	1511-			●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT(C5T) (B) M39 FLANGE	1-09440-046-0	01	1	1511-			●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT(C5T) (B) M39 FLANGE	1-09440-046-0	01	1	1511-			●
71	NUT; YOKE P60 PROP SHAFT(C2M) (A) M16 FLANGE	1-09449-065-0	04	1	1511-	●		●
71	NUT; YOKE (A) M16 FLANGE	1-09449-065-0	04	1	1511-		●
71	NUT; YOKE P90 PROP SHAFT(C5T) (B) M14 FLANGE	8-97365-444-0	04	1	1511-	●		●
78	BOLT; HOLDER SET,CENTER BRG,1ST PROP P60 PROP SHAFT(C2M) M16X45	1-09042-030-0	02	1	1511-	●
78	BOLT; HOLDER SET,CENTER BRG,1ST PROP M16X45	1-09042-030-0	02	1	1511-		●	●
79	WASHER; PL,HOLDER SET,CENTER BRG P60 PROP SHAFT(C2M) ID=17	1-09503-241-1	02	1	1511-	●
79	WASHER; PL,HOLDER SET,CENTER BRG ID=17	1-09503-241-1	02	1	1511-		●	●
80	NUT; HOLDER SET,CENTER BRG,1ST PROP P60 PROP SHAFT(C2M) M16 SLOTTED	8-98049-689-0	02	1	1511-	●
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	8-98049-689-0	02	1	1511-		●	●
81	PIN; SPLIT,HOLDER SET,CENTER BRG P60 PROP SHAFT(C2M) OD=3.7 L=25	0-81124-025-0	02	1	1511-	●
81	PIN; SPLIT,HOLDER SET,CENTER BRG OD=3.7 L=25	0-81124-025-0	02	1	1511-		●	●

23 21 51 25 24 46 79 81 1 80 20 78 22 21 9 9 71 8 9 17 10 14 13 12 13 12 14 10 17 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP P60 PROP SHAFT(C2M) (B) L=649	1-37124-842-0	01	1	1511-	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (A) L=1354	8-98092-531-1	01	1	1511-	●
1	SHAFT; PROP AIR SUS(FGY***) P60 PROP SHAFT(C2M) (D) L=644	8-98171-501-0	01	1	1511-	●
1	SHAFT; PROP LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (D) L=644	8-98144-464-0	01	1	1511-	●
1	SHAFT; PROP (G) L=441	1-37124-191-0	01	1	1511-	●	●	●
1	SHAFT; PROP (B) L=1164	8-98091-322-0	01	1	1511-		●
1	SHAFT; PROP (D) L=1014	8-98201-571-0	01	1	1511-		●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (F) L=1226	1-37151-722-0	01	1	1511-			●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (B) L=919	8-98091-321-0	01	1	1511-			●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (D) L=1149	8-98201-572-0	01	1	1511-			●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (E) L=1210	8-98092-403-1	01	1	1511-			●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (C) L=1090	8-98092-523-1	01	1	1511-			●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (A) L=944	8-98092-526-1	01	1	1511-			●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	01	1	1511-	●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-072-1	01	1	1511-		●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	02	1	1511-	●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-072-1	02	1	1511-		●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	02	1	1511-	●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	04	1	1511-			●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	01	1	1511-			●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	03	1	1511-			●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (C) END	1-37300-110-0	02	1	1511-	●
9	JOURNAL ASM; PROP SHAFT LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (B) 1ST	1-37300-095-1	01	1	1511-	●
9	JOURNAL ASM; PROP SHAFT (D) REAR	1-37300-090-0	02	1	1511-	●	●	●
9	JOURNAL ASM; PROP SHAFT AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) 1ST	1-37300-094-1	01	1	1511-	●
9	JOURNAL ASM; PROP SHAFT (A) 1ST	1-37300-094-1	01	1	1511-		●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (A) 1ST	1-37300-094-1	01	1	1511-			●
9	JOURNAL ASM; PROP SHAFT AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) 2ND	1-37300-094-1	01	1	1511-			●
9	JOURNAL ASM; PROP SHAFT AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) END	1-37300-094-1	02	1	1511-	●		●
9	JOURNAL ASM; PROP SHAFT (A) END	1-37300-094-1	02	1	1511-		●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (C) 1ST	1-37300-110-0	01	1	1511-			●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (C) 2ND END	1-37300-110-0	03	1	1511-			●
10	BOLT; UJT P60 PROP SHAFT(C2M) (B) M10X20	0-20951-020-0	08	1	1511-	●
10	BOLT; UJT (B) M10X20	0-20951-020-0	08	1	1511-		●
10	BOLT; UJT P60 PROP SHAFT(C2M) (B) M10X20	0-20951-020-0	16	1	1511-	●
10	BOLT; UJT (B) M10X20	0-20951-020-0	16	1	1511-		●
10	BOLT; UJT (A)	1-09087-046-0	08	1	1511-	●	●	●
10	BOLT; UJT P60 PROP SHAFT(C2M) (B) M10X20	0-20951-020-0	32	1	1511-			●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M)	1-37356-010-0	04	1	1511-	●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M)	1-37356-010-0	04	1	1511-	●
12	PLATE; LK,FRT UJT,PROP SHAFT	1-37356-010-0	04	1	1511-		●
12	PLATE; LK,FRT UJT,PROP SHAFT	1-37356-010-0	04	1	1511-		●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M)	1-37356-010-0	12	1	1511-			●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M) T=6	1-37355-022-0	04	1	1511-	●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M) T=6	1-37355-022-0	04	1	1511-	●
13	COVER; FRT UJT,PROP SHAFT T=6	1-37355-022-0	04	1	1511-		●
13	COVER; FRT UJT,PROP SHAFT T=6	1-37355-022-0	04	1	1511-		●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M) T=6	1-37355-022-0	12	1	1511-			●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	04	1	1511-	●
14	COVER; DUST,SPIDER (A)	9-37352-023-0	04	1	1511-		●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	08	1	1511-	●
14	COVER; DUST,SPIDER (A)	9-37352-023-0	08	1	1511-		●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	08	1	1511-	●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	16	1	1511-			●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	04	1	1511-			●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	12	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT (A) END PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1511-	●	●
17	NIPPLE; GREASE,PROP SHAFT AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) 1ST PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1511-	●
17	NIPPLE; GREASE,PROP SHAFT (A) 1ST PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1511-		●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) 1ST PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (B) 1ST PT1/8 ELBOW	0-90301-610-0	01	1	1511-	●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (A) 1ST,2ND,END PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) 2ND,3RD PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	03	1	1511-			●
20	BEARING ASM; CTR,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37510-093-3	01	1	1511-	●
20	BEARING ASM; CTR,PROP SHAFT (A)	1-37510-093-3	01	1	1511-		●
20	BEARING ASM; CTR,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37510-093-3	02	1	1511-			●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT(C5T) (B) ID=60	1-37510-115-0	01	1	1511-			●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT(C5T) (B) ID=60	1-37510-115-0	01	1	1511-			●
21	SEAL; OIL,CENTER BRG P60 PROP SHAFT(C2M) (A) D=120	1-09625-126-0	02	1	1511-	●
21	SEAL; OIL,CENTER BRG (A) D=120	1-09625-126-0	02	1	1511-		●
21	SEAL; OIL,CENTER BRG P60 PROP SHAFT(C2M) (A) D=120	1-09625-126-0	04	1	1511-			●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (B) D=120	1-09625-127-0	01	1	1511-			●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (B) D=120	1-09625-127-0	01	1	1511-			●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (C)	1-09625-621-0	01	1	1511-			●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (C)	1-09625-621-0	01	1	1511-			●
22	RUBBER; CUSHION,CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37516-047-2	01	1	1511-	●
22	RUBBER; CUSHION,CENTER BRG,1ST (A)	1-37516-047-2	01	1	1511-		●
22	RUBBER; CUSHION,CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37516-047-2	02	1	1511-			●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT(C5T) (B)	1-37516-048-2	01	1	1511-			●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT(C5T) (B)	1-37516-048-2	01	1	1511-			●
23	BEARING; CENTER,PROP SHAFT P60 PROP SHAFT(C2M) (A)	9-00090-292-0	01	1	1511-	●
23	BEARING; CENTER,PROP SHAFT (A)	9-00090-292-0	01	1	1511-		●
23	BEARING; CENTER,PROP SHAFT P60 PROP SHAFT(C2M) (A)	9-00090-292-0	02	1	1511-			●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT(C5T) (B)	9-00090-256-0	01	1	1511-			●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT(C5T) (B)	9-00090-256-0	01	1	1511-			●
24	RETAINER; CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37529-039-0	01	1	1511-	●
24	RETAINER; CENTER BRG,1ST (A)	1-37529-039-0	01	1	1511-		●
24	RETAINER; CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37529-039-0	02	1	1511-			●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT(C5T) (B)	1-37529-109-0	01	1	1511-			●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT(C5T) (B)	1-37529-109-0	01	1	1511-			●
25	NIPPLE; GREASE,CENTER BRG P60 PROP SHAFT(C2M) MT6 STRAIGHT	1-09380-006-0	01	1	1511-	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1511-		●
25	NIPPLE; GREASE,CENTER BRG P90 PROP SHAFT(C5T) MT6 STRAIGHT	1-09380-006-0	01	1	1511-			●
25	NIPPLE; GREASE,CENTER BRG P90 PROP SHAFT(C5T) MT6 STRAIGHT	1-09380-006-0	01	1	1511-			●
25	NIPPLE; GREASE,CENTER BRG P60 PROP SHAFT(C2M) MT6 STRAIGHT	1-09380-006-0	02	1	1511-			●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT(C2M) (A)	1-37245-283-1	01	1	1511-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST (A)	1-37245-283-1	01	1	1511-		●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT(C2M) (A)	1-37245-283-1	02	1	1511-			●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (B)	1-37245-348-0	01	1	1511-			●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (B)	1-37245-348-0	01	1	1511-			●
51	NUT; FLANGE,SPLINED P60 PROP SHAFT(C2M) (A) M33 FLANGE	1-09449-051-0	01	1	1511-	●
51	NUT; FLANGE,SPLINED (A) M33 FLANGE	1-09449-051-0	01	1	1511-		●
51	NUT; FLANGE,SPLINED P60 PROP SHAFT(C2M) (A) M33 FLANGE	1-09449-051-0	02	1	1511-			●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT(C5T) (B) M39 FLANGE	1-09440-046-0	01	1	1511-			●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT(C5T) (B) M39 FLANGE	1-09440-046-0	01	1	1511-			●
71	NUT; YOKE P60 PROP SHAFT(C2M) (A) M16 FLANGE	1-09449-065-0	04	1	1511-	●		●
71	NUT; YOKE (A) M16 FLANGE	1-09449-065-0	04	1	1511-		●
71	NUT; YOKE P90 PROP SHAFT(C5T) (B) M14 FLANGE	8-97365-444-0	04	1	1511-	●		●
78	BOLT; HOLDER SET,CENTER BRG,1ST PROP P60 PROP SHAFT(C2M) M16X45	1-09042-030-0	02	1	1511-	●
78	BOLT; HOLDER SET,CENTER BRG,1ST PROP M16X45	1-09042-030-0	02	1	1511-		●	●
79	WASHER; PL,HOLDER SET,CENTER BRG P60 PROP SHAFT(C2M) ID=17	1-09503-241-1	02	1	1511-	●
79	WASHER; PL,HOLDER SET,CENTER BRG ID=17	1-09503-241-1	02	1	1511-		●	●
80	NUT; HOLDER SET,CENTER BRG,1ST PROP P60 PROP SHAFT(C2M) M16 SLOTTED	8-98049-689-0	02	1	1511-	●
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	8-98049-689-0	02	1	1511-		●	●
81	PIN; SPLIT,HOLDER SET,CENTER BRG P60 PROP SHAFT(C2M) OD=3.7 L=25	0-81124-025-0	02	1	1511-	●
81	PIN; SPLIT,HOLDER SET,CENTER BRG OD=3.7 L=25	0-81124-025-0	02	1	1511-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
