◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11719 - FVZ AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#170053) — 91 parça

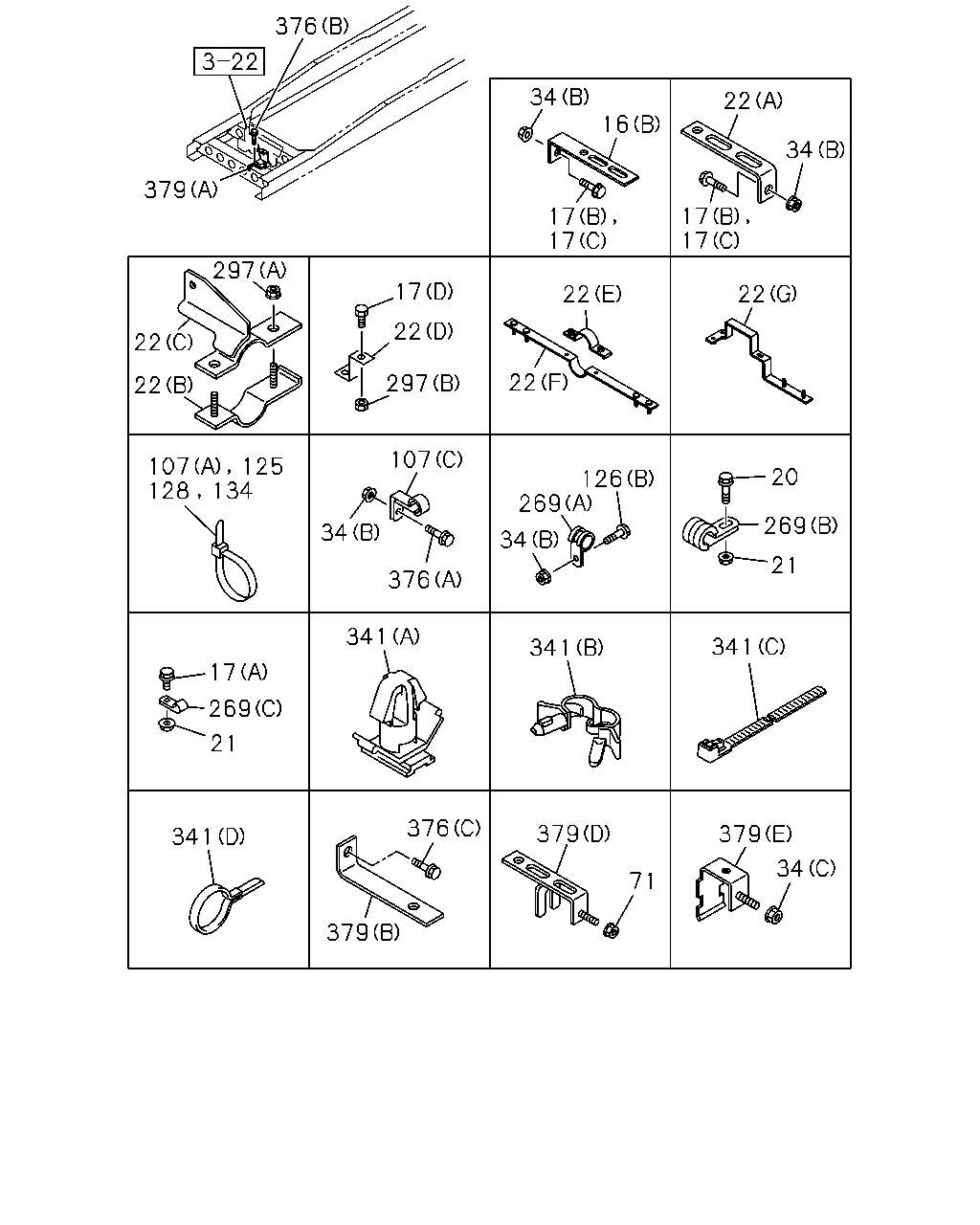

çizim 501478
17 17 17 17 17 17 16 22 22 22 22 22 22 22 34 34 34 34 34 379 379 379 379 297 297 269 269 269 107 126 20 376 341 341 71 341 21 107 125 134 128 341 376 21 376
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; PIPE CLIP
(A) 		1-42119-175-0 01 1 1511- ●
16 BRACKET; PIPE CLIP
(B) L=100 H=30 		1-47477-645-2 01 1 1511- ● ●
17 BOLT; CLIP BRKT
(C) M8X35 FLANGE 		0-28650-835-0 03 1 1511- ●
17 BOLT; CLIP BRKT
(A) M8X10 FLANGE 		0-28050-810-0 02 1 1511- ●
17 BOLT; CLIP BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1511- ●
17 BOLT; CLIP BRKT
(D) M10X35 FLANGE 		0-28651-035-0 01 1 1511- ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 1511- ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1511- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 1511- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1511- ●
22 BRACKET; CLIP
(A) 		1-47479-598-0 03 1 1511- ●
22 BRACKET; CLIP
(B) 		8-98212-967-0 01 1 1511- ●
22 BRACKET; CLIP
(C) 		8-98212-968-0 01 1 1511- ●
22 BRACKET; CLIP
(D) 		1-47475-868-0 01 1 1511- ●
22 BRACKET; CLIP
(E) 		1-47479-546-0 01 1 1511- ●
22 BRACKET; CLIP
(F) 		1-47479-720-0 01 1 1511- ●
22 BRACKET; CLIP
(G) 		1-47479-901-0 01 1 1511- ●
34 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 02 1 1511- ● ●
34 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
34 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 06 1 1511- ● ●
34 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 1511- ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
107 CLIP; NYLON TUBE
H.S.A SYSTEM<6EP> (B) ID=35 L=33 		1-09700-945-0 01 1 1511- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 1511- ● ●
107 CLIP; NYLON TUBE
(C) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1511- ● ●
107 CLIP; NYLON TUBE
EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33 		8-98009-359-0 01 1 1511- ● ●
125 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) L=350 		1-09707-183-0 15 1 1511- ● ●
125 CLIP; NYLON TUBE
L=350 		1-09707-183-0 03 1 1511- ● ●
125 CLIP; NYLON TUBE
L=350 		1-09707-183-0 19 1 1511- ● ●
125 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) L=350 		1-09707-183-0 24 1 1511- ● ●
125 CLIP; NYLON TUBE
L=350 		1-09707-183-0 05 1 1511- ● ●
125 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) L=350 		1-09707-183-0 23 1 1511- ●
125 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W) L=350 		1-09707-183-0 18 1 1511- ●
126 BOLT; CLIP BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1511- ●
126 BOLT; CLIP BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1511- ● ●
128 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) L=350 		1-09707-183-0 02 1 1511- ●
128 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) L=350 		1-09707-183-0 03 1 1511- ●
128 CLIP; NYLON TUBE
DIFF LOCK<C3N> L=350 		1-09707-183-0 05 1 1511- ●
128 CLIP; NYLON TUBE
EXC. DIFF LOCK<C3N> L=350 		1-09707-183-0 04 1 1511- ●
134 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 1511- ● ●
269 CLIP; BAND,NYLON TUBE
(A) ID=13 L=50 		0-95235-286-0 01 1 1511- ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 03 1 1511- ●
269 CLIP; BAND,NYLON TUBE
(C) ID=39 L=33 		8-98009-359-0 03 1 1511- ●
297 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 05 1 1511- ●
297 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1511- ●
341 CLIP; HARNESS
(D) ID=11 L=61 		1-09700-484-0 01 1 1511- ● ●
341 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 02 1 1511- ● ●
341 CLIP; HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 1511- ● ●
341 CLIP; HARNESS
(C) L=250 		5-09707-030-1 05 1 1511- ● ●
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1511- ● ●
376 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1511- ● ●
376 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 02 1 1511- ● ●
379 BRACKET; NYLON TUBE
(F) 		8-98044-013-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(A) 		8-98074-610-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(B) L=65 B=25 		8-98135-584-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(C) L=60 H=30 		1-47477-716-1 02 1 1511- ● ●
379 BRACKET; NYLON TUBE
(D) 		8-98177-873-0 04 1 1511- ● ●
379 BRACKET; NYLON TUBE
(E) 		8-98186-380-0 01 1 1511- ● ●
çizim 501639
16 126
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; PIPE CLIP
(A) 		1-42119-175-0 01 1 1511- ●
16 BRACKET; PIPE CLIP
(B) L=100 H=30 		1-47477-645-2 01 1 1511- ● ●
126 BOLT; CLIP BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1511- ●
126 BOLT; CLIP BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1511- ● ●

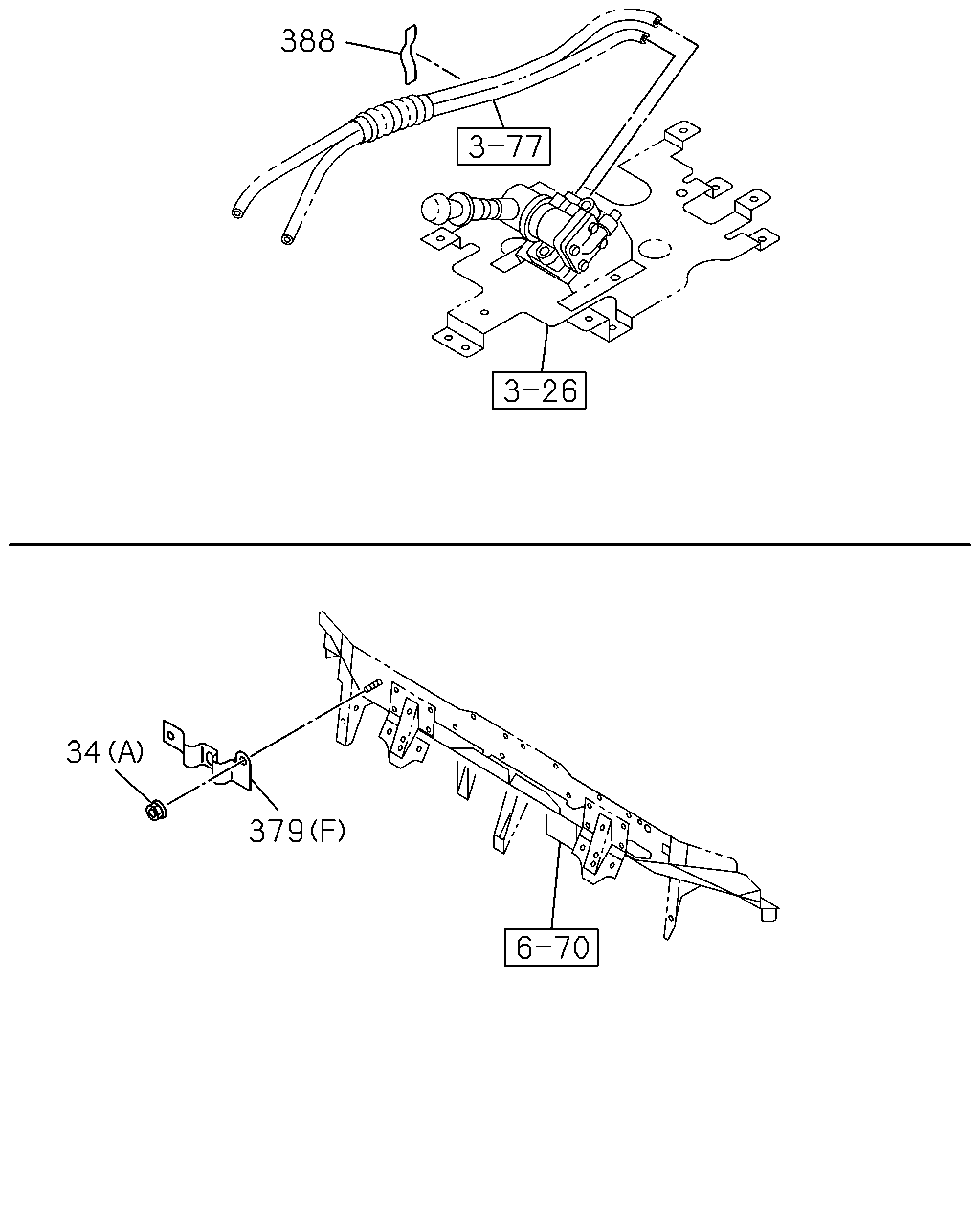

çizim 502039
388 34 379
BalonParca AdiParca NoAdetTipApplied Date A B
34 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 02 1 1511- ● ●
34 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
34 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 06 1 1511- ● ●
34 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(F) 		8-98044-013-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(A) 		8-98074-610-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(B) L=65 B=25 		8-98135-584-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(C) L=60 H=30 		1-47477-716-1 02 1 1511- ● ●
379 BRACKET; NYLON TUBE
(D) 		8-98177-873-0 04 1 1511- ● ●
379 BRACKET; NYLON TUBE
(E) 		8-98186-380-0 01 1 1511- ● ●
388 SEAL
100X40 		1-72498-022-1 03 1 1511- ● ●
388 SEAL
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 180X40 		1-72498-019-1 02 1 1511- ● ●

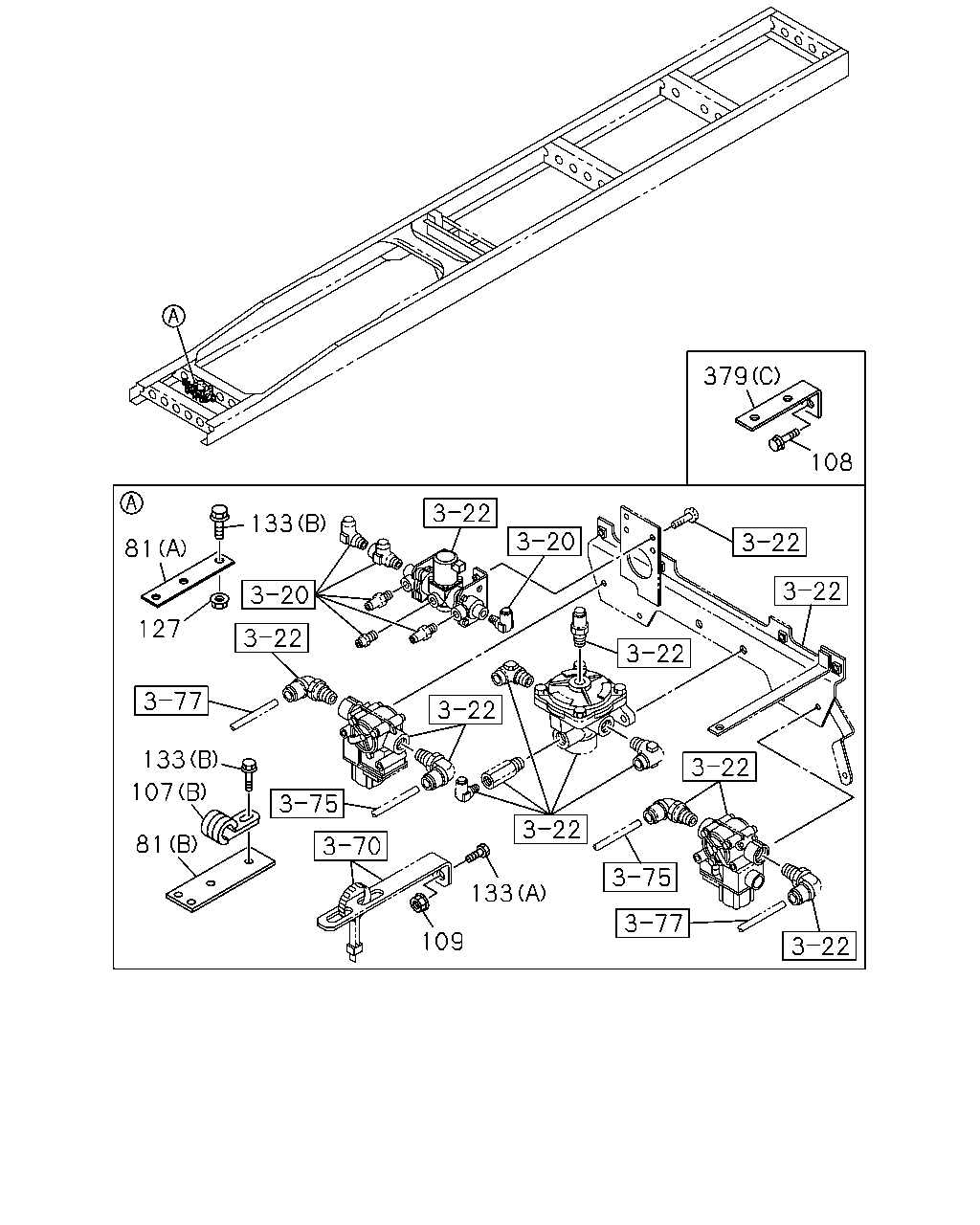

çizim 502458
379 108 133 81 133 81 133 109 107 127
BalonParca AdiParca NoAdetTipApplied Date A B
81 BRACKET; CLIP
(A) L=170 		1-47479-380-0 01 1 1511- ● ●
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 1511- ● ●
107 CLIP; NYLON TUBE
H.S.A SYSTEM<6EP> (B) ID=35 L=33 		1-09700-945-0 01 1 1511- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 1511- ● ●
107 CLIP; NYLON TUBE
(C) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1511- ● ●
107 CLIP; NYLON TUBE
EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33 		8-98009-359-0 01 1 1511- ● ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1511- ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
133 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1511- ● ●
133 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1511- ● ●
379 BRACKET; NYLON TUBE
(F) 		8-98044-013-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(A) 		8-98074-610-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(B) L=65 B=25 		8-98135-584-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(C) L=60 H=30 		1-47477-716-1 02 1 1511- ● ●
379 BRACKET; NYLON TUBE
(D) 		8-98177-873-0 04 1 1511- ● ●
379 BRACKET; NYLON TUBE
(E) 		8-98186-380-0 01 1 1511- ● ●
