3-77 — BRAKE PIPING; AIR,REAR (#170052) — 135 parça

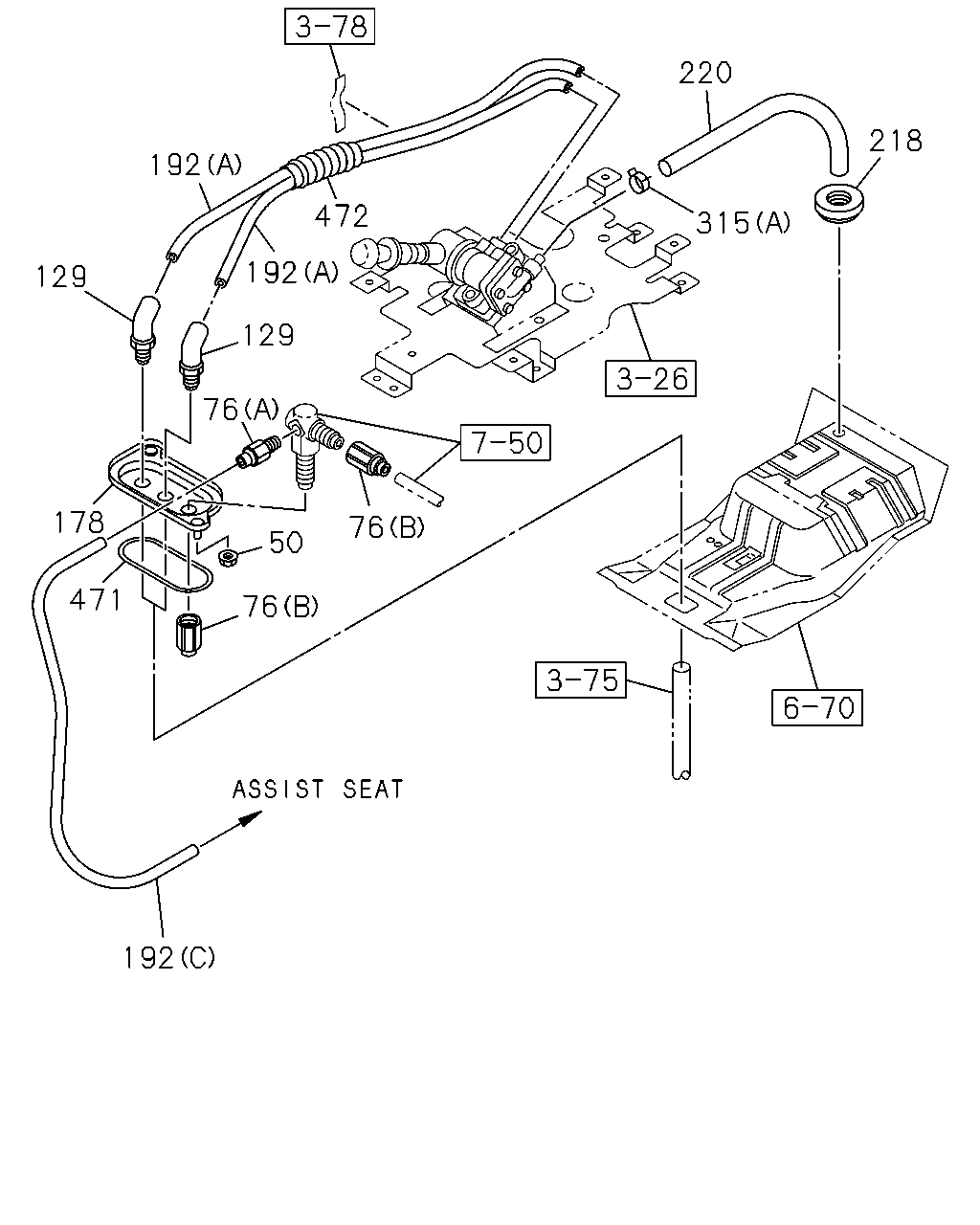

çizim 502478
220 218 129 471 50 472 178 192 129 192 315 192 76 76 76
BalonParca AdiParca NoAdetTipApplied Date A B
50 NUT; UNION BRKT
M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
76 ADAPTER; NYLON TUBE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 1511- ● ●
76 ADAPTER; NYLON TUBE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1511- ● ●
129 CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW 		8-97611-963-1 02 1 1511- ● ●
178 BRACKET; UNION 8-98017-054-1 01 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1511- ● ●
192 TUBE; NYLON
(B) L=220 OD=12 		8-98107-956-0 01 1 1511- ●
192 TUBE; NYLON
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (C) 		8-98232-700-2 01 1 1511- ● ●
218 GROMMET; VINYL HOSE
OD=24 		9-61166-007-0 01 1 1511- ● ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 1511- ● ●
315 CLIP
DIFF LOCK<C3N> (C) ID=33 L=30 		8-97619-250-0 03 1 1511- ●
315 CLIP
WHEEL BASE 5000MM(50W) (B) L=350 		1-09707-183-0 11 1 1511- ●
315 CLIP
WHEEL BASE 7100MM(71W) (B) L=350 		1-09707-183-0 13 1 1511- ● ●
315 CLIP
(B) L=350 		1-09707-183-0 01 1 1511- ●
315 CLIP
(B) L=350 		1-09707-183-0 02 1 1511- ● ●
315 CLIP
EXC. DIFF LOCK<C3N> (C) ID=28 L=40 		1-09701-261-0 03 1 1511- ●
315 CLIP
WHEEL BASE 5000MM(50W) (B) L=350 		1-09707-183-0 08 1 1511- ●
315 CLIP
WHEEL BASE 5900MM(59W) (B) L=350 		1-09707-183-0 09 1 1511- ●
315 CLIP
(D) ID=39 L=33 		8-98009-359-0 03 1 1511- ●
315 CLIP
(A) ID=14 		8-94238-572-0 01 1 1511- ● ●
471 SEAL; BRKT 1-79738-832-0 01 1 1511- ● ●
472 TUBE; SPUTTER 8-98067-708-0 01 1 1511- ● ●

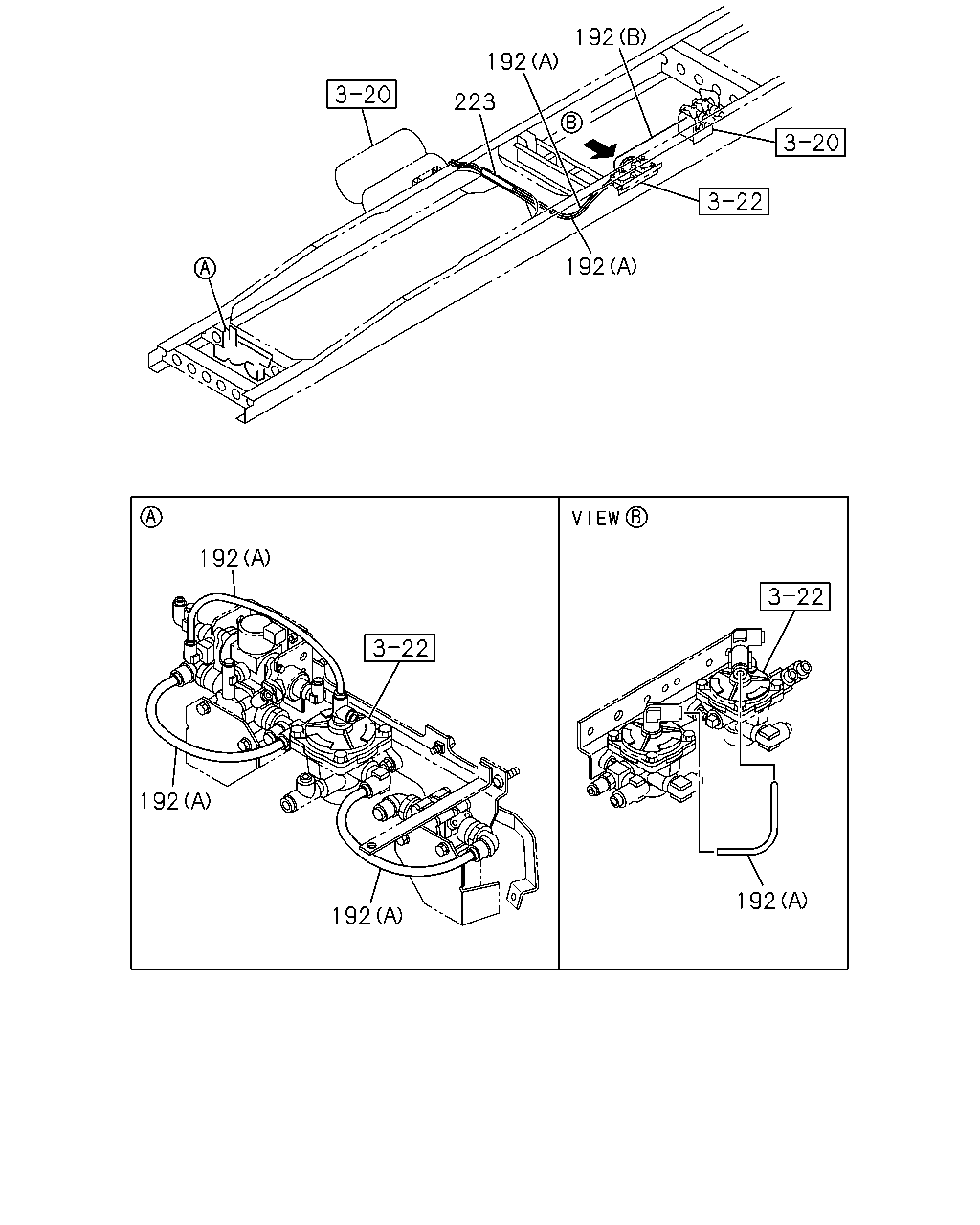

çizim 502526
192 192 192 192 192 192 192 223
BalonParca AdiParca NoAdetTipApplied Date A B
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1511- ● ●
192 TUBE; NYLON
(B) L=220 OD=12 		8-98107-956-0 01 1 1511- ●
192 TUBE; NYLON
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (C) 		8-98232-700-2 01 1 1511- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1511- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1511- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1511- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1511- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1511- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 1511- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1511- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 1511- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=28 		1-87411-034-0 AR 1 1511- ● ●

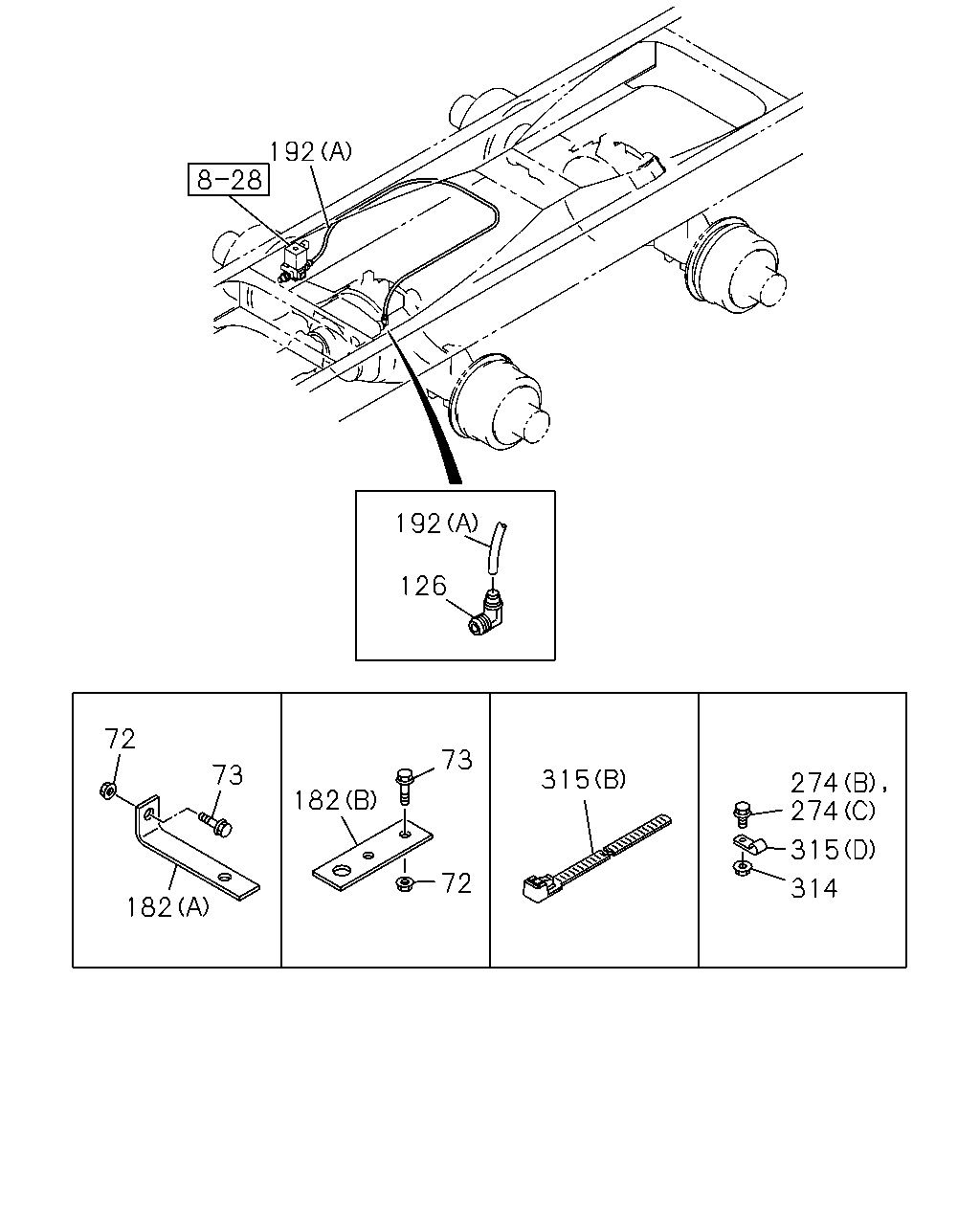

çizim 502589
72 73 315 274 274 315 314 182 73 72 182 192 126 192
BalonParca AdiParca NoAdetTipApplied Date A B
72 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 1511- ●
72 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1511- ●
73 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 1511- ●
126 UNION; NYLON TUBE
DIFF LOCK<C3N> DIN8 & R1/4 ELBOW 		1-09661-209-0 02 1 1511- ● ●
126 UNION; NYLON TUBE
DIN8 & R1/4 ELBOW 		1-09661-209-0 01 1 1511- ● ●
182 BRACKET; TUBE CLIP
(A) 		1-34656-009-0 02 1 1511- ●
182 BRACKET; TUBE CLIP
(B) L=100 		1-47477-620-1 01 1 1511- ●
182 BRACKET; TUBE CLIP
(C) 		8-98212-967-0 01 1 1511- ●
182 BRACKET; TUBE CLIP
(D) 		8-98212-968-0 01 1 1511- ●
182 BRACKET; TUBE CLIP
(E) 		1-47479-546-0 01 1 1511- ●
182 BRACKET; TUBE CLIP
(F) 		1-47479-720-0 01 1 1511- ●
182 BRACKET; TUBE CLIP
(G) 		1-47479-815-0 01 1 1511- ●
182 BRACKET; TUBE CLIP
(H) 		1-47479-901-0 01 1 1511- ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1511- ● ●
192 TUBE; NYLON
(B) L=220 OD=12 		8-98107-956-0 01 1 1511- ●
192 TUBE; NYLON
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (C) 		8-98232-700-2 01 1 1511- ● ●
274 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1511- ●
274 BOLT; BRKT
(D) M8X35 FLANGE 		0-28650-835-0 02 1 1511- ●
274 BOLT; BRKT
(A) M8X10 FLANGE 		0-28050-810-0 02 1 1511- ●
274 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1511- ●
274 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1511- ●
314 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1511- ● ●
315 CLIP
DIFF LOCK<C3N> (C) ID=33 L=30 		8-97619-250-0 03 1 1511- ●
315 CLIP
WHEEL BASE 5000MM(50W) (B) L=350 		1-09707-183-0 11 1 1511- ●
315 CLIP
WHEEL BASE 7100MM(71W) (B) L=350 		1-09707-183-0 13 1 1511- ● ●
315 CLIP
(B) L=350 		1-09707-183-0 01 1 1511- ●
315 CLIP
(B) L=350 		1-09707-183-0 02 1 1511- ● ●
315 CLIP
EXC. DIFF LOCK<C3N> (C) ID=28 L=40 		1-09701-261-0 03 1 1511- ●
315 CLIP
WHEEL BASE 5000MM(50W) (B) L=350 		1-09707-183-0 08 1 1511- ●
315 CLIP
WHEEL BASE 5900MM(59W) (B) L=350 		1-09707-183-0 09 1 1511- ●
315 CLIP
(D) ID=39 L=33 		8-98009-359-0 03 1 1511- ●
315 CLIP
(A) ID=14 		8-94238-572-0 01 1 1511- ● ●

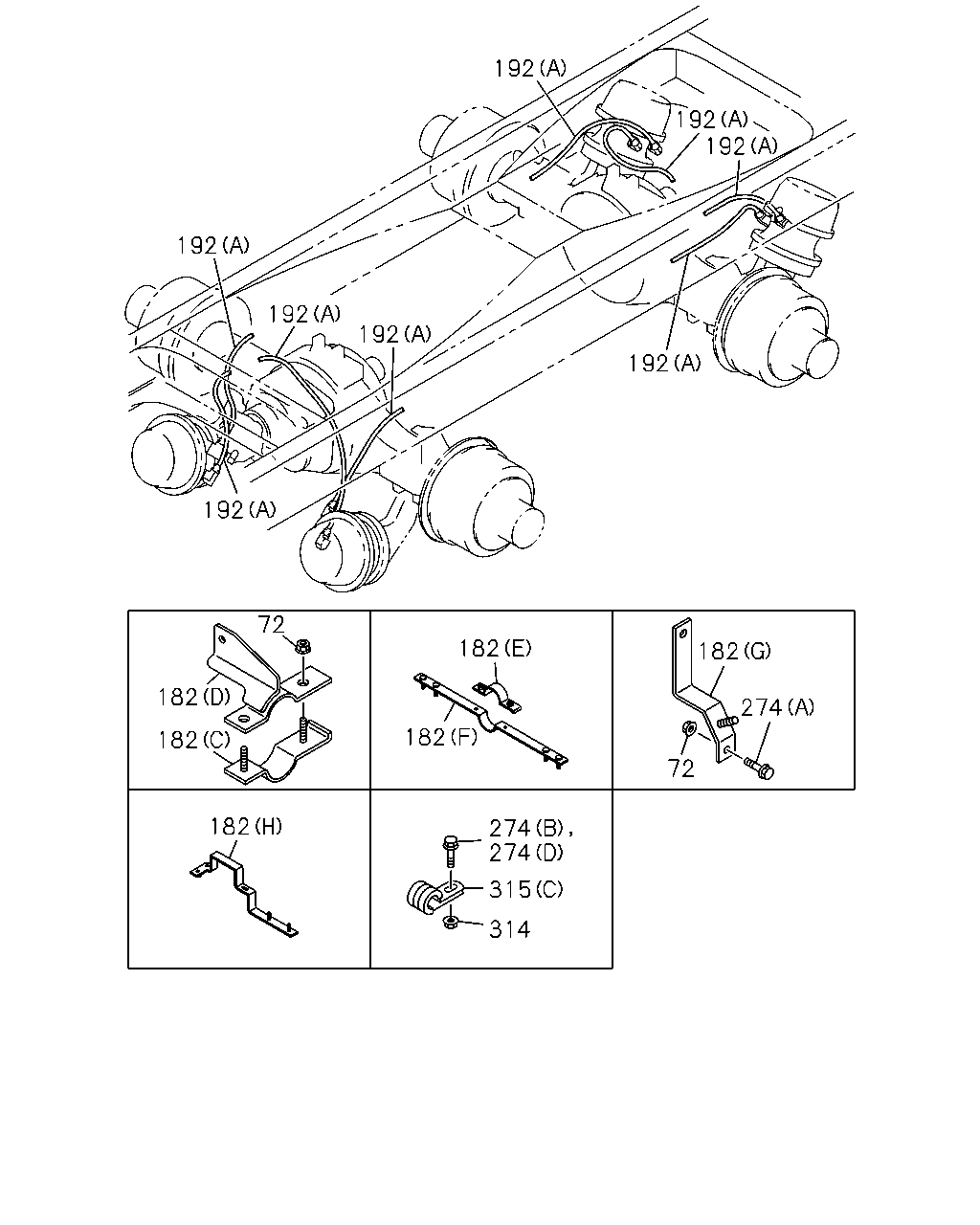

çizim 502648
192 192 192 192 192 192 192 182 274 72 274 274 315 314 182 182 72 192 182 182 182
BalonParca AdiParca NoAdetTipApplied Date A B
72 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 1511- ●
72 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1511- ●
182 BRACKET; TUBE CLIP
(A) 		1-34656-009-0 02 1 1511- ●
182 BRACKET; TUBE CLIP
(B) L=100 		1-47477-620-1 01 1 1511- ●
182 BRACKET; TUBE CLIP
(C) 		8-98212-967-0 01 1 1511- ●
182 BRACKET; TUBE CLIP
(D) 		8-98212-968-0 01 1 1511- ●
182 BRACKET; TUBE CLIP
(E) 		1-47479-546-0 01 1 1511- ●
182 BRACKET; TUBE CLIP
(F) 		1-47479-720-0 01 1 1511- ●
182 BRACKET; TUBE CLIP
(G) 		1-47479-815-0 01 1 1511- ●
182 BRACKET; TUBE CLIP
(H) 		1-47479-901-0 01 1 1511- ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1511- ● ●
192 TUBE; NYLON
(B) L=220 OD=12 		8-98107-956-0 01 1 1511- ●
192 TUBE; NYLON
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (C) 		8-98232-700-2 01 1 1511- ● ●
274 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1511- ●
274 BOLT; BRKT
(D) M8X35 FLANGE 		0-28650-835-0 02 1 1511- ●
274 BOLT; BRKT
(A) M8X10 FLANGE 		0-28050-810-0 02 1 1511- ●
274 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1511- ●
274 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1511- ●
314 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1511- ● ●
315 CLIP
DIFF LOCK<C3N> (C) ID=33 L=30 		8-97619-250-0 03 1 1511- ●
315 CLIP
WHEEL BASE 5000MM(50W) (B) L=350 		1-09707-183-0 11 1 1511- ●
315 CLIP
WHEEL BASE 7100MM(71W) (B) L=350 		1-09707-183-0 13 1 1511- ● ●
315 CLIP
(B) L=350 		1-09707-183-0 01 1 1511- ●
315 CLIP
(B) L=350 		1-09707-183-0 02 1 1511- ● ●
315 CLIP
EXC. DIFF LOCK<C3N> (C) ID=28 L=40 		1-09701-261-0 03 1 1511- ●
315 CLIP
WHEEL BASE 5000MM(50W) (B) L=350 		1-09707-183-0 08 1 1511- ●
315 CLIP
WHEEL BASE 5900MM(59W) (B) L=350 		1-09707-183-0 09 1 1511- ●
315 CLIP
(D) ID=39 L=33 		8-98009-359-0 03 1 1511- ●
315 CLIP
(A) ID=14 		8-94238-572-0 01 1 1511- ● ●
