◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11719 - FVZ AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-41 - REAR BRAKE POWER CHAMBER ▶
3-41 — REAR BRAKE POWER CHAMBER (#170047) — 11 parça

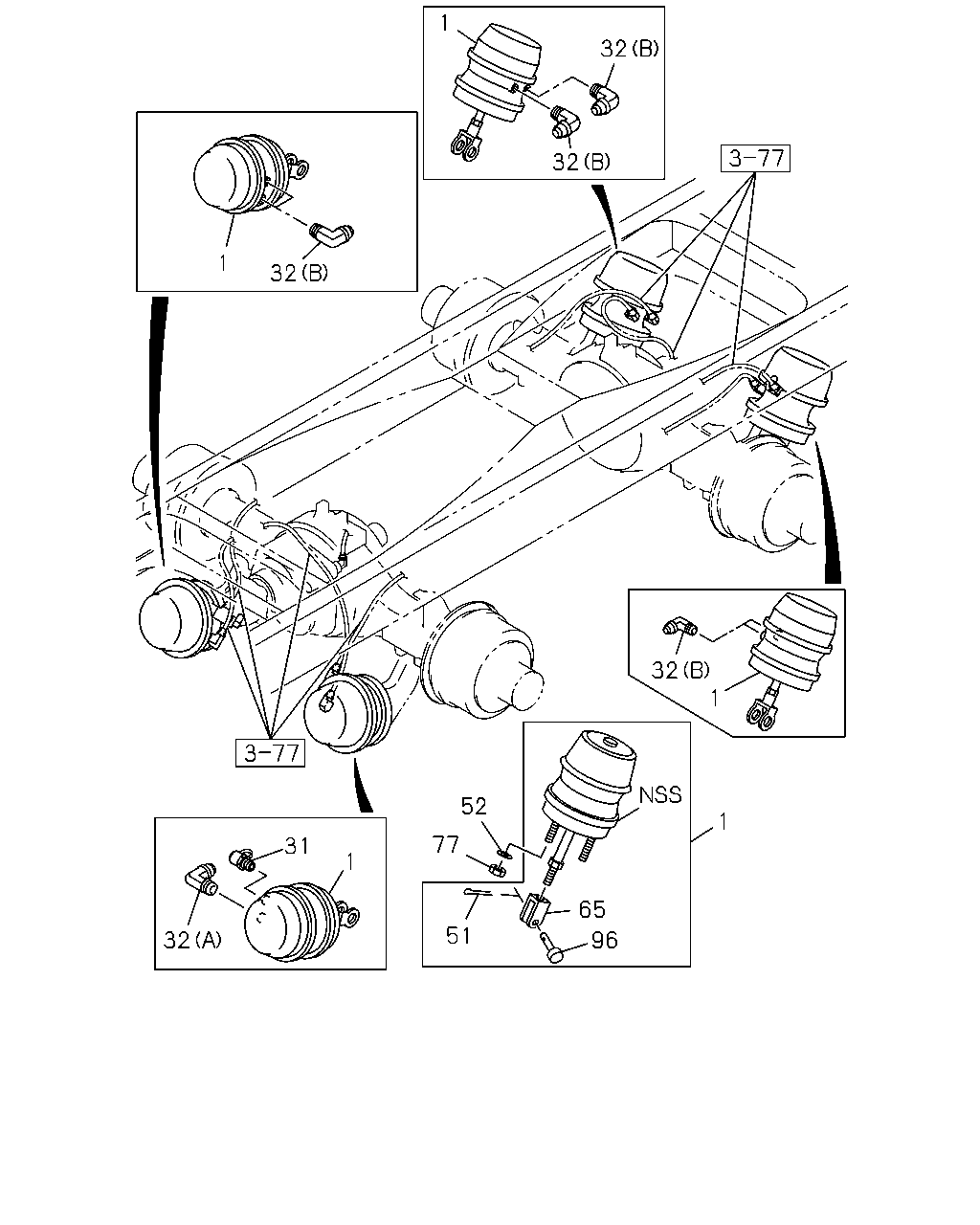

çizim 502276
1 32 32 1 32 32 1 1 65 96 51 32 31 1 77 52
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; SPRING 1-48250-957-0 02 1 1511- ● ●
1 CHAMBER ASM; SPRING 1-48250-958-0 02 1 1511- ● ●
31 CONNECTOR
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1511- ● ●
32 CONNECTOR; SPR CHAMBER
(A) DIN12 & NPTF3/8 & RC1/4 3WAY 		1-09660-804-0 01 1 1511- ● ●
32 CONNECTOR; SPR CHAMBER
(B) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 03 1 1511- ● ●
32 CONNECTOR; SPR CHAMBER
(B) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 04 1 1511- ● ●
51 PIN; SPLIT 1-48259-275-0 04 1 1511- ● ●
52 WASHER; PL 1-41519-038-0 08 1 1511- ● ●
65 JOINT; JAW 1-48259-321-0 04 1 1511- ● ●
77 NUT; SPR CHAMBER BRK 1-87050-052-0 08 1 1511- ● ●
96 PIN; JAW JOINT 1-48259-273-0 04 1 1511- ● ●
