Sayfa 3-22 - Isuzu EPC

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	241	REPAIR KIT; PROTECTION VALVE	1-85576-451-2	01	1	1511-	●	●

10 65 63 1 10 58 58 10 213 213 213 213 6 62 58 10 10 25 10 58 10 65 62 4 73 8 10 12 52 272 12 10 12 1 2 134 182 134 182 10 12 10 12 1 2 10 12 5 63 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

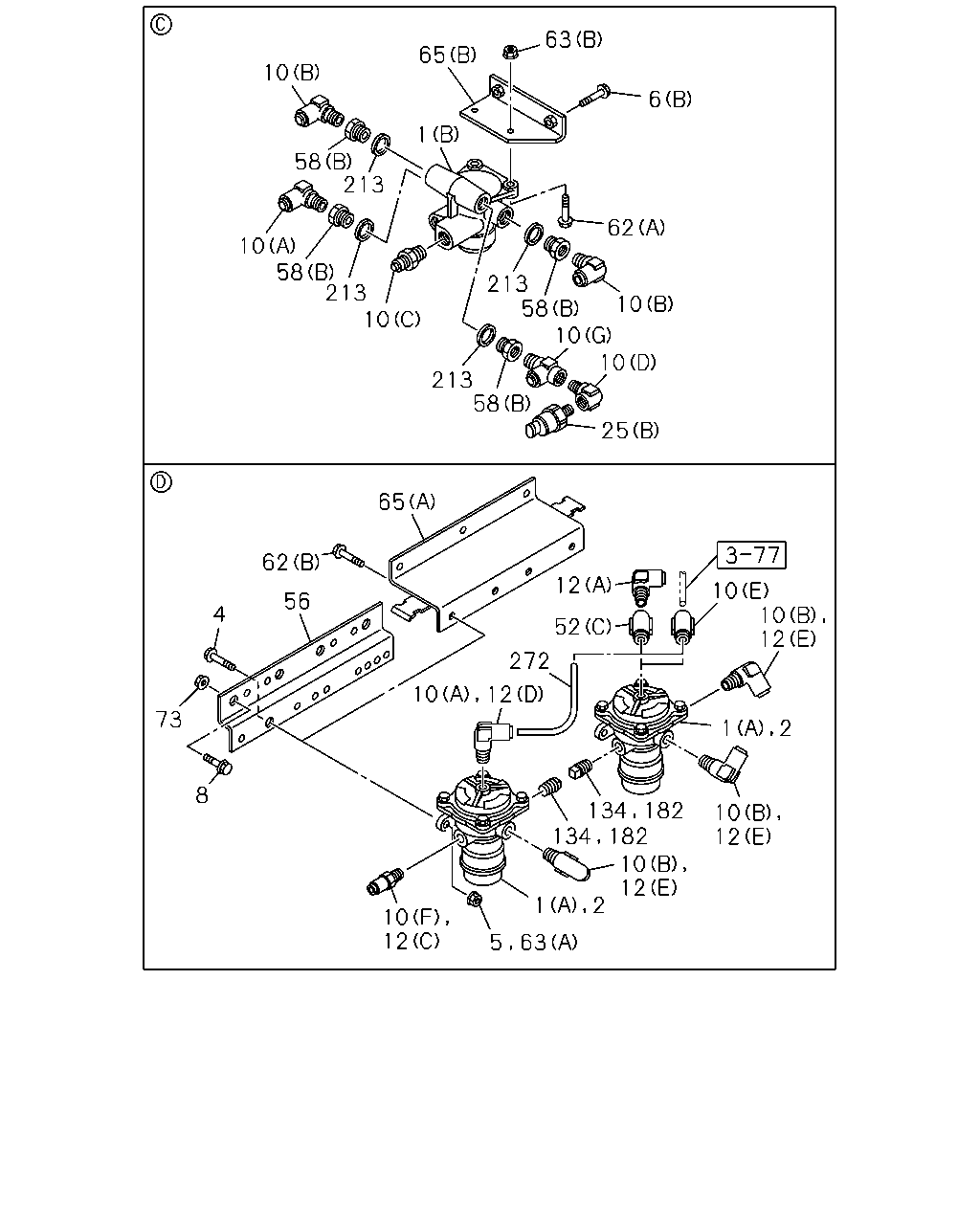

1	VALVE; RELAY RWD RR (A)	1-48210-997-0	02	1	1511-	●
1	VALVE; RELAY RWD RR (B)	1-48240-354-1	01	1	1511-	●	●
2	VALVE; RELAY	1-48210-997-0	02	1	1511-		●
2	VALVE; RELAY	1-48210-997-0	01	1	1511-	●	●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	04	1	1511-		●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	02	1	1511-	●	●
5	NUT M10 FLANGE	0-91180-210-0	04	1	1511-		●
5	NUT M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
6	BOLT; VLV (B) M8X35 FLANGE	0-28650-835-0	02	1	1511-	●	●
6	BOLT; VLV (A) M8X85	1-09044-074-0	04	1	1511-	●	●
8	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	03	1	1511-	●	●
10	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1511-	●
10	CONNECTOR (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1511-	●
10	CONNECTOR (E) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	1511-	●
10	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1511-	●	●
10	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1511-	●
10	CONNECTOR (D) PT1/4 2WAY	1-09660-693-0	01	1	1511-	●	●
10	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1511-	●	●
10	CONNECTOR (C) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	1511-	●	●
10	CONNECTOR (G) DIN8 & RC1/4 & R3/8 3WAY	1-09661-536-0	01	1	1511-	●	●
12	CONNECTOR; RELAY VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1511-		●
12	CONNECTOR; RELAY VLV (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1511-		●
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1511-		●
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1511-		●
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1511-	●	●
12	CONNECTOR; RELAY VLV (B) M12 & M8 & RC3/8 3WAY	1-09661-207-0	01	1	1511-	●	●
25	SWITCH; PRESSURE (A) STAMP 5.5	8-97609-249-0	01	1	1511-	●	●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-2	01	1	1511-	●	●
52	CONNECTOR; RELAY VLV H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1511-	●	●
52	CONNECTOR; RELAY VLV (C) DIN8 & RC1/4 & R3/8 3WAY	8-97620-116-0	01	1	1511-		●
52	CONNECTOR; RELAY VLV EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	1511-	●	●
56	BRACKET; RELAY VLV	1-47479-937-0	01	1	1511-		●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1511-	●	●
58	ADAPTER (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1511-	●	●
58	ADAPTER (C)	1-48219-154-0	02	1	1511-	●	●
58	ADAPTER (C)	1-48219-154-0	01	1	1511-	●	●
62	BOLT; BRKT FIX (B) M10X35 FLANGE	0-28651-035-0	04	1	1511-	●
62	BOLT; BRKT FIX (A) M8X30 FLANGE	0-28650-830-0	02	1	1511-	●	●
62	BOLT; BRKT FIX (C) M8X25 FLANGE	0-28650-825-0	04	1	1511-	●	●
63	NUT; BRKT FIX (A) M10 FLANGE	0-91180-210-0	04	1	1511-	●
63	NUT; BRKT FIX (B) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
63	NUT; BRKT FIX (B) M8 FLANGE	0-91180-108-0	04	1	1511-	●	●
65	BRACKET; RELAY VLV RR (A)	8-98131-580-0	01	1	1511-	●
65	BRACKET; RELAY VLV RR (B)	8-98234-337-0	01	1	1511-	●	●
73	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	1511-	●	●
134	PLUG; RELAY VALVE PT3/8	9-09204-517-0	02	1	1511-	●
182	PLUG; RELAY VLV PT3/8	9-09204-517-0	02	1	1511-		●
213	GASKET ID=22.5	9-09571-422-0	04	1	1511-	●	●
272	TUBE ASM; NYLON,UNION TO UNION SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1511-	●

106 107 4 71 52 108 286 52 12 108 286 108 6 96 6 108 287 12 5 12 287 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

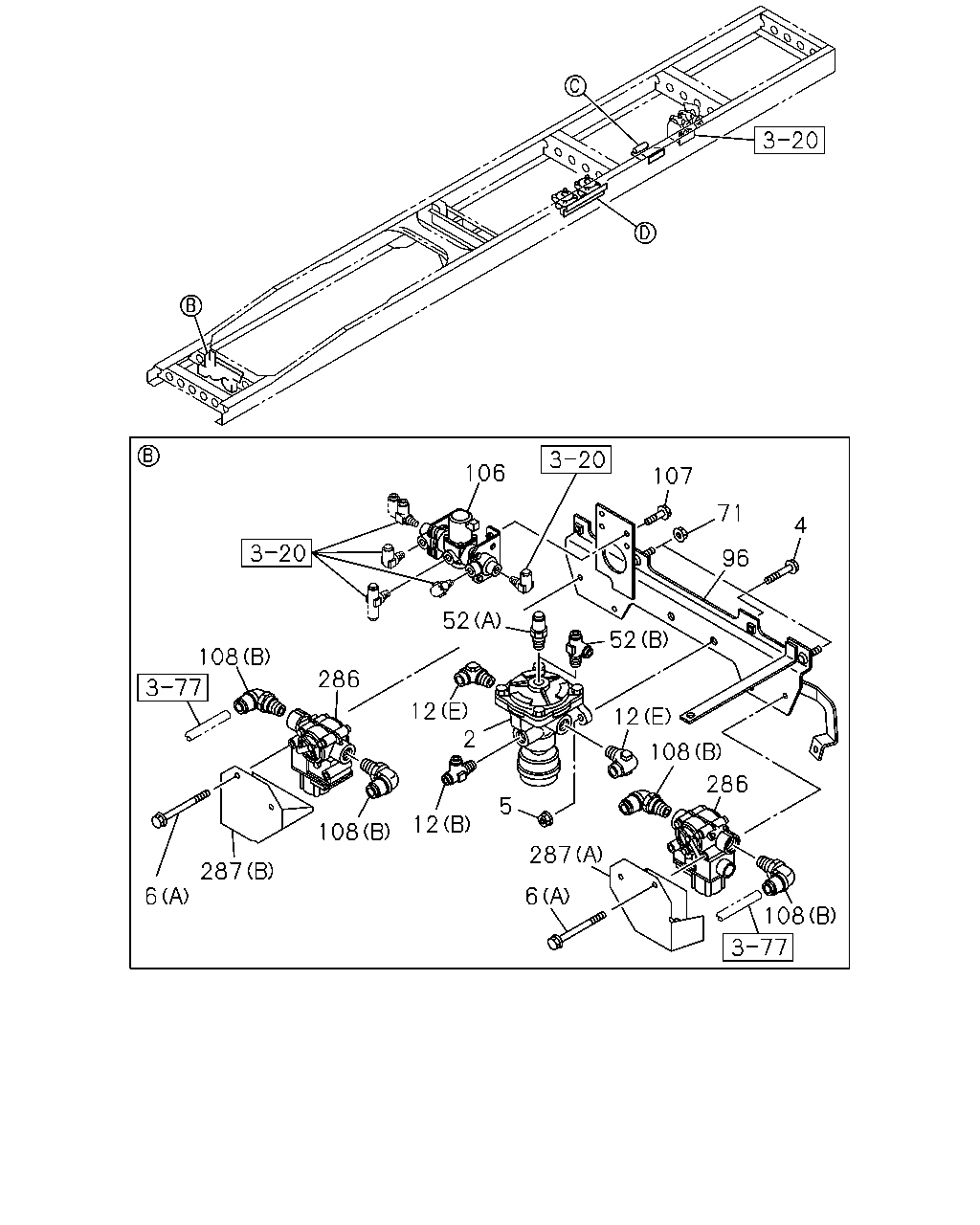

2	VALVE; RELAY	1-48210-997-0	02	1	1511-		●
2	VALVE; RELAY	1-48210-997-0	01	1	1511-	●	●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	04	1	1511-		●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	02	1	1511-	●	●
5	NUT M10 FLANGE	0-91180-210-0	04	1	1511-		●
5	NUT M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
6	BOLT; VLV (B) M8X35 FLANGE	0-28650-835-0	02	1	1511-	●	●
6	BOLT; VLV (A) M8X85	1-09044-074-0	04	1	1511-	●	●
12	CONNECTOR; RELAY VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1511-		●
12	CONNECTOR; RELAY VLV (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1511-		●
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1511-		●
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1511-		●
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1511-	●	●
12	CONNECTOR; RELAY VLV (B) M12 & M8 & RC3/8 3WAY	1-09661-207-0	01	1	1511-	●	●
52	CONNECTOR; RELAY VLV H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1511-	●	●
52	CONNECTOR; RELAY VLV (C) DIN8 & RC1/4 & R3/8 3WAY	8-97620-116-0	01	1	1511-		●
52	CONNECTOR; RELAY VLV EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	1511-	●	●
71	NUT; AIR VLV M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
96	BRACKET	8-98273-496-0	01	1	1511-	●	●
106	VALVE; HSA H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	1511-	●	●
107	BOLT; VLV H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	04	1	1511-	●	●
108	CONNECTOR; ELBOW (C) PT3/8 ELBOW	1-09660-696-0	01	1	1511-	●	●
108	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1511-	●	●
108	CONNECTOR; ELBOW (B) DIN12 & M22 ELBOW	1-09661-497-0	04	1	1511-	●	●
286	MODULATOR; FRT	8-98215-454-0	02	1	1511-	●	●
287	COVER; MODULATOR (B)	8-98273-493-0	01	1	1511-	●	●
287	COVER; MODULATOR (A)	8-98273-494-0	01	1	1511-	●	●

54 59 19 54 13 54 63 62 216 262 157 13 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

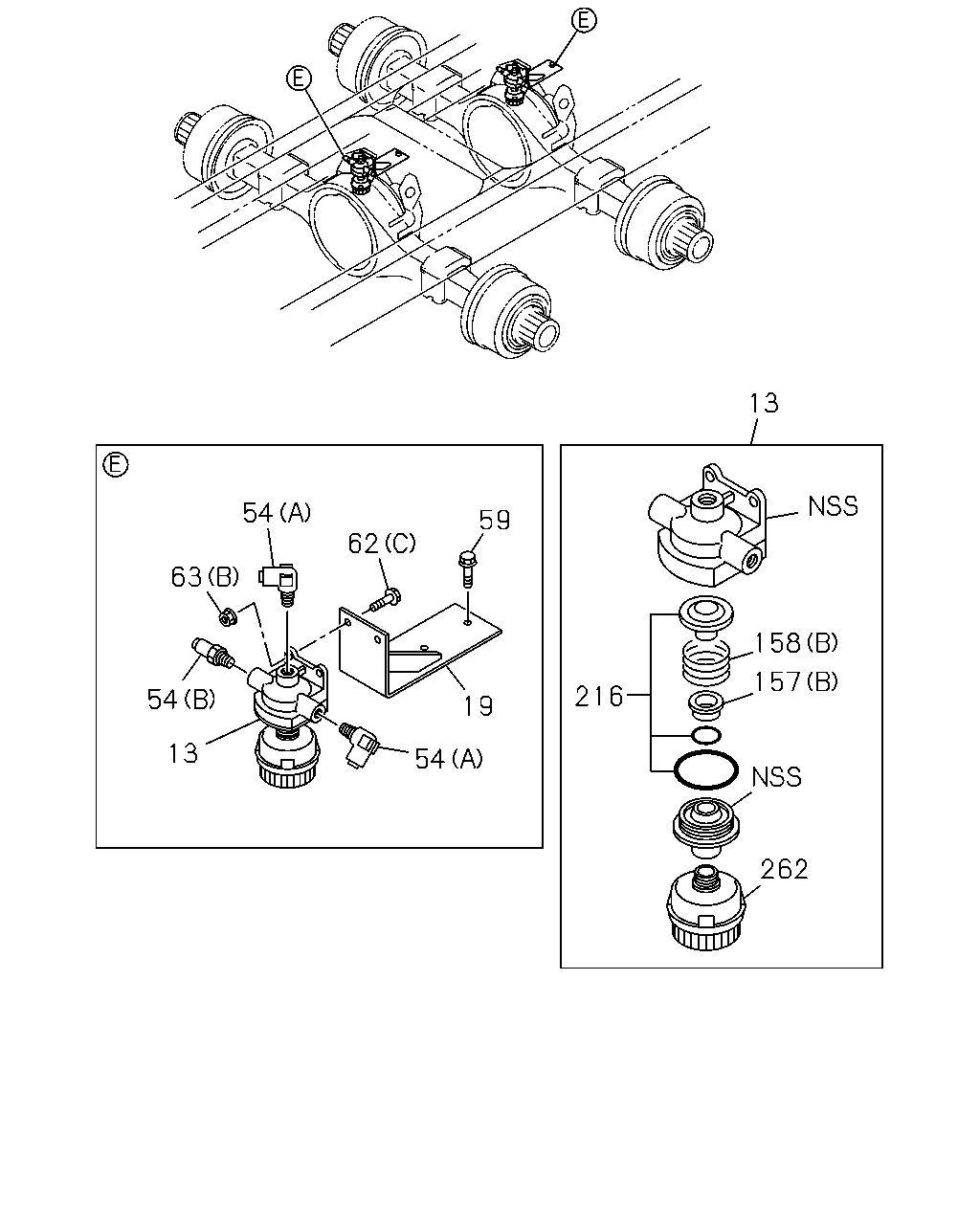

13	VALVE ASM; QUICK RELEASE	8-98170-207-0	02	1	1511-	●	●
19	BRACKET; QUICK RELEASE VLV REARWARD	8-98033-795-0	01	1	1511-	●
19	BRACKET; QUICK RELEASE VLV FORWARD	8-98069-343-0	01	1	1511-	●
19	BRACKET; QUICK RELEASE VLV	8-98033-795-0	02	1	1511-		●
54	CONNECTOR; QUICK RELEASE VLV (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1511-	●	●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1511-	●	●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28050-816-0	04	1	1511-	●	●
62	BOLT; BRKT FIX (B) M10X35 FLANGE	0-28651-035-0	04	1	1511-	●
62	BOLT; BRKT FIX (A) M8X30 FLANGE	0-28650-830-0	02	1	1511-	●	●
62	BOLT; BRKT FIX (C) M8X25 FLANGE	0-28650-825-0	04	1	1511-	●	●
63	NUT; BRKT FIX (A) M10 FLANGE	0-91180-210-0	04	1	1511-	●
63	NUT; BRKT FIX (B) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
63	NUT; BRKT FIX (B) M8 FLANGE	0-91180-108-0	04	1	1511-	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	1511-	●	●
157	RETAINER; VALVE (B)	1-48419-020-0	02	1	1511-	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	1511-	●	●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	1511-	●	●
158	SPRING; VALVE (B)	9-48419-003-0	02	1	1511-	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	1511-	●	●
216	REPAIR KIT; QUICK RELEASE VLV	8-98171-596-0	02	1	1511-	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	02	1	1511-	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	02	1	1511-	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1511-	●	●

102 105 99 108 231 108 167 103 232 25 220 108 102 220 58 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

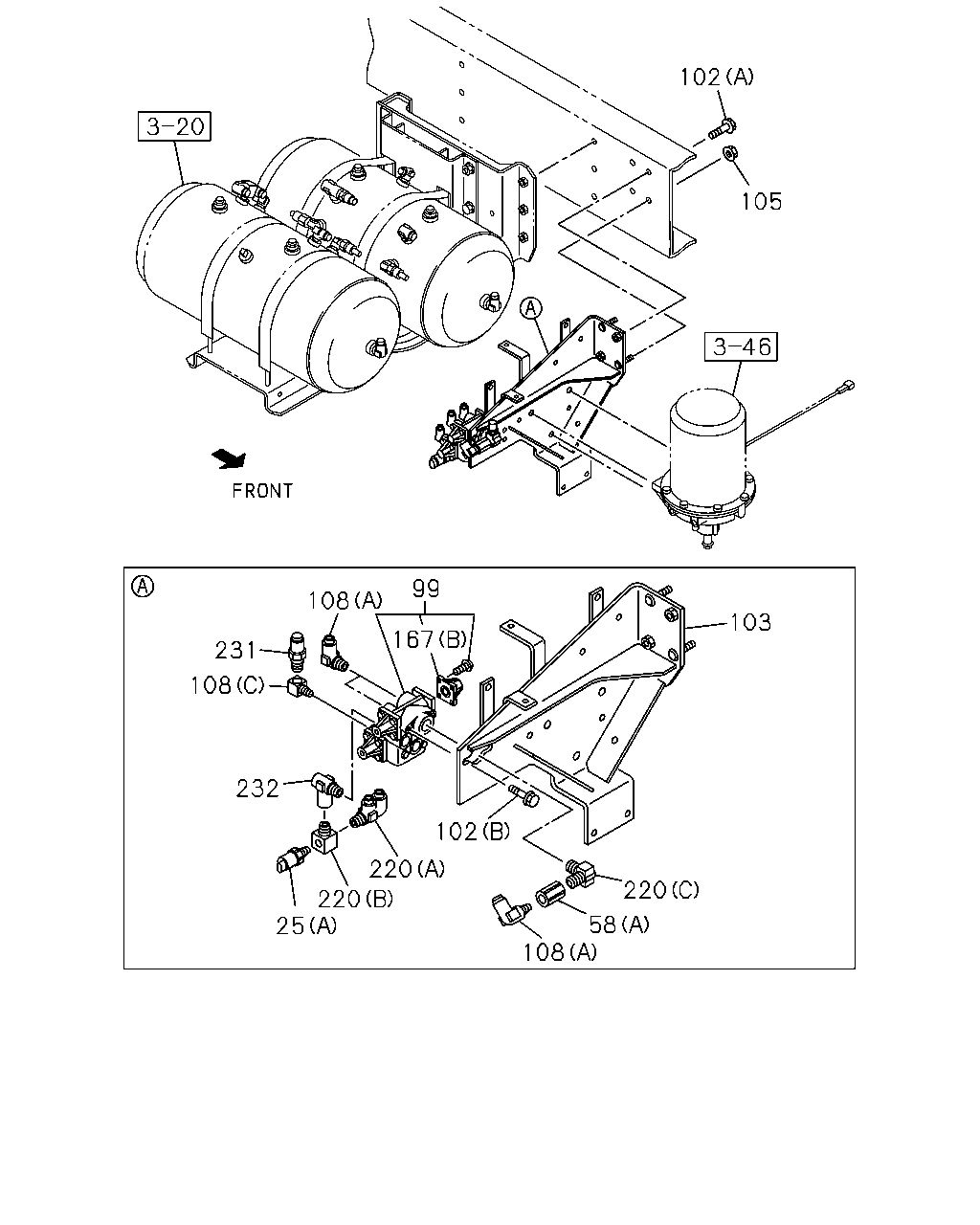

25	SWITCH; PRESSURE (A) STAMP 5.5	8-97609-249-0	01	1	1511-	●	●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-2	01	1	1511-	●	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1511-	●	●
58	ADAPTER (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1511-	●	●
58	ADAPTER (C)	1-48219-154-0	02	1	1511-	●	●
58	ADAPTER (C)	1-48219-154-0	01	1	1511-	●	●
99	VALVE; PROTECTION	1-48110-294-3	01	1	1511-	●	●
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
102	BOLT; PROTECTION VALVE (A) M10X35 FLANGE	0-28651-035-0	02	1	1511-	●	●
103	BRACKET; PROTECTION VALVE	8-98119-704-0	01	1	1511-	●	●
105	NUT; BRKT,VALVE M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
108	CONNECTOR; ELBOW (C) PT3/8 ELBOW	1-09660-696-0	01	1	1511-	●	●
108	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1511-	●	●
108	CONNECTOR; ELBOW (B) DIN12 & M22 ELBOW	1-09661-497-0	04	1	1511-	●	●
167	COVER; VALVE (B)	1-48119-625-0	04	1	1511-	●	●
167	COVER; VALVE (A)	1-48219-070-0	02	1	1511-	●	●
167	COVER; VALVE (A)	1-48219-070-0	01	1	1511-	●	●
220	CONNECTOR; 3WAY (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1511-	●	●
220	CONNECTOR; 3WAY (C) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1511-	●	●
220	CONNECTOR; 3WAY (B) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1511-	●	●
231	CONNECTOR; NYLON TUBE DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1511-	●	●
232	VALVE; CHECK DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1511-	●	●

2 170 167 164 166 157 158 161 58 262 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

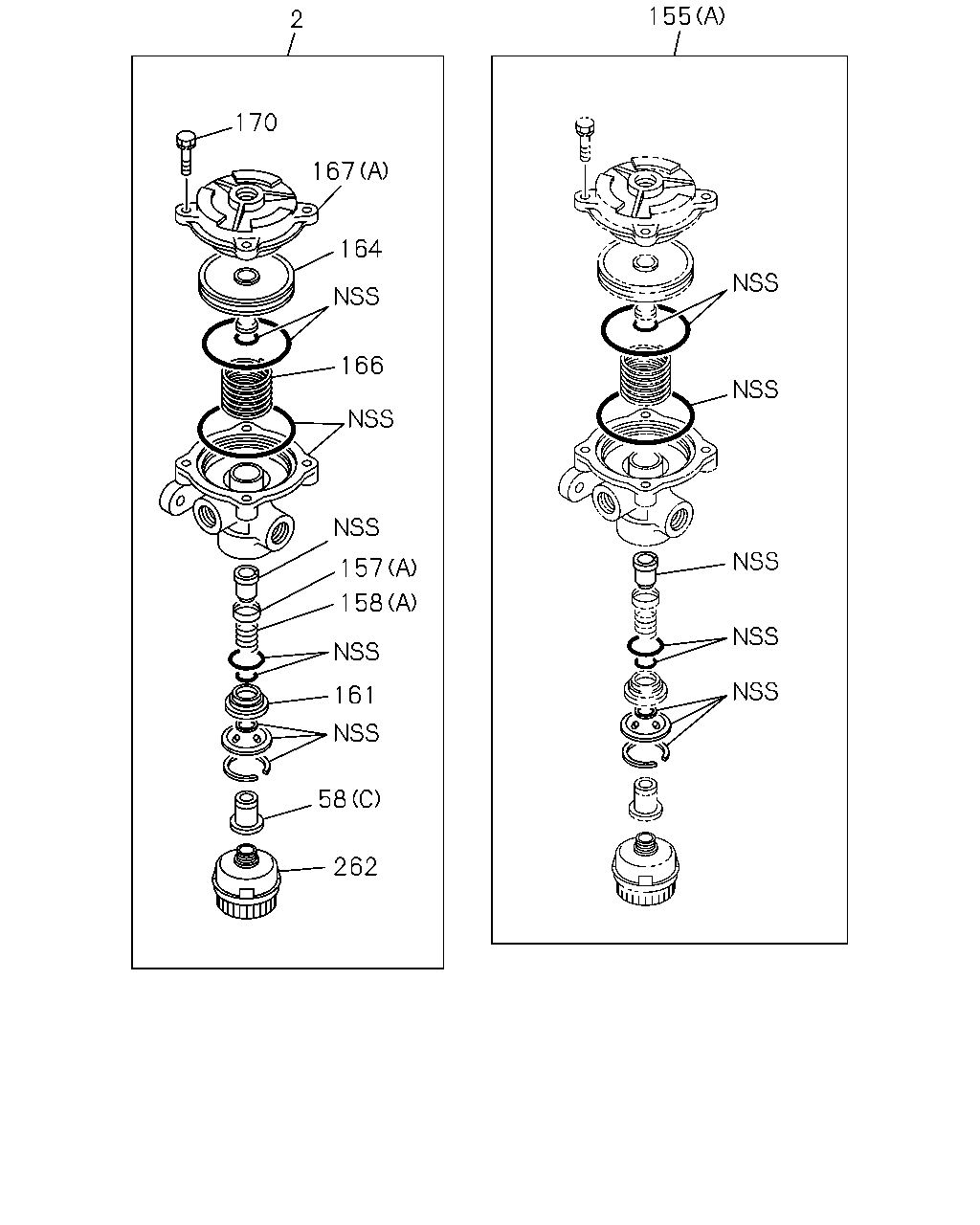

2	VALVE; RELAY	1-48210-997-0	02	1	1511-		●
2	VALVE; RELAY	1-48210-997-0	01	1	1511-	●	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1511-	●	●
58	ADAPTER (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1511-	●	●
58	ADAPTER (C)	1-48219-154-0	02	1	1511-	●	●
58	ADAPTER (C)	1-48219-154-0	01	1	1511-	●	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	02	1	1511-	●	●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	1511-	●	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	01	1	1511-	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	1511-	●	●
157	RETAINER; VALVE (B)	1-48419-020-0	02	1	1511-	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	1511-	●	●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	1511-	●	●
158	SPRING; VALVE (B)	9-48419-003-0	02	1	1511-	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	1511-	●	●
161	GUIDE; VALVE	1-48129-014-0	02	1	1511-	●	●
161	GUIDE; VALVE	1-48129-014-0	01	1	1511-	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	02	1	1511-	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	1511-	●	●
166	SPRING; PISTON	1-47819-090-0	02	1	1511-	●	●
166	SPRING; PISTON	1-47819-090-0	01	1	1511-	●	●
167	COVER; VALVE (B)	1-48119-625-0	04	1	1511-	●	●
167	COVER; VALVE (A)	1-48219-070-0	02	1	1511-	●	●
167	COVER; VALVE (A)	1-48219-070-0	01	1	1511-	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	08	1	1511-	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	1511-	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	02	1	1511-	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	02	1	1511-	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1511-	●	●

279 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

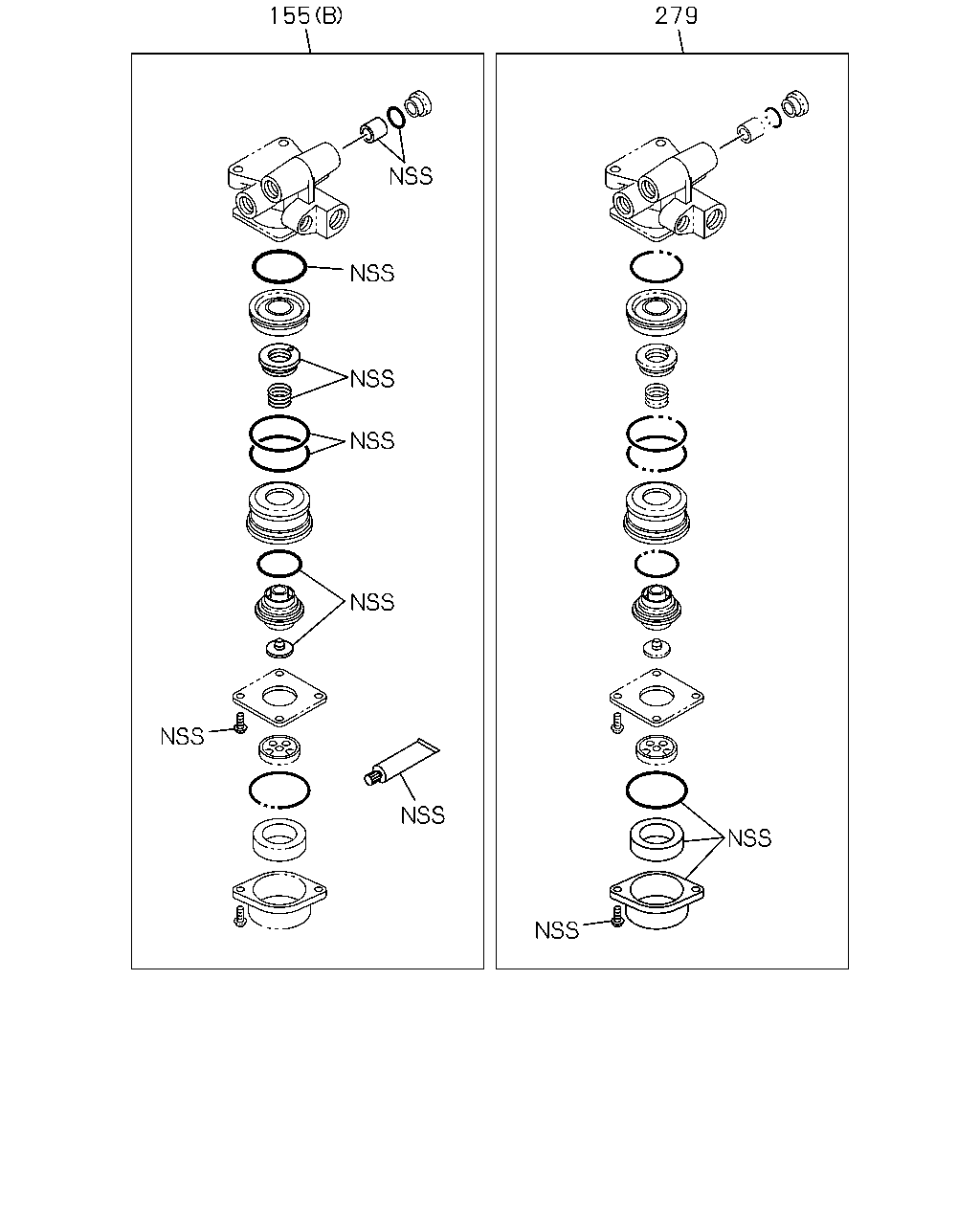

155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	02	1	1511-	●	●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	1511-	●	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	01	1	1511-	●	●
279	REPAIR KIT; SILENCER	1-85576-409-0	01	1	1511-	●	●

201 195 189 192 203 202 190 205 201 197 200 199 197 199 200 198 204 196 198 196 201 203 205 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

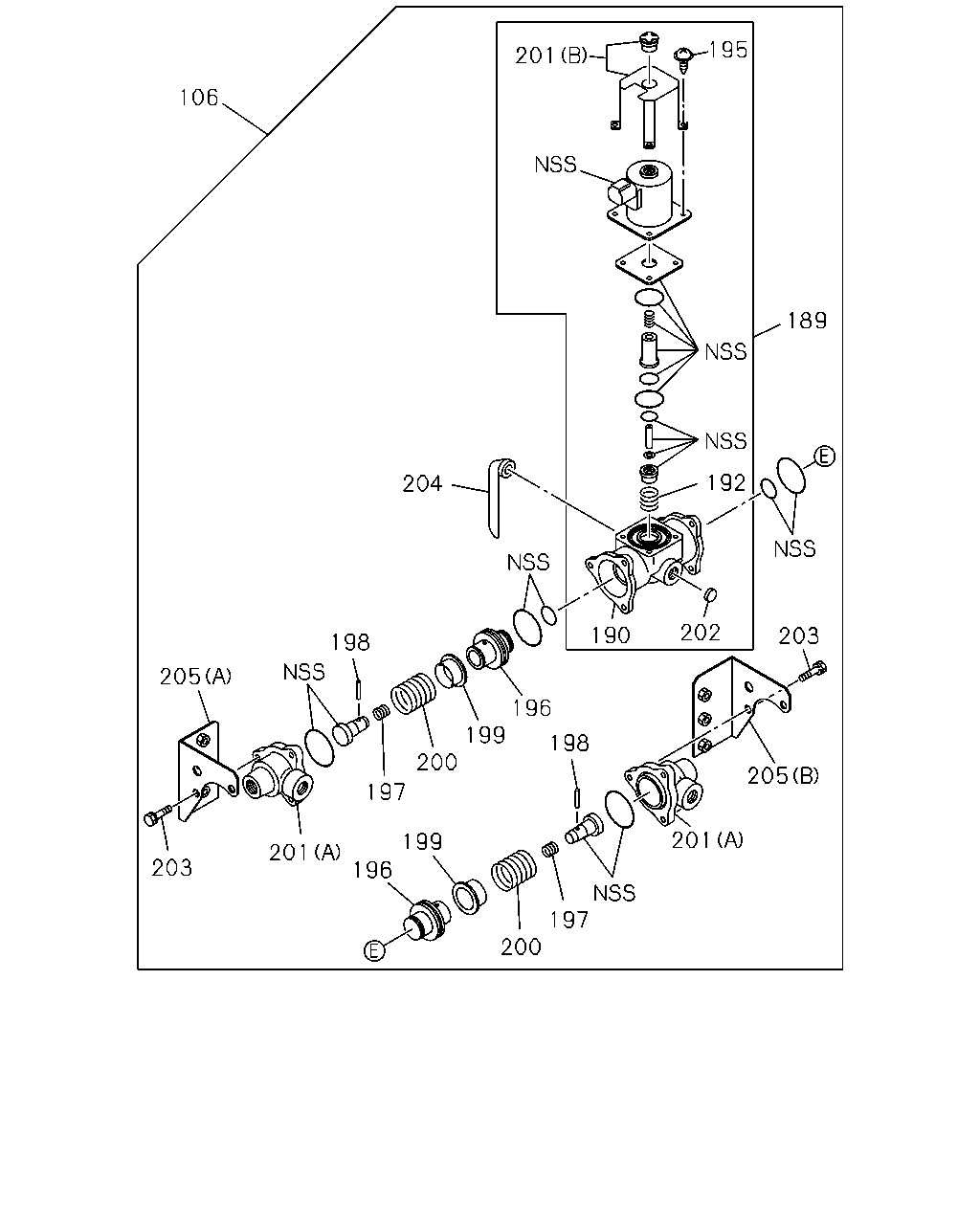

106	VALVE; HSA H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	1511-	●	●
189	VALVE ASM; SOLENOID,HSA VLV H.S.A SYSTEM<6EP>	1-46366-247-0	01	1	1511-	●	●
190	BODY; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-234-0	01	1	1511-	●	●
192	SPRING; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-181-0	01	1	1511-	●	●
195	SCREW; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-191-0	04	1	1511-	●	●
196	PISTON; HSA VLV H.S.A SYSTEM<6EP>	1-46366-232-0	02	1	1511-	●	●
197	SPRING; INNER,HSA VLV H.S.A SYSTEM<6EP>	1-46366-161-0	02	1	1511-	●	●
198	PIN; STRAIGHT,HSA VLV H.S.A SYSTEM<6EP>	1-46366-122-0	02	1	1511-	●	●
199	RETAINER; HSA VLV H.S.A SYSTEM<6EP>	1-46366-121-0	02	1	1511-	●	●
200	SPRING; OUTER,HSA VLV H.S.A SYSTEM<6EP>	1-46366-120-0	02	1	1511-	●	●
201	COVER; HSA VLV H.S.A SYSTEM<6EP> (A)	1-46366-118-1	02	1	1511-	●	●
201	COVER; HSA VLV H.S.A SYSTEM<6EP> (B)	1-46366-241-0	01	1	1511-	●	●
202	FILTER; HSA VLV H.S.A SYSTEM<6EP>	1-46366-117-1	02	1	1511-	●	●
203	SCREW; HSA VLV H.S.A SYSTEM<6EP>	1-46366-116-1	06	1	1511-	●	●
204	PIPE ASM; HSA VLV H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	1511-	●	●
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> (A)	1-46366-149-0	01	1	1511-	●	●
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> (B)	1-46366-150-0	01	1	1511-	●	●

188 204

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

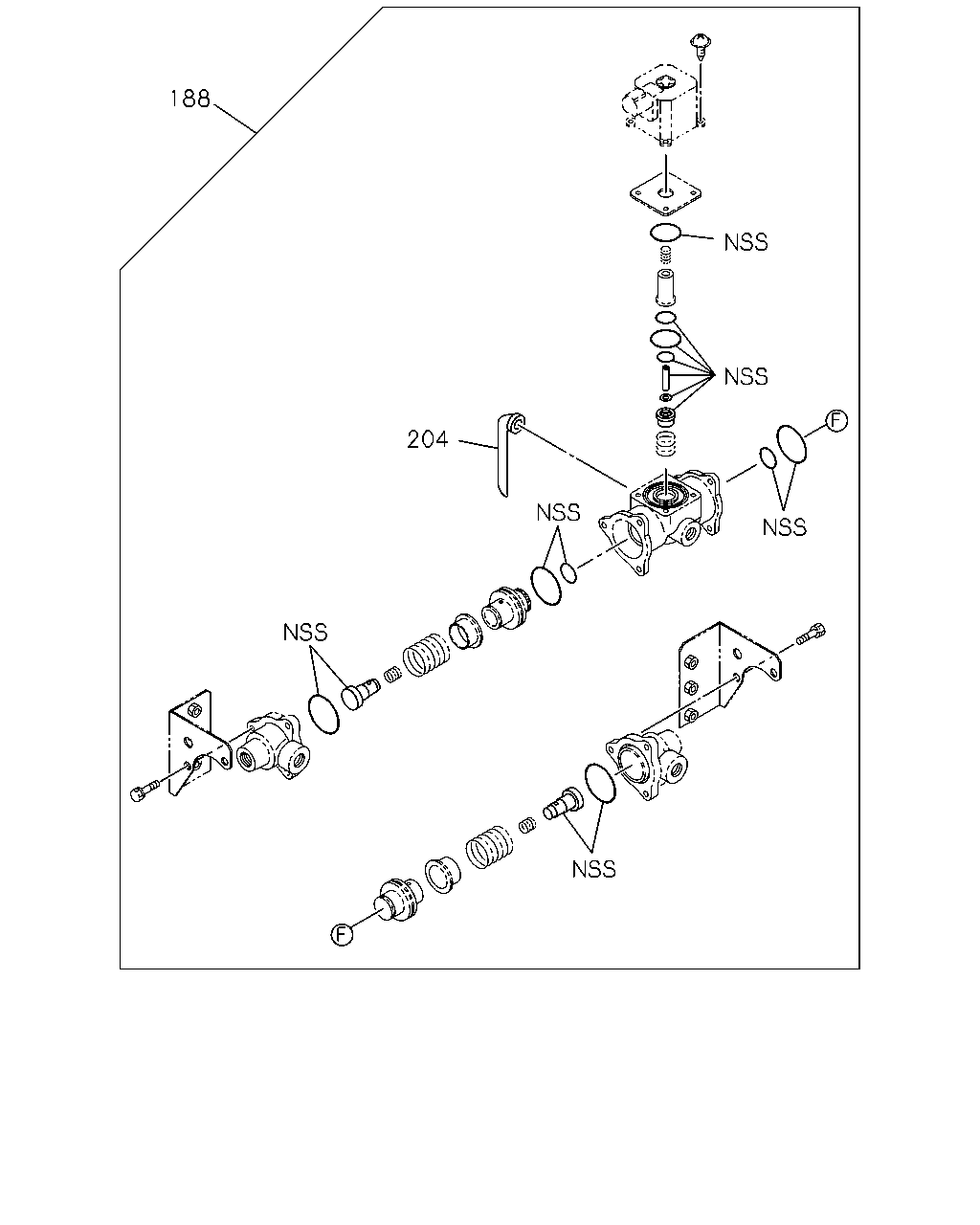

	188	REPAIR KIT; HSA VLV H.S.A SYSTEM<6EP>	1-85576-304-1	01	1	1511-	●	●
	204	PIPE ASM; HSA VLV H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	1511-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
