Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11719 - FVZ AUST/NZ EURO5
▶
2 - Clutch, Transmission, Trans Axle
▶
2-85 - POWER TAKE OFF CONTROL
▶
2-85 — POWER TAKE OFF CONTROL
(#170036) — 36 parça
Tümü
A - FGY5MV
B - FGZ5MV
◀
[285A] ZF M/T NO.2 (16 parça)
[285A] ZF M/T NO.1 (7 parça)
[285A] A/T (13 parça)
▶

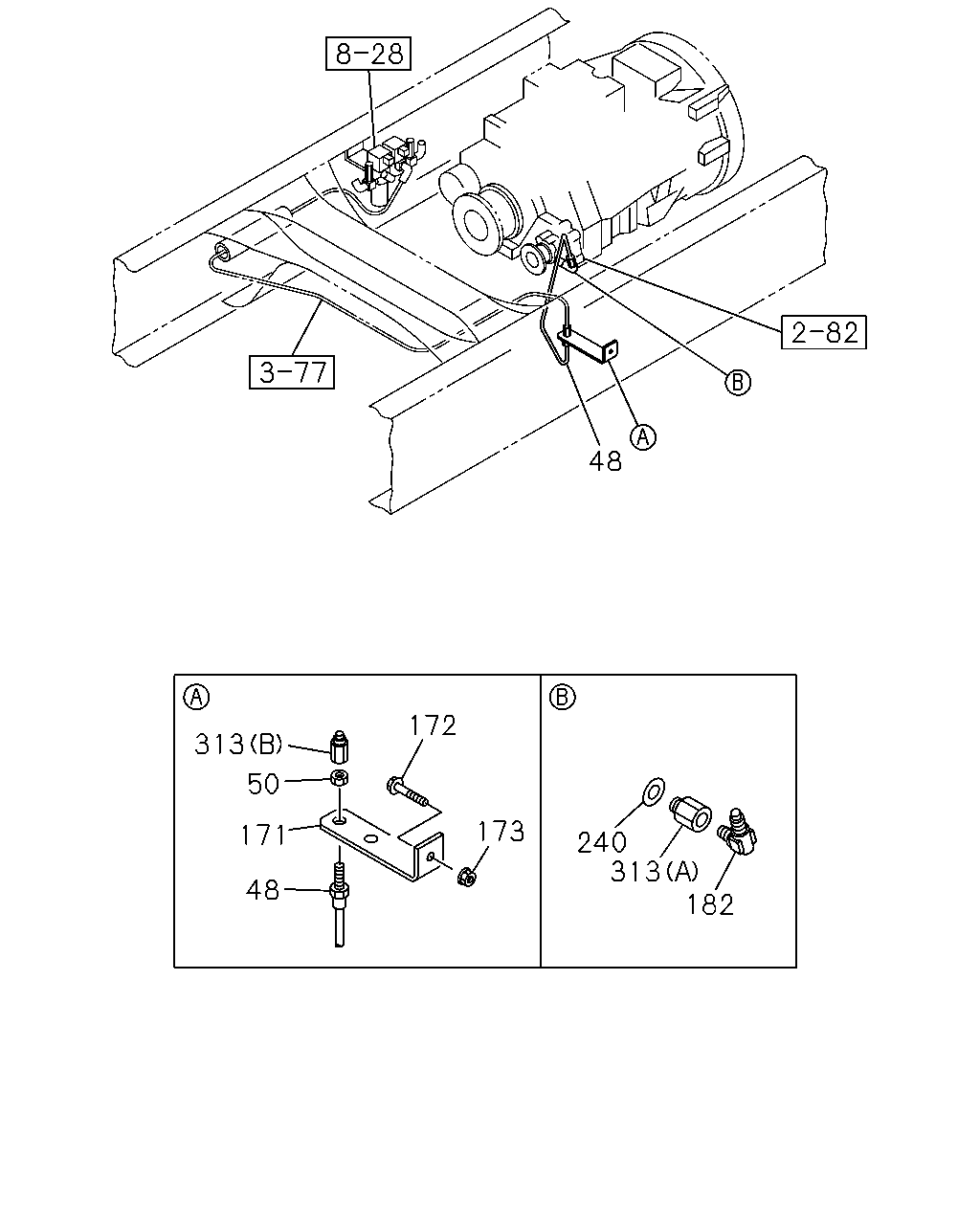

48
182
313
240
173
172
313
50
171
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
21
WASHER; PL,CONT LEVER
DUMP CONTROL LEVER<RC4> ID=6.4
0-91610-606-0
03
1
1511-
●
●
48
HOSE; FLEX,PTO
PTO ZF TRANS RR(BDM) L=230
1-09363-666-0
01
1
1511-
●
●
50
NUT; FLEX HOSE
PTO ZF TRANS RR(BDM) M12
9-09840-280-0
01
1
1511-
●
●
71
LEVER; PTO CONT
DUMP CONTROL LEVER<RC4>
1-79998-769-2
01
1
1511-
●
●
73
NUT; LEVER
DUMP CONTROL LEVER<RC4> ID=5.9 PUSH NUT
8-97015-036-0
02
1
1511-
●
●
74
SPRING; RETURN,CONT LEVER
DUMP CONTROL LEVER<RC4>
1-79997-061-1
01
1
1511-
●
●
121
RING; SNAP
DUMP CONTROL LEVER<RC4> ID=5
9-09185-405-0
01
1
1511-
●
●
171
BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM)
8-98100-228-0
01
1
1511-
●
●
172
BOLT; BRKT
PTO ZF TRANS RR(BDM) M8X30 FLANGE
0-28650-830-0
01
1
1511-
●
●
172
BOLT; BRKT
ALLISON MD3560P A/T(Y3B) M4X16
9-03494-416-0
04
1
1511-
●
●
173
NUT; BRKT
PTO ZF TRANS RR(BDM) M8 FLANGE
0-91180-108-0
01
1
1511-
●
●
173
NUT; BRKT
ALLISON MD3560P A/T(Y3B) M4 FLANGE
8-97368-853-0
04
1
1511-
●
●
182
CONNECTOR; FLARE
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1511-
●
●
240
GASKET; CONNECTOR,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) ID=12.2
8-98251-344-0
01
1
1511-
●
●
313
ADAPTER
PTO ZF TRANS RR(BDM) DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
1511-
●
●
313
ADAPTER
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) PT1/4
1-09654-396-0
01
1
1511-
●
●

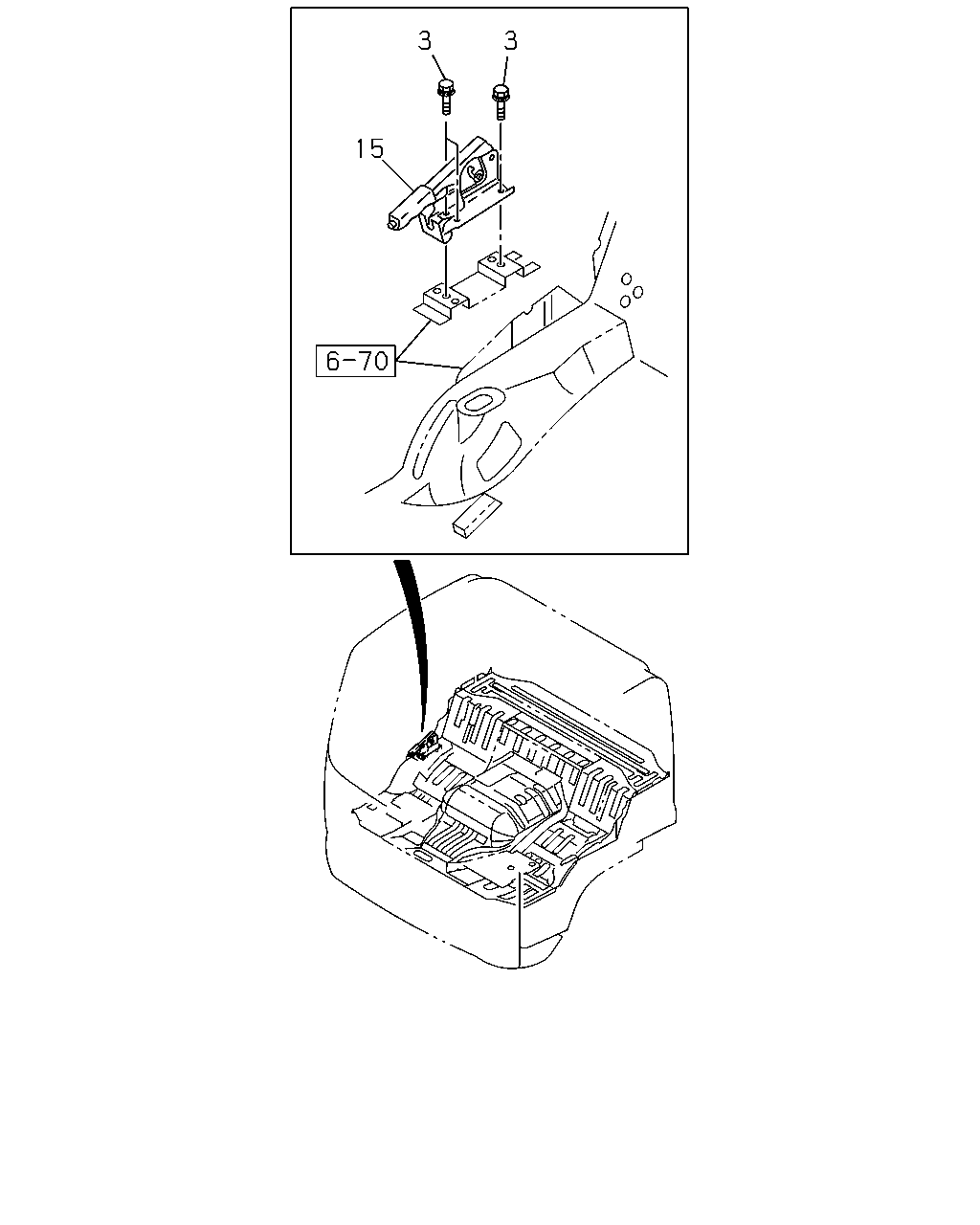

3
3
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
1511-
●
●
15
LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4>
1-79996-092-0
01
1
1511-
●
●
21
WASHER; PL,CONT LEVER
DUMP CONTROL LEVER<RC4> ID=6.4
0-91610-606-0
03
1
1511-
●
●
71
LEVER; PTO CONT
DUMP CONTROL LEVER<RC4>
1-79998-769-2
01
1
1511-
●
●
73
NUT; LEVER
DUMP CONTROL LEVER<RC4> ID=5.9 PUSH NUT
8-97015-036-0
02
1
1511-
●
●
74
SPRING; RETURN,CONT LEVER
DUMP CONTROL LEVER<RC4>
1-79997-061-1
01
1
1511-
●
●
121
RING; SNAP
DUMP CONTROL LEVER<RC4> ID=5
9-09185-405-0
01
1
1511-
●
●

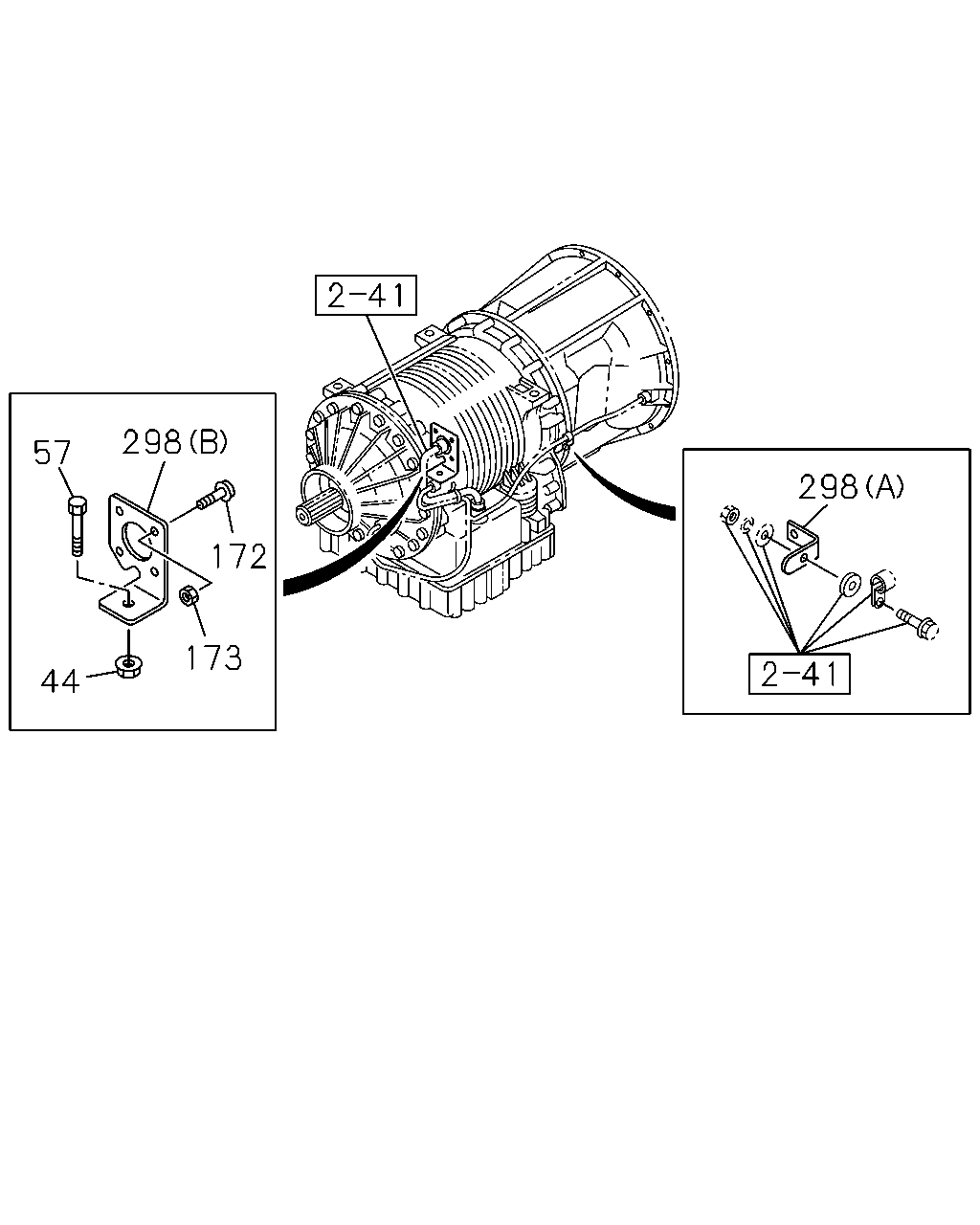

298
57
172
173
44
298
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
21
WASHER; PL,CONT LEVER
DUMP CONTROL LEVER<RC4> ID=6.4
0-91610-606-0
03
1
1511-
●
●
44
NUT; BRKT
ALLISON MD3560P A/T(Y3B)
1-34119-135-0
01
1
1511-
●
●
57
BOLT; BRKT
ALLISON MD3560P A/T(Y3B)
1-34119-134-0
01
1
1511-
●
●
71
LEVER; PTO CONT
DUMP CONTROL LEVER<RC4>
1-79998-769-2
01
1
1511-
●
●
73
NUT; LEVER
DUMP CONTROL LEVER<RC4> ID=5.9 PUSH NUT
8-97015-036-0
02
1
1511-
●
●
74
SPRING; RETURN,CONT LEVER
DUMP CONTROL LEVER<RC4>
1-79997-061-1
01
1
1511-
●
●
121
RING; SNAP
DUMP CONTROL LEVER<RC4> ID=5
9-09185-405-0
01
1
1511-
●
●
172
BOLT; BRKT
PTO ZF TRANS RR(BDM) M8X30 FLANGE
0-28650-830-0
01
1
1511-
●
●
172
BOLT; BRKT
ALLISON MD3560P A/T(Y3B) M4X16
9-03494-416-0
04
1
1511-
●
●
173
NUT; BRKT
PTO ZF TRANS RR(BDM) M8 FLANGE
0-91180-108-0
01
1
1511-
●
●
173
NUT; BRKT
ALLISON MD3560P A/T(Y3B) M4 FLANGE
8-97368-853-0
04
1
1511-
●
●
298
BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) (A)
1-34119-088-0
01
1
1511-
●
●
298
BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) (B)
1-34119-133-0
01
1
1511-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
