2-53 — TRANSMISSION OIL COOLER SYSTEM (#170033) — 41 parça

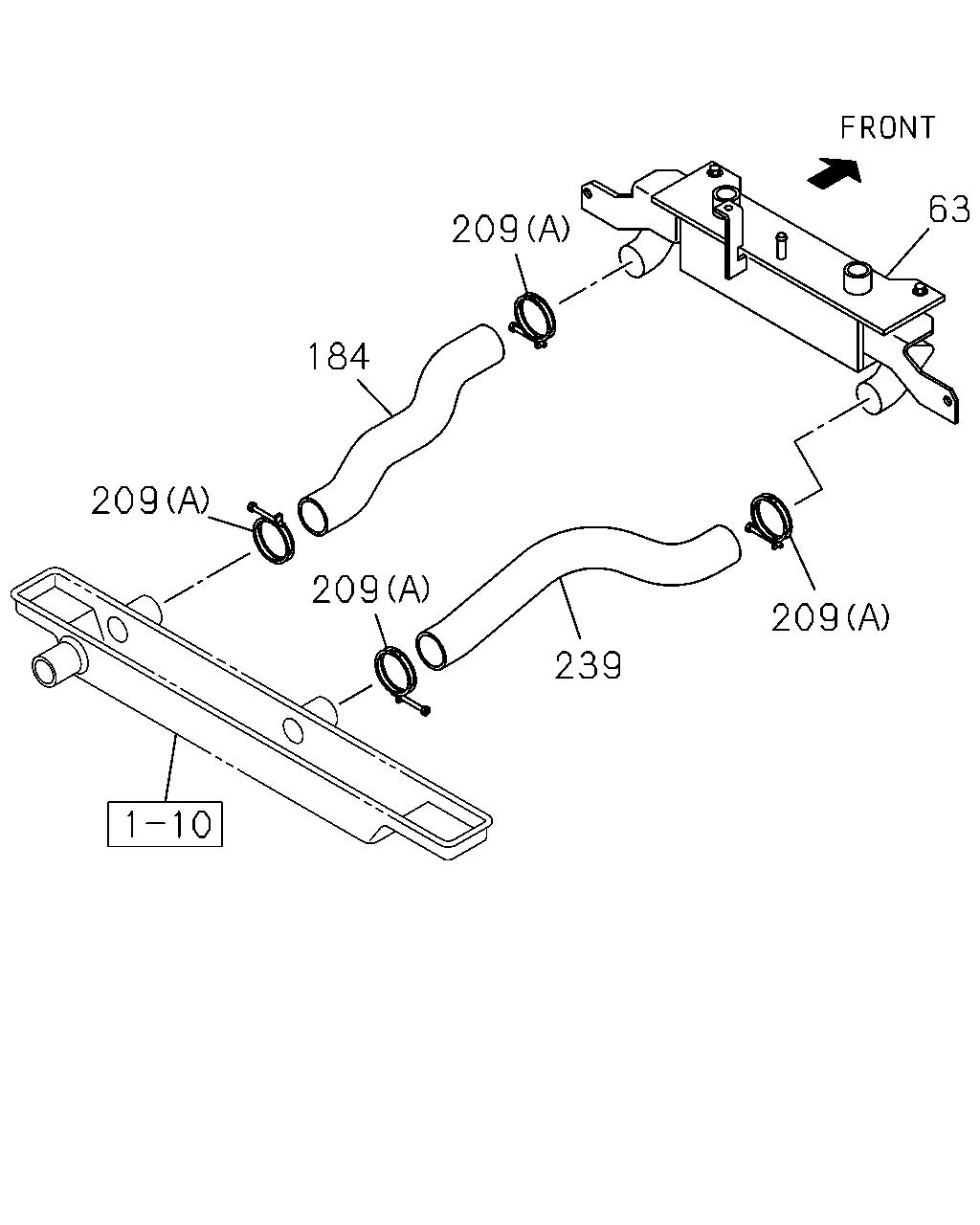

209 239 209 209 184 209 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
63	COOLER; OIL FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D>	8-98329-299-0	01	1	1511-	●	●
63	COOLER; OIL A/T<X9D> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98329-298-0	01	1	1511-	●	●
184	HOSE; FLEX,PIPE TO COOLER ALLISON MD3560P A/T(Y3B)	8-98025-696-1	01	1	1511-	●	●
209	CLIP; HOSE ALLISON MD3560P A/T(Y3B) (A) ID=26 L=26	1-09701-236-0	02	1	1511-	●	●
209	CLIP; HOSE EXC. MANUAL TRANSMISSION<X9C> (B) ID=63	1-09704-067-0	04	1	1511-	●	●
239	HOSE; FLEX,COOLER TO PIPE ALLISON MD3560P A/T(Y3B)	8-98025-697-1	01	1	1511-	●	●

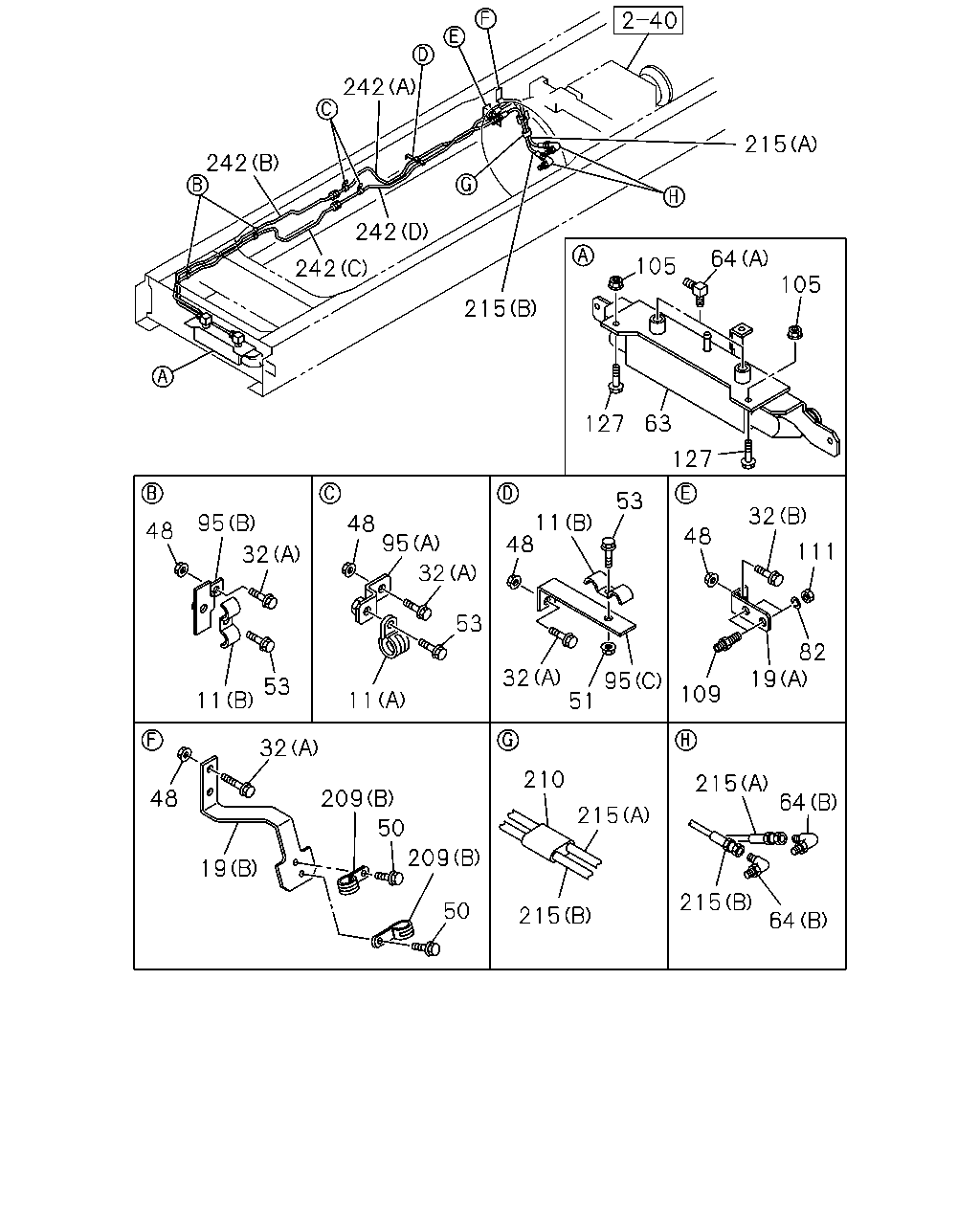

242 242 242 242 215 215 105 64 127 63 105 127 32 111 48 82 19 109 95 51 32 11 48 53 53 32 95 48 95 32 53 11 48 11 64 215 215 64 215 210 50 209 50 209 32 19 48 215

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	CLIP; PIPE ALLISON MD3560P A/T(Y3B) (A) ID=19 L=20	0-95235-836-0	02	1	1511-	●	●
11	CLIP; PIPE ALLISON MD3560P A/T(Y3B) (B) ID=19 & 19	1-09701-324-0	01	1	1511-	●	●
11	CLIP; PIPE ALLISON MD3560P A/T(Y3B) (B) ID=19 & 19	1-09701-324-0	02	1	1511-	●	●
19	BRACKET; FLEX HOSE ALLISON MD3560P A/T(Y3B) (A)	8-98097-570-0	01	1	1511-	●	●
19	BRACKET; FLEX HOSE ALLISON MD3560P A/T(Y3B) (B)	8-98144-397-0	01	1	1511-	●	●
32	BOLT; BRKT ALLISON MD3560P A/T(Y3B) (A) M8X30 FLANGE	0-28650-830-0	02	1	1511-	●	●
32	BOLT; BRKT ALLISON MD3560P A/T(Y3B) (A) M8X30 FLANGE	0-28650-830-0	05	1	1511-	●	●
32	BOLT; BRKT ALLISON MD3560P A/T(Y3B) (B) M8X35 FLANGE	0-28650-835-0	02	1	1511-	●	●
48	NUT; BRKT ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91180-108-0	04	1	1511-	●	●
48	NUT; BRKT ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91180-108-0	05	1	1511-	●	●
50	BOLT; CLIP ALLISON MD3560P A/T(Y3B) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
51	NUT; CLIP TO BRKT ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3560P A/T(Y3B) M8X20 FLANGE	0-28650-820-0	05	1	1511-	●	●
63	COOLER; OIL FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D>	8-98329-299-0	01	1	1511-	●	●
63	COOLER; OIL A/T<X9D> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98329-298-0	01	1	1511-	●	●
64	CONNECTOR; OIL COOLER ALLISON MD3560P A/T(Y3B) (B)	8-98144-617-0	02	1	1511-	●	●
64	CONNECTOR; OIL COOLER ALLISON MD3560P A/T(Y3B) (A)	9-09903-722-0	02	1	1511-	●	●
82	WASHER; LK,UNION ALLISON MD3560P A/T(Y3B) ID=30.5	9-09150-530-0	02	1	1511-	●	●
95	BRACKET; CLIP ALLISON MD3560P A/T(Y3B) (A)	1-47479-255-0	02	1	1511-	●	●
95	BRACKET; CLIP ALLISON MD3560P A/T(Y3B) (B)	8-98089-351-0	02	1	1511-	●	●
95	BRACKET; CLIP ALLISON MD3560P A/T(Y3B) (C)	8-98269-434-0	01	1	1511-	●	●
105	NUT; OIL COOLER A/T<X9D> M8 FLANGE	0-91180-108-0	04	1	1511-	●	●
109	UNION ALLISON MD3560P A/T(Y3B) M30 & M30 STRAIGHT	1-09664-191-0	02	1	1511-	●	●
111	NUT; UNION ALLISON MD3560P A/T(Y3B) M30	9-09840-252-1	02	1	1511-	●	●
127	BOLT; COOLER FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D> M8X30 FLANGE	0-28650-830-0	04	1	1511-	●	●
127	BOLT; COOLER A/T<X9D> EXC. FRONT UNDER RUN PROTECTOR<EBE> M8X30 FLANGE	0-28650-830-0	02	1	1511-	●	●
209	CLIP; HOSE ALLISON MD3560P A/T(Y3B) (A) ID=26 L=26	1-09701-236-0	02	1	1511-	●	●
209	CLIP; HOSE EXC. MANUAL TRANSMISSION<X9C> (B) ID=63	1-09704-067-0	04	1	1511-	●	●
210	BAND; FLEX HOSE ALLISON MD3560P A/T(Y3B) L=175	1-09707-178-0	01	1	1511-	●	●
215	HOSE; OIL COOLER ALLISON MD3560P A/T(Y3B) (A)	8-98144-618-0	01	1	1511-	●	●
215	HOSE; OIL COOLER ALLISON MD3560P A/T(Y3B) (B)	8-98144-619-0	01	1	1511-	●	●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (B)	8-98097-574-0	01	1	1511-	●	●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (C)	8-98113-105-0	01	1	1511-	●	●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (A)	8-98190-140-0	01	1	1511-	●	●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (D)	8-98190-142-0	01	1	1511-	●	●
