2-07A — CLUTCH BOOSTER; MINIPACK (#170019) — 50 parça

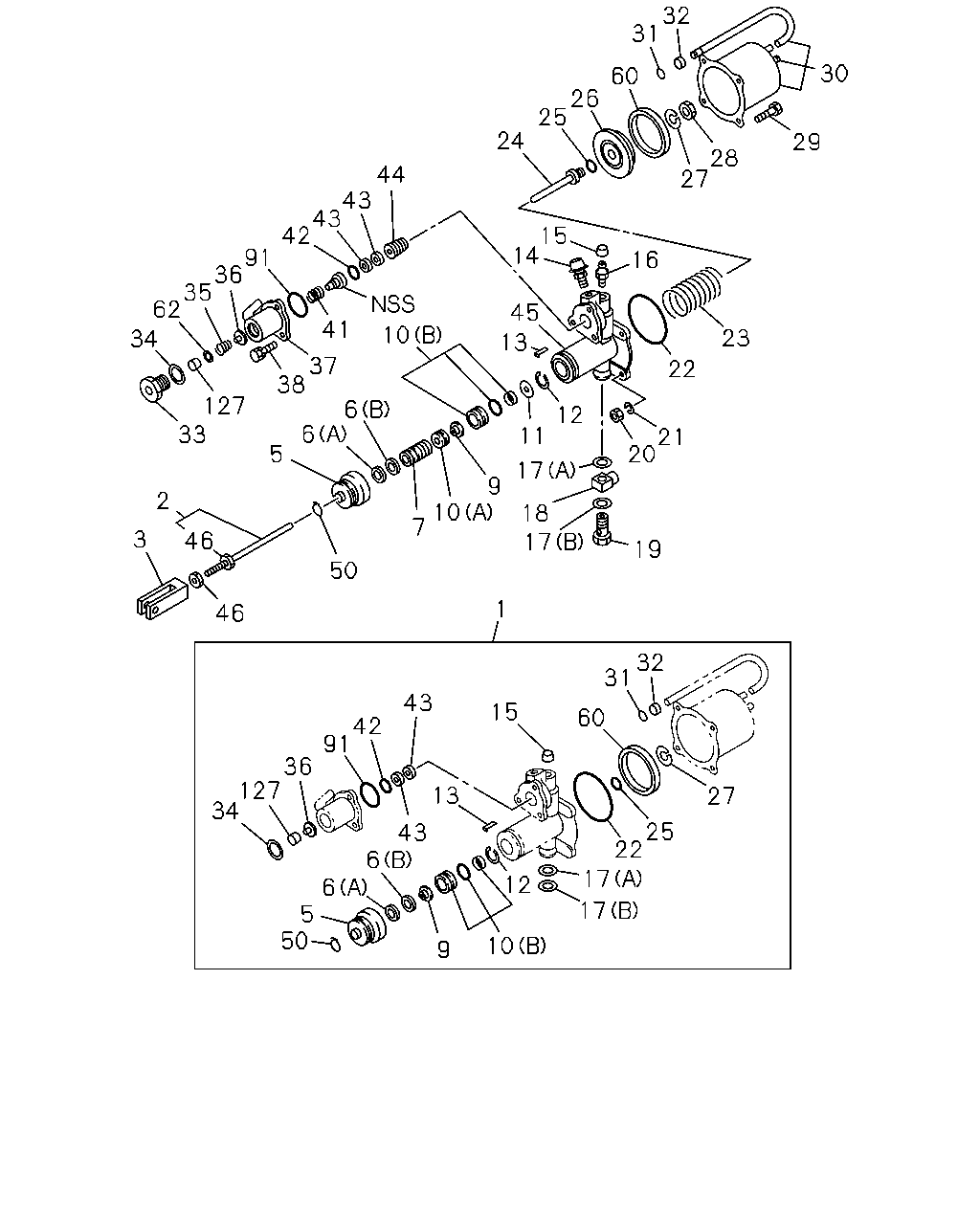

çizim 501764
30 29 28 27 32 31 60 26 25 24 15 14 16 23 22 21 20 19 17 17 18 11 12 13 45 10 41 37 38 127 33 6 6 5 10 7 50 46 46 2 3 9 32 32 60 27 25 22 17 17 10 12 15 13 43 6 6 5 50 1 43 42 91 36 127 34 9 44 43 43 42 91 36 35 62 34
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER 1-31829-606-0 01 1 1511-
2 ROD; PUSH,CLU BOOSTER 1-31824-240-0 01 1 1511-
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-1 01 1 1511-
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 1511-
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-032-0 01 1 1511-
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-033-0 01 1 1511-
7 PISTON; CLU BOOSTER 1-31821-064-0 01 1 1511-
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 1511-
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 1511-
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 1511-
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1511-
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 1511-
13 PIN; SPR 1-31829-109-0 01 1 1511-
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1511-
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1511-
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1511-
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1511-
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1511-
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1511-
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1511-
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1511-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1511-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 1511-
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 1511-
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 1511-
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 1511-
26 PISTON; SHELL,CLU BOOSTER 1-31821-084-0 01 1 1511-
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 1511-
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 1511-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 1511-
30 SHELL; CYL,CLU BOOSTER 1-31811-124-0 01 1 1511-
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1511-
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1511-
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 1511-
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1511-
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1511-
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1511-
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 1511-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1511-
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 1511-
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 1511-
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1511-
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 1511-
45 PLATE; END,CLU BOOSTER 1-31811-149-0 01 1 1511-
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1511-
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 1511-
60 GASKET; SHELL,CLU BOOSTER 1-31829-544-0 01 1 1511-
62 RETAINER; POPPET 1-31829-489-0 01 1 1511-
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1511-
127 FILTER; POPPET 1-31829-495-0 01 1 1511-
