2-05 — CLUTCH PIPING (#170018) — 41 parça

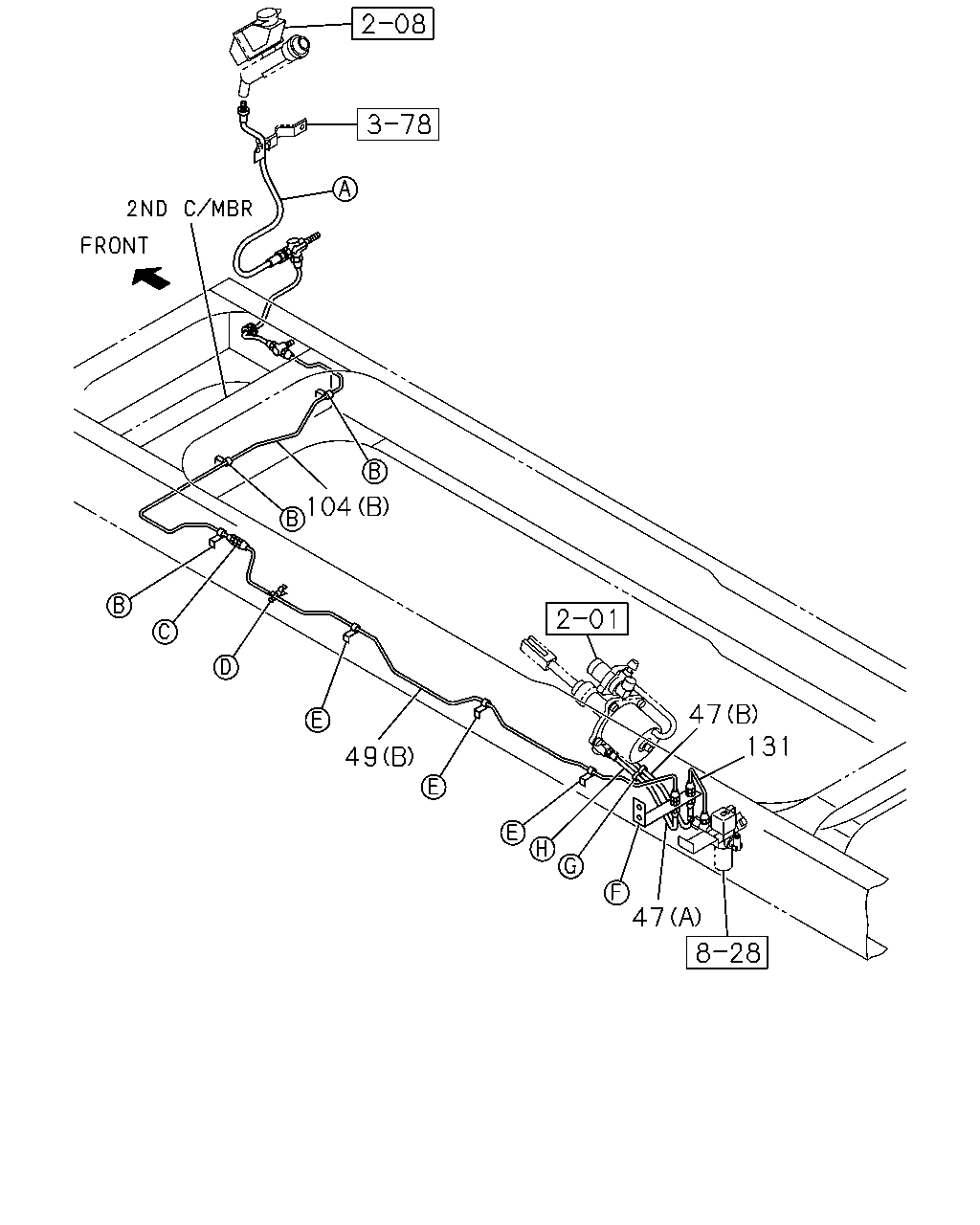

çizim 500617
47 131 47 49 104
BalonParca AdiParca NoAdetTipApplied Date A B
47 HOSE; FLEX,CLU CONT
ZF9S1110 M/T(Y5E) (B) L=500 		1-09363-720-0 01 1 1511- ● ●
47 HOSE; FLEX,CLU CONT
ZF9S1110 M/T(Y5E) (A) L=500 		1-09364-329-0 01 1 1511- ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
ZF9S1110 M/T(Y5E) (B) L=2150 SERVICED BY L=2150 		1-47428-770-0 01 1 1511- ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
ZF9S1110 M/T(Y5E) (A) L=232 		1-49124-795-0 01 1 1511- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
ZF9S1110 M/T(Y5E) (B) L=1413 SERVICED BY L=1550 		1-47428-766-0 01 1 1511- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
ZF9S1110 M/T(Y5E) (A) L=533 SERVICED BY L=550 		1-47428-753-0 01 1 1511- ● ●
131 PIPE; AIR,UNION TO FLEX HOSE
ZF9S1110 M/T(Y5E) L=203 		8-98100-103-0 01 1 1511- ● ●

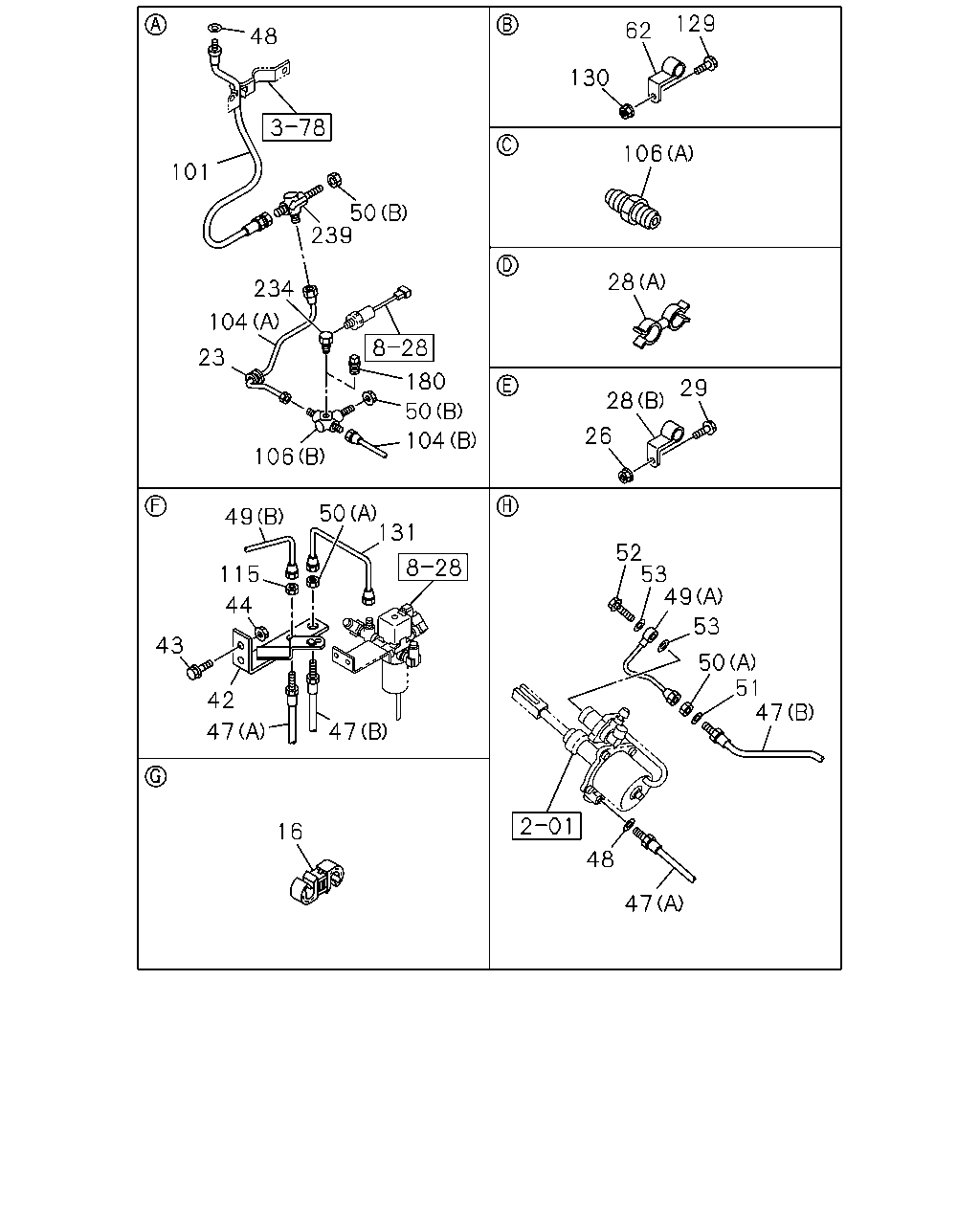

çizim 501810
47 48 47 51 50 53 49 53 52 16 47 47 42 43 44 115 131 50 49 26 28 29 28 106 130 62 129 48 101 239 50 234 104 23 106 104 50 180
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> ID=10 & 12 		1-09709-278-1 01 1 1511- ● ●
23 GROMMET; CLU PIPE
ZF9S1110 M/T(Y5E) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1511- ● ●
26 NUT; CLIP,OIL PIPE
ZF9S1110 M/T(Y5E) M8 FLANGE 		0-91180-108-0 03 1 1511- ● ●
28 CLIP; OIL PIPE
ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20 		1-09700-604-0 03 1 1511- ● ●
28 CLIP; OIL PIPE
ZF9S1110 M/T(Y5E) (A) ID=8.3 & 10 		8-94176-792-0 01 1 1511- ● ●
29 BOLT; CLIP,OIL PIPE
ZF9S1110 M/T(Y5E) M8X30 FLANGE 		0-28650-830-0 03 1 1511- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
ZF9S1110 M/T(Y5E) 		8-98099-521-1 01 1 1511- ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
ASSISTOR SHIFT CONTROL<WX8> M8X30 FLANGE 		0-28650-830-0 02 1 1511- ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
47 HOSE; FLEX,CLU CONT
ZF9S1110 M/T(Y5E) (B) L=500 		1-09363-720-0 01 1 1511- ● ●
47 HOSE; FLEX,CLU CONT
ZF9S1110 M/T(Y5E) (A) L=500 		1-09364-329-0 01 1 1511- ● ●
48 GASKET; FLEX HOSE,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> ID=10.2 OD=16.0 		9-09571-410-0 01 1 1511- ● ●
48 GASKET; FLEX HOSE,CLU CONT
ZF9S1110 M/T(Y5E) ID=10.2 OD=16.0 		9-09571-410-0 01 1 1511- ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
ZF9S1110 M/T(Y5E) (B) L=2150 SERVICED BY L=2150 		1-47428-770-0 01 1 1511- ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
ZF9S1110 M/T(Y5E) (A) L=232 		1-49124-795-0 01 1 1511- ● ●
50 NUT; UNION
ZF9S1110 M/T(Y5E) (A) M12 		9-09840-280-0 02 1 1511- ● ●
50 NUT; UNION
ZF9S1110 M/T(Y5E) (B) M12 		0-91111-512-0 01 1 1511- ● ●
51 WASHER; LK
ZF9S1110 M/T(Y5E) ID=12.2 		0-91510-812-0 01 1 1511- ● ●
52 BOLT; EYE,AIR PIPE
ZF9S1110 M/T(Y5E) M14X27 FLANGE 		1-09675-086-0 01 1 1511- ● ●
53 GASKET; JOINT BOLT
ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1511- ● ●
62 CLIP; CLU PIPE
ZF9S1110 M/T(Y5E) ID=8 H=20 L=20 		1-09700-604-0 03 1 1511- ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
ZF9S1110 M/T(Y5E) L=500 		8-98072-350-0 01 1 1511- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
ZF9S1110 M/T(Y5E) (B) L=1413 SERVICED BY L=1550 		1-47428-766-0 01 1 1511- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
ZF9S1110 M/T(Y5E) (A) L=533 SERVICED BY L=550 		1-47428-753-0 01 1 1511- ● ●
106 UNION; OIL PIPE
ZF9S1110 M/T(Y5E) (A) M14 STRAIGHT 		0-92113-008-0 01 1 1511- ● ●
106 UNION; OIL PIPE
ZF9S1110 M/T(Y5E) (B) M12 & M14 & PT1/4 3WAY 		1-09656-286-2 01 1 1511- ● ●
115 NUT; FLEX HOSE,CLU CONT
ZF9S1110 M/T(Y5E) M14 		0-91111-514-0 01 1 1511- ● ●
129 BOLT; PIPE CLIP
ZF9S1110 M/T(Y5E) M8X25 FLANGE 		0-28650-825-0 02 1 1511- ● ●
129 BOLT; PIPE CLIP
ZF9S1110 M/T(Y5E) M8X30 FLANGE 		0-28650-830-0 01 1 1511- ● ●
130 NUT; PIPE CLIP
ZF9S1110 M/T(Y5E) M8 FLANGE 		0-91180-108-0 03 1 1511- ● ●
131 PIPE; AIR,UNION TO FLEX HOSE
ZF9S1110 M/T(Y5E) L=203 		8-98100-103-0 01 1 1511- ● ●
180 PLUG; PIPE
ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1511- ● ●
234 CONNECTOR; ELBOW
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> 		1-09660-012-0 01 1 1511- ● ●
239 UNION; CLU HOSE
ZF9S1110 M/T(Y5E) 		8-98107-850-0 01 1 1511- ● ●
