1-41 — FUEL PIPING; CHASSIS (#170011) — 128 parça

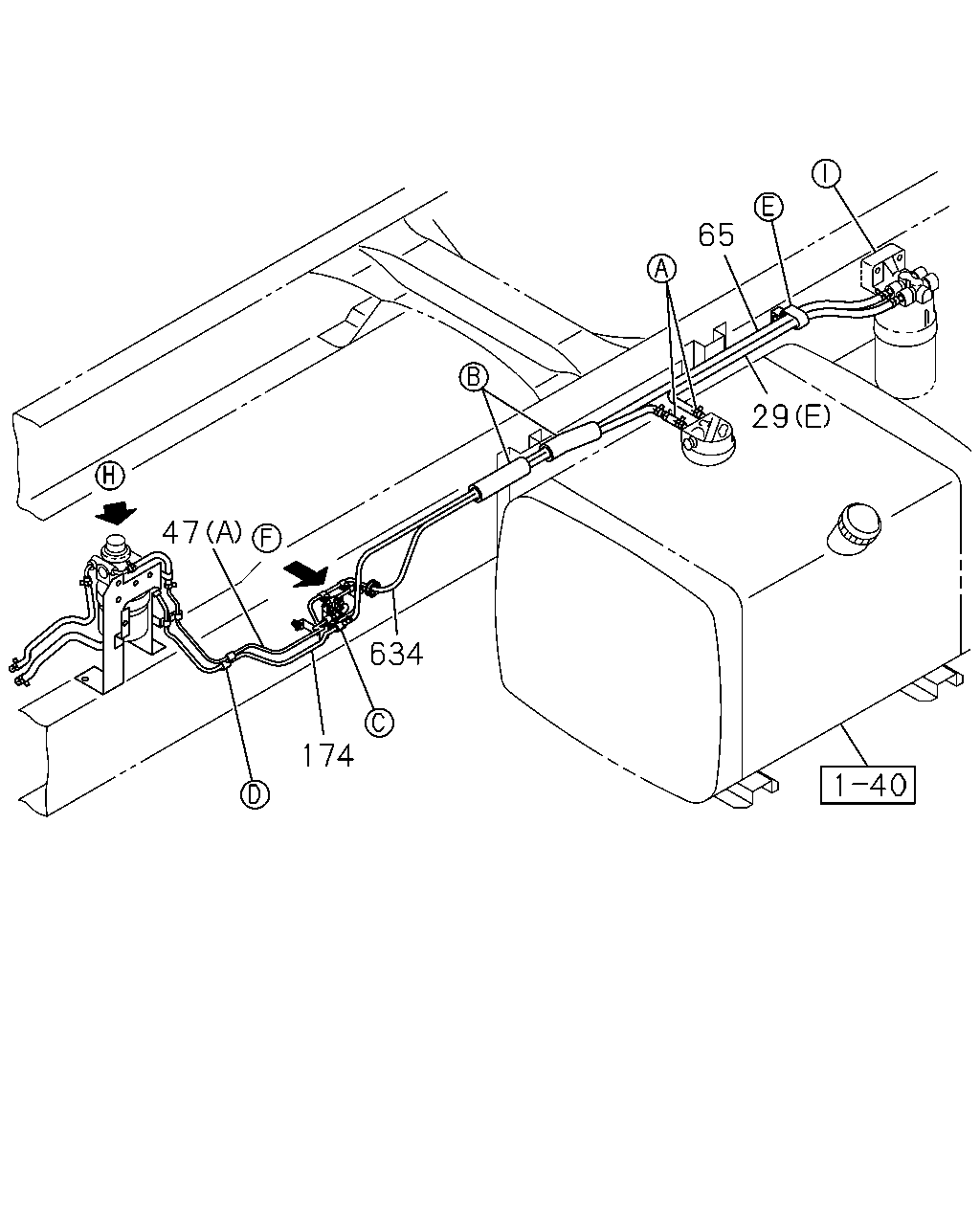

29 65 634 174 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1511-	●	●
29	HOSE; FUEL (A)	8-98156-579-0	01	1	1511-	●	●
29	HOSE; FUEL FUEL TANK 200L FRAME SIDE<N20> (D) L=730	8-98232-243-0	01	1	1511-	●	●
29	HOSE; FUEL FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1511-	●	●
29	HOSE; FUEL FUEL TANK 400L<SDH> (E) L=920	8-98232-244-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN (B) L=787	8-98127-647-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN (A) L=688	8-98129-921-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN FUEL TANK 400L<SDH> (C)	8-98009-438-1	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98232-240-0	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 400L<SDH> L=1620	8-98232-241-0	01	1	1511-	●	●
174	PIPE; FUEL,FEED,FRT L=685	8-98129-920-0	01	1	1511-	●	●
634	HOSE; RUBBER RETURN FUEL TANK 200L FRAME SIDE<N20>	8-98186-971-0	01	1	1511-	●	●
634	HOSE; RUBBER RETURN FUEL TANK 400L<SDH> L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1511-	●	●

279 228 345 345 304 39 41 65 39 41 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1511-	●	●
29	HOSE; FUEL (A)	8-98156-579-0	01	1	1511-	●	●
29	HOSE; FUEL FUEL TANK 200L FRAME SIDE<N20> (D) L=730	8-98232-243-0	01	1	1511-	●	●
29	HOSE; FUEL FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1511-	●	●
29	HOSE; FUEL FUEL TANK 400L<SDH> (E) L=920	8-98232-244-0	01	1	1511-	●	●
39	PIPE; FUEL NPTF3/8-18 OD=10	8-98122-953-0	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=24 & 24 L=49	1-09701-018-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (C) ID=16	8-94238-568-0	02	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98232-240-0	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 400L<SDH> L=1620	8-98232-241-0	01	1	1511-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1511-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M10X60 FLANGE	0-28051-060-0	02	1	1511-	●	●
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1511-	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1511-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1511-	●	●

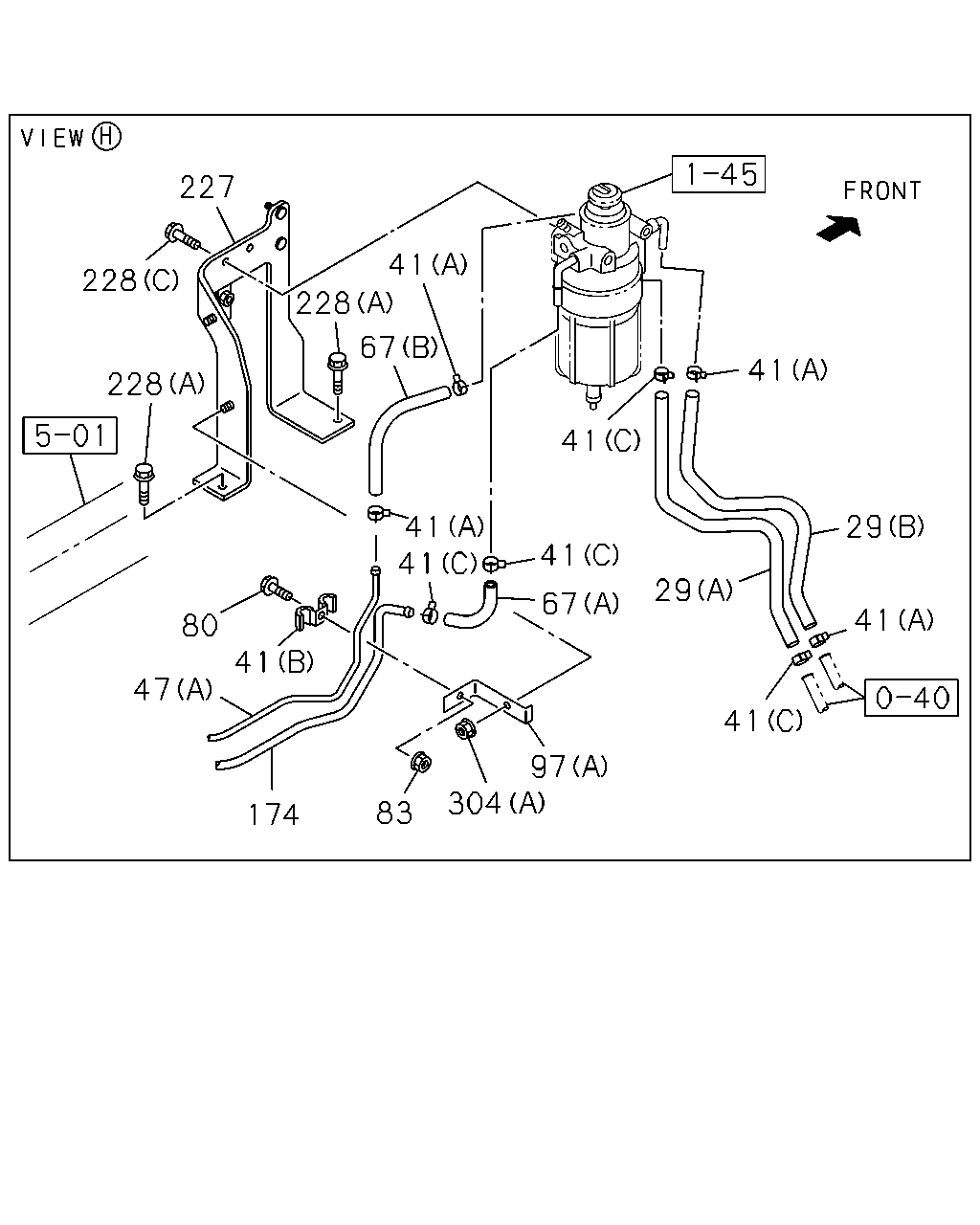

227 228 228 80 47 174 83 304 97 67 41 41 41 41 41 29 41 41 228 67 41 41 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1511-	●	●
29	HOSE; FUEL (A)	8-98156-579-0	01	1	1511-	●	●
29	HOSE; FUEL FUEL TANK 200L FRAME SIDE<N20> (D) L=730	8-98232-243-0	01	1	1511-	●	●
29	HOSE; FUEL FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1511-	●	●
29	HOSE; FUEL FUEL TANK 400L<SDH> (E) L=920	8-98232-244-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=24 & 24 L=49	1-09701-018-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (C) ID=16	8-94238-568-0	02	1	1511-	●	●
47	PIPE; FUEL,RETURN (B) L=787	8-98127-647-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN (A) L=688	8-98129-921-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN FUEL TANK 400L<SDH> (C)	8-98009-438-1	01	1	1511-	●	●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1511-	●	●
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000	0-01859-300-0	01	1	1511-	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
80	BOLT; CLIP,FUEL TANK M8X30 FLANGE	0-28650-830-0	01	1	1511-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	1511-	●	●
83	NUT; CLIP,FUEL TANK FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
97	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	1511-	●	●
97	BRACKET; CLIP (A)	8-98053-654-0	01	1	1511-	●	●
97	BRACKET; CLIP (B)	8-98129-922-0	01	1	1511-	●	●
174	PIPE; FUEL,FEED,FRT L=685	8-98129-920-0	01	1	1511-	●	●
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	1511-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1511-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M10X60 FLANGE	0-28051-060-0	02	1	1511-	●	●
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1511-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1511-	●	●

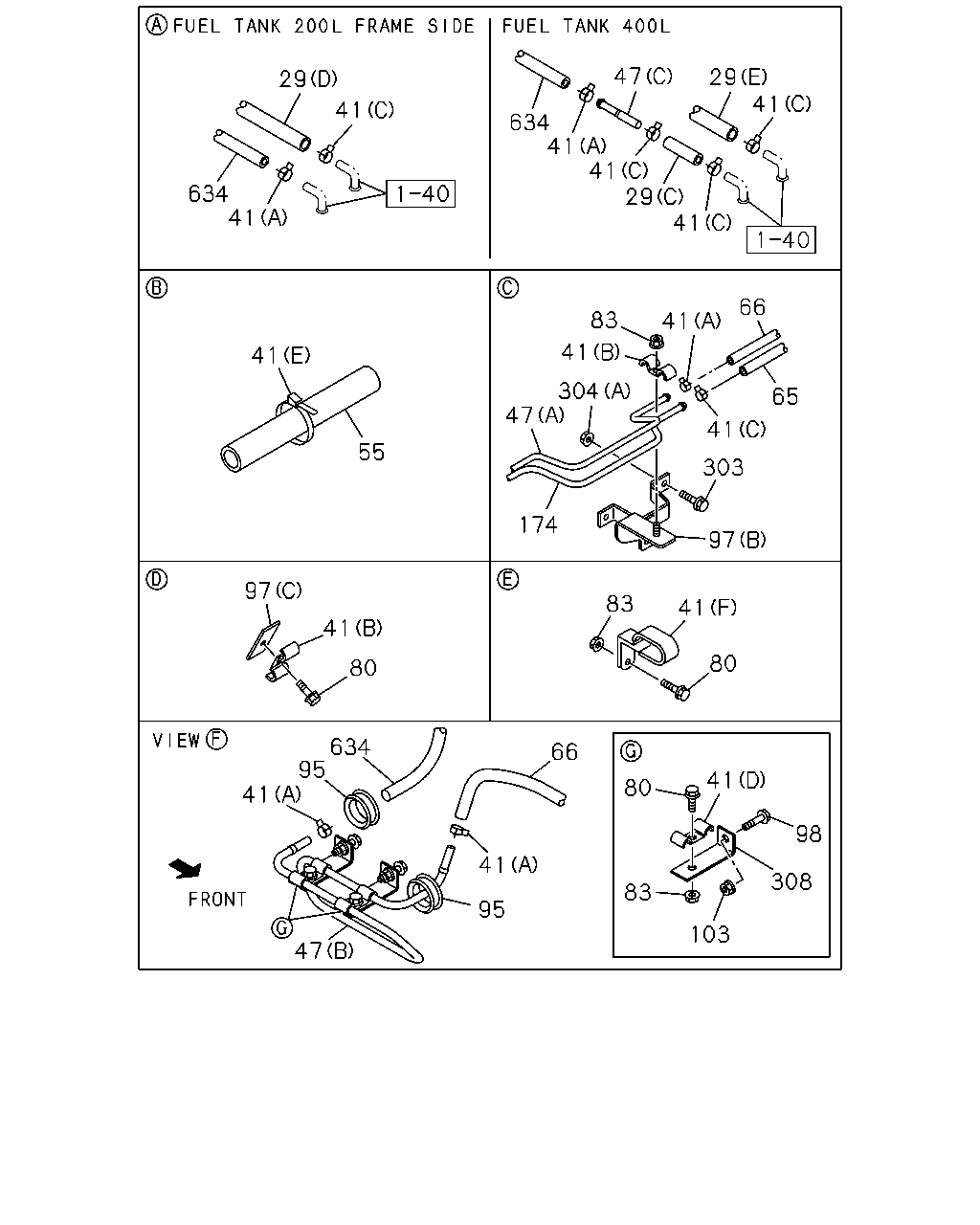

29 41 634 41 634 41 41 29 41 41 29 47 83 41 66 65 41 41 304 47 174 303 97 41 83 80 41 55 97 41 80 634 95 41 47 95 41 66 80 41 98 308 103 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1511-	●	●
29	HOSE; FUEL (A)	8-98156-579-0	01	1	1511-	●	●
29	HOSE; FUEL FUEL TANK 200L FRAME SIDE<N20> (D) L=730	8-98232-243-0	01	1	1511-	●	●
29	HOSE; FUEL FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1511-	●	●
29	HOSE; FUEL FUEL TANK 400L<SDH> (E) L=920	8-98232-244-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=24 & 24 L=49	1-09701-018-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (C) ID=16	8-94238-568-0	02	1	1511-	●	●
47	PIPE; FUEL,RETURN (B) L=787	8-98127-647-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN (A) L=688	8-98129-921-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN FUEL TANK 400L<SDH> (C)	8-98009-438-1	01	1	1511-	●	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98232-240-0	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 400L<SDH> L=1620	8-98232-241-0	01	1	1511-	●	●
66	HOSE; FUEL,RETURN PIPE L=180 SERVICED BY L=3000	0-01558-300-0	01	1	1511-	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
80	BOLT; CLIP,FUEL TANK M8X30 FLANGE	0-28650-830-0	01	1	1511-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	1511-	●	●
83	NUT; CLIP,FUEL TANK FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	02	1	1511-	●	●
97	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	1511-	●	●
97	BRACKET; CLIP (A)	8-98053-654-0	01	1	1511-	●	●
97	BRACKET; CLIP (B)	8-98129-922-0	01	1	1511-	●	●
98	BOLT; BRKT,FUEL PIPE M8X30 FLANGE	0-28650-830-0	02	1	1511-	●	●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
174	PIPE; FUEL,FEED,FRT L=685	8-98129-920-0	01	1	1511-	●	●
303	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1511-	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1511-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
308	BRACKET; FUEL PIPE L=75	1-47478-323-0	02	1	1511-	●	●
634	HOSE; RUBBER RETURN FUEL TANK 200L FRAME SIDE<N20>	8-98186-971-0	01	1	1511-	●	●
634	HOSE; RUBBER RETURN FUEL TANK 400L<SDH> L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1511-	●	●

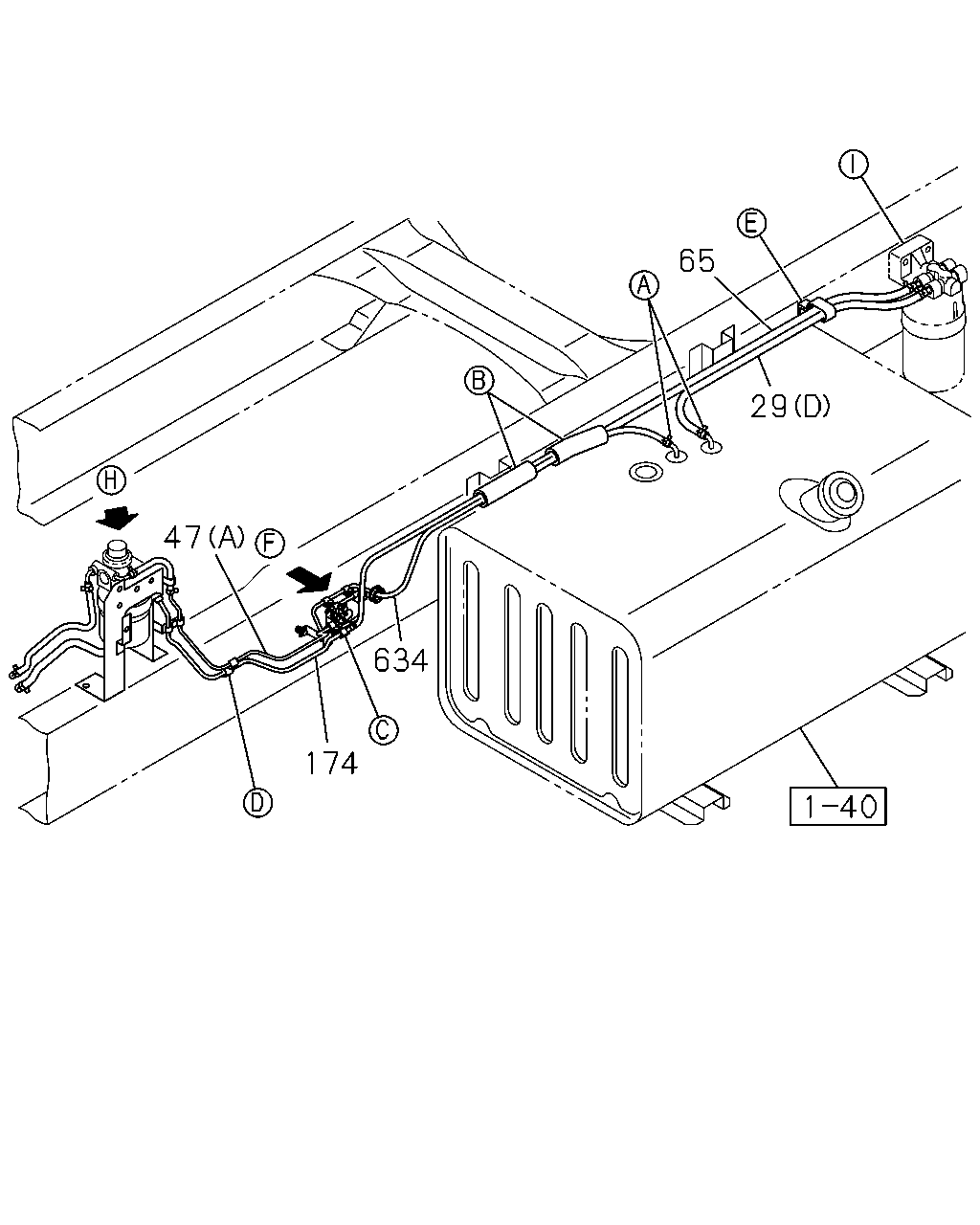

29 65 634 47 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1511-	●	●
29	HOSE; FUEL (A)	8-98156-579-0	01	1	1511-	●	●
29	HOSE; FUEL FUEL TANK 200L FRAME SIDE<N20> (D) L=730	8-98232-243-0	01	1	1511-	●	●
29	HOSE; FUEL FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1511-	●	●
29	HOSE; FUEL FUEL TANK 400L<SDH> (E) L=920	8-98232-244-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN (B) L=787	8-98127-647-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN (A) L=688	8-98129-921-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN FUEL TANK 400L<SDH> (C)	8-98009-438-1	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98232-240-0	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 400L<SDH> L=1620	8-98232-241-0	01	1	1511-	●	●
174	PIPE; FUEL,FEED,FRT L=685	8-98129-920-0	01	1	1511-	●	●
634	HOSE; RUBBER RETURN FUEL TANK 200L FRAME SIDE<N20>	8-98186-971-0	01	1	1511-	●	●
634	HOSE; RUBBER RETURN FUEL TANK 400L<SDH> L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1511-	●	●
