Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11719 - FVZ AUST/NZ EURO5
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#170008) — 36 parça
◀

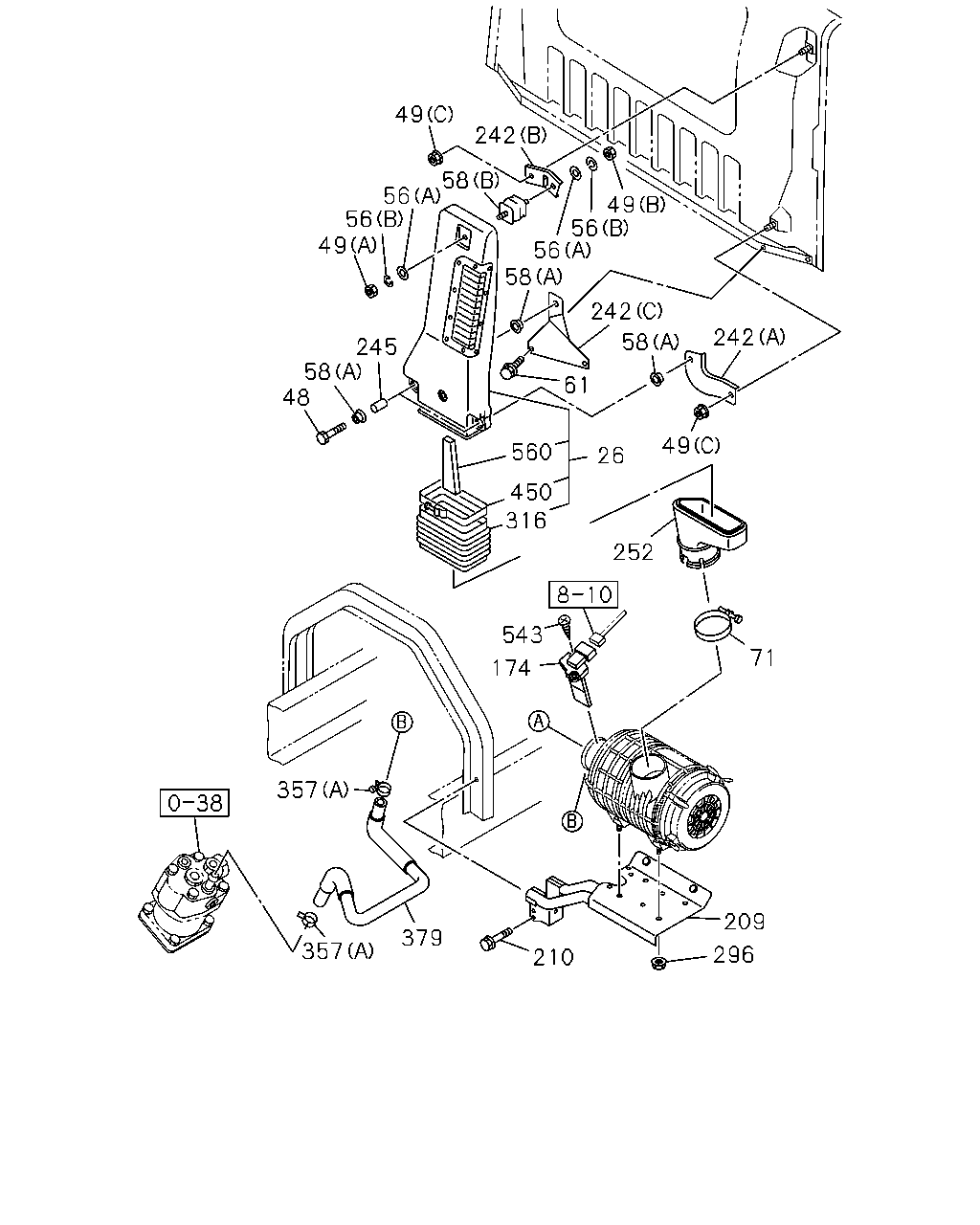

[131A] DUCT FIXING (27 parça)

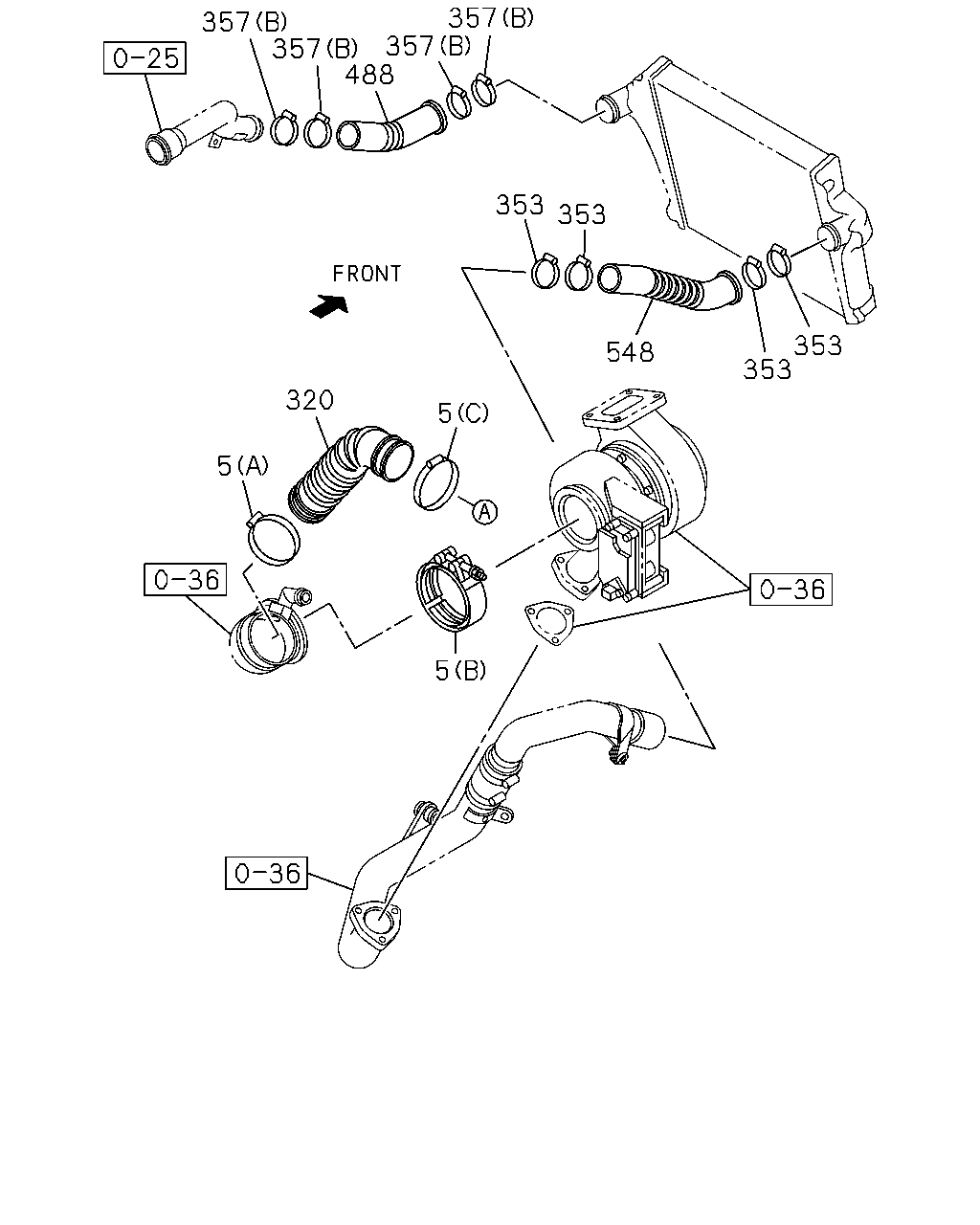

[131A] PIPING (9 parça)
▶
357
379
210
209
296
357
174
543
316
252
450
560
245
58
48
61
26
49
242
58
242
56
56
58
49
242
49
58
56
56
49
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
DUCT; AIR INT
8-98010-361-2
01
1
1511-
48
BOLT; AIR DUCT
M10X60
1-09030-044-1
02
1
1511-
49
NUT; AIR DUCT
(B) M8 FLANGE
1-09984-122-0
01
1
1511-
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-126-0
01
1
1511-
49
NUT; AIR DUCT
(C) M8 FLANGE
8-94279-517-0
02
1
1511-
56
WASHER; LK,AIR INT DUCT
(A) ID=8.2
1-09985-177-0
02
1
1511-
56
WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22
1-09985-188-0
02
1
1511-
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
1511-
58
SUPPORT; AIR INL DUCT
(B)
8-98125-944-1
01
1
1511-
61
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
8-98074-570-0
02
1
1511-
71
CLIP; AIR DUCT
ID=140-160
8-98133-368-0
01
1
1511-
174
SENSOR; AIR FLOW CONT
8-97601-967-0
01
1
1511-
209
BRACKET; ACL
8-98021-995-1
01
1
1511-
210
BOLT; ACL BRKT
M10X25 FLANGE
0-28651-025-0
04
1
1511-
242
BRACKET; AIR DUCT
(B)
8-98019-301-3
01
1
1511-
242
BRACKET; AIR DUCT
(C)
8-98019-302-1
01
1
1511-
242
BRACKET; AIR DUCT
(A)
8-98019-304-1
01
1
1511-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
1511-
252
DUCT; AIR INT
8-98021-989-1
01
1
1511-
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
1511-
316
RUBBER; CUSHION,DUCT
8-98152-269-0
01
1
1511-
357
CLIP; RUBBER HOSE
(A) ID=26
1-09707-091-0
02
1
1511-
357
CLIP; RUBBER HOSE
(B) ID=58-79
1-09707-136-0
04
1
1511-
379
HOSE; RUBBER
8-98077-470-0
01
1
1511-
450
CLAMP; HOSE
9-09915-504-1
01
1
1511-
543
SCREW; SENSOR
M4X10 W/LK&PL WASHER
0-36230-410-0
02
1
1511-
560
FILTER; VERTICAL DUCT
8-98061-675-0
01
1
1511-
357
357
357
357
488
353
353
548
353
353
5
320
5
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
(A) ID=104-142
1-09707-139-0
01
1
1511-
5
CLIP; AIR DUCT
(B) ID=114
8-15178-030-0
01
1
1511-
5
CLIP; AIR DUCT
(C) ID=130-169
8-98155-950-0
01
1
1511-
320
HOSE; CONN,ACL
8-98021-990-2
01
1
1511-
353
CLIP; RUBBER HOSE
ID=58-79
1-09707-136-0
04
1
1511-
357
CLIP; RUBBER HOSE
(A) ID=26
1-09707-091-0
02
1
1511-
357
CLIP; RUBBER HOSE
(B) ID=58-79
1-09707-136-0
04
1
1511-
488
HOSE; RUBBER,PIPE
8-98012-936-1
01
1
1511-
548
HOSE; RUBBER,TURBO TO INL PIPE
8-98065-044-0
01
1
1511-
