Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11719 - FVZ AUST/NZ EURO5
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#170005) — 60 parça
◀
[110A] COMPONENT (24 parça)
[110A] HOSE; A/T (2 parça)
[110A] STAY; FAN GUIDE (7 parça)
[110A] FIXING (27 parça)
▶

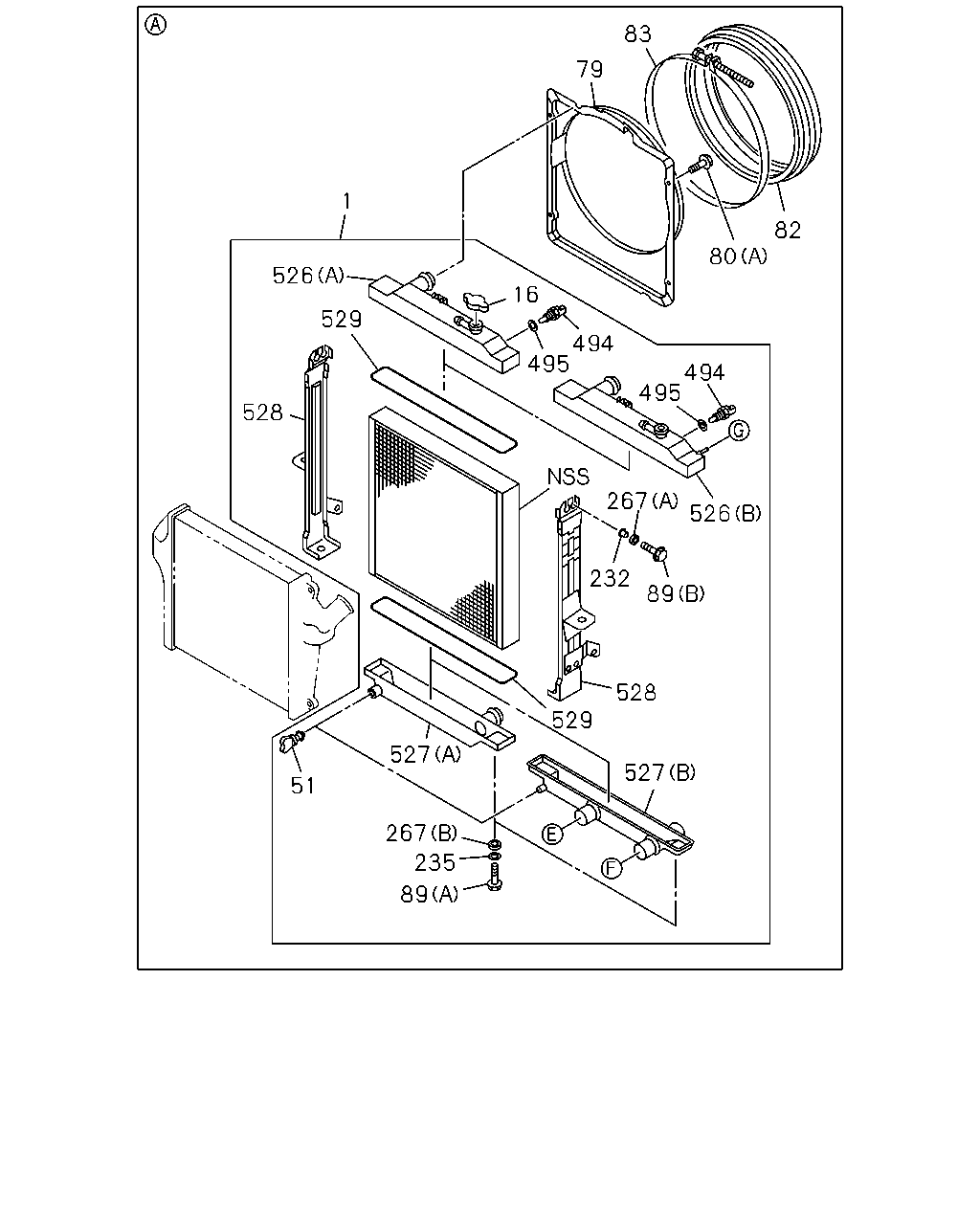

89
267
235
51
527
529
527
528
89
232
267
526
494
495
494
495
16
1
529
526
528
79
83
82
80
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
MANUAL TRANSMISSION<X9C>
8-98326-131-0
01
1
1511-
1
RADIATOR ASM
A/T<X9D>
8-98326-132-0
01
1
1511-
16
CAP; RAD
8-98096-226-0
01
1
1511-
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1511-
79
GUIDE; FAN,RAD
8-98326-144-0
01
1
1511-
80
BOLT; FAN GUIDE
(A) M8X12 FLANGE
0-28050-812-0
04
1
1511-
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1511-
82
COVER; FAN,RAD
8-98293-253-0
01
1
1511-
83
CLIP; FAN COVER
1-09707-177-2
01
1
1511-
89
BOLT
(A) M6X12 FLANGE
0-28050-612-0
02
1
1511-
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
04
1
1511-
232
COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
04
1
1511-
235
WASHER; CUSHION RUBBER
1-21469-133-0
02
1
1511-
267
RUBBER; CUSHION
(A)
1-21469-130-0
04
1
1511-
267
RUBBER; CUSHION
(B)
1-21469-131-0
02
1
1511-
494
SENSOR; LEVEL
8-98306-967-0
01
1
1511-
495
GASKET; SENSOR
1-09623-185-0
01
1
1511-
526
TANK; UPR,RADIATOR CORE
MANUAL TRANSMISSION<X9C> (A)
8-98323-024-0
01
1
1511-
526
TANK; UPR,RADIATOR CORE
A/T<X9D> (B)
8-98323-025-0
01
1
1511-
527
TANK; LWR,RADIATOR CORE
MANUAL TRANSMISSION<X9C> (A)
8-98004-203-0
01
1
1511-
527
TANK; LWR,RADIATOR CORE
A/T<X9D> (B)
8-98038-558-2
01
1
1511-
528
PLATE; SIDE,RADIATOR CORE
8-98010-371-3
01
1
1511-
528
PLATE; SIDE,RADIATOR CORE
8-98326-138-0
01
1
1511-
529
GASKET; CORE,RADIATOR
8-98004-206-0
02
1
1511-

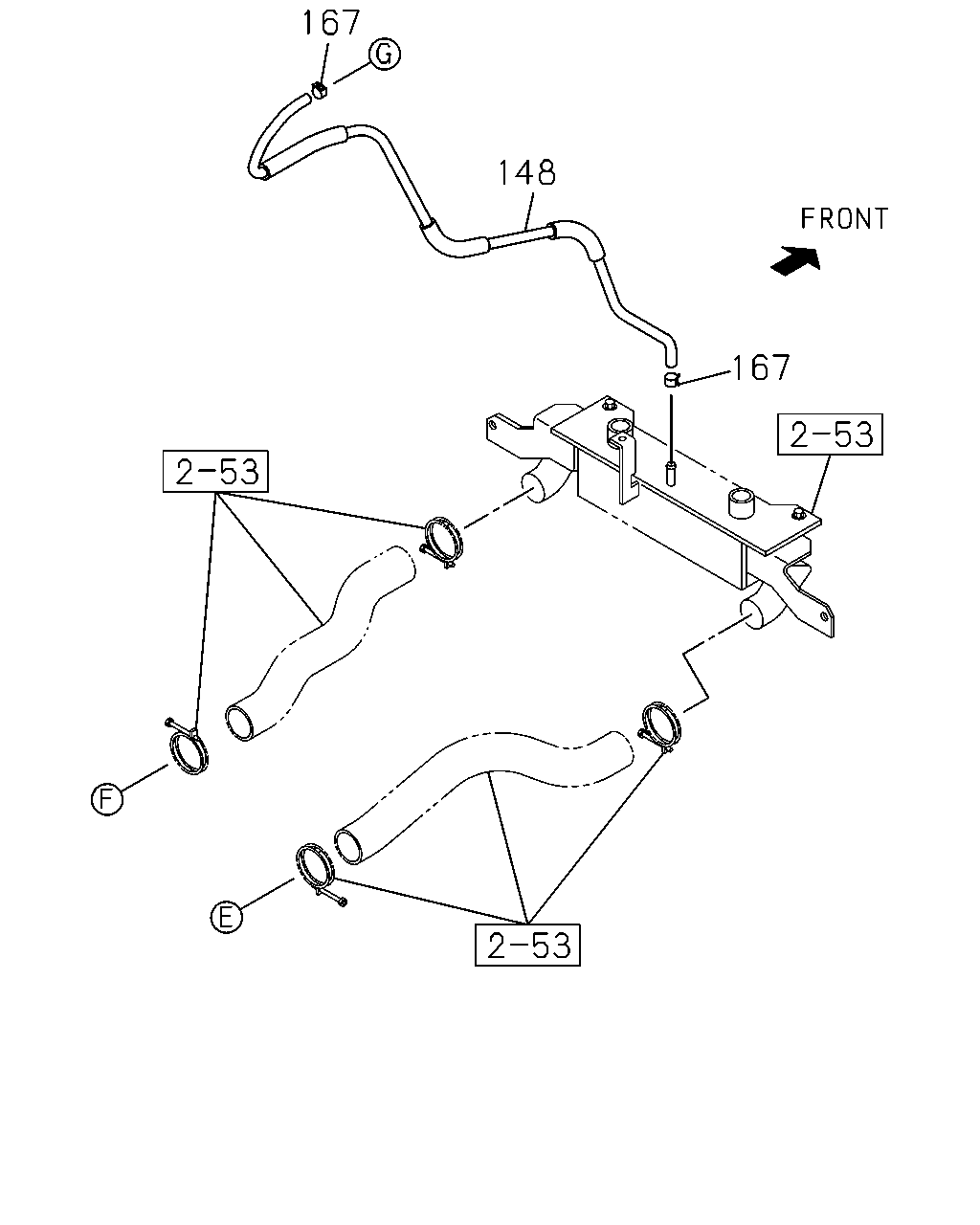

167
148
167
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
148
HOSE; WATER,BYPASS,SUB RAD
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) A/T<X9D>
8-98312-070-0
01
1
1511-
167
CLIP; BYPASS HOSE
EXC. MANUAL TRANSMISSION<X9C> ID=11.5
8-97375-638-0
02
1
1511-

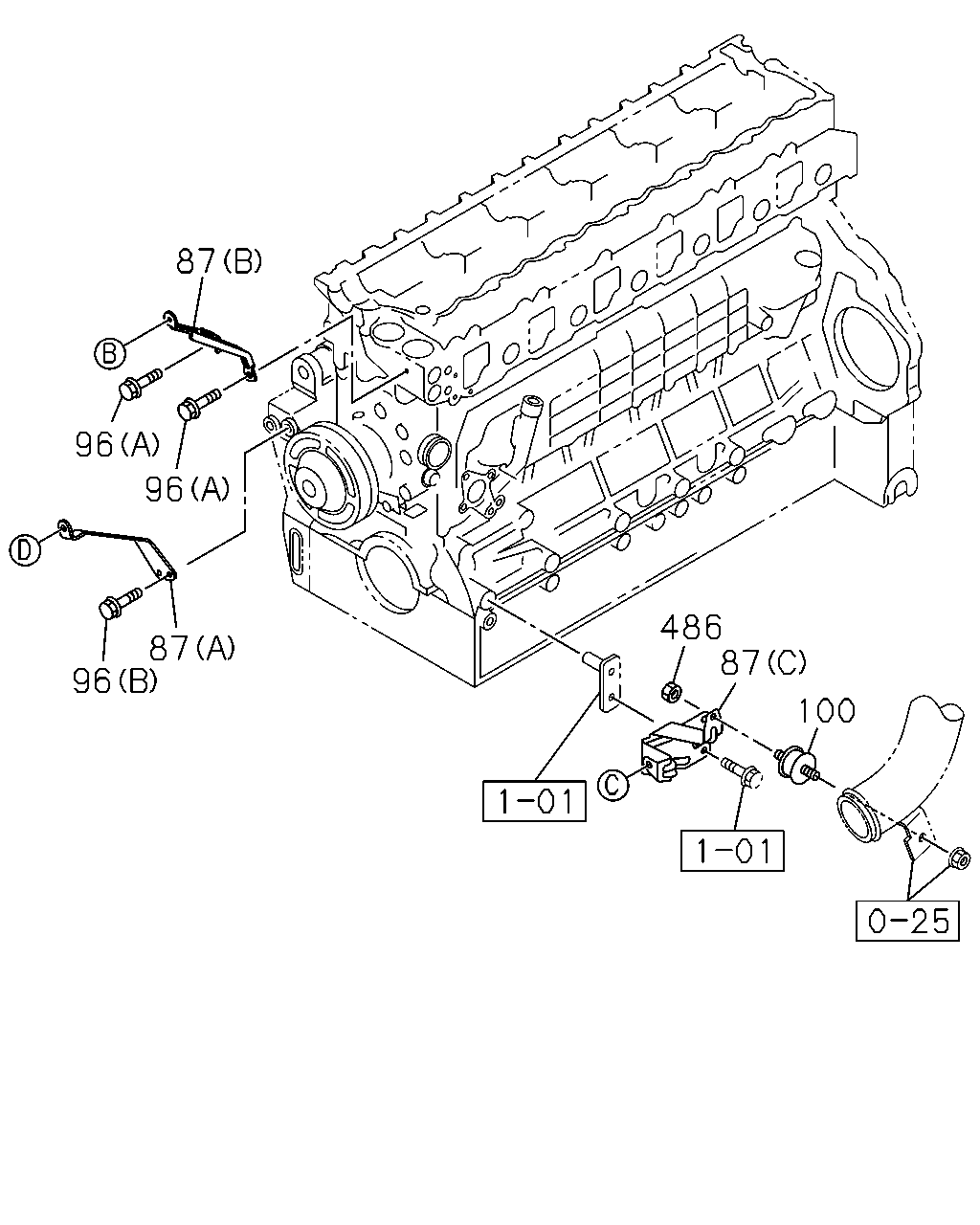

96
96
87
96
87
486
87
100
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
87
STAY; FAN GUIDE
(B)
8-94393-776-1
01
1
1511-
87
STAY; FAN GUIDE
(C)
8-94393-778-2
01
1
1511-
87
STAY; FAN GUIDE
(A)
8-97602-988-0
01
1
1511-
96
BOLT; STAY FIX
(B) M8X16 FLANGE
0-28050-816-0
02
1
1511-
96
BOLT; STAY FIX
(A) M10X16 FLANGE
0-28151-016-0
02
1
1511-
100
RUBBER; MTG
8-98148-109-0
01
1
1511-
486
NUT; MTG RUBBER
M8 FLANGE
0-91180-108-0
01
1
1511-

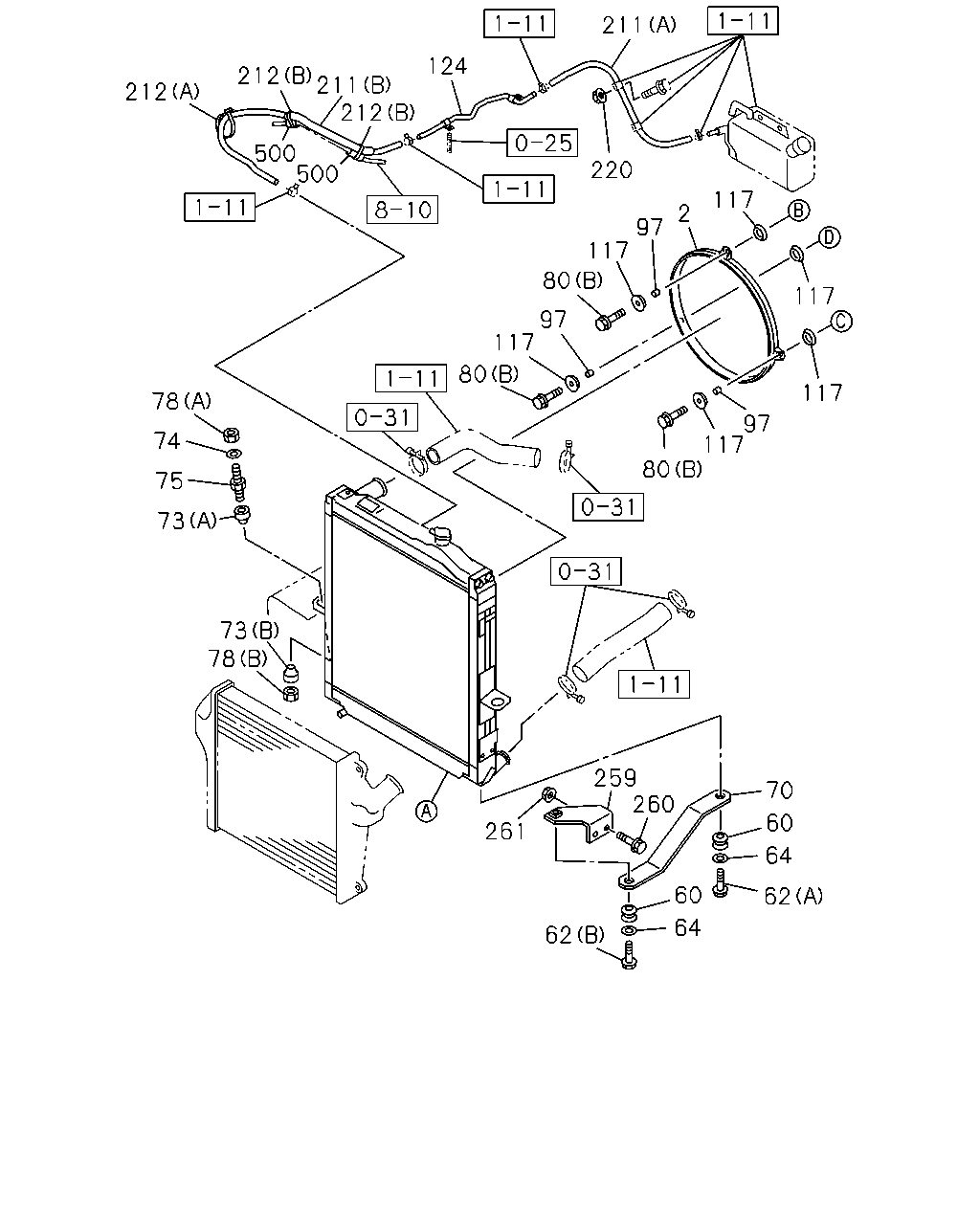

212
212
211
212
124
211
220
117
2
97
117
80
117
117
97
117
80
97
117
80
500
500
78
75
74
73
73
78
261
259
260
70
60
64
62
60
64
62
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GUIDE; FAN
8-94393-779-1
01
1
1511-
60
GROMMET
1-09332-117-0
04
1
1511-
62
BOLT; STAY
(A) M8X30
1-09009-020-1
02
1
1511-
62
BOLT; STAY
(B) M8X26
1-09009-175-0
02
1
1511-
64
WASHER; STAY TO RAD
ID=12.5 OD=26
0-91610-612-0
04
1
1511-
70
STAY; RAD
8-98004-132-2
02
1
1511-
73
RUBBER; CUSHION,RAD MTG
(A) T=14
1-21467-004-0
02
1
1511-
73
RUBBER; CUSHION,RAD MTG
(B) T=24
1-21467-011-1
02
1
1511-
74
WASHER; PL,CUSHION RUBBER
ID=11 OD=54
1-09503-154-2
02
1
1511-
75
BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5
1-21466-007-3
02
1
1511-
78
NUT; CUSHION RUBBER
(A) M10 FLANGE
0-91180-210-0
02
1
1511-
78
NUT; CUSHION RUBBER
(B) M12 FLANGE
0-91180-212-0
02
1
1511-
80
BOLT; FAN GUIDE
(A) M8X12 FLANGE
0-28050-812-0
04
1
1511-
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1511-
97
TUBE; DIST,FAN GUIDE
9-09651-072-0
03
1
1511-
117
RUBBER; MTG,FAN GUIDE
OD=32
8-94395-766-0
06
1
1511-
124
PIPE; WATER,TANK TO RAD
8-97611-022-1
01
1
1511-
211
HOSE; RAD TO PIPE
(B) L=970
8-98073-545-0
01
1
1511-
211
HOSE; RAD TO PIPE
(A) L=560
8-98119-375-0
01
1
1511-
212
CLIP; HOSE
(A) L=250
5-09707-030-1
01
1
1511-
212
CLIP; HOSE
(B) L=140
5-09707-031-1
02
1
1511-
220
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
1511-
259
BRACKET; RAD STAY
8-98071-821-0
01
1
1511-
259
BRACKET; RAD STAY
8-98071-822-0
01
1
1511-
260
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
04
1
1511-
261
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
1511-
500
SLEEVE; RUBBER
ID=17 OD=21 L=40
1-09337-012-0
02
1
1511-
