◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11719 - FVZ AUST/NZ EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#170001) — 47 parça

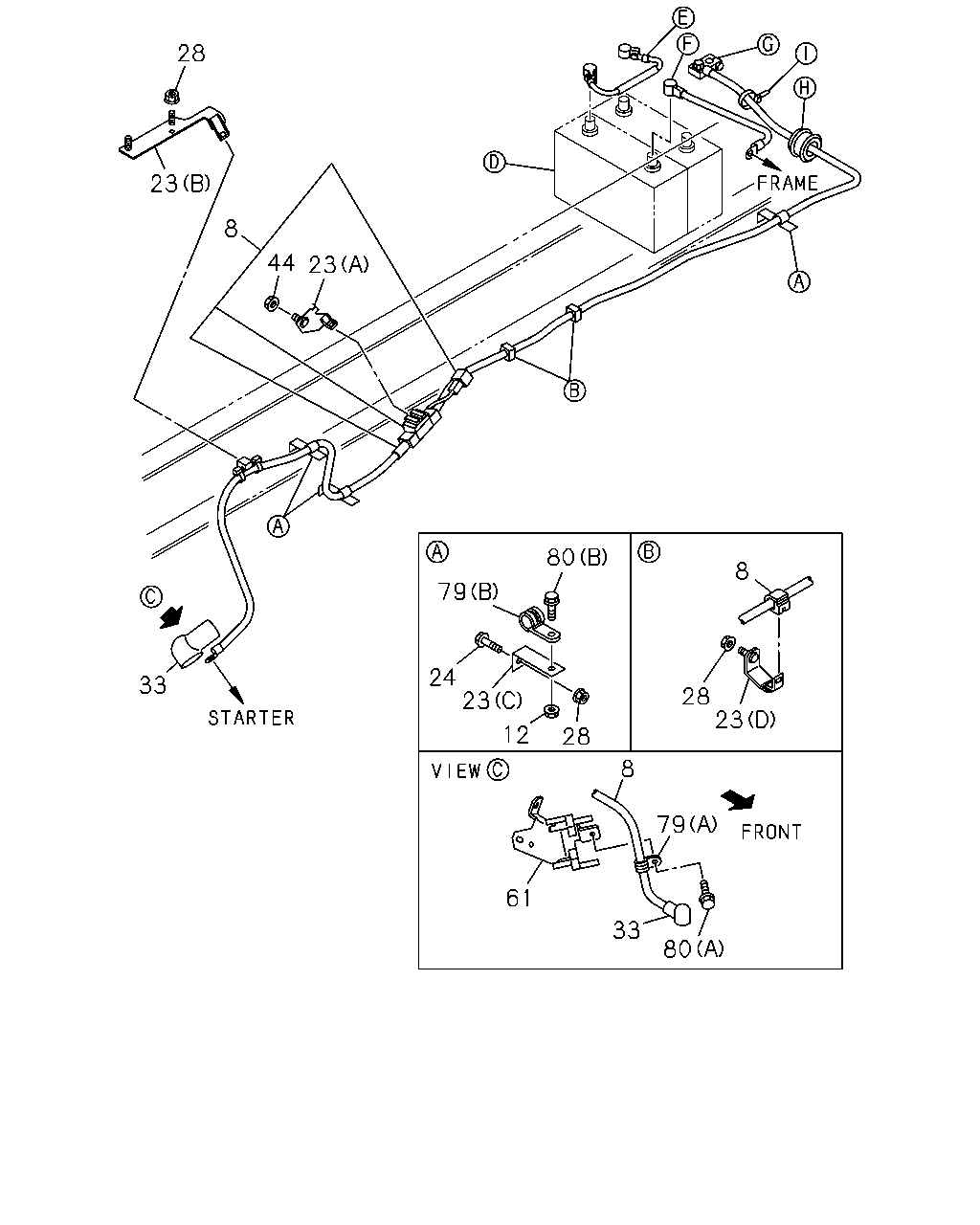

çizim 500472
28 23 8 44 23 33 79 24 23 12 28 80 8 28 23 8 79 61 33 80
BalonParca AdiParca NoAdetTipApplied Date A B
8 CABLE; BATTERY,STARTER
ALLISON MD3560P A/T(Y3B) BATTERY 115E41L<8MA> 		8-98306-509-0 01 1 1511- ● ●
8 CABLE; BATTERY,STARTER
ALLISON MD3560P A/T(Y3B) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98306-510-0 01 1 1511- ● ●
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) BATTERY 115E41L<8MA> 		8-98306-507-0 01 1 1511- ● ●
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98306-508-0 01 1 1511- ● ●
12 NUT; BATTERY CABLE CLIP
ALLISON MD3560P A/T(Y3B) M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
12 NUT; BATTERY CABLE CLIP
ZF9S1110 M/T(Y5E) M8 FLANGE 		0-91180-108-0 04 1 1511- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98044-882-0 01 1 1511- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(B) 		8-98201-025-0 01 1 1511- ● ●
23 BRACKET; CABLE CLIP TO FRAME
ALLISON MD3560P A/T(Y3B) (C) L=95 		1-82699-085-0 02 1 1511- ● ●
23 BRACKET; CABLE CLIP TO FRAME
ALLISON MD3560P A/T(Y3B) (D) 		8-97612-957-1 02 1 1511- ● ●
23 BRACKET; CABLE CLIP TO FRAME
ZF9S1110 M/T(Y5E) (C) L=95 		1-82699-085-0 04 1 1511- ● ●
24 BOLT; BRKT TO FRAME
WHEEL BASE 5000MM(50W) M8X25 FLANGE 		0-28650-825-0 01 1 1511- ● ●
24 BOLT; BRKT TO FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 7100MM(71W) M8X30 FLANGE 		0-28650-830-0 02 1 1511- ●
24 BOLT; BRKT TO FRAME
WHEEL BASE 5900MM(59W) M8X30 FLANGE 		0-28650-830-0 02 1 1511- ●
24 BOLT; BRKT TO FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) M8X30 FLANGE 		0-28650-830-0 04 1 1511- ●
24 BOLT; BRKT TO FRAME
WHEEL BASE 7100MM(71W) M8X30 FLANGE 		0-28650-830-0 04 1 1511- ●
24 BOLT; BRKT TO FRAME
WHEEL BASE 5000MM(50W) M8X30 FLANGE 		0-28650-830-0 01 1 1511- ●
24 BOLT; BRKT TO FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) M8X30 FLANGE 		0-28650-830-0 01 1 1511- ●
24 BOLT; BRKT TO FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) M8X30 FLANGE 		0-28650-830-0 03 1 1511- ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 04 1 1511- ● ●
33 CAP; INSULATOR 1-82699-431-0 01 1 1511- ● ●
44 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1511- ● ●
61 BRACKET; BATTERY CABLE 8-98051-379-1 01 1 1511- ● ●
79 CLIP; BATTERY CABLE
(A) ID=15 L=28 		1-09701-216-0 01 1 1511- ● ●
79 CLIP; BATTERY CABLE
ALLISON MD3560P A/T(Y3B) (B) ID=21 L=24 		8-98019-191-0 02 1 1511- ● ●
79 CLIP; BATTERY CABLE
ZF9S1110 M/T(Y5E) (B) ID=21 L=24 		8-98019-191-0 04 1 1511- ● ●
80 BOLT; BATTERY CABLE CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1511- ● ●
80 BOLT; BATTERY CABLE CLIP
ALLISON MD3560P A/T(Y3B) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1511- ● ●
80 BOLT; BATTERY CABLE CLIP
ZF9S1110 M/T(Y5E) (B) M8X25 FLANGE 		0-28650-825-0 04 1 1511- ● ●

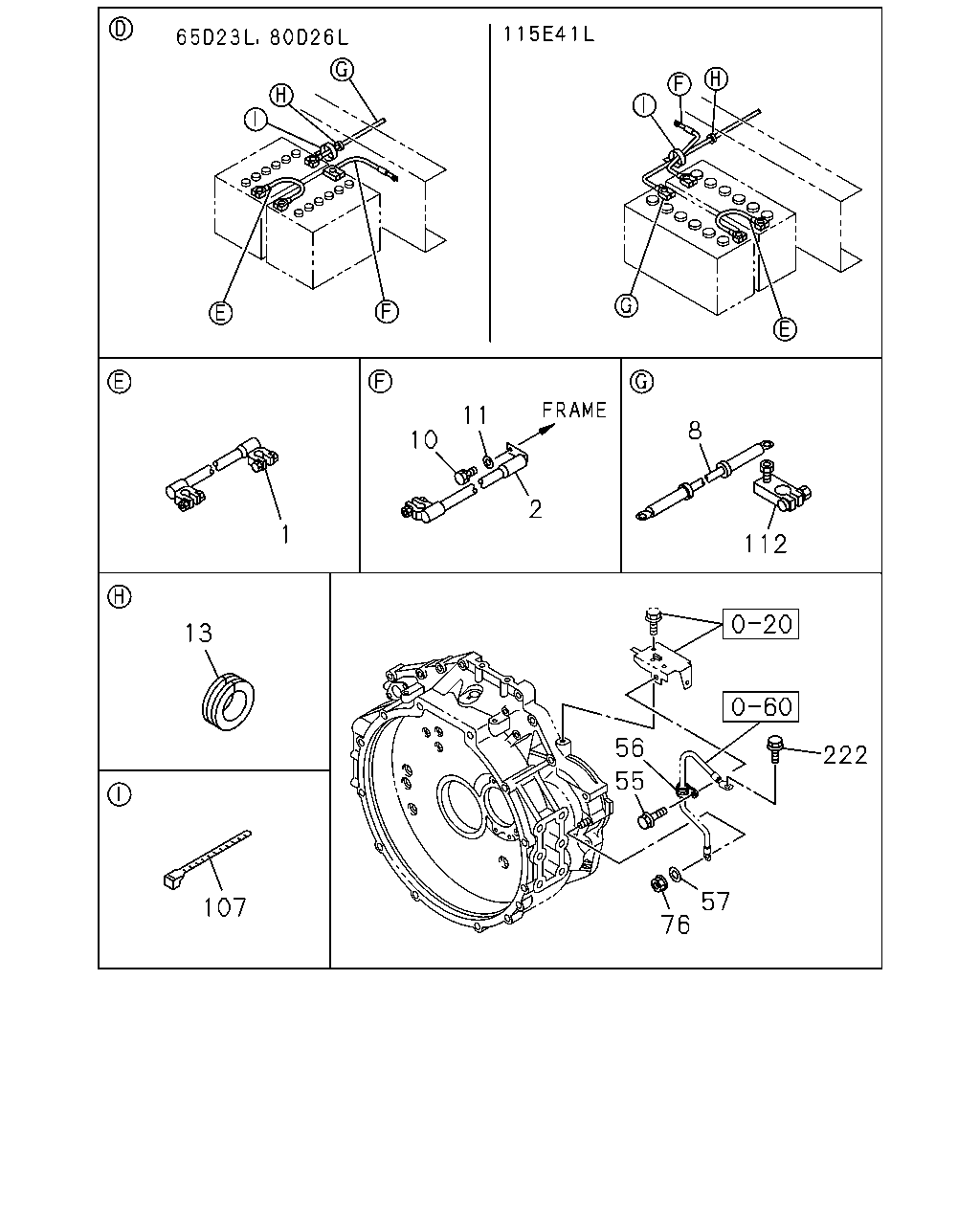

çizim 500482
11 2 10 1 13 107 76 55 56 57 222 112 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1511- ● ●
2 CABLE; BATTERY
BATTERY 115E41L<8MA> L=440 		8-97615-309-1 01 1 1511- ● ●
2 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=280 		8-98035-647-1 01 1 1511- ● ●
8 CABLE; BATTERY,STARTER
ALLISON MD3560P A/T(Y3B) BATTERY 115E41L<8MA> 		8-98306-509-0 01 1 1511- ● ●
8 CABLE; BATTERY,STARTER
ALLISON MD3560P A/T(Y3B) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98306-510-0 01 1 1511- ● ●
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) BATTERY 115E41L<8MA> 		8-98306-507-0 01 1 1511- ● ●
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98306-508-0 01 1 1511- ● ●
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1511- ● ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1511- ● ●
13 GROMMET; BATTERY CABLE
ID=32 OD=40 T=23 		1-09332-112-0 01 1 1511- ● ●
55 BOLT; CLIP,BATTERY CABLE
M8X16 FLANGE 		0-28050-816-0 01 1 1511- ● ●
56 CLIP; BATTERY CABLE
ID=16 L=28 		1-09700-872-0 01 1 1511- ● ●
57 WASHER; PL,BATTERY CABLE
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 1511- ● ●
76 NUT; BATTERY CABLE
M10 FLANGE 		0-91180-210-0 01 1 1511- ● ●
107 CLIP; BAND
L=140 		5-09707-031-1 01 1 1511- ● ●
112 TERMINAL; BATTERY
<+> 		8-98290-356-0 01 1 1511- ● ●
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1511- ● ●
