8-73 — BLOWER UNIT (#1700) — 35 parça

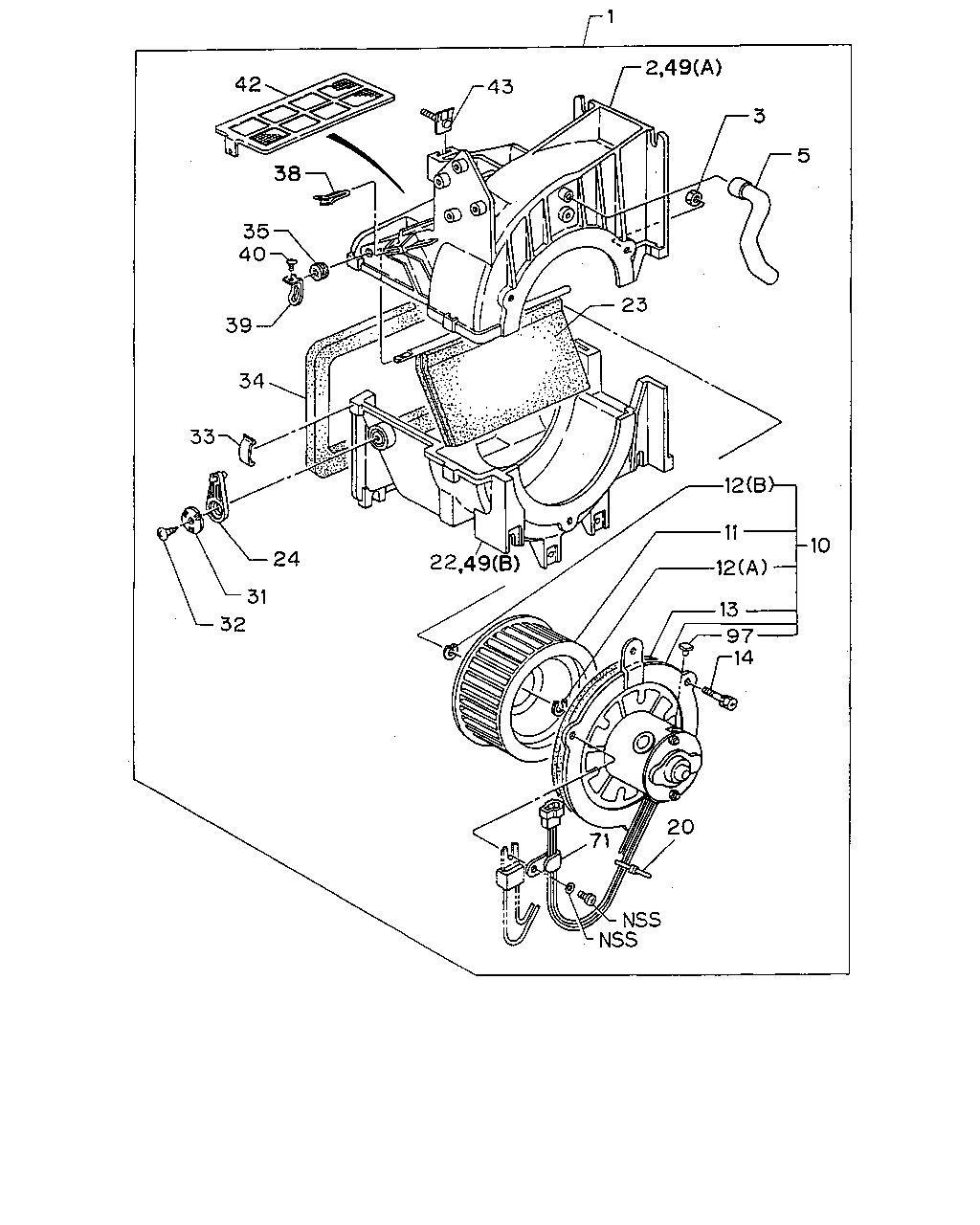

çizim 95743
1 2 49 3 5 43 42 38 35 40 39 34 33 24 31 32 23 49 22 12 11 10 12 13 97 14 20 71
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 BLOWER ASM
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> EXC. BLOWER UNIT HIGH CAPACITY VAR1<SFX> 		1-83561-049-3 01 1 9207- ● ● ● ● ●
1 BLOWER ASM
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> BLOWER UNIT HIGH CAPACITY VAR1<SFX> 		1-83561-040-6 01 1 9207- ● ● ● ●
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83561-040-6 01 1 9207- ● ●
2 CASE; BLOWER UNIT,FRT
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83563-119-0 01 1 9207- ● ●
3 NUT; CASE 8-94233-154-0 04 1 9207- ● ● ● ● ●
5 HOSE; AIR 1-83563-105-0 01 1 9207- ● ● ● ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> EXC. BLOWER UNIT HIGH CAPACITY VAR1<SFX> 		1-83561-068-1 01 1 9207- ● ● ● ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> BLOWER UNIT HIGH CAPACITY VAR1<SFX> 		1-83561-070-1 01 1 9207- ● ● ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83561-070-1 01 1 9207- ● ●
11 IMPELLER; FAN MOTOR 1-83579-226-0 01 1 9207- ● ● ● ● ●
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 9207- ● ● ● ● ●
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 9207- ● ● ● ● ●
13 LINING; BLOWER UNIT
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		8-94233-165-0 01 1 9207- ● ● ● ● ●
13 LINING; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL<C60> 		8-94243-963-0 01 1 9207- ● ●
14 SCREW; COVER TO CASE
M5X25 		5-15729-279-0 04 1 9207- ● ● ● ● ●
20 BAND; CLIP,BLOWER UNIT 1-83579-263-0 01 1 9207- ● ● ● ● ●
22 CASE; BLOWER UNIT,RR
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83563-115-0 01 1 9207- ● ●
23 SHUTTER; BLOWER UNIT 1-83579-234-1 01 1 9207- ● ● ● ● ●
24 LEVER; CASE 1-83564-189-0 01 1 9207- ● ● ● ● ●
31 WASHER; LEVER 1-83579-095-0 01 1 9207- ● ● ● ● ●
32 SCREW; LEVER
M5X16 		8-94248-820-0 01 1 9207- ● ● ● ● ●
33 CLIP; BLOWER UNIT
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-83574-148-0 05 1 9207- ● ● ● ● ●
33 CLIP; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL<C60> 		8-94315-776-0 05 1 9207- ● ●
34 LINING; BLOWER UNIT 1-83579-286-0 01 1 9207- ● ● ● ● ●
35 BUSHING; LEVER 1-83576-028-0 01 1 9207- ● ● ● ● ●
38 CLIP; BLOWER UNIT 1-83574-149-0 01 1 9207- ● ● ● ● ●
39 LEVER; SHUTTER,BLOWER UNIT 1-83564-191-0 01 1 9207- ● ● ● ● ●
40 SCREW; LEVER,BLOWER UNIT 5-83571-160-0 01 1 9207- ● ● ● ● ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> BLOWER UNIT HIGH CAPACITY VAR1<SFX> 		1-83579-267-1 01 1 9207- ● ● ● ●
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83579-267-1 01 1 9207- ● ●
43 BOLT; CASE 1-83579-175-0 03 1 9207- ● ● ● ● ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> (B) 		1-83563-115-0 01 1 9207- ● ● ● ● ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> (A) 		1-83563-119-0 01 1 9207- ● ● ● ● ●
71 CLIP; HARNESS 1-83574-080-0 01 1 9207- ● ● ● ● ●
97 PLUG; FAN MOTOR 1-83579-248-0 01 1 9207- ● ● ● ● ●
