Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11719 - FVZ AUST/NZ EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#169988) — 42 parça
◀

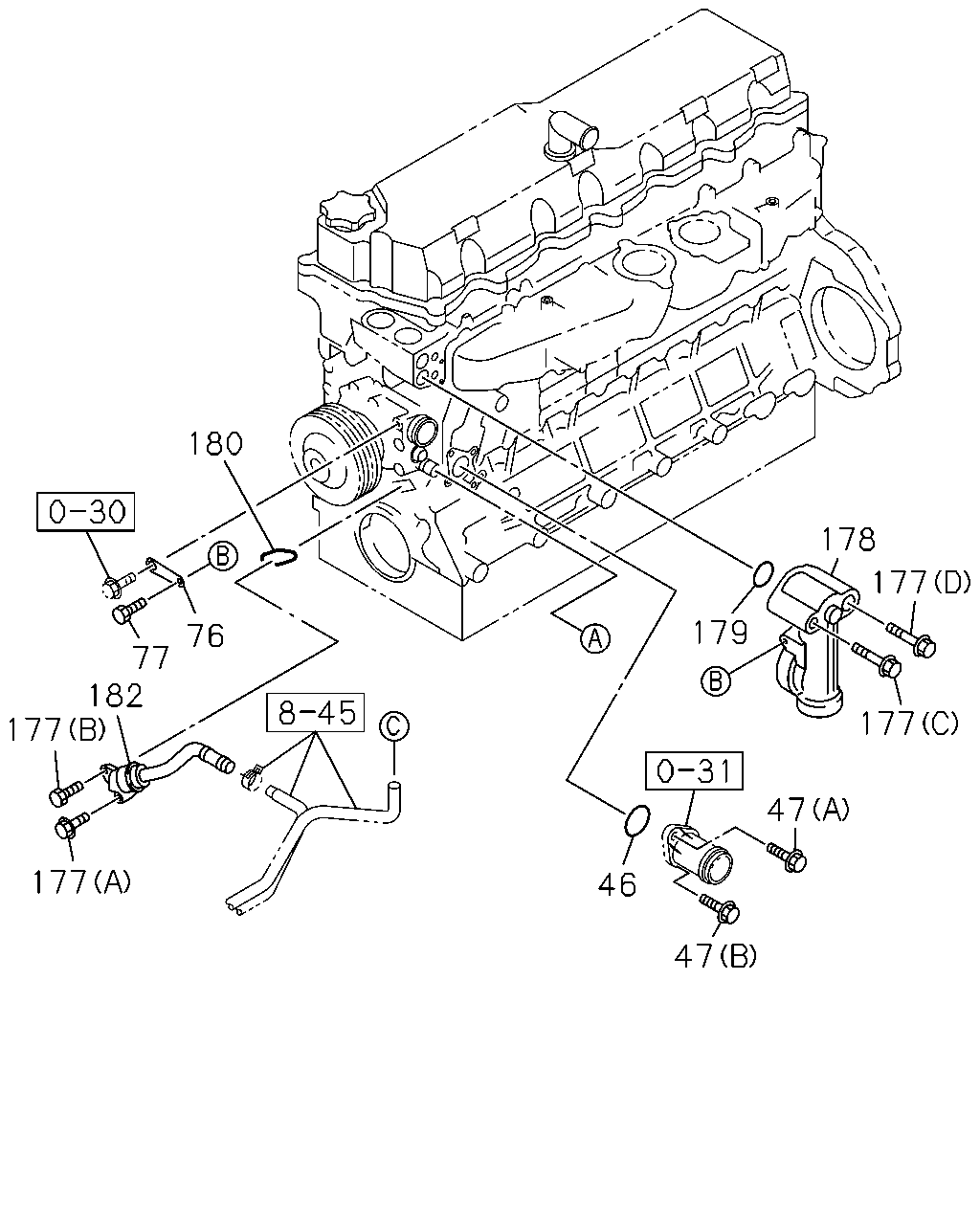

[032A] WATER DUCT (13 parça)

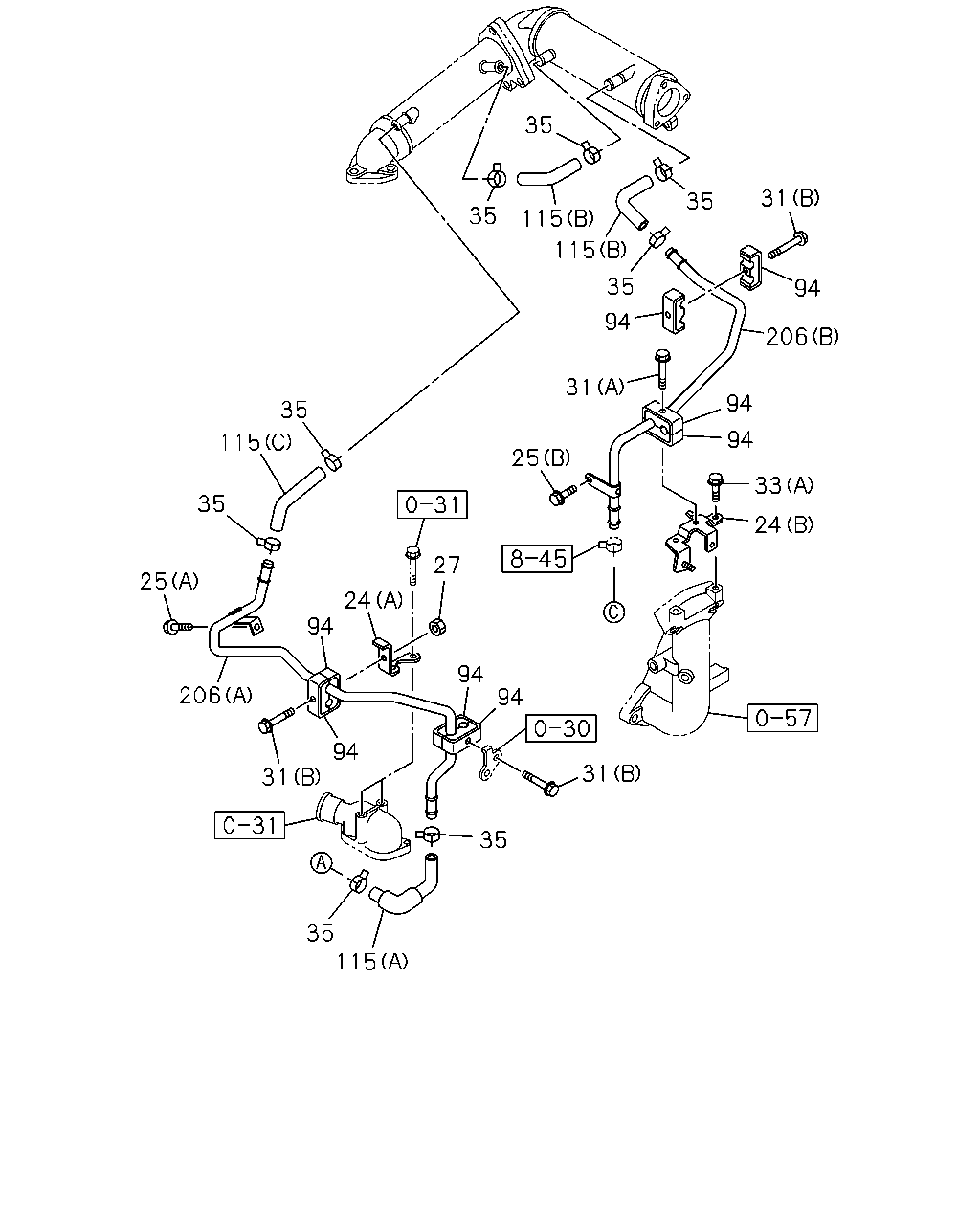

[032A] EGR COOLER SIDE (17 parça)

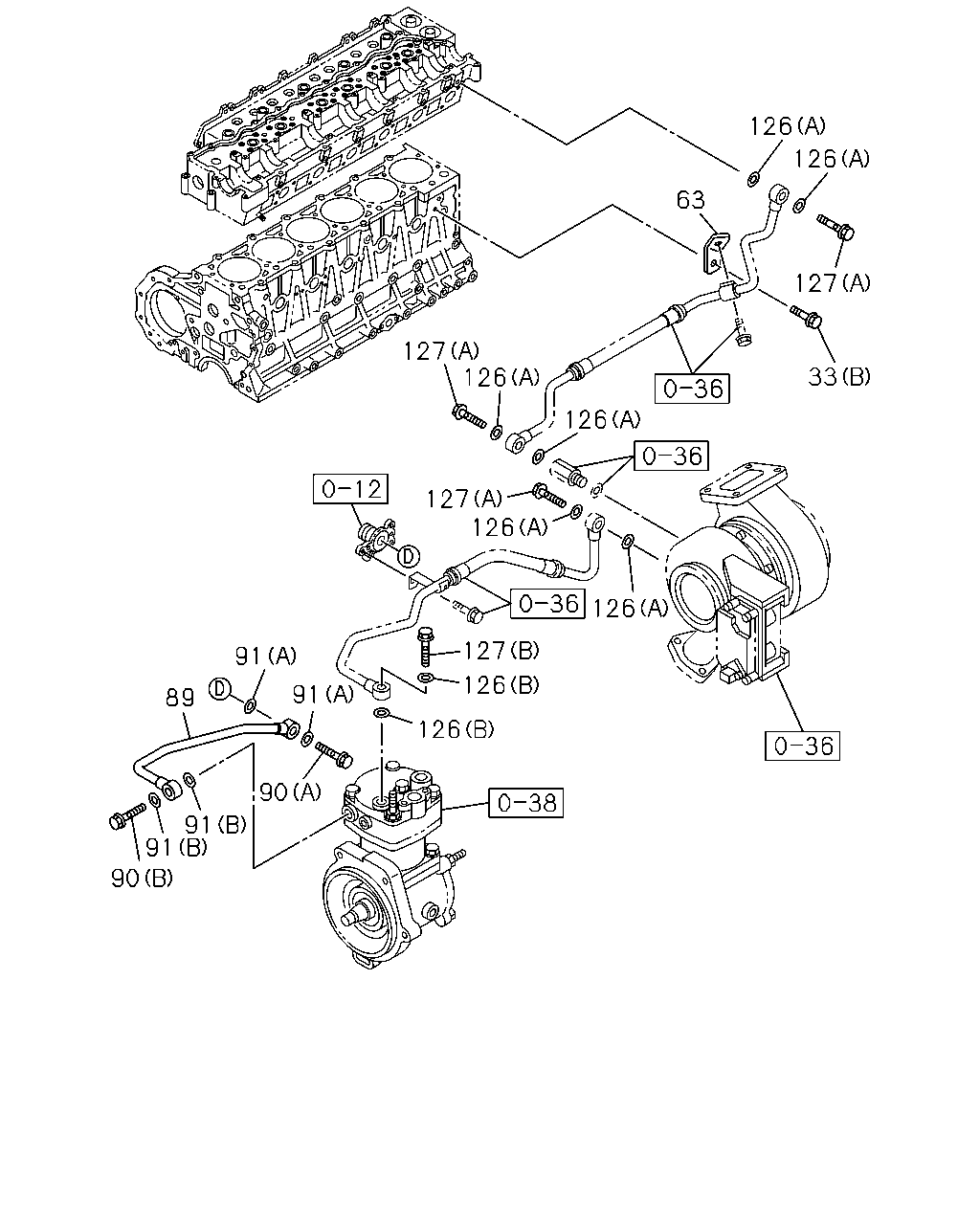

[032A] TURBOCHARGER AND AIR COMPRESSOR SIDE (12 parça)
▶
180
178
179
177
177
47
46
47
177
177
77
182
76
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
46
GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3
8-94396-680-2
01
1
1511-
47
BOLT; DUCT,TO OIL COOLER
(A) M8X45 FLANGE
0-28050-845-0
01
1
1511-
47
BOLT; DUCT,TO OIL COOLER
(B) M8X25 FLANGE
0-28650-825-0
01
1
1511-
76
BRACKET; WATER DUCT,PUMP
8-94394-784-0
01
1
1511-
77
BOLT; BRKT,WATER DUCT
M8X50 FLANGE
0-28050-850-0
01
1
1511-
177
BOLT; WATER DUCT
(C) M8X80 FLANGE
0-28050-880-0
01
1
1511-
177
BOLT; WATER DUCT
(B) M8X25 FLANGE
0-28650-825-0
01
1
1511-
177
BOLT; WATER DUCT
(A) M8X65 FLANGE
1-09044-072-1
01
1
1511-
177
BOLT; WATER DUCT
(D) M16X75 FLANGE
8-94397-360-1
01
1
1511-
178
DUCT; WATER,BYPASS
8-94396-627-3
01
1
1511-
179
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2
8-98276-756-0
01
1
1511-
180
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94396-720-1
01
1
1511-
182
DUCT; WATER,HTR
8-94394-348-5
01
1
1511-
35
31
94
206
94
33
24
94
31
25
94
35
115
115
35
35
35
115
35
25
206
31
94
94
94
94
27
24
35
115
35
31
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
BRACKET; WATER PIPE
(A)
8-98000-557-2
01
1
1511-
24
BRACKET; WATER PIPE
(B)
8-98051-626-1
01
1
1511-
25
BOLT; WATER PIPE
(A) M8X12 FLANGE
0-28050-812-0
01
1
1511-
25
BOLT; WATER PIPE
(B) M8X20 FLANGE
0-28650-820-0
01
1
1511-
27
NUT; PIPE FIX
M6 FLANGE
0-91180-106-0
01
1
1511-
31
BOLT; CLIP
(A) M6X45 FLANGE
0-28050-645-0
01
1
1511-
31
BOLT; CLIP
(B) M6X40 FLANGE
0-28650-640-0
03
1
1511-
33
BOLT; BRKT
(B) M8X16 FLANGE
0-28050-816-0
01
1
1511-
33
BOLT; BRKT
(A) M8X20 FLANGE
0-28650-820-0
03
1
1511-
35
CLIP; RUBBER HOSE
ID=20.8
8-94125-862-1
01
1
1511-
35
CLIP; RUBBER HOSE
ID=20
8-98127-648-0
08
1
1511-
94
CLIP; WATER PIPE
8-97605-129-1
08
1
1511-
115
HOSE; RUBBER
(A)
8-97606-735-1
01
1
1511-
115
HOSE; RUBBER
(B)
8-97606-749-0
02
1
1511-
115
HOSE; RUBBER
(C)
8-98043-192-0
01
1
1511-
206
PIPE; WATER,EGR COOLER
(A)
8-97604-928-2
01
1
1511-
206
PIPE; WATER,EGR COOLER
(B)
8-98000-480-1
01
1
1511-
127
126
126
63
33
126
126
127
127
126
126
127
126
91
91
126
90
89
91
91
90
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
BOLT; BRKT
(B) M8X16 FLANGE
0-28050-816-0
01
1
1511-
33
BOLT; BRKT
(A) M8X20 FLANGE
0-28650-820-0
03
1
1511-
63
BRACKET; WATER PIPE
8-98046-784-0
01
1
1511-
89
PIPE; WATER,AIR CMPR,IN
8-97610-086-0
01
1
1511-
90
BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT
1-09675-193-0
01
1
1511-
90
BOLT; EYE,WATER PIPE,AIR CMPR
(B) M16X28
8-94383-489-0
01
1
1511-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2
1-09630-086-0
02
1
1511-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2
8-98251-345-0
02
1
1511-
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2
1-09630-086-0
02
1
1511-
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2
8-98251-345-0
06
1
1511-
127
BOLT; EYE
(A) M14X27 EYE-BOLT
1-09675-193-0
03
1
1511-
127
BOLT; EYE
(B) M16X28
8-94383-489-0
01
1
1511-
