Isuzu WW
▶
TRUCKS
▶
FVM
▶
11718 - FVM AUST/NZ EURO5
▶
9 - Tools
▶
9-01 - TOOLS
▶
9-01 — TOOLS
(#169972) — 46 parça
Tümü
A - FGL5MV
B - FGM5MV
◀
[901A] NO.1 (20 parça)
[901A] NO.2 (16 parça)
[901A] NO.3 (10 parça)
▶
1
9
12
13
17
29
29
29
127
153
151
126
125
144
143
115
23
22
21
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HANDLE; SPARE TIRE CARRIER
9-23110-018-0
01
1
1511-
●
●
9
WRENCH; WHEEL PIN
B=33X30 L=450
1-85111-033-1
01
1
1511-
●
●
12
HANDLE; WRENCH,WHEEL PIN
OD=25 L=480
8-98257-407-0
01
1
1511-
●
●
13
WRENCH; MONKEY
L=255
8-98270-303-0
01
1
1511-
●
●
17
HAMMER
9-85121-406-0
01
1
1511-
●
●
20
WRENCH; 10X12
10X12
0-95902-510-0
01
1
1511-
●
●
21
WRENCH; 14X17
14X17
0-95902-514-0
01
1
1511-
●
●
22
WRENCH; 19X22
19X22
0-95902-519-0
01
1
1511-
●
●
23
WRENCH; 24X27
24X27
0-95902-524-0
01
1
1511-
●
●
29
DRIVER; SCREW
(C) <+>,<-> L=160
8-94242-798-1
01
1
1511-
●
●
29
DRIVER; SCREW
(B) <-> L=275
8-98061-105-0
01
1
1511-
●
●
29
DRIVER; SCREW
(A) <+> L=190
9-09595-522-0
01
1
1511-
●
●
115
PLIER
8-98282-845-0
01
1
1511-
●
●
125
PULLER ASM; KING PIN
L=450
1-85210-009-0
01
1
1511-
●
126
WRENCH; FRT HUB BRG NUT
L=350 B=75
1-85110-002-1
01
1
1511-
●
127
WRENCH ASM; HUB BRG NUT
L=400 B=116
8-98119-000-1
01
1
1511-
●
143
GUIDE; BOOT,TIE ROD END
1-85229-013-0
01
1
1511-
●
144
BASE; BOOT GUIDE,TIE ROD END
1-85229-009-0
01
1
1511-
●
151
REMOVER; OIL BRK,FRT RETURN SPR
ID=16
1-85237-002-0
01
1
1511-
●
153
DRIVER; WASHER,THRUST WASHER
1-85238-002-0
01
1
1511-
●
154
156
160
163
186
174
169
164
192
193
208
227
417
237
230
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
154
SLEEPER; KING PIN
1-85238-003-0
01
1
1511-
●
156
PULLER; ANCHOR PIN
1-85210-025-0
01
1
1511-
●
160
REMOVER; NEEDLE BRG
L=220
1-85238-001-0
01
1
1511-
●
163
TOOL; SETTING
9-85221-231-0
01
1
1511-
●
164
GUIDE; SNAP RING PILOT BRG
1-85176-001-0
01
1
1511-
●
169
BRACKET; SPLINE YOKE
P90 PROP SHAFT(C5T)
1-85221-317-0
01
1
1511-
●
169
BRACKET; SPLINE YOKE
1-85221-317-0
01
1
1511-
●
174
PULLER ASM; MAIN CLU SHAFT
ZF9S1110 M/T(Y5E)
9-85210-148-0
01
1
1511-
●
●
186
ADJUSTER; BRAKE
1-85269-008-0
01
1
1511-
●
192
GAUGE; TIRE PRESSURE
1-85315-002-0
01
1
1511-
●
●
193
JACK ASM
10TON
8-97607-599-0
01
1
1511-
●
●
208
HANDLE; JACK
L=600
8-98181-437-0
01
1
1511-
●
●
227
PUMP ASM; TIRE
9-85521-132-0
01
1
1511-
●
●
230
PUMP; GREASE
1-85556-007-5
01
1
1511-
●
●
237
BAG; TOOL
8-97130-902-1
01
1
1511-
●
●
417
BOLT; CHAMBER RELEASE
1/2-13 UNC L=124 4-SETS
1-85576-331-1
01
1
1511-
●

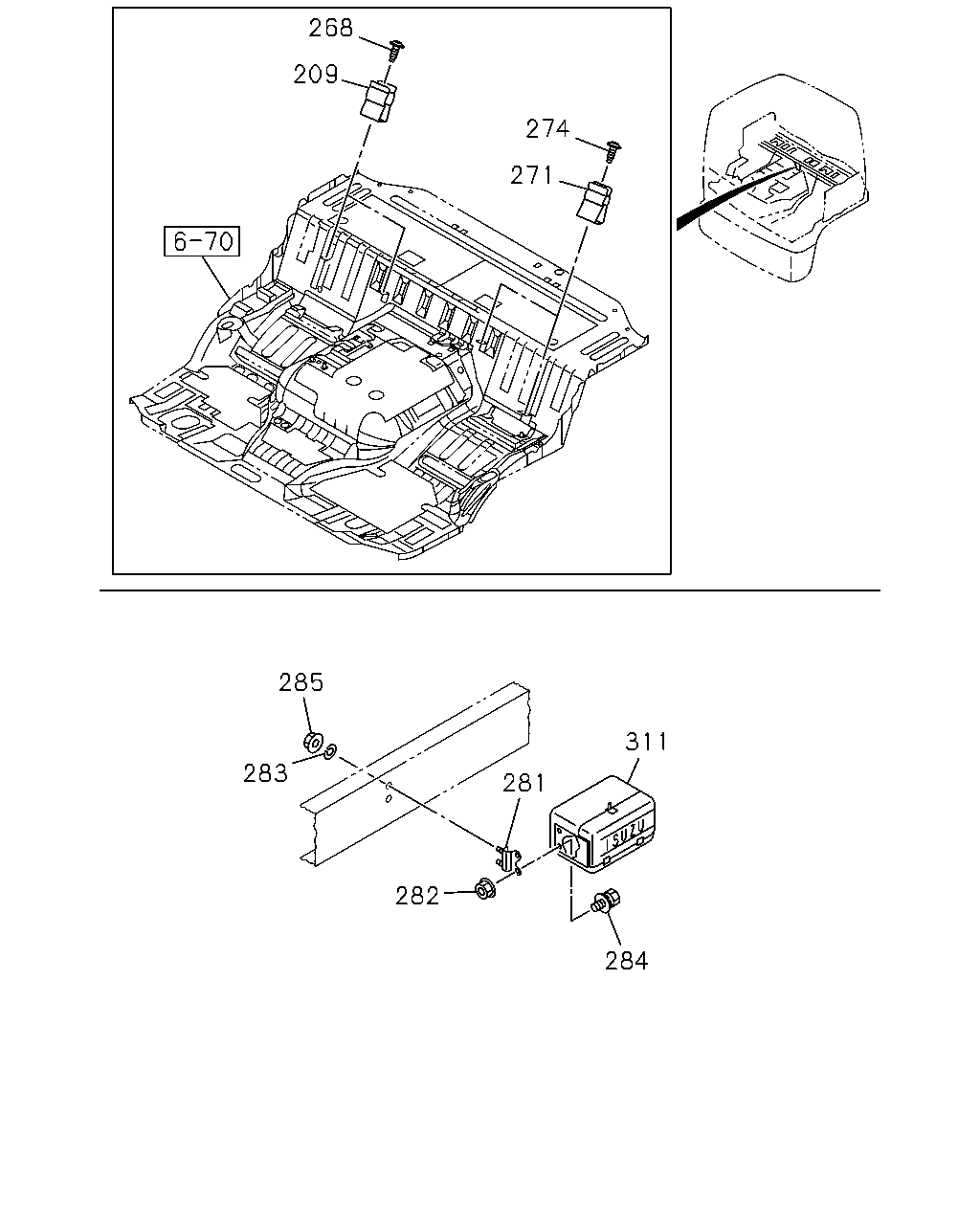

268
209
274
271
285
283
281
311
282
284
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
209
CLIP; JACK HANDLE
8-98053-799-0
02
1
1511-
●
●
268
SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET
0-38050-612-0
02
1
1511-
●
●
271
CLIP; TIRE HANGER
8-98053-800-0
02
1
1511-
●
●
274
SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET
0-38050-612-0
02
1
1511-
●
●
281
BRACKET; TOOL BOX
KEY LOCK TOOL<RC5>
1-53459-665-2
02
1
1511-
●
282
NUT; BRKT
KEY LOCK TOOL<RC5> M10 FLANGE
0-91180-210-0
04
1
1511-
●
283
WASHER; LK,BRKT
KEY LOCK TOOL<RC5> ID=10.2
0-91510-510-0
04
1
1511-
●
284
BOLT; TOOL BOX
KEY LOCK TOOL<RC5> M10X20 FLANGE
0-28651-020-0
04
1
1511-
●
285
NUT; TOOL BOX
KEY LOCK TOOL<RC5> M10 FLANGE
0-91180-210-0
04
1
1511-
●
311
BOX ASM; TOOL
KEY LOCK TOOL<RC5>
1-85561-006-3
01
1
1511-
●
