◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11718 - FVM AUST/NZ EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#169963) — 19 parça

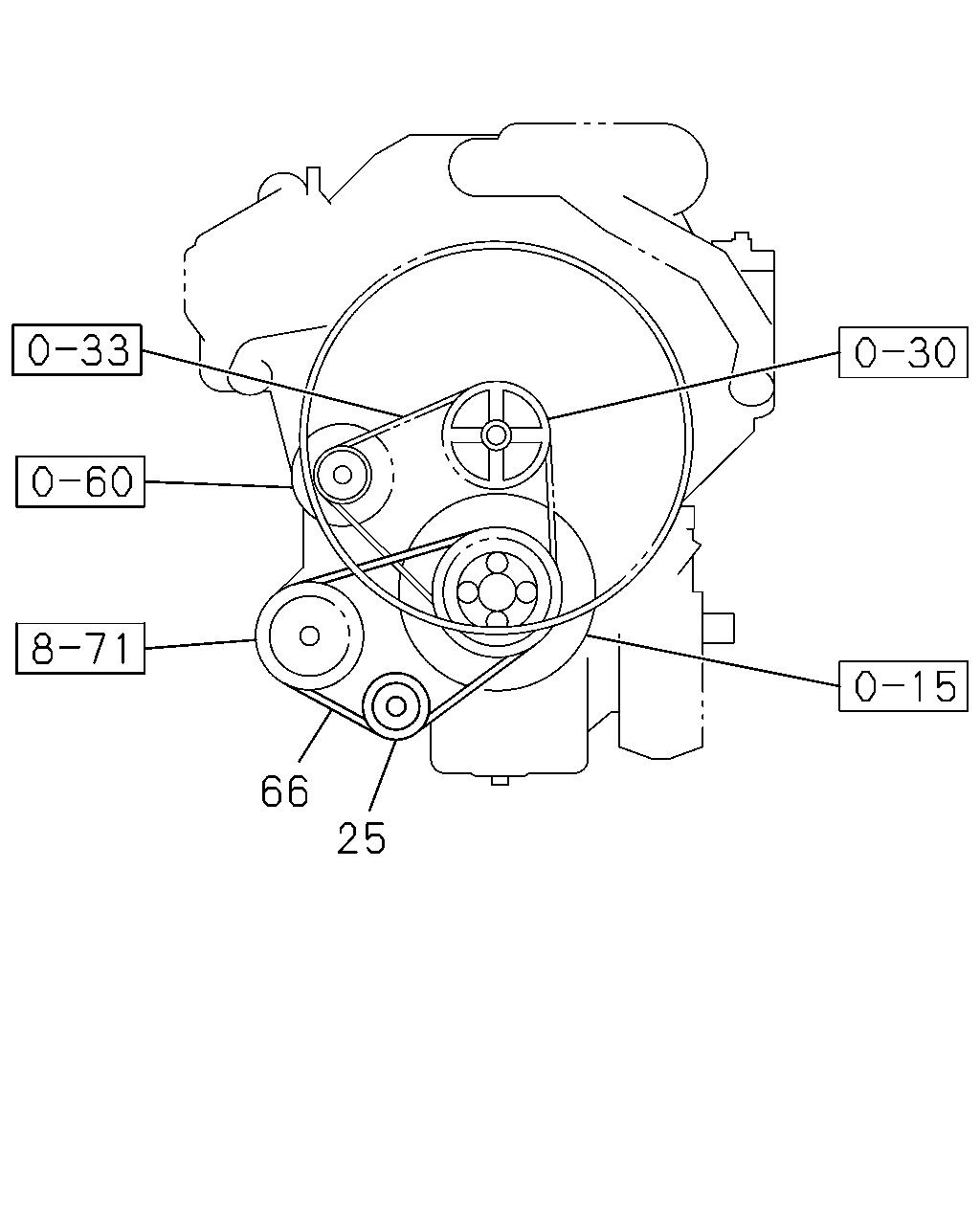

çizim 501558
66 25
BalonParca AdiParca NoAdetTipApplied Date A B
25 PULLEY ASM; IDLER,CMPR
HEATER & DEFROSTER(C41) 		8-97605-079-0 01 1 1511- ● ●
66 BELT; A/C CMPR
HEATER & DEFROSTER(C41) L=1114 		8-97605-102-0 01 1 1511- ● ●
66 BELT; A/C CMPR
HEATER & DEFROSTER(C41) BEST VALUE PARTS 		1-87610-104-0 01 1 1511- ● ●
çizim 501663
201 378 378
BalonParca AdiParca NoAdetTipApplied Date A B
201 CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-94423-042-0 01 1 1511- ● ●
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98204-846-0 01 1 1511- ● ●
378 HOSE; DRAIN,EVAPORATOR
(A) 		8-98041-428-0 01 1 1511- ● ●

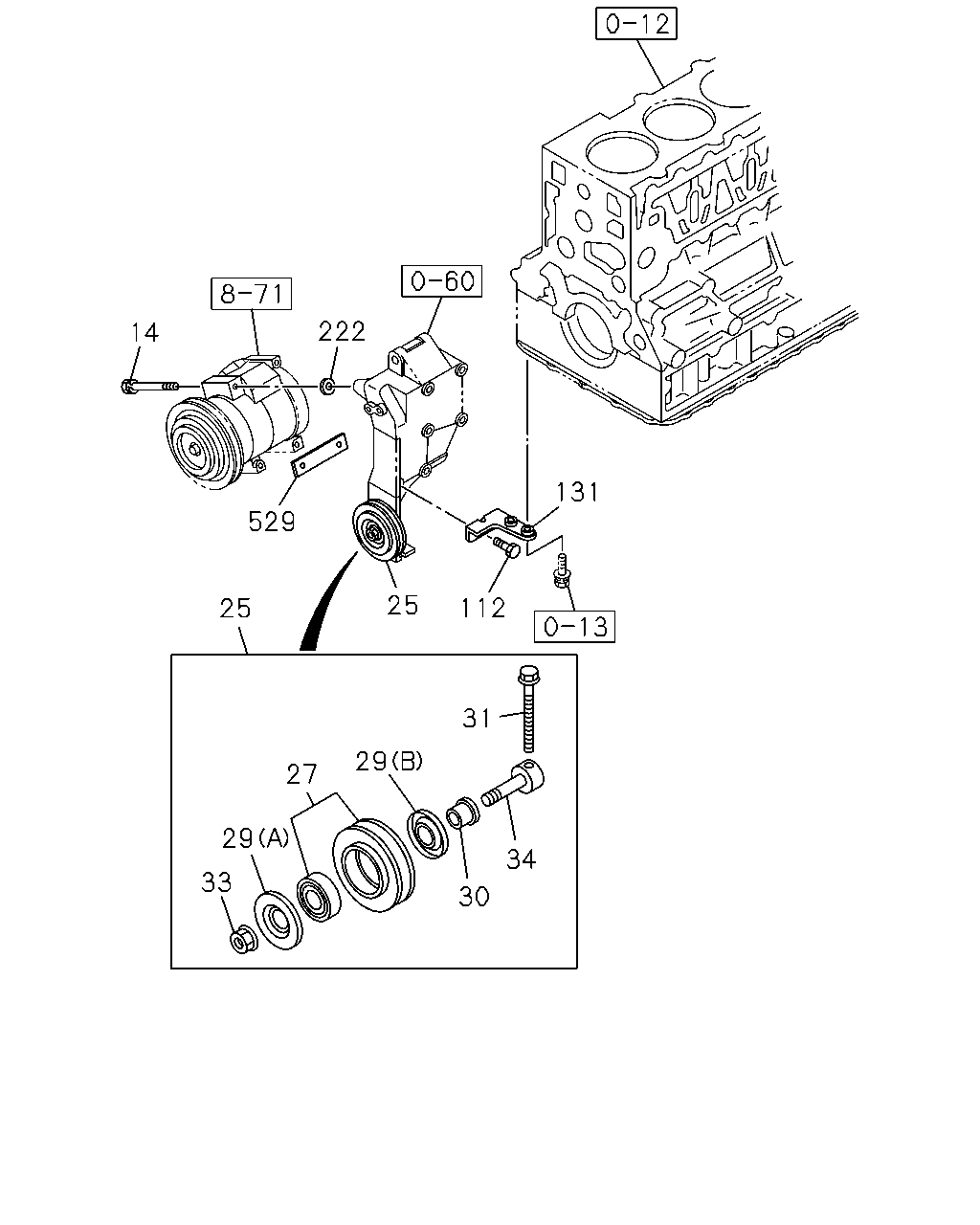

çizim 503121
14 222 529 25 25 112 131 31 34 30 29 27 29 33
BalonParca AdiParca NoAdetTipApplied Date A B
14 BOLT; CMPR
HEATER & DEFROSTER(C41) M8X78 W/LK WASHER 		5-09000-228-1 04 1 1511- ● ●
25 PULLEY ASM; IDLER,CMPR
HEATER & DEFROSTER(C41) 		8-97605-079-0 01 1 1511- ● ●
27 PULLEY; IDLE,A/C
HEATER & DEFROSTER(C41) 		8-97605-323-0 01 1 1511- ● ●
29 COVER; DUST,IDLE PULLEY
HEATER & DEFROSTER(C41) (A) 		8-97605-329-0 01 1 1511- ● ●
29 COVER; DUST,IDLE PULLEY
HEATER & DEFROSTER(C41) (B) 		8-97605-330-0 01 1 1511- ● ●
30 COLLAR; IDLE PULLEY
HEATER & DEFROSTER(C41) 		8-97605-328-0 01 1 1511- ● ●
31 BOLT; ADJ,IDLE PULLEY
HEATER & DEFROSTER(C41) 		8-97605-325-0 01 1 1511- ● ●
33 NUT; IDLER PULLEY
HEATER & DEFROSTER(C41) 		8-97605-326-0 01 1 1511- ● ●
34 SHAFT; IDLE PULLEY
HEATER & DEFROSTER(C41) 		8-97605-327-0 01 1 1511- ● ●
112 BOLT; STAY
M8X16 FLANGE 		0-28050-816-0 02 1 1511- ● ●
131 STAY; CMPR BRKT 8-94393-451-0 01 1 1511- ● ●
222 GASKET; CONNECTOR
HEATER & DEFROSTER(C41) ID=8.2 		8-94312-733-0 02 1 1511- ● ●
529 SPACER
HEATER & DEFROSTER(C41) 		1-83573-271-0 01 1 1511- ● ●
