8-40 — HEATER SYSTEM (#169961) — 31 parça

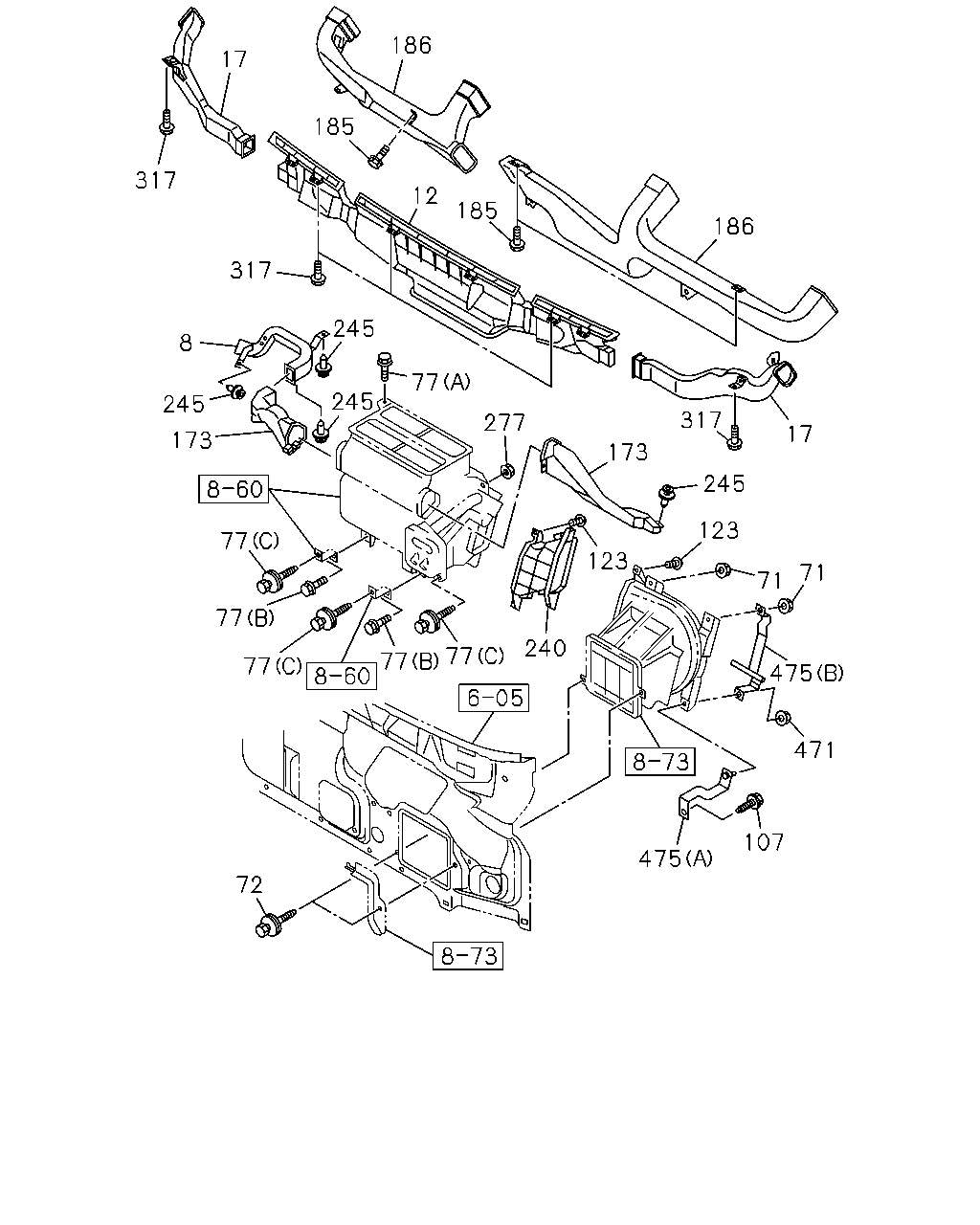

çizim 501187
186 185 317 17 317 8 245 77 245 173 77 77 77 77 77 240 123 173 277 317 17 123 245 71 71 475 471 475 107 72 245 12 185 186
BalonParca AdiParca NoAdetTipApplied Date A B
8 DUCT; HTR AIR,DRIVER FOOT 8-98290-098-0 01 1 1511- ● ●
12 NOZZLE; DEFROSTER 8-98040-009-3 01 1 1511- ● ●
17 NOZZLE; DEFROSTER,SIDE 8-98040-018-1 01 1 1511- ● ●
17 NOZZLE; DEFROSTER,SIDE 8-98040-013-1 01 1 1511- ● ●
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE 		0-91180-106-0 02 1 1511- ● ●
72 BOLT; BLOWER UNIT
M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 1511- ● ●
77 BOLT; HTR UNIT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1511- ● ●
77 BOLT; HTR UNIT
(B) M6X20 FLANGE 		0-28650-620-0 02 1 1511- ● ●
77 BOLT; HTR UNIT
(C) M6X20 W/LK&PL WASHER 		8-98081-175-0 03 1 1511- ● ●
107 BOLT; STAY,HTR UNIT
M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1511- ● ●
123 SCREW; DUCT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1511- ● ●
173 DUCT; FOOT,HTR 8-97585-506-2 01 1 1511- ● ●
173 DUCT; FOOT,HTR 8-98290-097-0 01 1 1511- ● ●
185 SCREW; VENT DUCT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1511- ● ●
186 DUCT; VENTILATOR 8-98285-574-0 01 1 1511- ● ●
186 DUCT; VENTILATOR 8-98285-571-0 01 1 1511- ● ●
240 DUCT; AIR,HTR 8-98041-402-1 01 1 1511- ● ●
245 CLIP; FOOT DUCT 8-98056-059-0 04 1 1511- ● ●
277 NUT; HTR
M6 FLANGE 		0-91180-106-0 01 1 1511- ● ●
317 SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1511- ● ●
471 NUT; BLOWER
M6 FLANGE 		0-91180-106-0 01 1 1511- ● ●
475 BRACKET; BLOWER
(A) 		8-98043-500-1 01 1 1511- ● ●
475 BRACKET; BLOWER
(B) 		8-98165-379-0 01 1 1511- ● ●

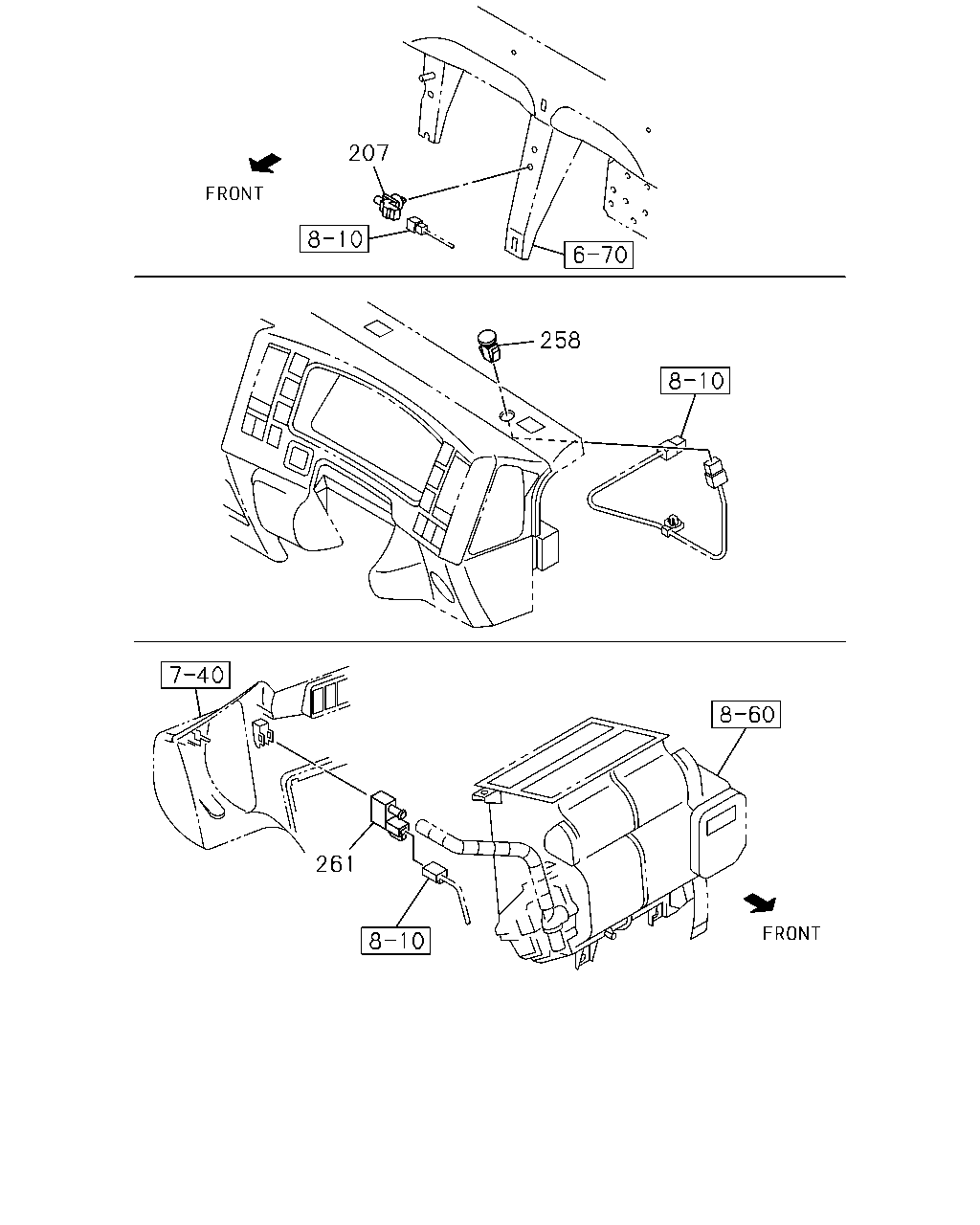

çizim 501208
207 258 261
BalonParca AdiParca NoAdetTipApplied Date A B
207 SENSOR; AMBIENT
FULLAUTO AIR CONDITIONER(C68) 		8-98008-687-0 01 1 1511- ● ●
258 SENSOR; SUN
FULLAUTO AIR CONDITIONER(C68) 		8-97386-826-0 01 1 1511- ● ●
261 SENSOR; IN CAR
FULLAUTO AIR CONDITIONER(C68) 		8-97386-701-0 01 1 1511- ● ●
çizim 503151
223 50 476 206 407
BalonParca AdiParca NoAdetTipApplied Date A B
50 VALVE ASM; HTR 8-98080-998-1 01 1 1511- ● ●
206 GROMMET; A/C PIPE TO BLOWER UNIT 8-98019-649-0 01 1 1511- ● ●
223 GROMMET; SCREW
D=7.9X7.9 L=20 M5 		8-94441-539-0 01 1 1511- ● ●
407 JOINT; HOSE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98041-758-0 01 1 1511- ● ●
476 SCREW; VALVE
M5X16 TAPPING HEXALOBULAR 		8-98062-675-0 01 1 1511- ● ●
