Sayfa 8-26 - Isuzu EPC

497 726 497 726 507

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
497	SWITCH; CAB TILT STAMP NO	1-82380-172-1	02	1	1511-	●	●
507	CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	1-82690-666-0	01	1	1511-	●
507	CONNECTOR EXC. H.S.A SYSTEM<6EP>	1-82690-666-0	01	1	1511-		●
726	BOLT; SW,CAB TILT M6X25 FLANGE	0-28050-625-0	04	1	1511-	●	●

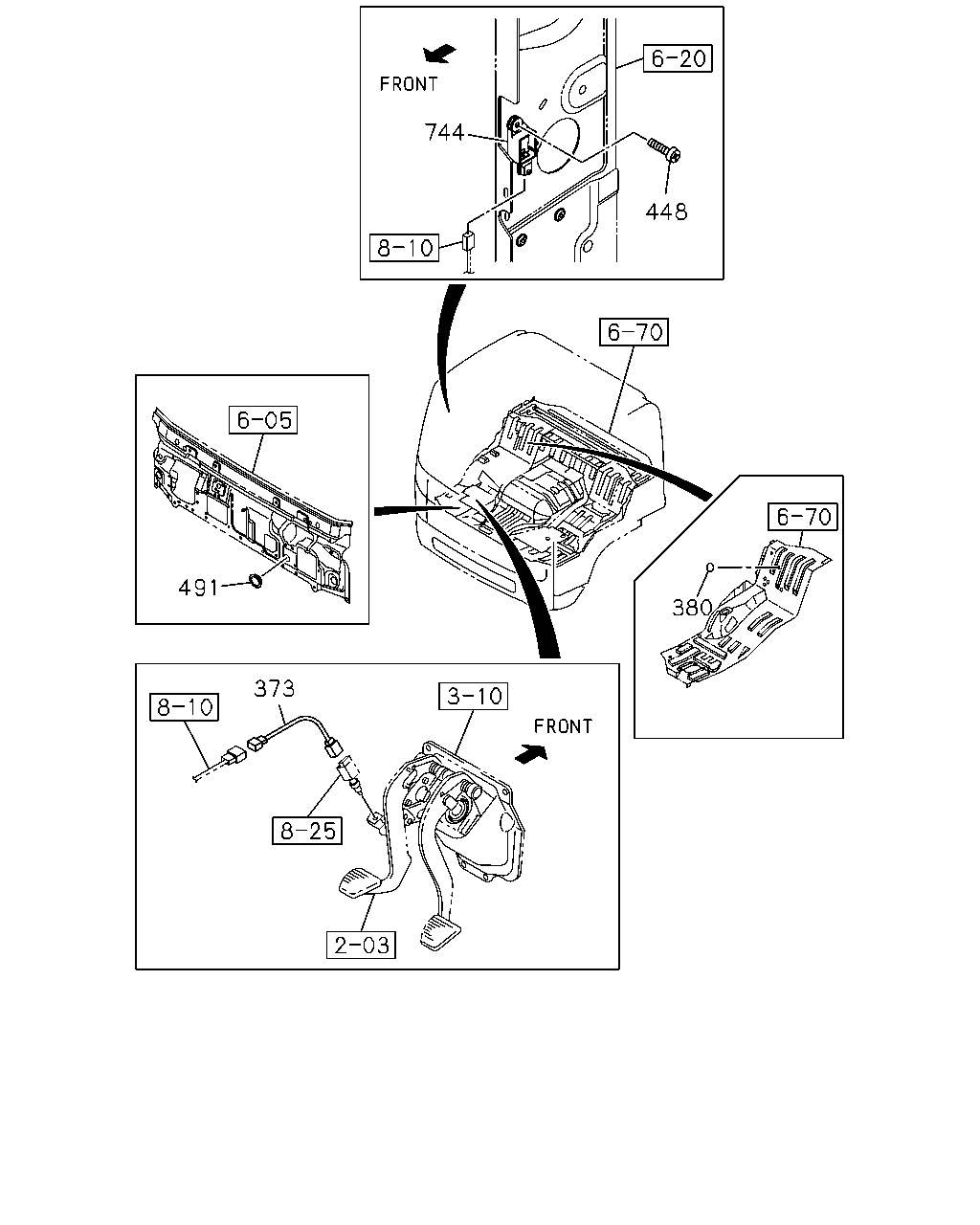

744 448 380 373 491

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
373	HARNESS; CLU SWITCH ZF9S1110 M/T(Y5E)	8-98053-829-3	01	1	1511-	●	●
380	SEAL OD=25 BLACK	1-76798-019-0	01	1	1511-	●	●
448	BOLT; SENSOR AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/PL WASHER	8-97105-796-1	02	1	1511-	●	●
491	PLUG; HOLE,CONT UNIT OD=60	8-98054-651-0	01	1	1511-	●	●
744	SENSOR; AIR BAG AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98190-212-0	01	1	1511-	●	●

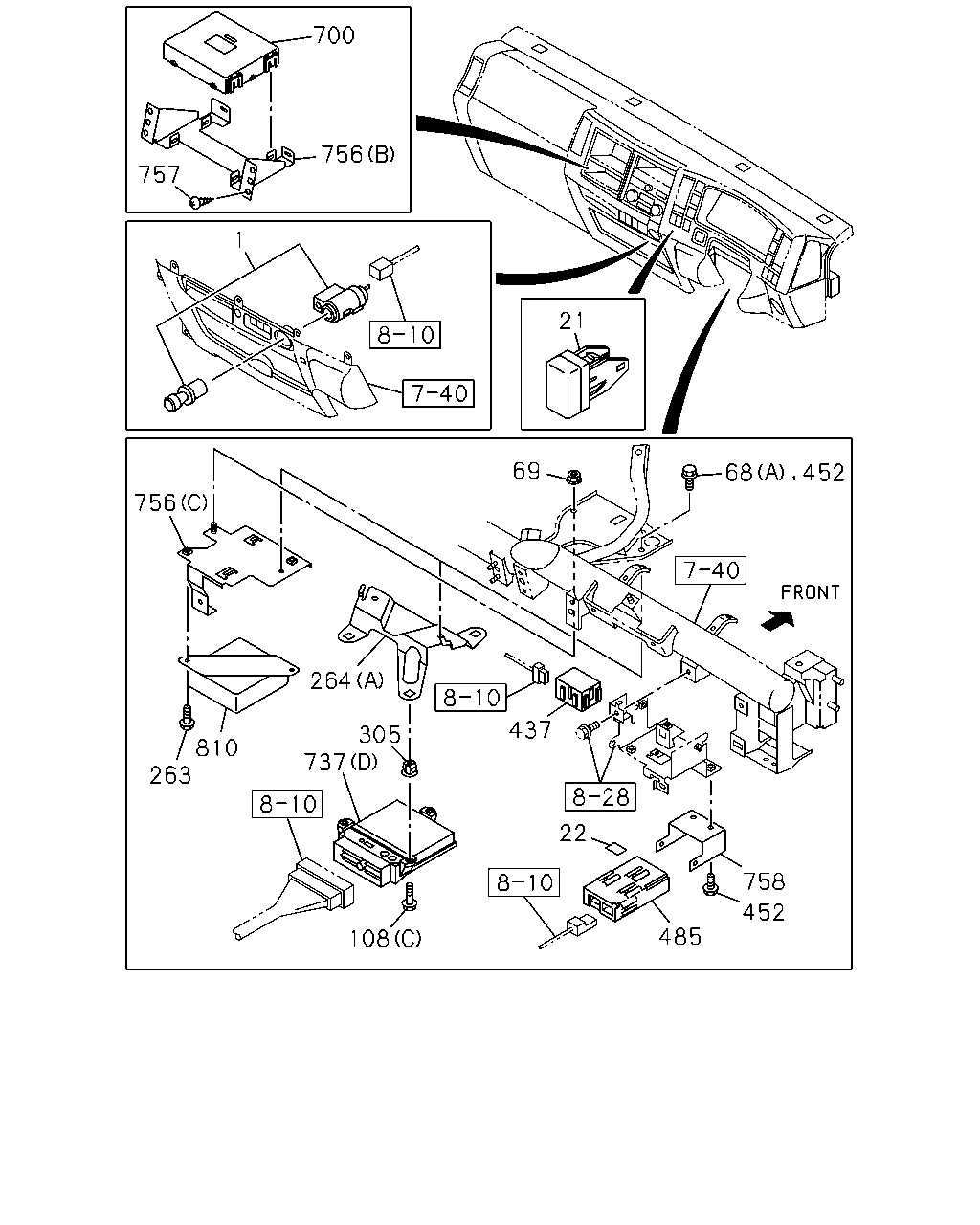

700 757 810 263 305 437 22 485 758 452 452 21 1 69 756 68 108 737 264 756

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LIGHTER; CIGAR ASH TRAY PASSENGER DOOR<8LX>	8-98142-962-0	01	1	1511-	●	●
21	COVER; HOLE	8-98025-954-1	01	1	1511-	●	●
22	SEAL; TAPE	8-98166-639-0	01	1	1511-	●	●
68	BOLT; BRKT (A) M6X16 FLANGE	0-28650-616-0	01	1	1511-	●	●
68	BOLT; BRKT H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M6X16 FLANGE	0-28650-616-0	01	1	1511-	●
68	BOLT; BRKT H.S.A SYSTEM<6EP> (A) M6X16 FLANGE	0-28650-616-0	01	1	1511-		●
68	BOLT; BRKT (B) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	1511-	●	●
69	NUT; BRKT M6 FLANGE	0-91180-106-0	01	1	1511-	●	●
69	NUT; BRKT H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6 FLANGE	0-91180-106-0	01	1	1511-	●
69	NUT; BRKT H.S.A SYSTEM<6EP> M6 FLANGE	0-91180-106-0	01	1	1511-		●
108	BOLT; TRANS CONT MODULE ALLISON MD3560P A/T(Y3B) (C) M6X20 TAPPING	0-72180-620-0	03	1	1511-	●
108	BOLT; TRANS CONT MODULE ASSISTOR SHIFT CONTROL<WX8> (A) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	1511-	●
108	BOLT; TRANS CONT MODULE (A) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	1511-		●
108	BOLT; TRANS CONT MODULE ASSISTOR SHIFT CONTROL<WX8> (B) M4X25 TAPPING	0-74160-425-0	02	1	1511-	●
108	BOLT; TRANS CONT MODULE (B) M4X25 TAPPING	0-74160-425-0	02	1	1511-		●
263	BOLT; CONT UNIT H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X16 FLANGE	0-28650-616-0	02	1	1511-	●
263	BOLT; CONT UNIT H.S.A SYSTEM<6EP> M6X16 FLANGE	0-28650-616-0	02	1	1511-		●
263	BOLT; CONT UNIT M6X16 FLANGE	0-28650-616-0	04	1	1511-	●	●
264	BRACKET; CONT UNIT ALLISON MD3560P A/T(Y3B) (A)	8-98252-197-0	01	1	1511-	●
264	BRACKET; CONT UNIT (B)	8-98180-453-0	01	1	1511-	●	●
305	NUT; CONT UNIT ALLISON MD3560P A/T(Y3B) D=9.7X9.7 L=8	8-94222-314-0	03	1	1511-	●
437	CONVERTER; DC HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO	8-97359-129-0	01	1	1511-		●
452	BOLT; BRKT M6X16 FLANGE	0-28650-616-0	02	1	1511-	●	●
452	BOLT; BRKT ALLISON MD3560P A/T(Y3B) M6X16 FLANGE	0-28650-616-0	02	1	1511-	●
485	CONTROL UNIT; SPEED SENSOR ALLISON MD3560P A/T(Y3B)	8-98232-696-0	01	1	1511-	●
485	CONTROL UNIT; SPEED SENSOR ZF9S1110 M/T(Y5E)	8-98232-695-0	01	1	1511-	●	●
700	CONTROL UNIT; CAN CONVERTER	8-98219-812-1	01	1	1511-	●	●
737	CONTROL UNIT; TRANSMISSION ALLISON MD3560P A/T(Y3B) (D)	8-98330-924-0	01	1	1511-	●
737	CONTROL UNIT; TRANSMISSION ASSISTOR SHIFT CONTROL<WX8> (A)	1-80111-271-0	01	1	1511-	●
737	CONTROL UNIT; TRANSMISSION (A)	1-80111-271-0	01	1	1511-		●
737	CONTROL UNIT; TRANSMISSION ASSISTOR SHIFT CONTROL<WX8> (B)	8-98095-040-0	01	1	1511-	●
737	CONTROL UNIT; TRANSMISSION (B)	8-98095-040-0	01	1	1511-		●
737	CONTROL UNIT; TRANSMISSION ASSISTOR SHIFT CONTROL<WX8> (C)	8-98095-041-0	01	1	1511-	●
737	CONTROL UNIT; TRANSMISSION (C)	8-98095-041-0	01	1	1511-		●
756	BRACKET; ECU,BCM (B)	8-98203-991-0	01	1	1511-	●	●
756	BRACKET; ECU,BCM H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98252-076-1	01	1	1511-	●
756	BRACKET; ECU,BCM H.S.A SYSTEM<6EP> (C)	8-98252-076-1	01	1	1511-		●
756	BRACKET; ECU,BCM (A)	8-98056-411-3	01	1	1511-	●	●
757	BOLT; BRKT,BCM M6X16 FLANGE	0-28650-616-0	02	1	1511-	●	●
757	BOLT; BRKT,BCM M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	1511-	●	●
758	BRACKET; ELEC CONT UNIT,SPEED SENSOR	8-98048-743-1	01	1	1511-	●	●
810	CONTROL UNIT; ISS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98322-712-0	01	1	1511-	●
810	CONTROL UNIT; ISS H.S.A SYSTEM<6EP>	8-98322-712-0	01	1	1511-		●

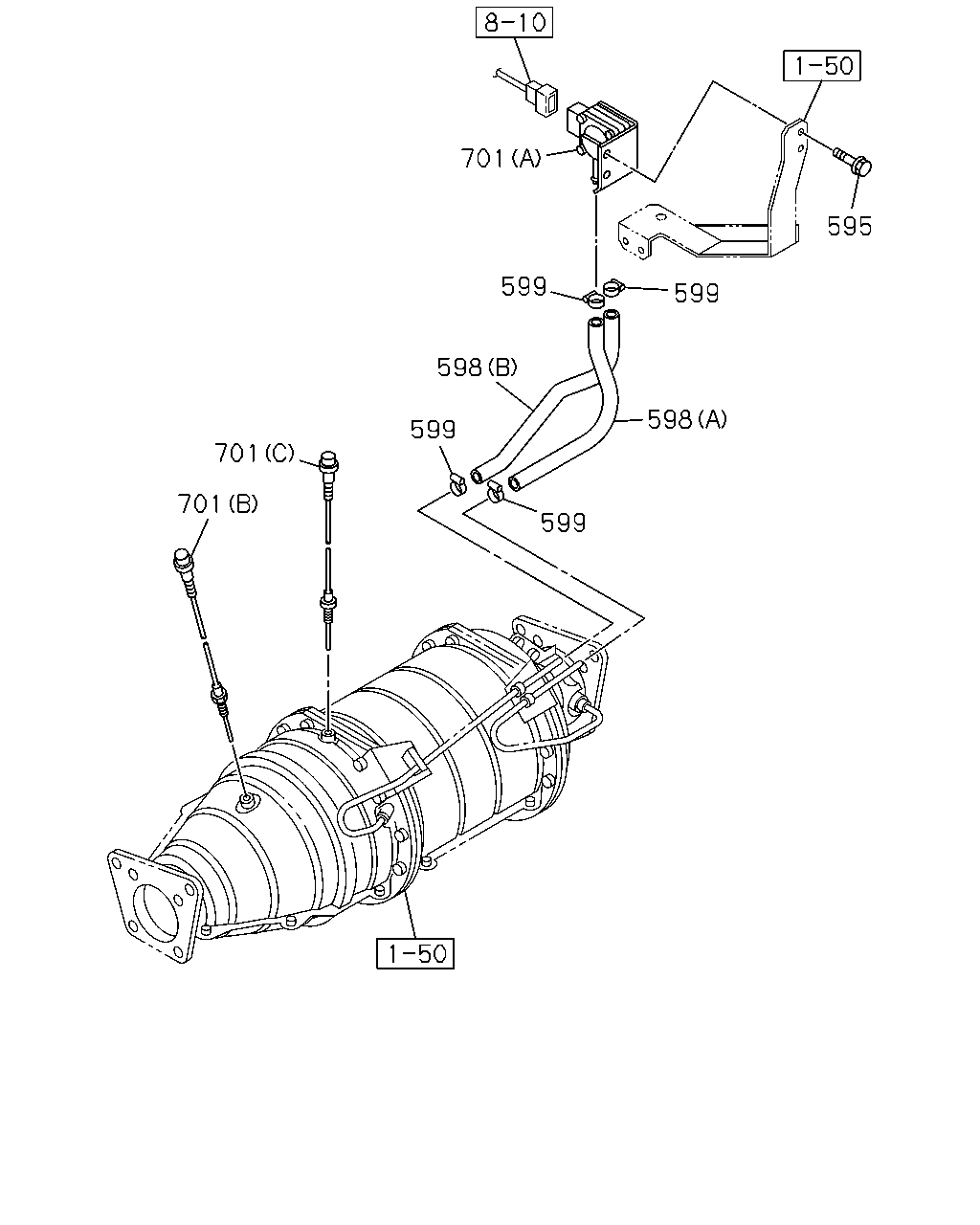

598 598 599 599 599 599 701 701 701 595

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
595	BOLT; SENSOR M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
598	HOSE; RUBBER,SENSOR (B)	8-98088-940-0	01	1	1511-	●	●
598	HOSE; RUBBER,SENSOR (A)	8-98088-941-0	01	1	1511-	●	●
599	CLIP; HOSE ID=13	8-97329-627-0	04	1	1511-	●	●
701	SENSOR; DPD (B)	8-97359-987-5	01	1	1511-	●	●
701	SENSOR; DPD (C)	8-97359-989-5	01	1	1511-	●	●
701	SENSOR; DPD (A)	8-97360-368-2	01	1	1511-	●	●

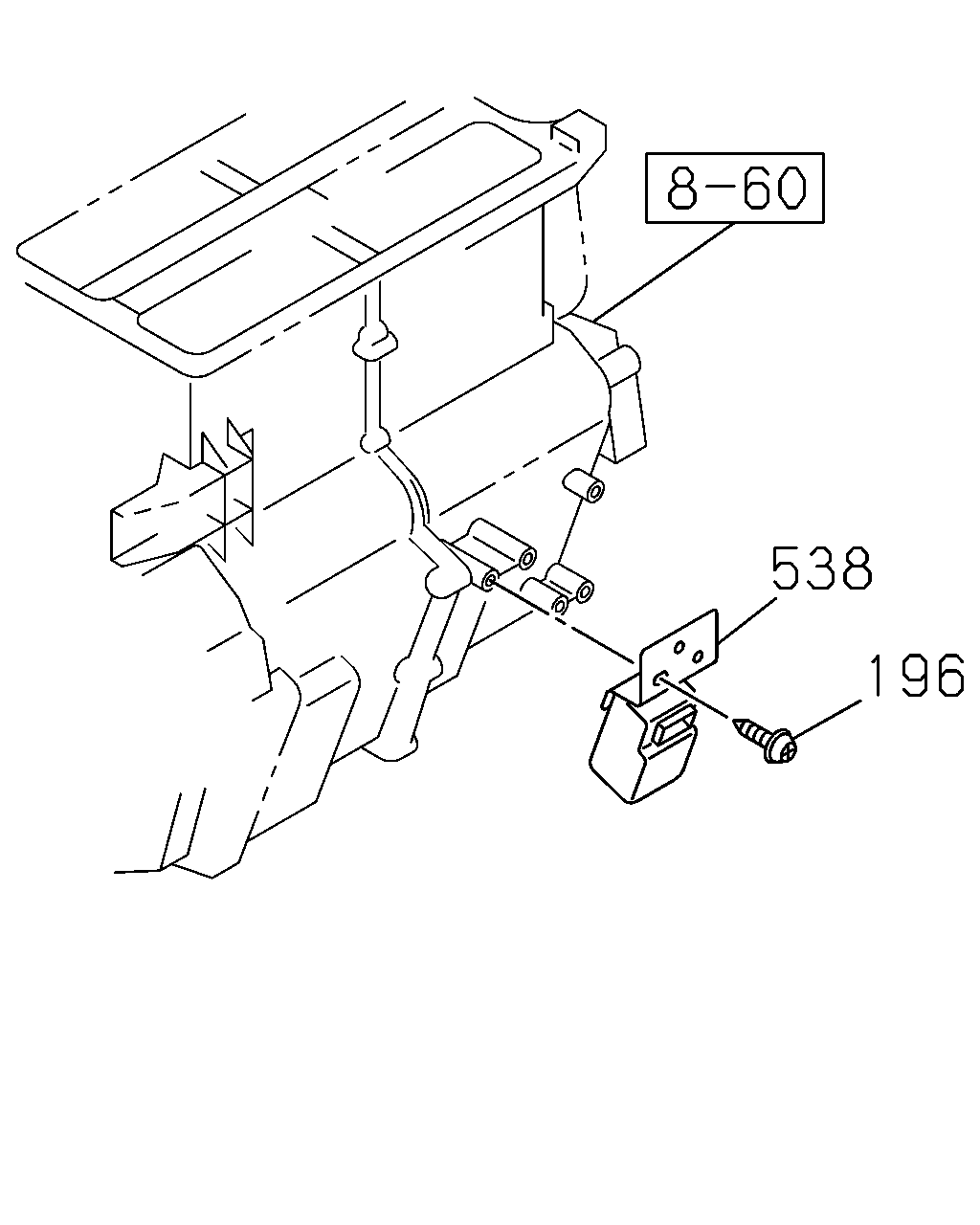

538 196

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	196	BOLT M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1511-	●	●
	538	CONTROLLER; LEVEL	8-98330-611-0	01	1	1511-	●	●

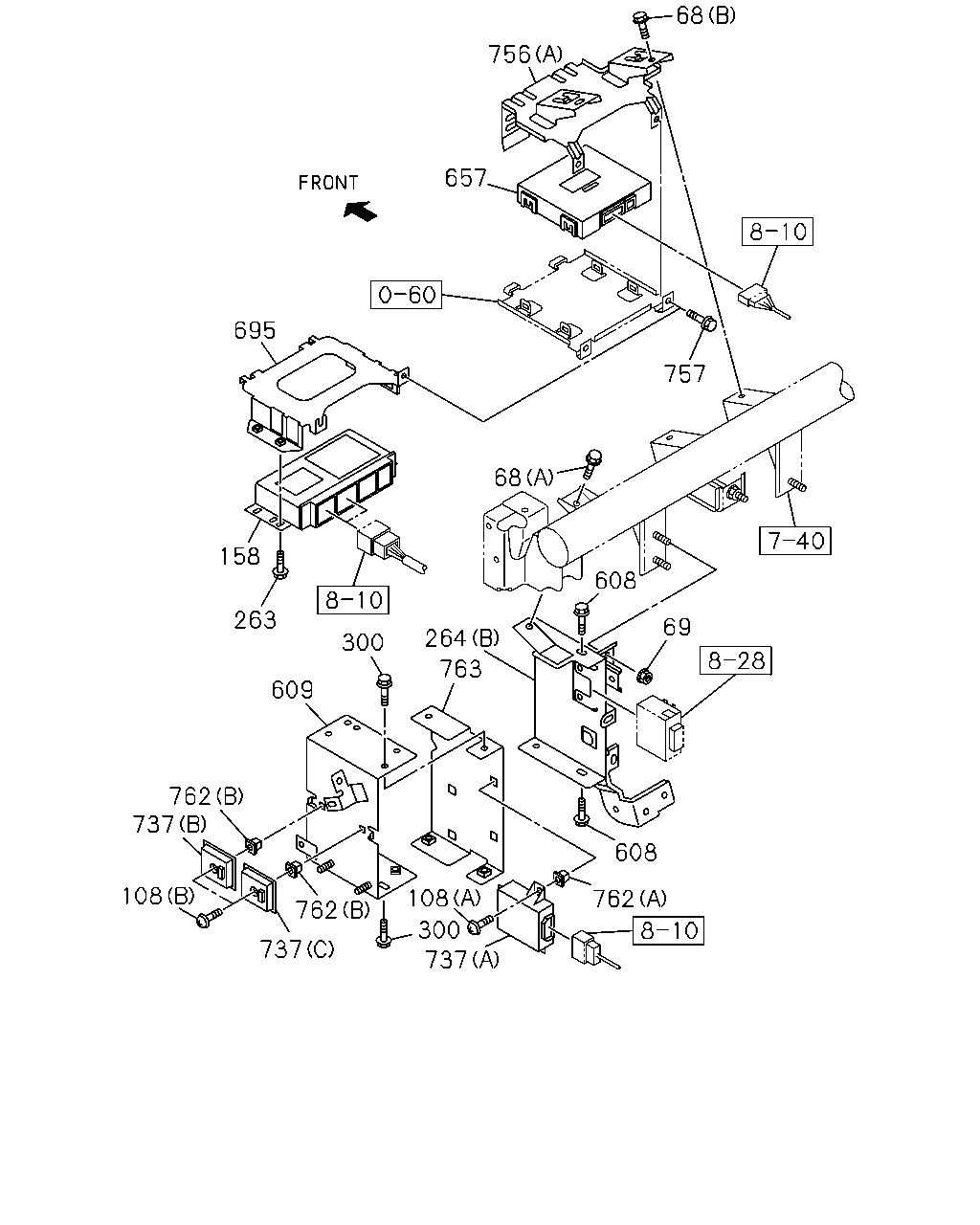

68 756 657 757 608 69 608 762 737 300 737 108 762 108 737 609 762 763 264 300 263 158 695 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
68	BOLT; BRKT (A) M6X16 FLANGE	0-28650-616-0	01	1	1511-	●	●
68	BOLT; BRKT H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M6X16 FLANGE	0-28650-616-0	01	1	1511-	●
68	BOLT; BRKT H.S.A SYSTEM<6EP> (A) M6X16 FLANGE	0-28650-616-0	01	1	1511-		●
68	BOLT; BRKT (B) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	1511-	●	●
69	NUT; BRKT M6 FLANGE	0-91180-106-0	01	1	1511-	●	●
69	NUT; BRKT H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6 FLANGE	0-91180-106-0	01	1	1511-	●
69	NUT; BRKT H.S.A SYSTEM<6EP> M6 FLANGE	0-91180-106-0	01	1	1511-		●
108	BOLT; TRANS CONT MODULE ALLISON MD3560P A/T(Y3B) (C) M6X20 TAPPING	0-72180-620-0	03	1	1511-	●
108	BOLT; TRANS CONT MODULE ASSISTOR SHIFT CONTROL<WX8> (A) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	1511-	●
108	BOLT; TRANS CONT MODULE (A) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	1511-		●
108	BOLT; TRANS CONT MODULE ASSISTOR SHIFT CONTROL<WX8> (B) M4X25 TAPPING	0-74160-425-0	02	1	1511-	●
108	BOLT; TRANS CONT MODULE (B) M4X25 TAPPING	0-74160-425-0	02	1	1511-		●
158	CONTROLLER; ABS	8-98306-560-0	01	1	1511-	●	●
263	BOLT; CONT UNIT H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X16 FLANGE	0-28650-616-0	02	1	1511-	●
263	BOLT; CONT UNIT H.S.A SYSTEM<6EP> M6X16 FLANGE	0-28650-616-0	02	1	1511-		●
263	BOLT; CONT UNIT M6X16 FLANGE	0-28650-616-0	04	1	1511-	●	●
264	BRACKET; CONT UNIT ALLISON MD3560P A/T(Y3B) (A)	8-98252-197-0	01	1	1511-	●
264	BRACKET; CONT UNIT (B)	8-98180-453-0	01	1	1511-	●	●
300	BOLT; CONT UNIT BRKT ASSISTOR SHIFT CONTROL<WX8> M6X16 FLANGE	0-28650-616-0	04	1	1511-	●
300	BOLT; CONT UNIT BRKT M6X16 FLANGE	0-28650-616-0	04	1	1511-		●
608	BOLT; CONT UNIT,AIR SUS ZF9S1110 M/T(Y5E) M6X16 FLANGE	0-28650-616-0	05	1	1511-	●	●
609	BRACKET ASM; ELEC UNIT,AIR SUS ZF9S1110 M/T(Y5E)	8-98169-737-1	01	1	1511-	●	●
657	CONTROL UNIT; MIMAMORI	8-98312-616-1	01	1	1511-	●	●
695	BRACKET; CONT UNIT,ABS	8-98045-016-1	01	1	1511-	●	●
737	CONTROL UNIT; TRANSMISSION ALLISON MD3560P A/T(Y3B) (D)	8-98330-924-0	01	1	1511-	●
737	CONTROL UNIT; TRANSMISSION ASSISTOR SHIFT CONTROL<WX8> (A)	1-80111-271-0	01	1	1511-	●
737	CONTROL UNIT; TRANSMISSION (A)	1-80111-271-0	01	1	1511-		●
737	CONTROL UNIT; TRANSMISSION ASSISTOR SHIFT CONTROL<WX8> (B)	8-98095-040-0	01	1	1511-	●
737	CONTROL UNIT; TRANSMISSION (B)	8-98095-040-0	01	1	1511-		●
737	CONTROL UNIT; TRANSMISSION ASSISTOR SHIFT CONTROL<WX8> (C)	8-98095-041-0	01	1	1511-	●
737	CONTROL UNIT; TRANSMISSION (C)	8-98095-041-0	01	1	1511-		●
756	BRACKET; ECU,BCM (B)	8-98203-991-0	01	1	1511-	●	●
756	BRACKET; ECU,BCM H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98252-076-1	01	1	1511-	●
756	BRACKET; ECU,BCM H.S.A SYSTEM<6EP> (C)	8-98252-076-1	01	1	1511-		●
756	BRACKET; ECU,BCM (A)	8-98056-411-3	01	1	1511-	●	●
757	BOLT; BRKT,BCM M6X16 FLANGE	0-28650-616-0	02	1	1511-	●	●
757	BOLT; BRKT,BCM M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	1511-	●	●
762	GROMMET; TRANS CONT MODULE ASSISTOR SHIFT CONTROL<WX8> (A) D=8.6X7.7 L=7.5	8-94279-078-0	03	1	1511-	●
762	GROMMET; TRANS CONT MODULE (A) D=8.6X7.7 L=7.5	8-94279-078-0	03	1	1511-		●
762	GROMMET; TRANS CONT MODULE ASSISTOR SHIFT CONTROL<WX8> (B) D=7.5X7.5 L=7	8-94430-147-0	02	1	1511-	●
762	GROMMET; TRANS CONT MODULE (B) D=7.5X7.5 L=7	8-94430-147-0	02	1	1511-		●
763	BRACKET; TRANS CONT MODULE ASSISTOR SHIFT CONTROL<WX8>	8-98085-587-0	01	1	1511-	●
763	BRACKET; TRANS CONT MODULE	8-98085-587-0	01	1	1511-		●
