◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11718 - FVM AUST/NZ EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#169955) — 14 parça

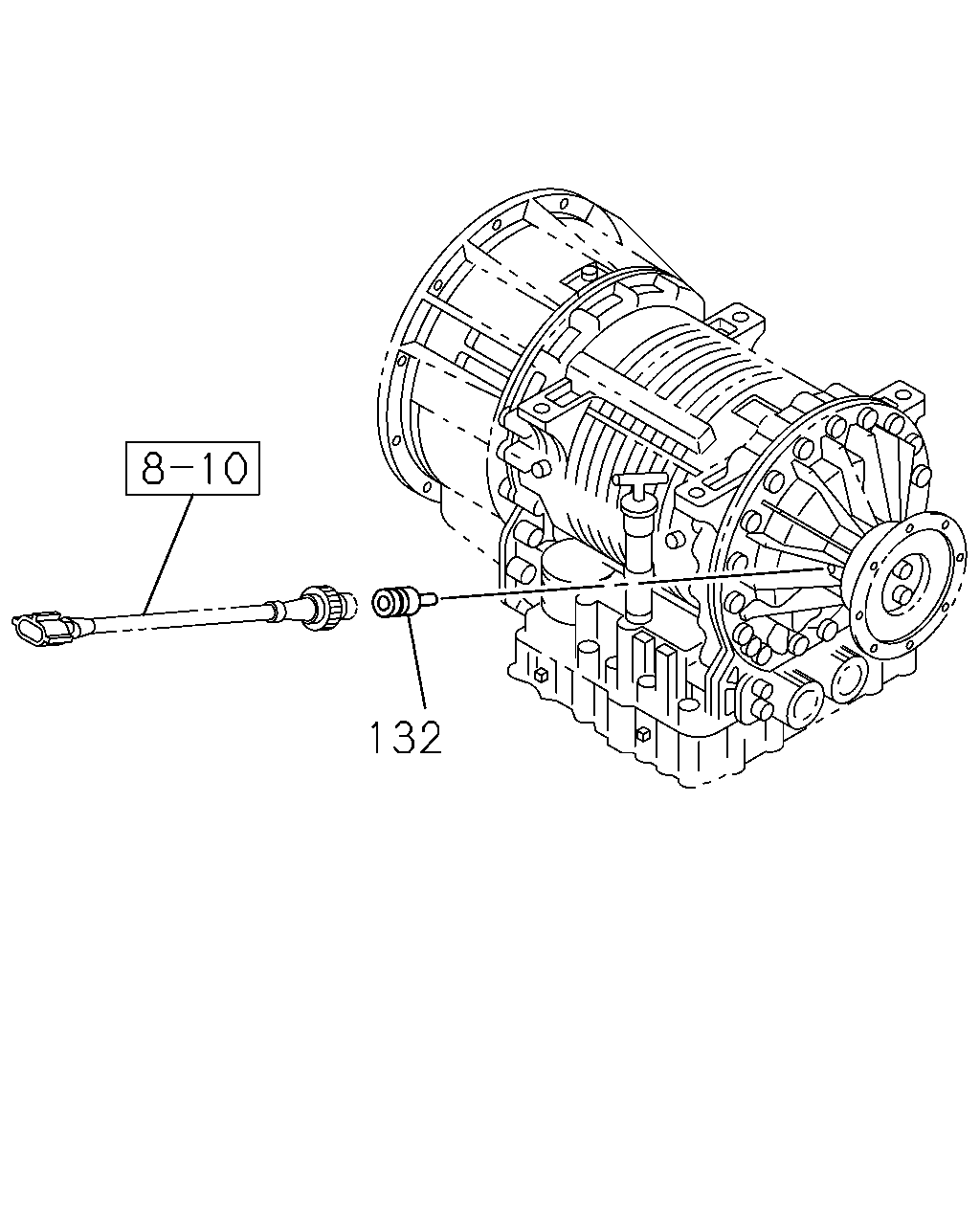

çizim 501921
132
BalonParca AdiParca NoAdetTipApplied Date A B
132 SENSOR; SPD,SPEEDOMETER
ALLISON MD3560P A/T(Y3B) 		8-98151-663-0 01 1 1511- ●

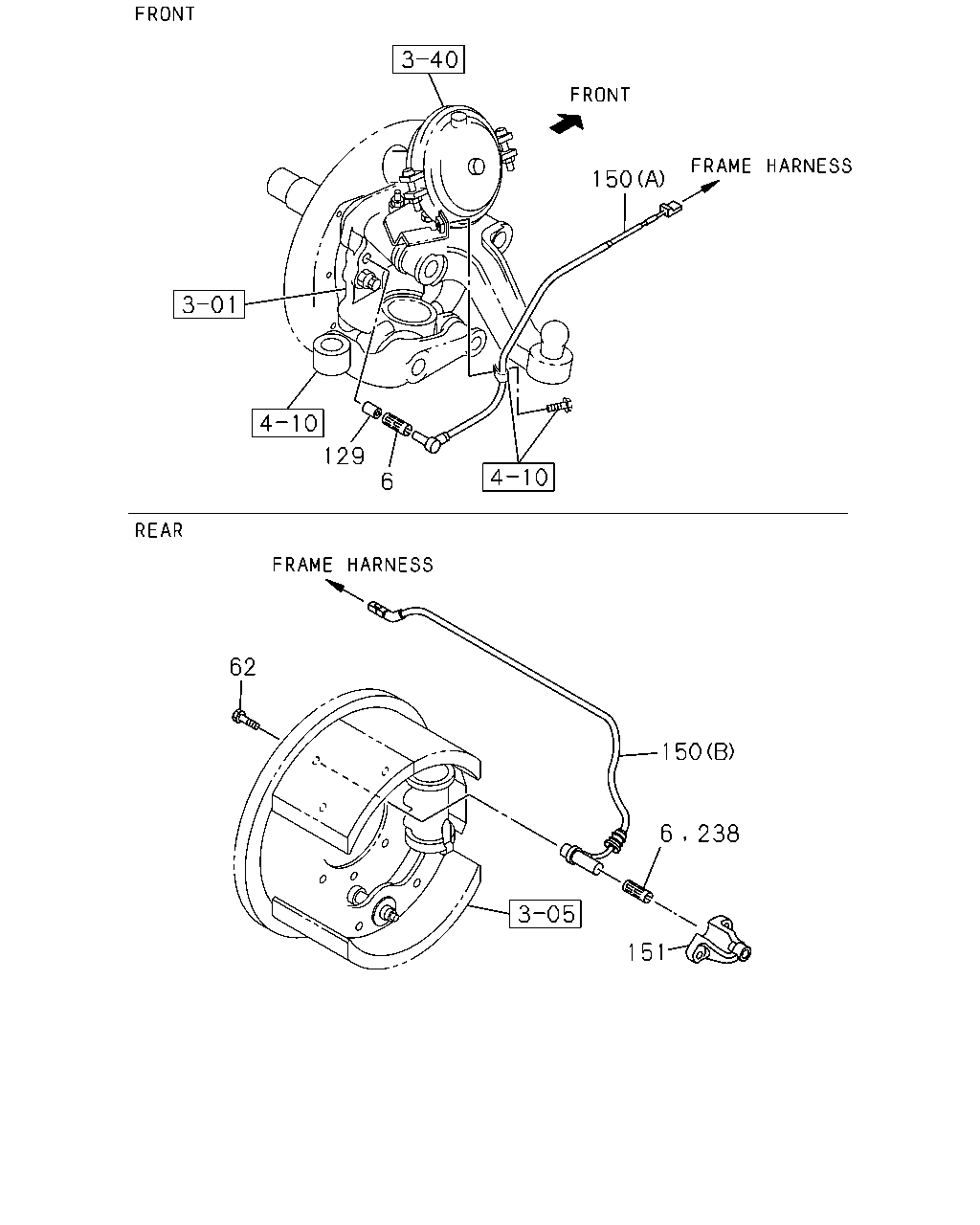

çizim 503391
150 129 6 62 151 6 238 150
BalonParca AdiParca NoAdetTipApplied Date A B
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 1511- ●
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 1511- ●
62 BOLT; SENSOR
M8X16 HEX SOCKET 		0-58330-816-0 02 1 1511- ●
129 COLLAR 1-83129-471-0 02 1 1511- ●
150 SENSOR; SPEED,ABS
(A) 		8-98037-375-0 02 1 1511- ●
150 SENSOR; SPEED,ABS
(B) 		8-98076-288-1 01 1 1511- ●
150 SENSOR; SPEED,ABS
(B) 		8-98076-289-1 01 1 1511- ●
150 SENSOR; SPEED,ABS
(A) 		1-83227-024-1 02 1 1511- ●
150 SENSOR; SPEED,ABS
(B) 		8-98128-606-0 01 1 1511- ●
150 SENSOR; SPEED,ABS
(B) 		8-98128-607-0 01 1 1511- ●
151 BRACKET; SPD SENSOR 8-98299-396-0 01 1 1511- ●
151 BRACKET; SPD SENSOR 8-98299-397-0 01 1 1511- ●
238 BUSHING; BRKT 1-42319-213-0 02 1 1511- ●
