8-15 — FIXING PARTS; WIRING HARNESS (#169954) — 166 parça

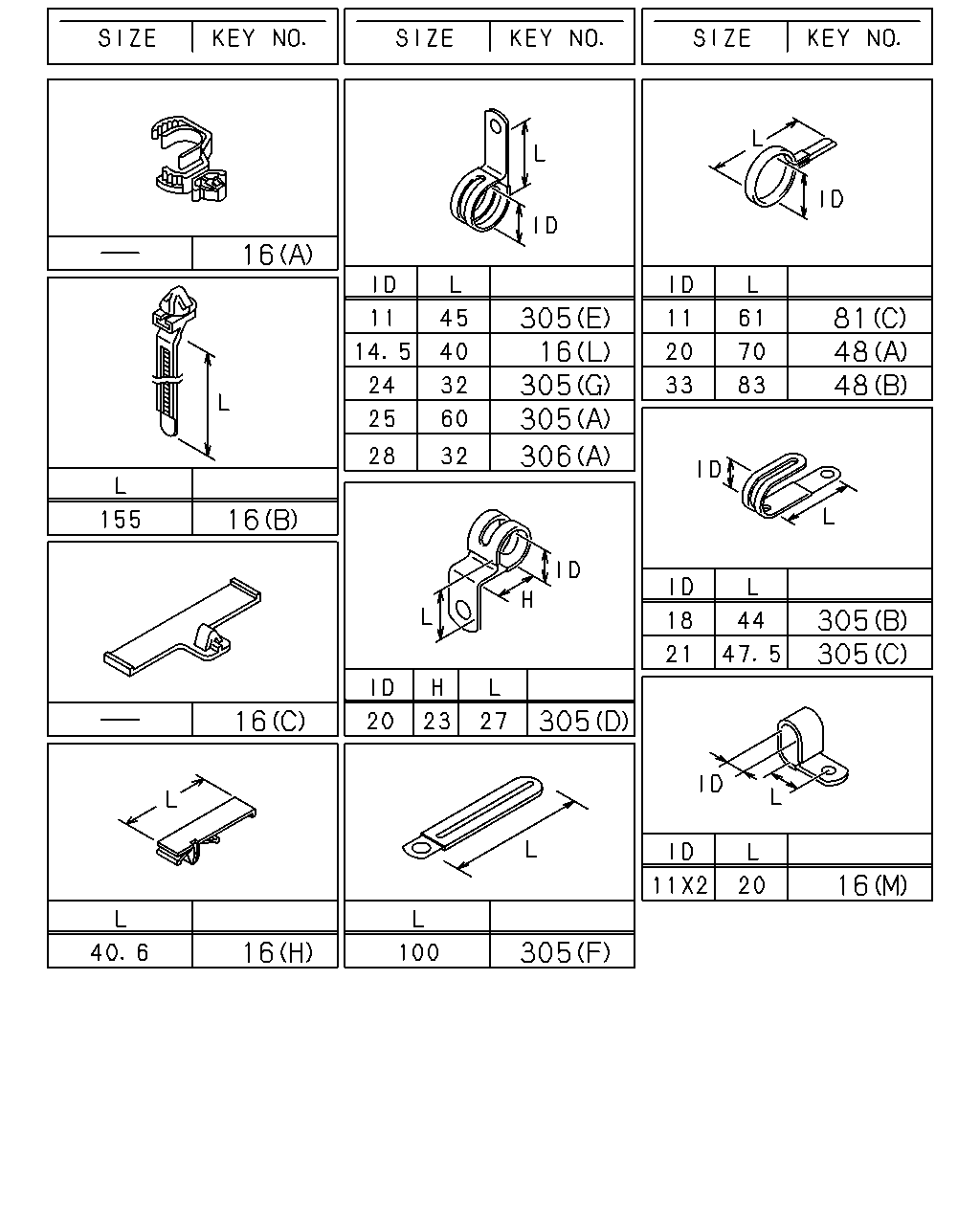

çizim 503171
16 16 16 16 305 16 305 305 306 305 305 81 48 48 305 305 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(J) ID=11X2 L=16 		0-95325-025-0 01 1 1511- ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=16X2 L=50 		0-95325-586-0 01 1 1511- ●
16 CLIP; HARNESS
(D) ID=16X2 L=50 		0-95325-586-0 01 1 1511- ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L) ID=14.5 L=40 		1-09701-014-0 01 1 1511- ●
16 CLIP; HARNESS
(L) ID=14.5 L=40 		1-09701-014-0 01 1 1511- ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) ID=19 L=32 		0-95235-866-0 02 1 1511- ●
16 CLIP; HARNESS
(K) ID=11 L=16 		0-95235-025-0 02 1 1511- ● ●
16 CLIP; HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 1511- ● ●
16 CLIP; HARNESS
(F) ID=15 H=30 L=30 		1-09700-832-0 02 1 1511- ● ●
16 CLIP; HARNESS
(I) ID=5-12 L=14.5 		1-09987-221-0 02 1 1511- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1511- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1511- ● ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1511- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1511- ● ●
16 CLIP; HARNESS
(M) ID=11X2 L=20 		1-09700-871-0 03 1 1511- ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=9 L=20 		0-95234-835-0 01 1 1511- ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) ID=9 H=20 L=25 		1-09701-073-0 01 1 1511- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 01 1 1511- ● ●
48 CLIP; FRAME HARNESS
(B) ID=33 L=83 		1-09701-291-0 01 1 1511- ● ●
48 CLIP; FRAME HARNESS
(C) L=140 		5-09707-031-1 02 1 1511- ● ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=250 		5-09707-030-1 01 1 1511- ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> (B) L=250 		5-09707-030-1 01 1 1511- ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=11 L=61 		1-09700-484-0 01 1 1511- ●
81 CLIP; HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 1511- ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6 		1-09709-178-0 01 1 1511- ●
81 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1511- ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1511- ● ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(G) ID=24 L=32 		1-09700-766-1 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(H) ID=19 H=33 L=45 		1-09701-045-0 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(E) ID=11 L=45 		8-94296-897-1 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(F) L=100 		8-94443-021-1 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(L) L=140 		8-97122-360-0 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1511- ● ●
305 CLIP; ENG HARNESS
HEATER & DEFROSTER(C41) (C) ID=21 L=47.5 		8-94178-108-0 01 1 1511- ● ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 1511- ● ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1511- ● ●

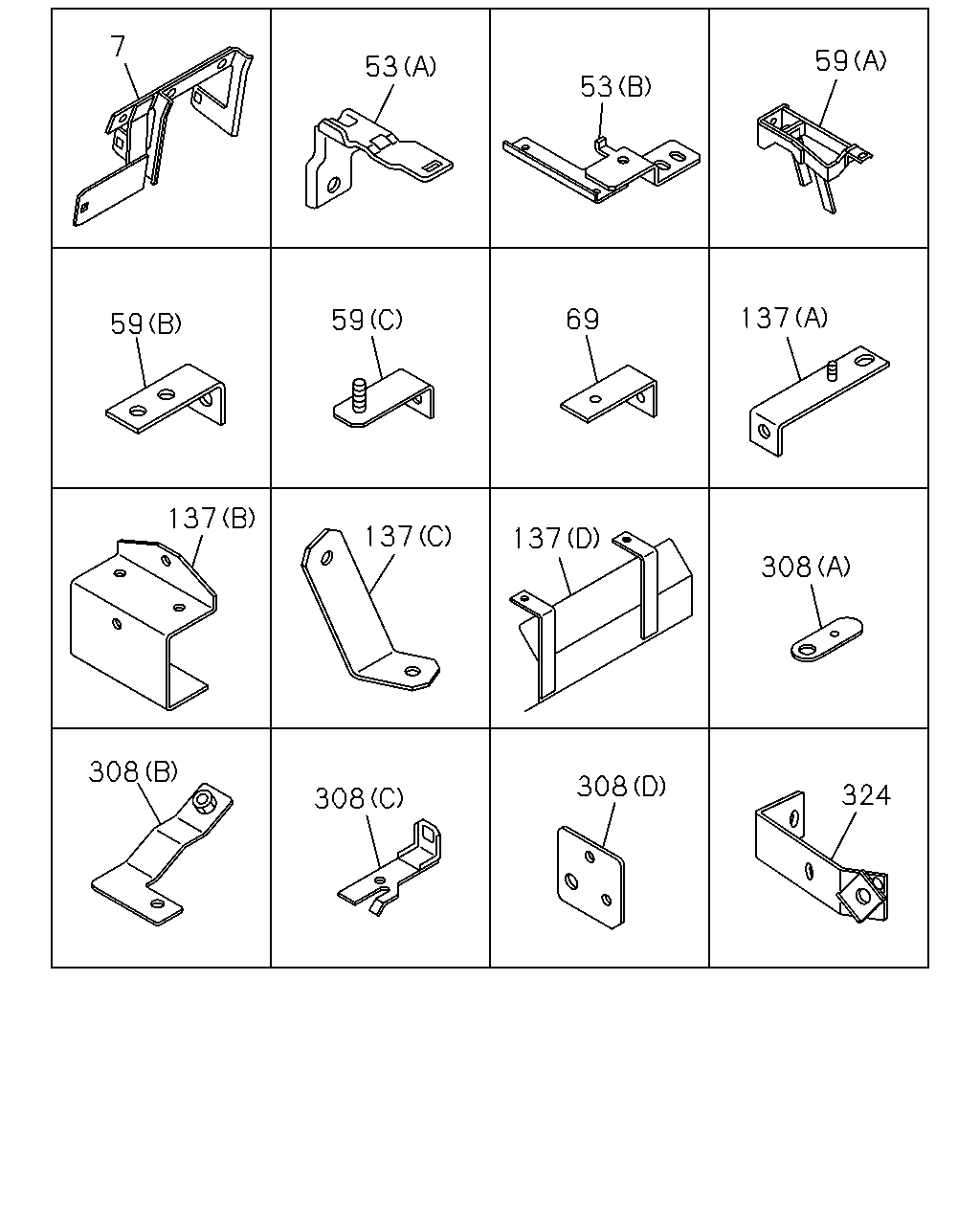

çizim 503240
7 53 53 59 59 59 69 137 137 137 137 308 308 308 308 324
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1511- ● ●
53 BRACKET; HARNESS
(B) 		8-97620-485-0 01 1 1511- ● ●
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1511- ● ●
59 BRACKET; FRAME HARNESS
(B) L=62 		1-21464-170-2 01 1 1511- ● ●
59 BRACKET; FRAME HARNESS
(A) 		8-97609-264-2 01 1 1511- ● ●
59 BRACKET; FRAME HARNESS
(C) 		8-98306-304-0 01 1 1511- ● ●
69 BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=55 		1-47475-304-0 01 1 1511- ●
69 BRACKET; CLIP
L=55 		1-47475-304-0 01 1 1511- ●
137 BRACKET; HARNESS CLAMP
(B) 		8-97609-797-1 02 1 1511- ● ●
137 BRACKET; HARNESS CLAMP
(C) 		8-97614-728-1 01 1 1511- ● ●
137 BRACKET; HARNESS CLAMP
(A) 		8-97624-013-0 01 1 1511- ● ●
137 BRACKET; HARNESS CLAMP
(D) 		8-98255-001-0 01 1 1511- ● ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1511- ● ●
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 1511- ● ●
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 1511- ● ●
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 01 1 1511- ● ●
324 BRACKET; CLIP 8-98210-921-1 01 1 1511- ● ●
324 BRACKET; CLIP 8-98210-922-1 01 1 1511- ● ●

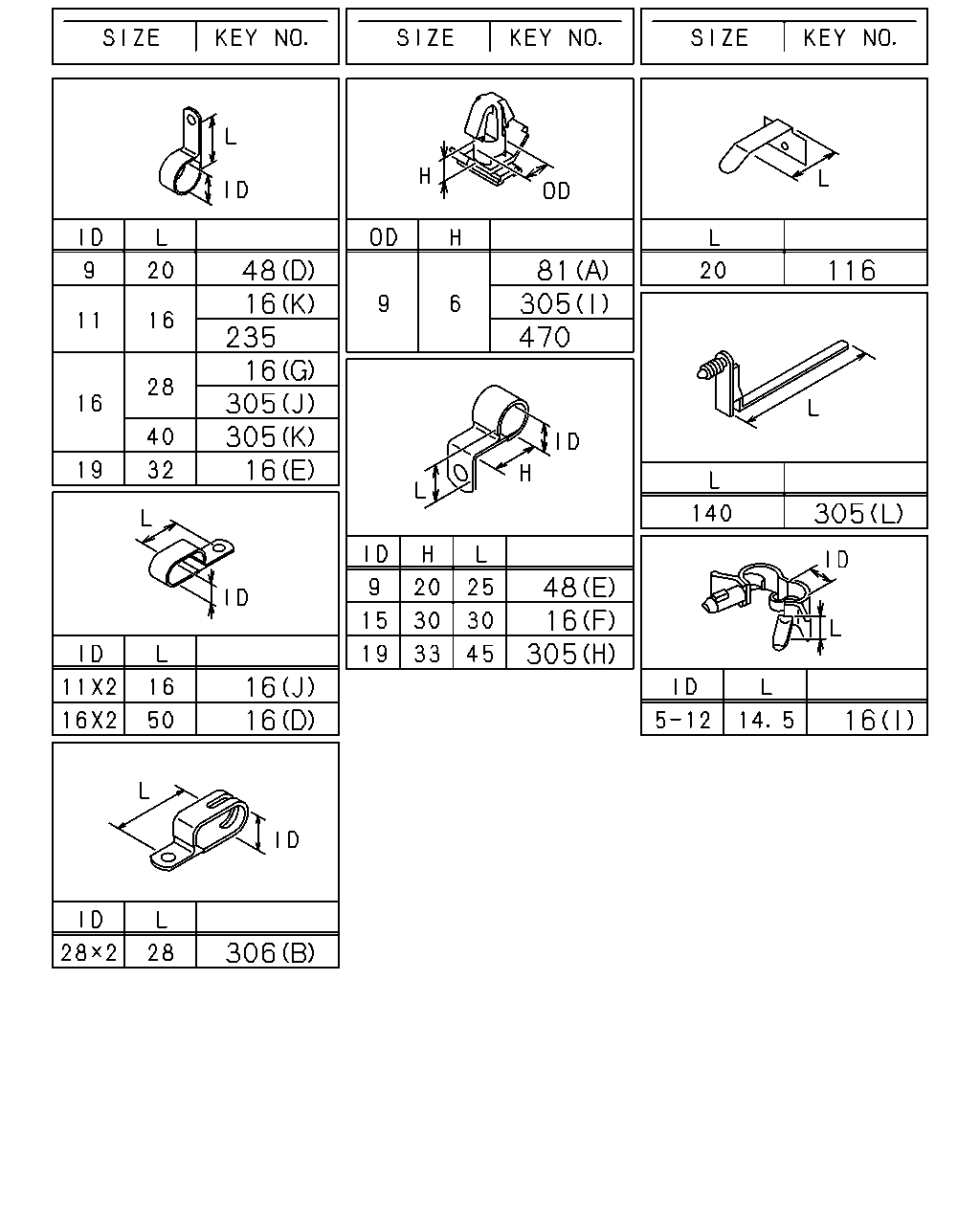

çizim 503334
48 235 16 16 305 305 16 16 16 306 81 470 305 48 305 116 305 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(J) ID=11X2 L=16 		0-95325-025-0 01 1 1511- ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=16X2 L=50 		0-95325-586-0 01 1 1511- ●
16 CLIP; HARNESS
(D) ID=16X2 L=50 		0-95325-586-0 01 1 1511- ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L) ID=14.5 L=40 		1-09701-014-0 01 1 1511- ●
16 CLIP; HARNESS
(L) ID=14.5 L=40 		1-09701-014-0 01 1 1511- ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) ID=19 L=32 		0-95235-866-0 02 1 1511- ●
16 CLIP; HARNESS
(K) ID=11 L=16 		0-95235-025-0 02 1 1511- ● ●
16 CLIP; HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 1511- ● ●
16 CLIP; HARNESS
(F) ID=15 H=30 L=30 		1-09700-832-0 02 1 1511- ● ●
16 CLIP; HARNESS
(I) ID=5-12 L=14.5 		1-09987-221-0 02 1 1511- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1511- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1511- ● ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1511- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1511- ● ●
16 CLIP; HARNESS
(M) ID=11X2 L=20 		1-09700-871-0 03 1 1511- ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=9 L=20 		0-95234-835-0 01 1 1511- ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) ID=9 H=20 L=25 		1-09701-073-0 01 1 1511- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 01 1 1511- ● ●
48 CLIP; FRAME HARNESS
(B) ID=33 L=83 		1-09701-291-0 01 1 1511- ● ●
48 CLIP; FRAME HARNESS
(C) L=140 		5-09707-031-1 02 1 1511- ● ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=250 		5-09707-030-1 01 1 1511- ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> (B) L=250 		5-09707-030-1 01 1 1511- ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=11 L=61 		1-09700-484-0 01 1 1511- ●
81 CLIP; HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 1511- ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6 		1-09709-178-0 01 1 1511- ●
81 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1511- ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 1511- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=11 L=16 		0-95235-025-0 02 1 1511- ● ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1511- ● ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(G) ID=24 L=32 		1-09700-766-1 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(H) ID=19 H=33 L=45 		1-09701-045-0 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(E) ID=11 L=45 		8-94296-897-1 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(F) L=100 		8-94443-021-1 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(L) L=140 		8-97122-360-0 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1511- ● ●
305 CLIP; ENG HARNESS
HEATER & DEFROSTER(C41) (C) ID=21 L=47.5 		8-94178-108-0 01 1 1511- ● ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 1511- ● ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1511- ● ●
470 CLIP; HARNESS,LICENSE LAMP
COUNTRY NEW ZEALAND(CX6) OD=9 H=6 		1-09709-178-0 01 1 1511- ●

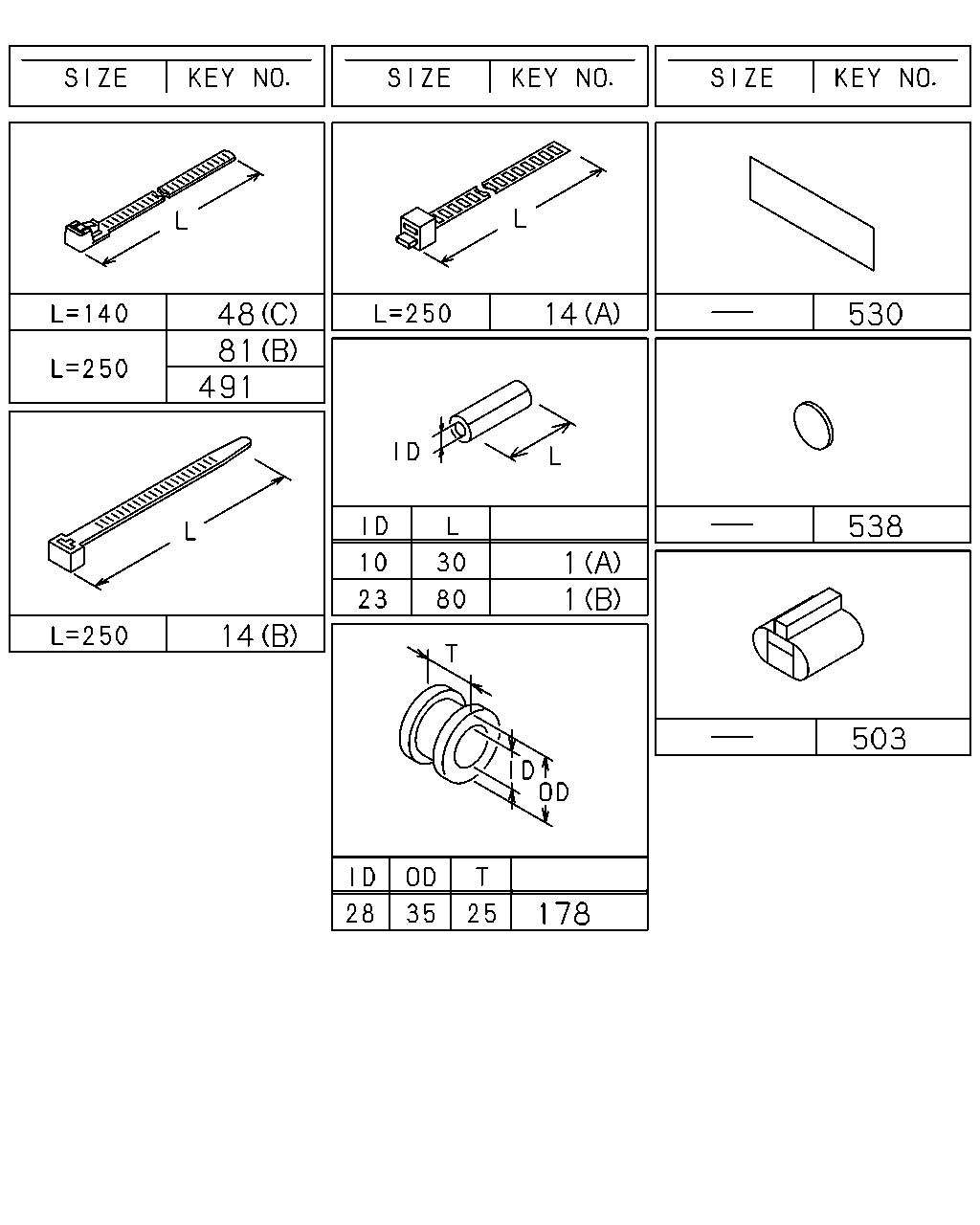

çizim 503472
48 81 491 14 1 1 178 14 530 538 503
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 1511- ● ●
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1511- ● ●
14 CLIP; BAND,HARNESS
ALLISON MD3560P A/T(Y3B) (B) L=250 		8-98216-430-0 14 1 1511- ●
14 CLIP; BAND,HARNESS
ZF9S1110 M/T(Y5E) (B) L=250 		8-98216-430-0 13 1 1511- ● ●
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 1511- ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=9 L=20 		0-95234-835-0 01 1 1511- ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) ID=9 H=20 L=25 		1-09701-073-0 01 1 1511- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 01 1 1511- ● ●
48 CLIP; FRAME HARNESS
(B) ID=33 L=83 		1-09701-291-0 01 1 1511- ● ●
48 CLIP; FRAME HARNESS
(C) L=140 		5-09707-031-1 02 1 1511- ● ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=250 		5-09707-030-1 01 1 1511- ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> (B) L=250 		5-09707-030-1 01 1 1511- ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=11 L=61 		1-09700-484-0 01 1 1511- ●
81 CLIP; HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 1511- ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6 		1-09709-178-0 01 1 1511- ●
81 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1511- ●
178 GROMMET; HARNESS
ID=28 OD=35 T=25 		1-09332-011-1 01 1 1511- ● ●
178 GROMMET; HARNESS
ID=28 OD=35 T=25 		1-09332-011-1 01 1 1511- ● ●
491 CLIP; BAND,HTR HOSE & HARNESS
A/T<X9D> L=250 		5-09707-030-1 07 1 1511- ●
503 CONNECTOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-82690-668-0 01 1 1511- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1511- ● ●
530 SEAL; HARNESS
A/T<X9D> 180X40 		1-72498-019-1 01 1 1511- ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1511- ● ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1511- ● ●

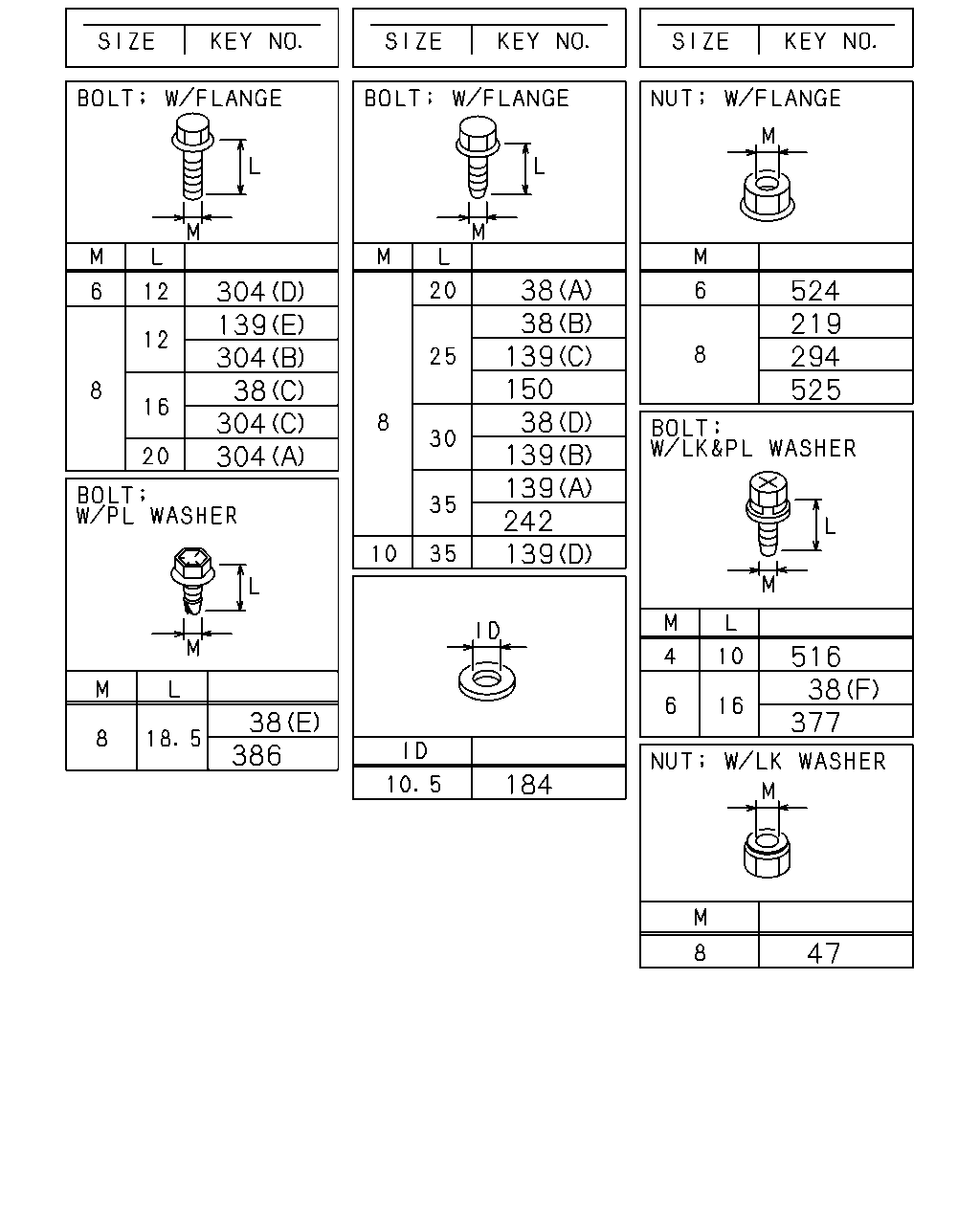

çizim 503535
304 304 304 139 38 304 38 386 38 139 38 150 139 242 38 139 139 184 524 294 219 525 516 38 377 47
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
ALLISON MD3560P A/T(Y3B) (F) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 1511- ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 02 1 1511- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1511- ● ●
38 BOLT; CLIP,HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1511- ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1511- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1511- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 1511- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 1511- ● ●
38 BOLT; CLIP,HARNESS
(E) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1511- ● ●
38 BOLT; CLIP,HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1511- ●
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1511- ● ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 1511- ● ●
139 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 01 1 1511- ● ●
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X25 FLANGE 		0-28650-825-0 01 1 1511- ●
139 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 01 1 1511- ●
139 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 03 1 1511- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1511- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 1511- ● ●
139 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 01 1 1511- ● ●
139 BOLT; BRKT
(D) M10X35 FLANGE 		0-28651-035-0 01 1 1511- ● ●
150 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1511- ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1511- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1511- ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1511- ●
242 BOLT; BRKT,HARNESS
M8X35 FLANGE 		0-28650-835-0 01 1 1511- ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 04 1 1511- ● ●
304 BOLT; ENG HARNESS CLIP
(D) M6X12 FLANGE 		0-28050-612-0 01 1 1511- ● ●
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 02 1 1511- ● ●
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 03 1 1511- ● ●
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1511- ● ●
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1511- ● ●
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1511- ● ●
516 BOLT; HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 1511- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1511- ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 03 1 1511- ● ●
525 NUT; CLIP
T=8.5 M8 FLANGE 		5-09440-010-0 01 1 1511- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
