7-40 — INSTRUMENT PANEL AND BOX (#169943) — 116 parça

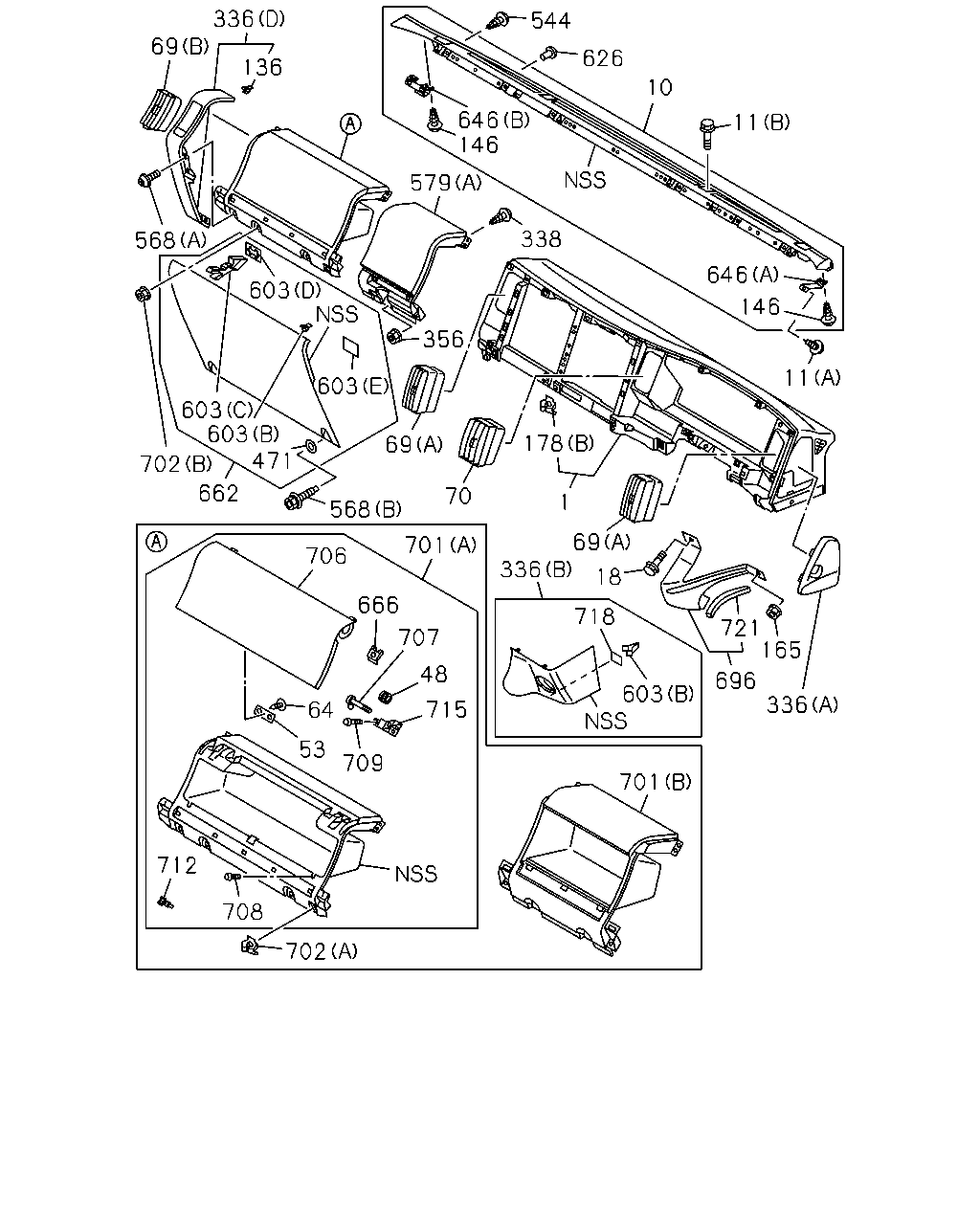

çizim 501106
544 626 10 11 646 146 11 721 165 336 696 18 718 603 336 69 1 178 70 69 568 701 706 666 707 48 715 709 53 64 712 708 702 701 579 338 646 146 69 336 136 568 603 603 603 471 603 356 702 662
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 1511- ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97422-097-1 01 1 1511- ● ●
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1511- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1511- ● ●
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1511- ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-763-0 01 1 1511- ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-764-0 01 1 1511- ● ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-765-0 01 1 1511- ● ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M4X85 		8-97926-404-0 02 1 1511- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1511- ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1511- ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1511- ● ●
136 CLIP; INST COVER 8-98076-254-0 02 1 1511- ● ●
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1511- ● ●
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1511- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1511- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1511- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1511- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1511- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1511- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1511- ● ●
338 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1511- ● ●
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 1511- ● ●
471 WASHER; PL 8-98179-641-0 02 1 1511- ● ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1511- ● ●
568 BOLT; COVER
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1511- ● ●
568 BOLT; COVER
(B) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1511- ● ●
579 COVER; INST PNL
(B) BLACK 		8-97466-735-0 01 1 1511- ● ●
579 COVER; INST PNL
(A) GRAY 		8-97409-853-2 01 1 1511- ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1511- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1511- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1511- ● ●
603 CLIP; COVER
(C) 		8-98152-030-0 03 1 1511- ● ●
603 CLIP; COVER
(D) 		8-98152-031-0 03 1 1511- ● ●
603 CLIP; COVER
(E) 		8-98167-222-0 02 1 1511- ● ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1511- ● ●
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 1511- ● ●
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 1511- ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97422-092-2 01 1 1511- ● ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5 		8-97926-400-0 04 1 1511- ● ●
696 BRACKET; KNEE 8-98066-085-1 01 1 1511- ● ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) GRAY 		8-97429-703-1 01 1 1511- ● ●
701 TRAY; INST
EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) GRAY 		8-97417-196-2 01 1 1511- ● ●
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1511- ● ●
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1511- ● ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> GRAY 		8-97429-992-0 01 1 1511- ● ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-393-0 02 1 1511- ● ●
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1511- ● ●
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5X16 TAPPING 		0-71040-516-0 04 1 1511- ● ●
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1511- ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-396-0 01 1 1511- ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-397-0 01 1 1511- ● ●
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 1511- ● ●
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 1511- ● ●

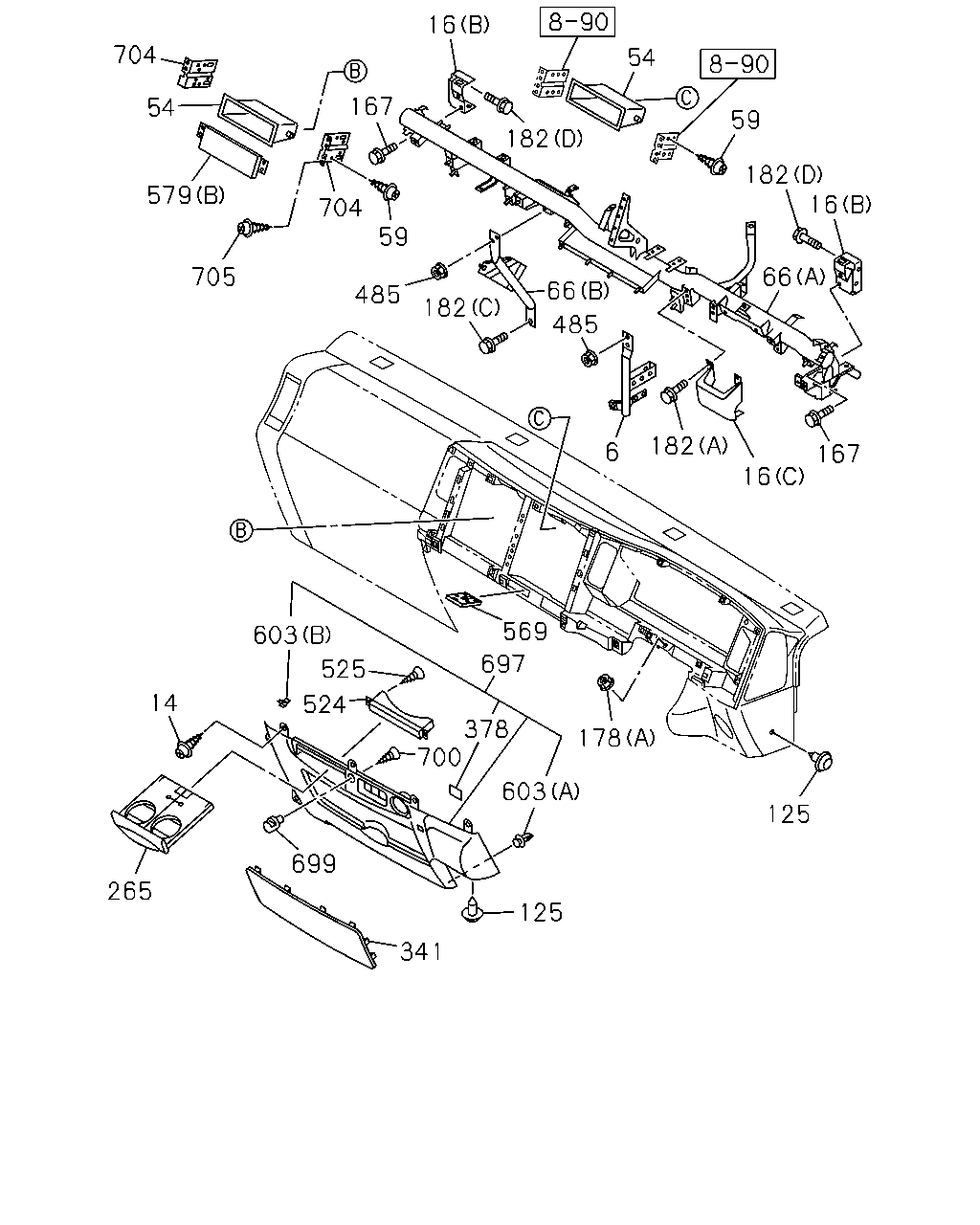

çizim 501174
704 54 579 705 485 59 704 167 182 16 54 59 182 16 66 167 16 182 485 66 182 6 569 697 378 603 125 341 699 14 524 603 525 178 125 265 700
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1511- ● ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1511- ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1511- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1511- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1511- ● ●
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 1511- ● ●
16 BRACKET; INST PNL
(D) 		8-98180-277-1 01 1 1511- ● ●
54 POCKET; CENTER CLUSTER
H=58.4 BLACK 		8-97408-864-3 01 1 1511- ● ●
54 POCKET; CENTER CLUSTER
H=58.4 BLACK 		8-97408-864-3 01 1 1511- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1511- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1511- ● ●
59 SCREW; CLUSTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1511- ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) EXC. H.S.A SYSTEM<6EP> (A) 		8-98240-608-0 01 1 1511- ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3) EXC. H.S.A SYSTEM<6EP> (A) 		8-98240-609-0 01 1 1511- ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98240-609-0 01 1 1511- ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-97585-580-2 01 1 1511- ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98151-167-0 01 1 1511- ● ●
66 REINFORCEMENT; INST PANEL
H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98248-348-1 01 1 1511- ● ●
66 REINFORCEMENT; INST PANEL
H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) (A) 		8-98248-346-1 01 1 1511- ● ●
125 CLIP; INST PANEL
GRAY 		8-97408-817-0 04 1 1511- ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1511- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1511- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1511- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1511- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1511- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1511- ● ●
182 BOLT; BRKT,INST PANEL
(B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1511- ● ●
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1511- ● ●
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1511- ● ●
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1511- ● ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1511- ● ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1511- ● ●
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1511- ● ●
569 HOLDER; CARD 8-97410-276-1 01 1 1511- ● ●
579 COVER; INST PNL
(B) BLACK 		8-97466-735-0 01 1 1511- ● ●
579 COVER; INST PNL
(A) GRAY 		8-97409-853-2 01 1 1511- ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1511- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1511- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1511- ● ●
603 CLIP; COVER
(C) 		8-98152-030-0 03 1 1511- ● ●
603 CLIP; COVER
(D) 		8-98152-031-0 03 1 1511- ● ●
603 CLIP; COVER
(E) 		8-98167-222-0 02 1 1511- ● ●
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1511- ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1511- ● ●
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1511- ● ●
704 BRACKET; CENTER POCKET 8-97585-618-2 02 1 1511- ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1511- ● ●

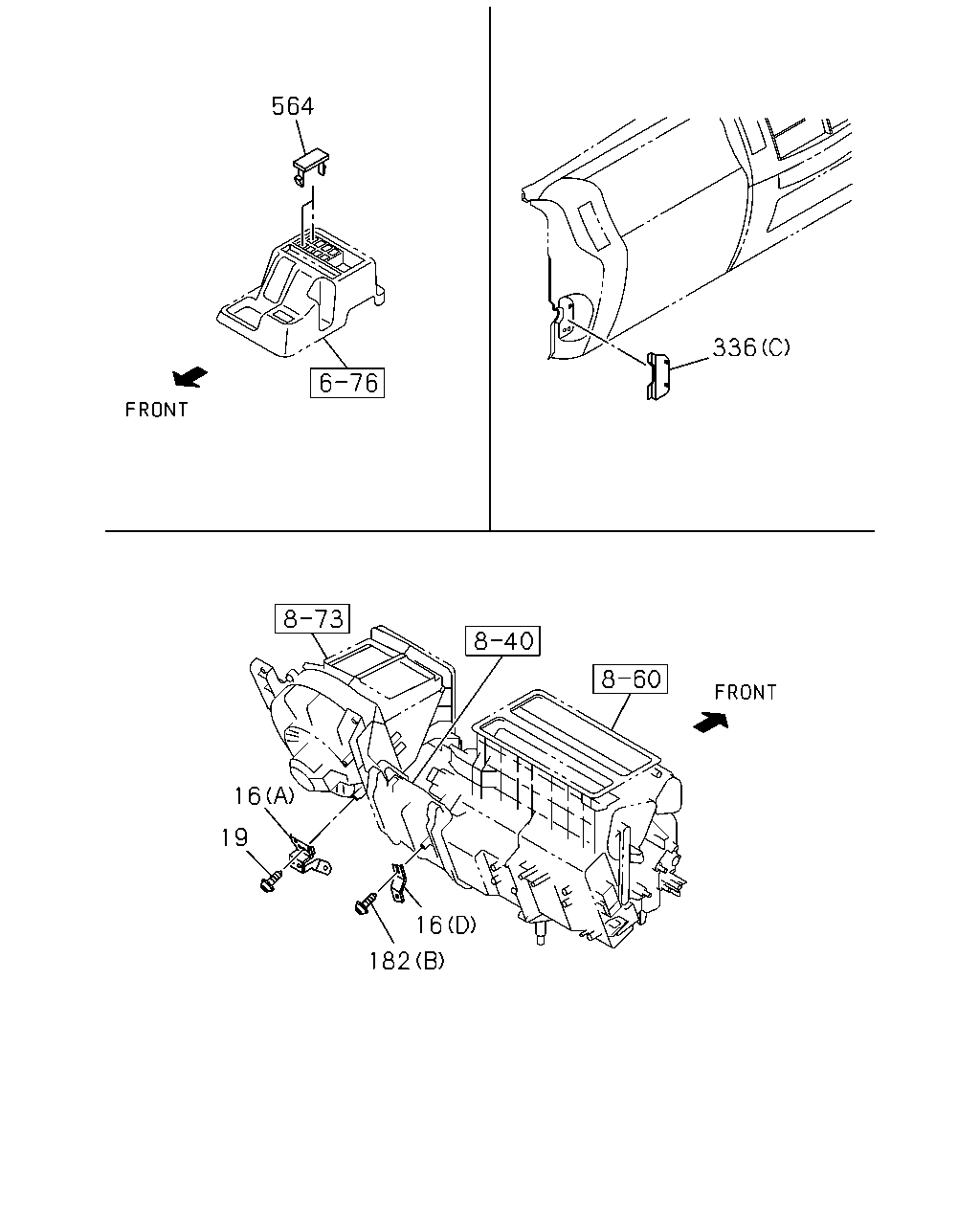

çizim 502743
336 16 182 19 16 564
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1511- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1511- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1511- ● ●
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 1511- ● ●
16 BRACKET; INST PNL
(D) 		8-98180-277-1 01 1 1511- ● ●
19 SCREW; BRKT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1511- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1511- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1511- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1511- ● ●
182 BOLT; BRKT,INST PANEL
(B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1511- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1511- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1511- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1511- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1511- ● ●
564 COVER; SW 8-97043-732-1 02 1 1511- ● ●
