7-30 — LOCK CYLINDER SET (#169942) — 11 parça
çizim 502934
1 20 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER SET; CAR LOCK 8-98201-160-0 01 1 1511- ● ●
20 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1511- ● ●
20 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1511- ● ●

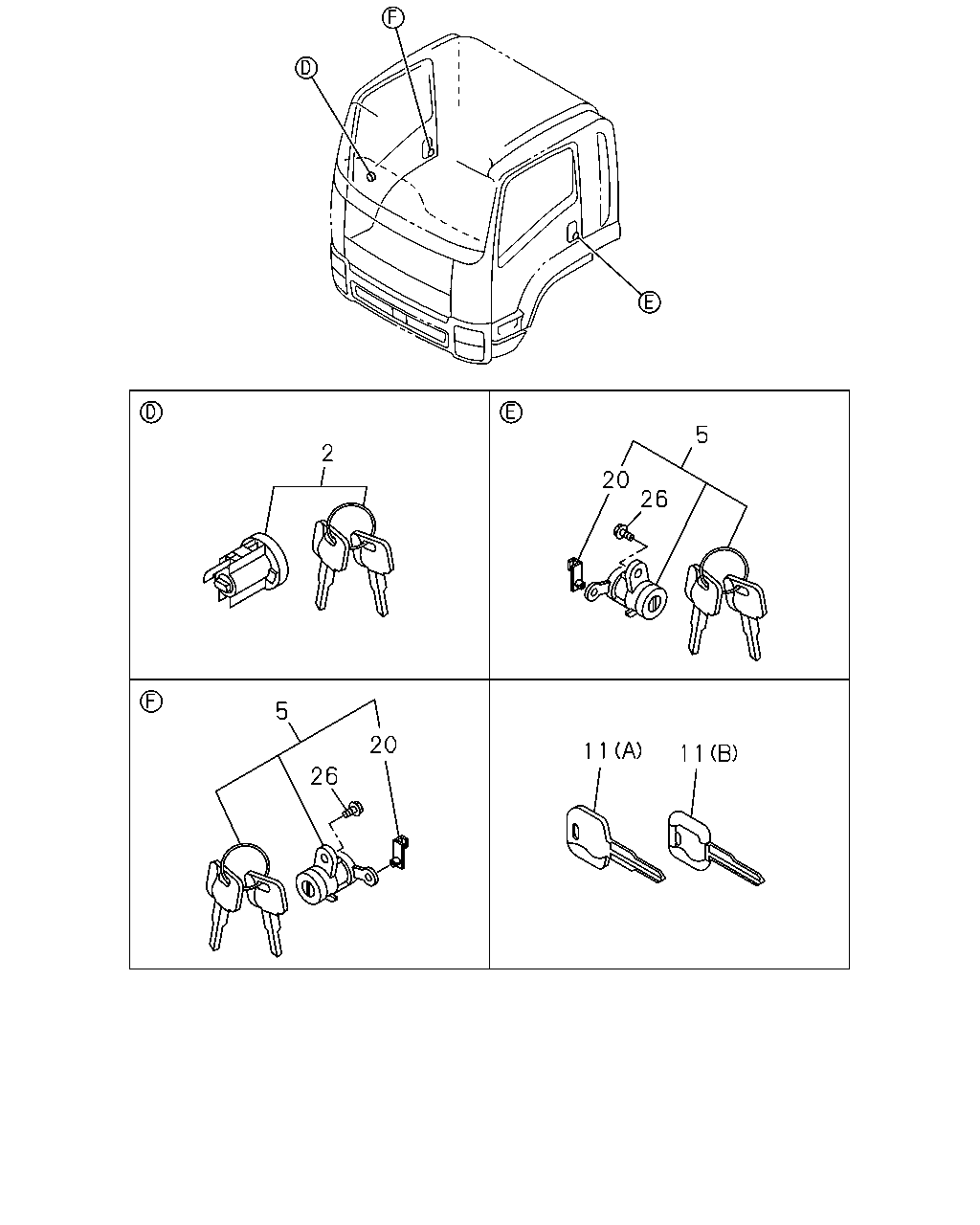

çizim 503008
5 26 20 2 5 26 20 11 11
BalonParca AdiParca NoAdetTipApplied Date A B
2 BARREL ASM; W/KEY,STRG LOCK 8-98201-341-0 01 1 1511- ● ●
5 CYLINDER ASM; DOOR LOCK 8-98055-149-0 01 1 1511- ● ●
5 CYLINDER ASM; DOOR LOCK 8-98055-150-0 01 1 1511- ● ●
11 KEY; BLANK
(B) IMMOBILIZER 		8-98055-168-0 AR 1 1511- ● ●
11 KEY; BLANK
(A) 		8-98055-170-0 AR 1 1511- ● ●
20 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1511- ● ●
20 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1511- ● ●
26 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 1511- ● ●
