◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11718 - FVM AUST/NZ EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#169931) — 61 parça

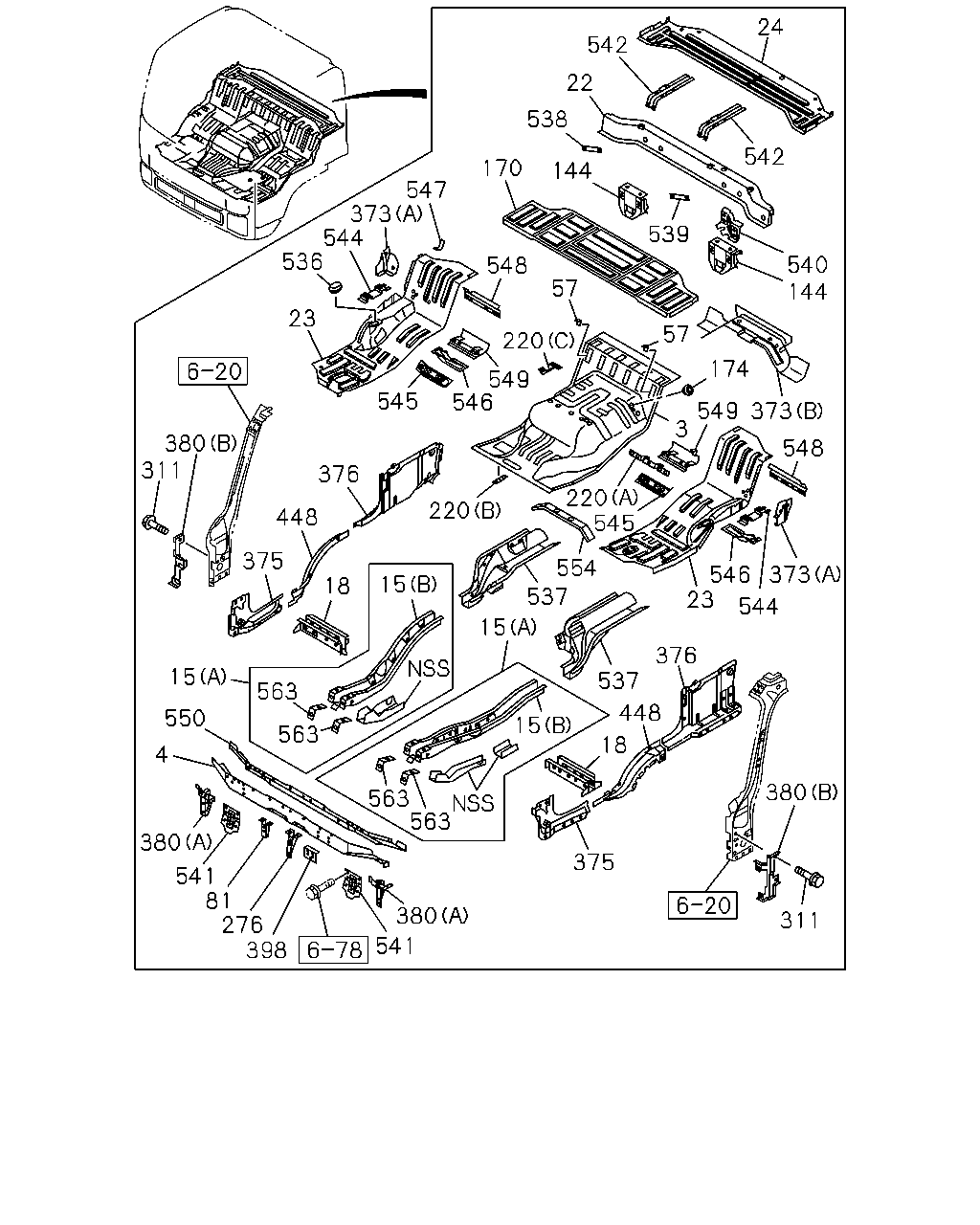

çizim 503674
24 542 538 170 144 539 542 540 57 144 174 548 373 549 3 220 546 373 380 376 537 18 448 15 563 563 547 373 544 536 23 545 546 549 220 57 548 380 311 376 448 375 15 563 537 220 15 18 563 550 4 380 541 81 276 398 375 23 544 22 311 541 380 545 554 15
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98081-357-4 01 1 1511- ●
3 HOOD ASM; ENG
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-359-4 01 1 1511- ●
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		8-98081-360-4 01 1 1511- ●
3 HOOD ASM; ENG 8-98081-360-4 01 1 1511- ●
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 1511- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1511- ● ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1511- ● ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1511- ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1511- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-97584-398-4 01 1 1511- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-97584-421-4 01 1 1511- ● ●
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1511- ● ●
23 PANEL; FLOOR,SIDE 8-97584-372-7 01 1 1511- ● ●
23 PANEL; FLOOR,SIDE 8-98073-691-1 01 1 1511- ● ●
24 PANEL; BED PAN 8-97584-378-6 01 1 1511- ● ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1511- ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1511- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1511- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1511- ● ●
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1511- ● ●
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1511- ● ●
220 PATCH
(A) 		8-97588-840-4 01 1 1511- ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 1511- ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 1511- ● ●
276 BRACKET; RAD GRILLE 8-98253-712-0 01 1 1511- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1511- ● ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98228-266-0 01 1 1511- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1511- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1511- ● ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1511- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1511- ● ●
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1511- ● ●
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1511- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1511- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1511- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1511- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1511- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1511- ● ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 1511- ● ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 1511- ● ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1511- ● ●
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1511- ● ●
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1511- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1511- ● ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1511- ● ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1511- ● ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1511- ● ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1511- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1511- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1511- ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1511- ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1511- ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 1511- ● ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1511- ● ●
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 1511- ● ●
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 1511- ● ●
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1511- ● ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 1511- ● ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1511- ● ●
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1511- ● ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1511- ● ●
