6-66 — HEAD LINING AND TRIM (#169930) — 9 parça

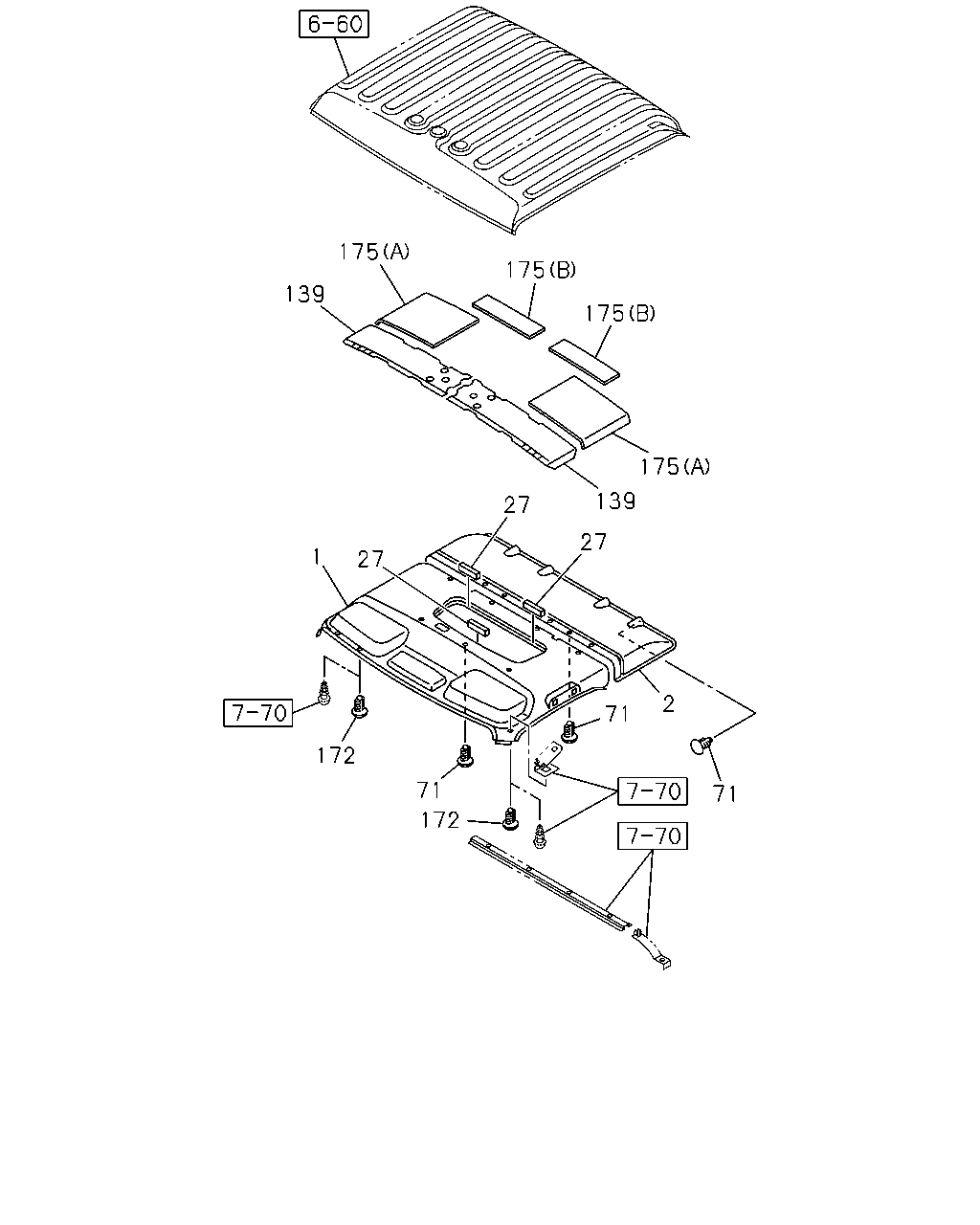

çizim 502897
175 175 175 175 139 27 27 27 1 172 71 172 71 2 71 139
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97426-741-0 01 1 1511- ● ●
2 LINING; HD,ROOF RR
ROUND CURTAIN RAIL<EDH> DARK GRAY 		8-97427-627-0 01 1 1511- ● ●
2 LINING; HD,ROOF RR
EXC. ROUND CURTAIN RAIL<EDH> DARK GRAY 		8-97407-455-5 01 1 1511- ● ●
27 INSULATION; ROOF
INTERIOR FULL TRIM<WM3> 		8-98046-638-2 03 1 1511- ● ●
71 FASTENER; HD LINING
DARK GRAY 		8-97405-282-0 07 1 1511- ● ●
139 SEAL; ROOF 8-98169-116-0 02 1 1511- ● ●
172 RETAINER; HEAD LINING
EXC. ROUND CURTAIN RAIL<EDH> DARK GRAY 		8-97411-875-0 12 1 1511- ● ●
175 CUSHION; HEAD LINING
(A) 		8-98030-965-2 02 1 1511- ● ●
175 CUSHION; HEAD LINING
(B) 		8-98082-685-1 02 1 1511- ● ●
