◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11718 - FVM AUST/NZ EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#169929) — 10 parça

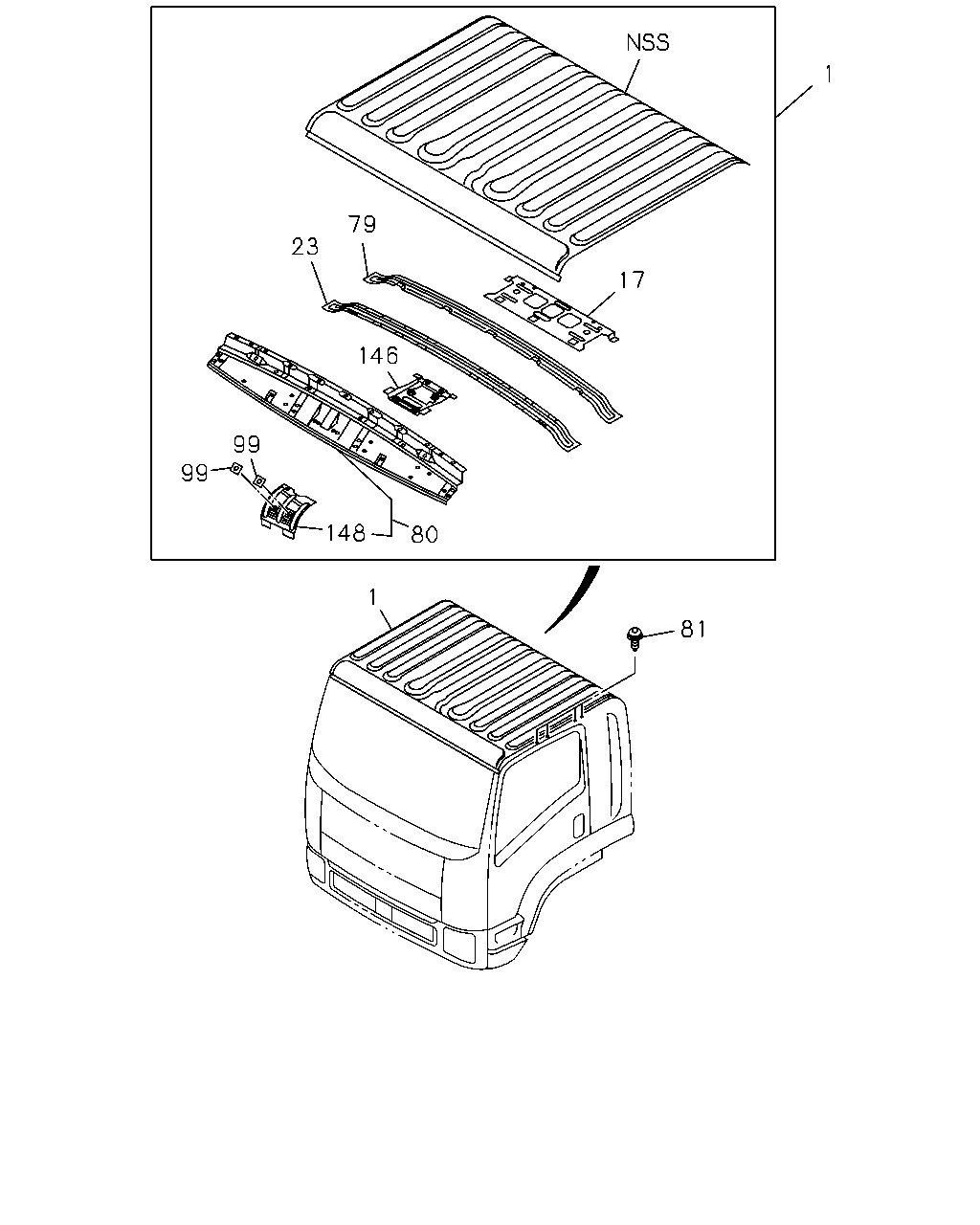

çizim 501443
1 17 79 23 146 80 148 99 99 81 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-98196-922-0 01 1 1511- ● ●
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98246-475-0 01 1 1511- ● ●
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 1511- ● ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-316-0 01 1 1511- ● ●
79 REINFORCEMENT; ROOF PANEL,RR 8-97584-200-1 01 1 1511- ● ●
80 PANEL; HEADER,ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-98196-921-0 01 1 1511- ● ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 1511- ● ●
99 SEAL; BODY,METAL
MIRROR O/S UNDER VIEW<RR9> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1511- ● ●
146 REINFORCEMENT; ROOM LAMP 8-98075-827-0 01 1 1511- ● ●
148 REINFORCEMENT; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-97411-015-1 01 1 1511- ● ●
