6-20 — SIDE PANEL AND STEP (#169922) — 79 parça

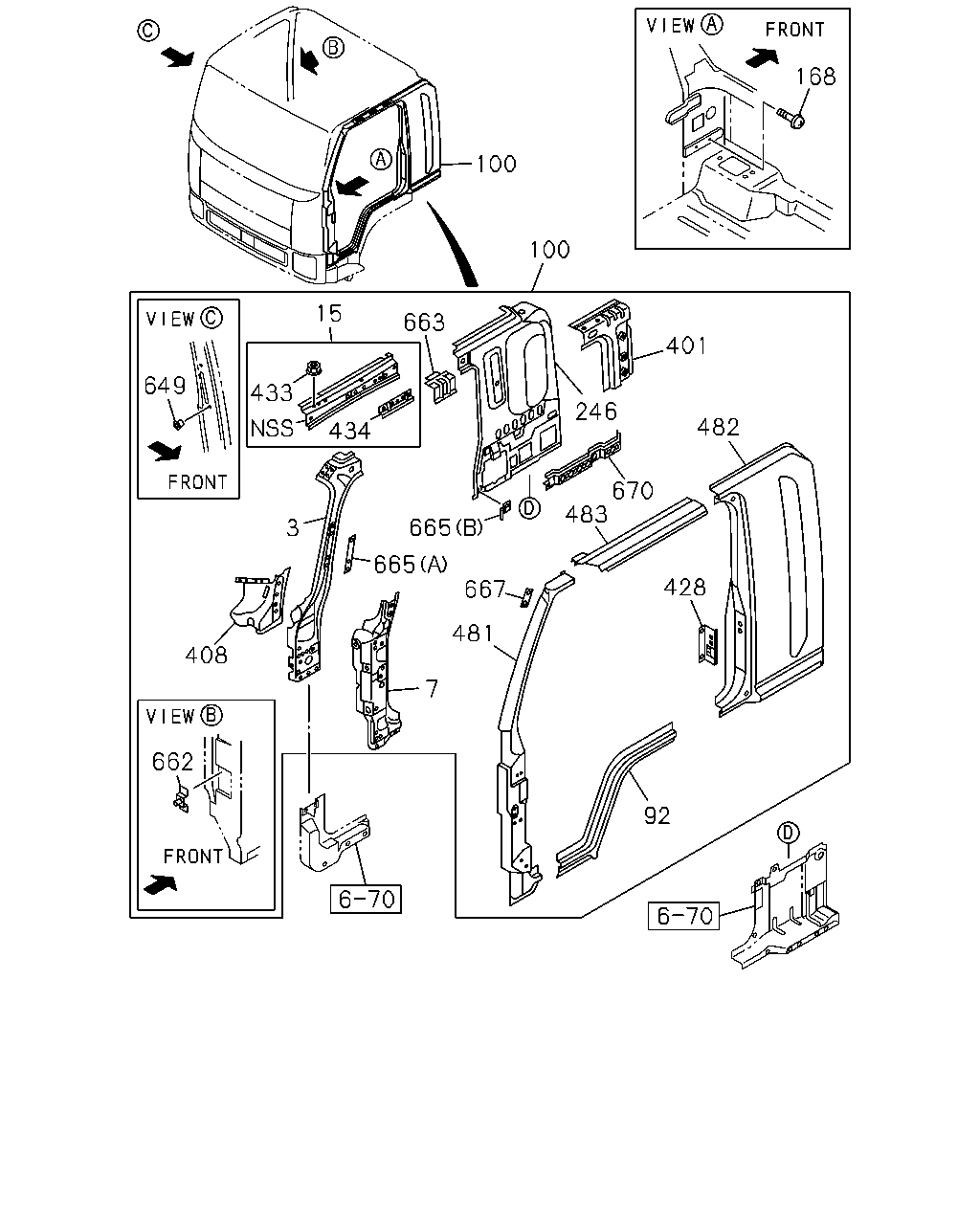

çizim 502915
100 100 401 482 670 483 665 665 667 481 7 408 3 434 433 15 663 649 168 246 428 92 662
BalonParca AdiParca NoAdetTipApplied Date A B
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1511- ● ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1511- ● ●
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1511- ● ●
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1511- ● ●
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 1511- ● ●
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 1511- ● ●
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1511- ● ●
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1511- ● ●
100 PANEL ASM; BODY SIDE 8-97586-063-5 01 1 1511- ● ●
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> 		8-97586-079-7 01 1 1511- ● ●
100 PANEL ASM; BODY SIDE
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-97586-071-6 01 1 1511- ● ●
168 BOLT; BODY SIDE PANEL
SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1511- ● ●
246 PANEL; RR PILLAR,INNER 8-97586-158-5 01 1 1511- ● ●
246 PANEL; RR PILLAR,INNER 8-97586-156-5 01 1 1511- ● ●
401 PATCH; CLOSING,FRT PILLAR 8-97586-161-2 01 1 1511- ● ●
401 PATCH; CLOSING,FRT PILLAR 8-97586-160-2 01 1 1511- ● ●
408 GUSSET; PILLAR 8-97586-194-2 01 1 1511- ● ●
408 GUSSET; PILLAR 8-97586-193-3 01 1 1511- ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 1511- ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1511- ● ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 04 1 1511- ● ●
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1511- ● ●
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1511- ● ●
481 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 1511- ● ●
481 PANEL; SIDE FRT PILLAR
MIRROR O/S UNDER VIEW<RR9> 		8-98092-915-0 01 1 1511- ● ●
481 PANEL; SIDE FRT PILLAR
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98072-714-1 01 1 1511- ● ●
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 1511- ● ●
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 1511- ● ●
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1511- ● ●
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1511- ● ●
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 1511- ● ●
662 BRACKET; DUCT 8-97584-611-1 01 1 1511- ● ●
663 BRACKET; AIR 8-97585-208-2 01 1 1511- ● ●
663 BRACKET; AIR 8-97585-207-2 01 1 1511- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 02 1 1511- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 02 1 1511- ● ●
667 BRACKET; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-98109-948-0 01 1 1511- ● ●
670 STIFFENER; PANEL,SIDE 8-98015-044-1 02 1 1511- ● ●

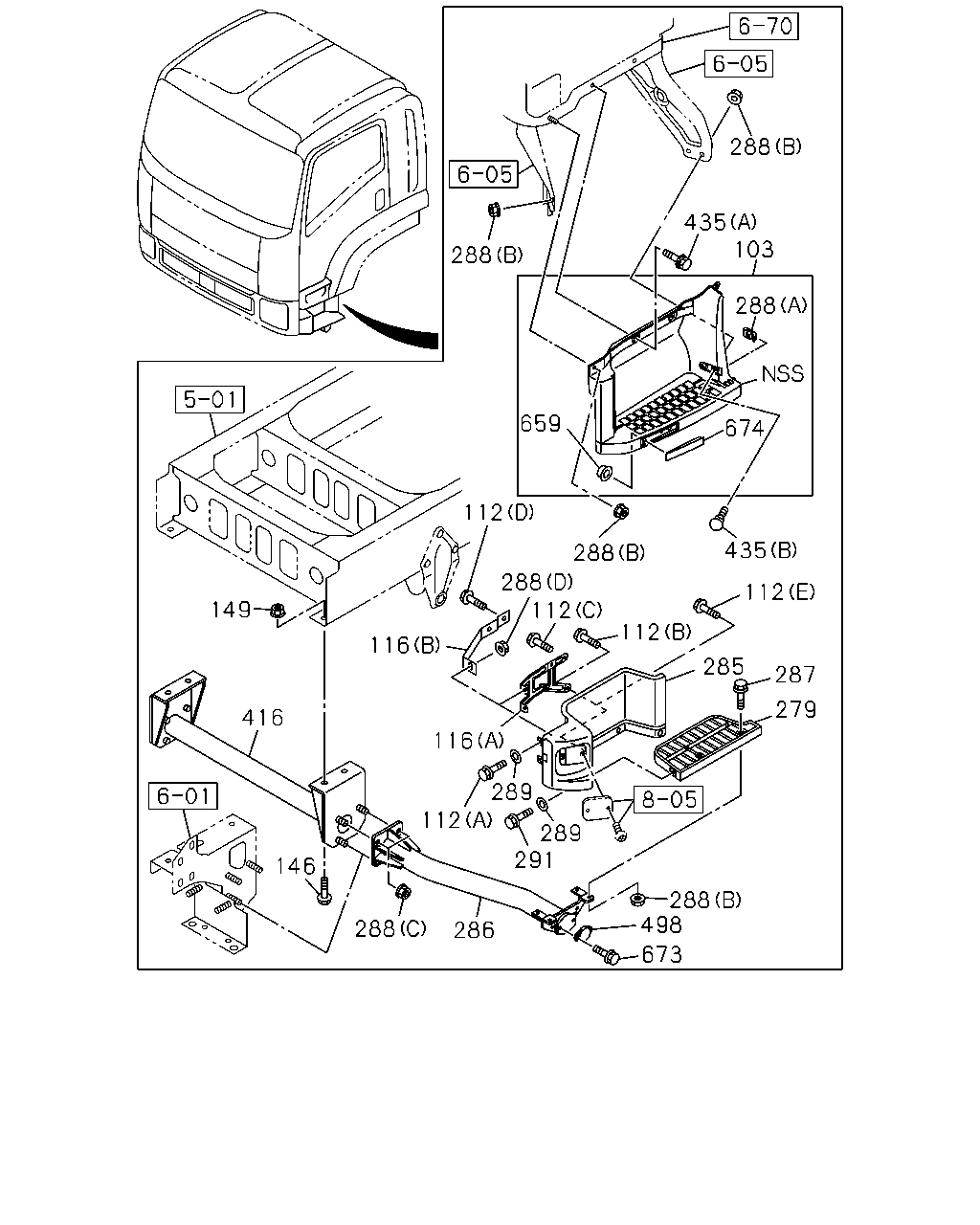

çizim 503045
673 288 498 291 112 116 289 112 288 435 287 279 285 112 288 112 659 674 288 103 435 288 288 149 416 146 288 286 289 116 112
BalonParca AdiParca NoAdetTipApplied Date A B
103 PLATE; STEP 8-98069-977-2 01 1 1511- ● ●
103 PLATE; STEP 8-98069-976-2 01 1 1511- ● ●
112 BOLT; 1ST STEP
CORNERING LAMP<T87> (A) M6X16 FLANGE 		0-28050-616-0 04 1 1511- ●
112 BOLT; 1ST STEP
(A) M6X16 FLANGE 		0-28050-616-0 04 1 1511- ●
112 BOLT; 1ST STEP
CORNERING LAMP<T87> (B) M6X25 FLANGE 		0-28050-625-0 02 1 1511- ●
112 BOLT; 1ST STEP
(B) M6X25 FLANGE 		0-28050-625-0 02 1 1511- ●
112 BOLT; 1ST STEP
CORNERING LAMP<T87> (C) M8X16 FLANGE 		0-28050-816-0 04 1 1511- ●
112 BOLT; 1ST STEP
(C) M8X16 FLANGE 		0-28050-816-0 04 1 1511- ●
112 BOLT; 1ST STEP
EXC. CORNERING LAMP<T87> (A) M6X16 FLANGE 		0-28050-616-0 02 1 1511- ●
112 BOLT; 1ST STEP
EXC. CORNERING LAMP<T87> (E) M6X20 FLANGE 		0-28050-620-0 02 1 1511- ●
112 BOLT; 1ST STEP
EXC. CORNERING LAMP<T87> (D) M8X12 FLANGE 		0-28050-812-0 04 1 1511- ●
116 STAY; 1ST STEP,FRT
CORNERING LAMP<T87> (A) 		8-98062-133-1 01 1 1511- ●
116 STAY; 1ST STEP,FRT
(A) 		8-98062-133-1 01 1 1511- ●
116 STAY; 1ST STEP,FRT
CORNERING LAMP<T87> (A) 		8-98062-134-1 01 1 1511- ●
116 STAY; 1ST STEP,FRT
(A) 		8-98062-134-1 01 1 1511- ●
116 STAY; 1ST STEP,FRT
EXC. CORNERING LAMP<T87> (B) 		8-98196-756-0 02 1 1511- ●
146 BOLT; STEP BRKT
EXC. FRONT UNDER RUN PROTECTOR<EBE> M14X45 FLANGE 		0-28851-445-0 04 1 1511- ●
149 NUT; STEP BRKT
EXC. FRONT UNDER RUN PROTECTOR<EBE> M14 FLANGE 		0-91180-214-0 04 1 1511- ●
279 BOARD; STEP 1ST 1-53414-181-0 01 1 1511- ● ●
279 BOARD; STEP 1ST 1-53414-180-0 01 1 1511- ● ●
285 PLATE; STEP,1ST STEP 8-98017-535-3 01 1 1511- ● ●
285 PLATE; STEP,1ST STEP 8-98017-536-3 01 1 1511- ● ●
286 STEP ASM; 1ST 8-98082-430-2 01 1 1511- ● ●
286 STEP ASM; 1ST 8-98082-431-2 01 1 1511- ● ●
287 BOLT; BOARD STEP
M8X35 FLANGE 		0-28650-835-0 08 1 1511- ● ●
288 NUT; STEP
EXC. CORNERING LAMP<T87> (D) M6 FLANGE 		0-91180-106-0 02 1 1511- ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 08 1 1511- ● ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1511- ● ●
288 NUT; STEP
(C) M12 FLANGE 		0-91180-212-0 06 1 1511- ● ●
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1511- ● ●
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 10 1 1511- ● ●
291 BOLT; STEP PLATE
M6X12 FLANGE 		0-28050-612-0 06 1 1511- ● ●
416 BRACKET; ASSIST STEP
A/T<X9D> EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-98079-376-3 01 1 1511- ●
416 BRACKET; ASSIST STEP
MANUAL TRANSMISSION<X9C> EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-98053-542-4 01 1 1511- ●
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1511- ● ●
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1511- ● ●
498 REFLECTOR 1-82290-011-1 02 1 1511- ● ●
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1511- ● ●
673 BOLT; REFLECTOR
M5X16 W/LK&PL WASHER 		8-94198-538-0 04 1 1511- ● ●
674 COVER; REFLECTOR 8-98092-734-0 01 1 1511- ● ●
674 COVER; REFLECTOR 8-98092-733-0 01 1 1511- ● ●
