Sayfa 6-04 - Isuzu EPC

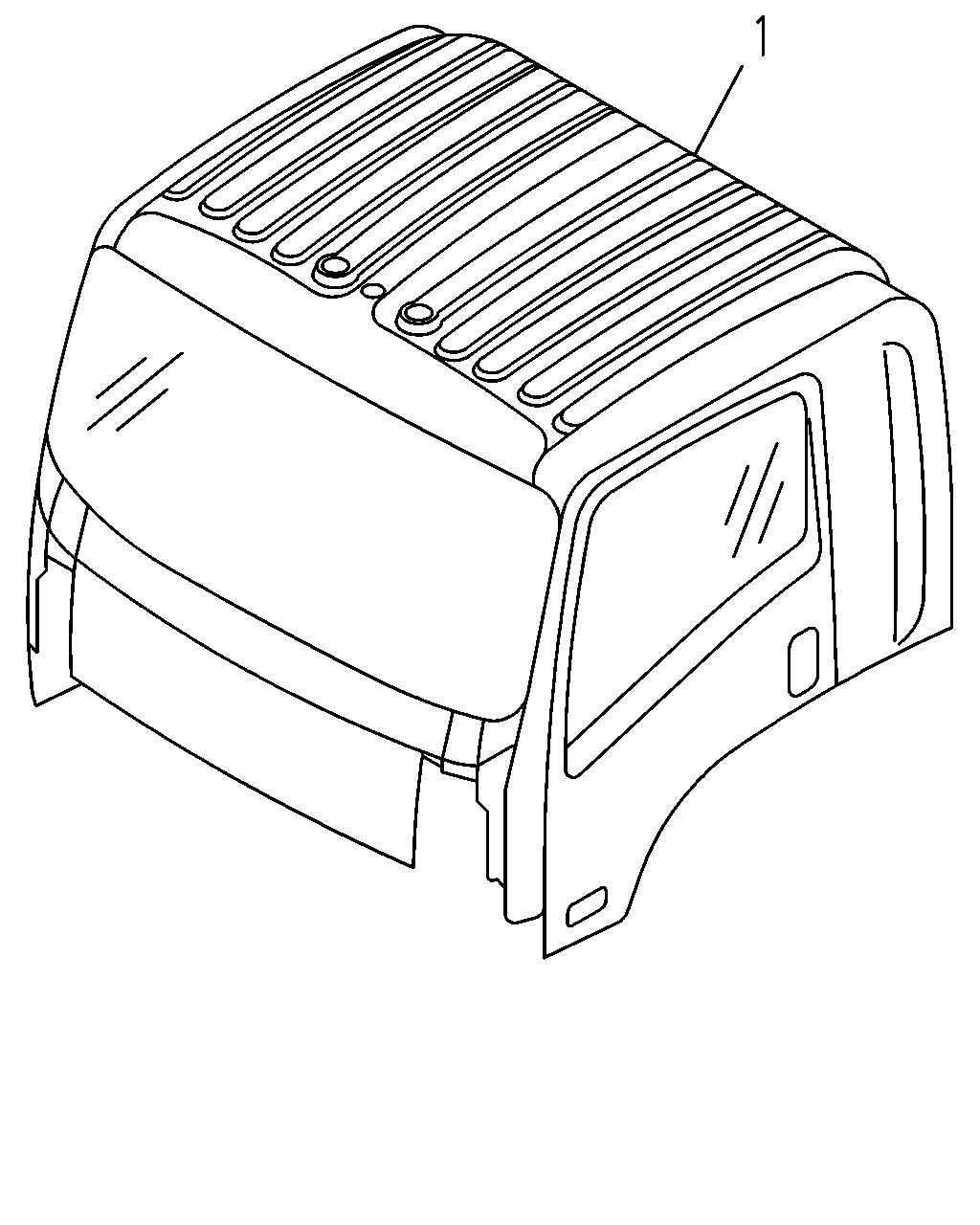

6-04 — CAB ASM (#169919) — 2 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) CUSTOM PACKAGE(YM8) AUSTRALIA EQUIPMENT(B13) A/T<X9D> FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> IMMOBILIZER SYSTEM<7KC> POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ANTI LOCK BRAKE<JE5> LAMPS TWO ROOF MARKER<TEC> EXC. COUNTRY NEW ZEALAND(CX6),ROUND CURTAIN RAIL<EDH>,MIRROR O/S UNDER VIEW<RR9>,ASH TRAY PASSENGERDOOR<8LX>	1-61861-335-0	01	1	1511-	●
	1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) CUSTOM PACKAGE(YM8) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) AUSTRALIA EQUIPMENT(B13) ZF9S1110 M/T(Y5E) MANUAL TRANSMISSION<X9C> FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> IMMOBILIZER SYSTEM<7KC> POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ANTI LOCK BRAKE<JE5> LAMPS TWO ROOF MARKER<TEC> EXC. COUNTRY NEW ZEALAND(CX6),ROUND CURTAIN RAIL<EDH>,MIRROR O/S UNDER VIEW<RR9>,ASH TRAY PASSENGERDOOR<8LX>	1-61861-337-0	01	1	1511-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
