◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11718 - FVM AUST/NZ EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#169918) — 67 parça

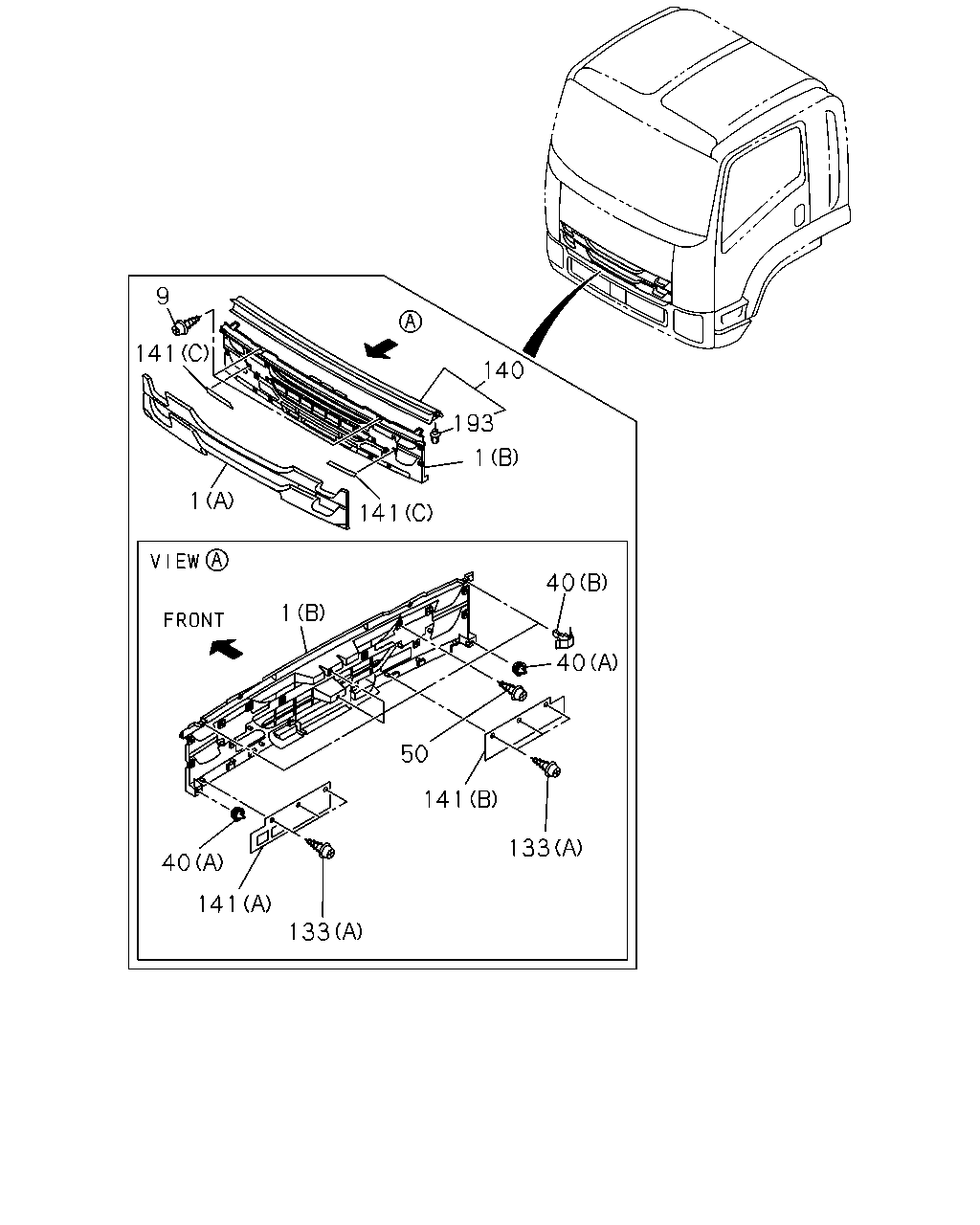

çizim 501334
140 193 1 141 1 141 9 1 40 40 133 141 50 133 141 40
BalonParca AdiParca NoAdetTipApplied Date A B
1 GRILLE; RAD
BODY COLOR AL GRAY(517) EXC. BRIGHT RAD GRILLE<V22> (A) GRAY 		8-97429-676-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97429-681-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97429-679-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97429-652-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR FIRE RED(915) EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97466-461-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR FT ORANGE(609) EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97466-463-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97429-678-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97466-460-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR GREEN(989) EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97429-657-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR HANSON BLUE(551) EXC. BRIGHT RAD GRILLE<V22> (A) DARK BLUE 		8-97466-465-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE 		8-97429-680-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97429-688-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97466-462-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97429-640-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR RMS ORANGE(550) EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE 		8-97466-464-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97429-687-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR TOLL GREEN(543) EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97429-668-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97429-655-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97429-686-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN 		8-97429-675-1 01 1 1511- ● ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (C) 		8-98250-833-1 01 1 1511- ● ●
1 GRILLE; RAD
(B) BLACK 		8-98250-846-1 01 1 1511- ● ●
9 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74160-516-0 02 1 1511- ● ●
40 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 1511- ● ●
40 CLIP; RAD GRILLE
(B) 		8-98025-698-0 04 1 1511- ● ●
50 BOLT; GRILLE
EXC. BRIGHT RAD GRILLE<V22> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 15 1 1511- ● ●
133 SCREW; COVER
BRIGHT RAD GRILLE<V22> (B) T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 29 1 1511- ● ●
133 SCREW; COVER
(A) T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 06 1 1511- ● ●
140 SEAL; RAD GRILLE 8-98060-340-0 01 1 1511- ● ●
141 COVER; RAD GRILLE
(B) 		8-98041-013-1 01 1 1511- ● ●
141 COVER; RAD GRILLE
(A) 		8-98060-784-0 01 1 1511- ● ●
141 COVER; RAD GRILLE
(C) 		8-98250-849-1 01 1 1511- ● ●
141 COVER; RAD GRILLE
(C) 		8-98250-850-1 01 1 1511- ● ●
193 CLIP; SEAL
NATURAL 		8-98027-457-0 13 1 1511- ● ●
çizim 502745
140 193 141 1 1 9 141 40 40 133 141 133 40 141 133 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GRILLE; RAD
BODY COLOR AL GRAY(517) EXC. BRIGHT RAD GRILLE<V22> (A) GRAY 		8-97429-676-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97429-681-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97429-679-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97429-652-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR FIRE RED(915) EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97466-461-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR FT ORANGE(609) EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97466-463-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97429-678-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97466-460-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR GREEN(989) EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97429-657-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR HANSON BLUE(551) EXC. BRIGHT RAD GRILLE<V22> (A) DARK BLUE 		8-97466-465-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE 		8-97429-680-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97429-688-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97466-462-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97429-640-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR RMS ORANGE(550) EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE 		8-97466-464-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97429-687-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR TOLL GREEN(543) EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97429-668-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97429-655-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97429-686-1 01 1 1511- ● ●
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN 		8-97429-675-1 01 1 1511- ● ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (C) 		8-98250-833-1 01 1 1511- ● ●
1 GRILLE; RAD
(B) BLACK 		8-98250-846-1 01 1 1511- ● ●
9 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74160-516-0 02 1 1511- ● ●
40 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 1511- ● ●
40 CLIP; RAD GRILLE
(B) 		8-98025-698-0 04 1 1511- ● ●
133 SCREW; COVER
BRIGHT RAD GRILLE<V22> (B) T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 29 1 1511- ● ●
133 SCREW; COVER
(A) T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 06 1 1511- ● ●
140 SEAL; RAD GRILLE 8-98060-340-0 01 1 1511- ● ●
141 COVER; RAD GRILLE
(B) 		8-98041-013-1 01 1 1511- ● ●
141 COVER; RAD GRILLE
(A) 		8-98060-784-0 01 1 1511- ● ●
141 COVER; RAD GRILLE
(C) 		8-98250-849-1 01 1 1511- ● ●
141 COVER; RAD GRILLE
(C) 		8-98250-850-1 01 1 1511- ● ●
193 CLIP; SEAL
NATURAL 		8-98027-457-0 13 1 1511- ● ●
