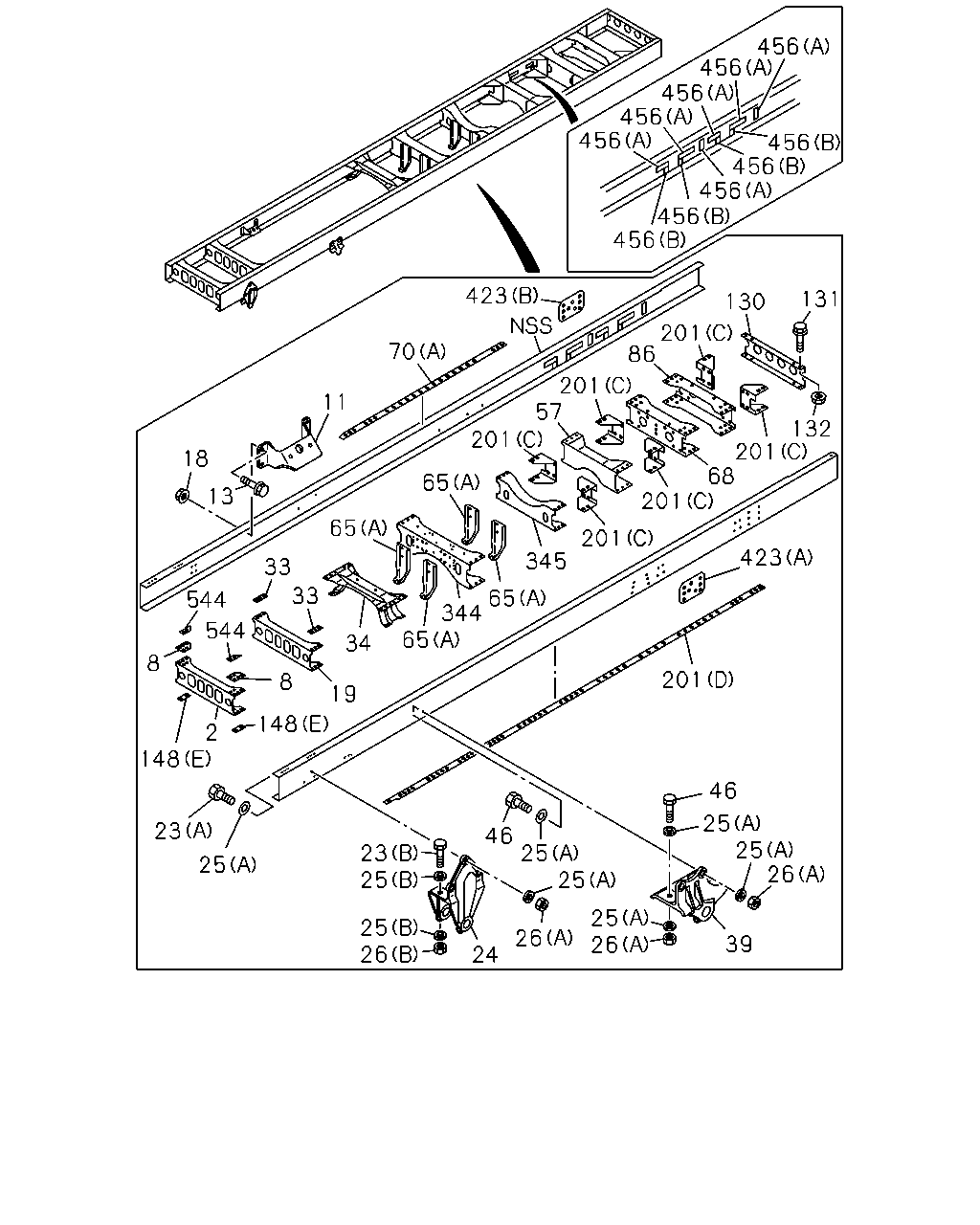

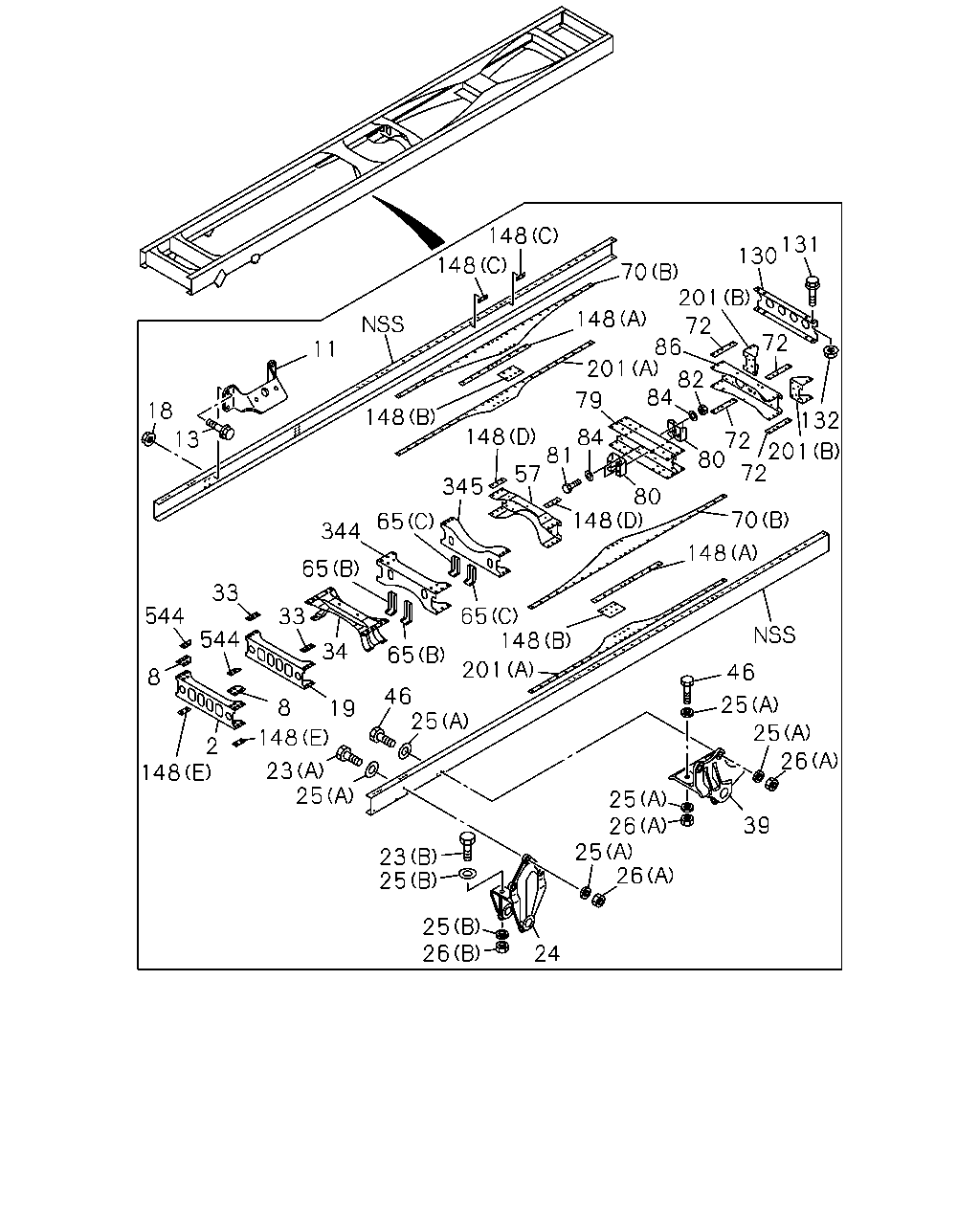

5-01 — FRAME AND OTHER PARTS (#169910) — 93 parça

26 25 25 46 148 72 80 72 132 201 72 131 130 201 70 72 148 201 86 84 80 84 79 148 148 201 65 65 344 65 34 33 33 544 544 8 8 2 148 19 23 25 148 39 26 25 25 26 25 23 25 26 24 11 148 148 13 18 148 148 65 46 25 82 70 57 345 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	MEMBER; CROSS,1ST	8-97610-852-7	01	1	1511-
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	1511-
11	BRACKET; ENG MTG	8-97619-550-0	02	1	1511-
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	1511-
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	1511-
19	MEMBER; CROSS,2ND	8-97610-853-5	01	1	1511-
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	1511-
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	1511-
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	1511-
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	1511-
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1511-
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	1511-
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	1511-
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	1511-
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	1511-
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	1511-
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	1511-
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	1511-
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	1511-
57	MEMBER; CROSS,RR SUSP FRT	8-97612-103-1	01	1	1511-
65	BRACKET; CENTER BRG AIR SUS(FGL***) (A)	8-97614-132-0	04	1	1511-
65	BRACKET; CENTER BRG LEAF SUS(FGM***) (B)	8-97614-128-0	02	1	1511-
65	BRACKET; CENTER BRG LEAF SUS(FGM***) (C)	8-97614-133-0	02	1	1511-
70	GUSSET; TRUNNION,UPR AIR SUS(FGL***) (A)	8-97620-007-0	02	1	1511-
70	GUSSET; TRUNNION,UPR LEAF SUS(FGM***) (B)	8-97612-106-0	02	1	1511-
72	SPACER; TRUNNION LEAF SUS(FGM***)	8-97612-110-0	04	1	1511-
79	MEMBER; CROSS,TRUNNION ASM LEAF SUS(FGM***)	8-97612-484-1	01	1	1511-
80	BRACKET; C/MBR LEAF SUS(FGM***)	1-53363-068-0	02	1	1511-
81	BOLT; BRKT LEAF SUS(FGM***) M14X50	0-10956-450-0	02	1	1511-
82	NUT; BRKT LEAF SUS(FGM***) M14	0-91110-514-0	02	1	1511-
84	WASHER; PL,BRKT LEAF SUS(FGM***) ID=15	8-98010-627-1	04	1	1511-
86	MEMBER; CROSS,RR SUSP RR	8-97612-105-4	01	1	1511-
130	MEMBER; CROSS,END	8-97610-869-1	01	1	1511-
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	1511-
132	NUT; END C/MBR M12	0-91110-512-0	04	1	1511-
148	SPACER; C/MBR (E)	8-97611-039-0	02	1	1511-
148	SPACER; C/MBR LEAF SUS(FGM***) (D)	8-97612-109-0	04	1	1511-
148	SPACER; C/MBR LEAF SUS(FGM***) (C)	8-97612-111-0	04	1	1511-
148	SPACER; C/MBR LEAF SUS(FGM***) (A)	8-97612-112-0	02	1	1511-
148	SPACER; C/MBR LEAF SUS(FGM***) (B)	8-97612-113-0	02	1	1511-
201	GUSSET; C/MBR AIR SUS(FGL***) (C)	8-97619-807-3	06	1	1511-
201	GUSSET; C/MBR AIR SUS(FGL***) (D)	8-97620-293-3	02	1	1511-
201	GUSSET; C/MBR LEAF SUS(FGM***) (B)	8-97612-108-2	02	1	1511-
201	GUSSET; C/MBR LEAF SUS(FGM***) (A)	8-97620-295-2	02	1	1511-
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1511-
345	MEMBER; CROSS,5TH	8-97611-238-1	01	1	1511-
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	1511-

456 456 456 456 456 456 456 456 456 456 201 86 201 423 70 11 18 13 33 33 544 544 8 148 23 25 23 25 25 26 24 25 46 25 25 26 26 46 25 25 26 39 201 65 344 65 34 19 148 2 8 65 65 201 57 201 345 201 68 201 132 130 131 423

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	MEMBER; CROSS,1ST	8-97610-852-7	01	1	1511-
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	1511-
11	BRACKET; ENG MTG	8-97619-550-0	02	1	1511-
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	1511-
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	1511-
19	MEMBER; CROSS,2ND	8-97610-853-5	01	1	1511-
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	1511-
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	1511-
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	1511-
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	1511-
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1511-
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	1511-
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	1511-
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	1511-
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	1511-
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	1511-
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	1511-
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	1511-
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	1511-
57	MEMBER; CROSS,RR SUSP FRT	8-97612-103-1	01	1	1511-
65	BRACKET; CENTER BRG AIR SUS(FGL***) (A)	8-97614-132-0	04	1	1511-
65	BRACKET; CENTER BRG LEAF SUS(FGM***) (B)	8-97614-128-0	02	1	1511-
65	BRACKET; CENTER BRG LEAF SUS(FGM***) (C)	8-97614-133-0	02	1	1511-
68	MEMBER; CROSS,RR SUSP CTR AIR SUS(FGL***)	8-97612-105-4	01	1	1511-
70	GUSSET; TRUNNION,UPR AIR SUS(FGL***) (A)	8-97620-007-0	02	1	1511-
70	GUSSET; TRUNNION,UPR LEAF SUS(FGM***) (B)	8-97612-106-0	02	1	1511-
86	MEMBER; CROSS,RR SUSP RR	8-97612-105-4	01	1	1511-
130	MEMBER; CROSS,END	8-97610-869-1	01	1	1511-
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	1511-
132	NUT; END C/MBR M12	0-91110-512-0	04	1	1511-
148	SPACER; C/MBR (E)	8-97611-039-0	02	1	1511-
148	SPACER; C/MBR LEAF SUS(FGM***) (D)	8-97612-109-0	04	1	1511-
148	SPACER; C/MBR LEAF SUS(FGM***) (C)	8-97612-111-0	04	1	1511-
148	SPACER; C/MBR LEAF SUS(FGM***) (A)	8-97612-112-0	02	1	1511-
148	SPACER; C/MBR LEAF SUS(FGM***) (B)	8-97612-113-0	02	1	1511-
201	GUSSET; C/MBR AIR SUS(FGL***) (C)	8-97619-807-3	06	1	1511-
201	GUSSET; C/MBR AIR SUS(FGL***) (D)	8-97620-293-3	02	1	1511-
201	GUSSET; C/MBR LEAF SUS(FGM***) (B)	8-97612-108-2	02	1	1511-
201	GUSSET; C/MBR LEAF SUS(FGM***) (A)	8-97620-295-2	02	1	1511-
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1511-
345	MEMBER; CROSS,5TH	8-97611-238-1	01	1	1511-
423	PATCH AIR SUS(FGL***) (A)	8-97619-809-0	01	1	1511-
423	PATCH AIR SUS(FGL***) (B)	8-97619-810-0	01	1	1511-
456	PATCH; STOPPER AIR SUS(FGL***) (A)	8-97642-212-0	12	1	1511-
456	PATCH; STOPPER AIR SUS(FGL***) (B)	8-97642-213-0	08	1	1511-
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	1511-
