◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11718 - FVM AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#169909) — 16 parça

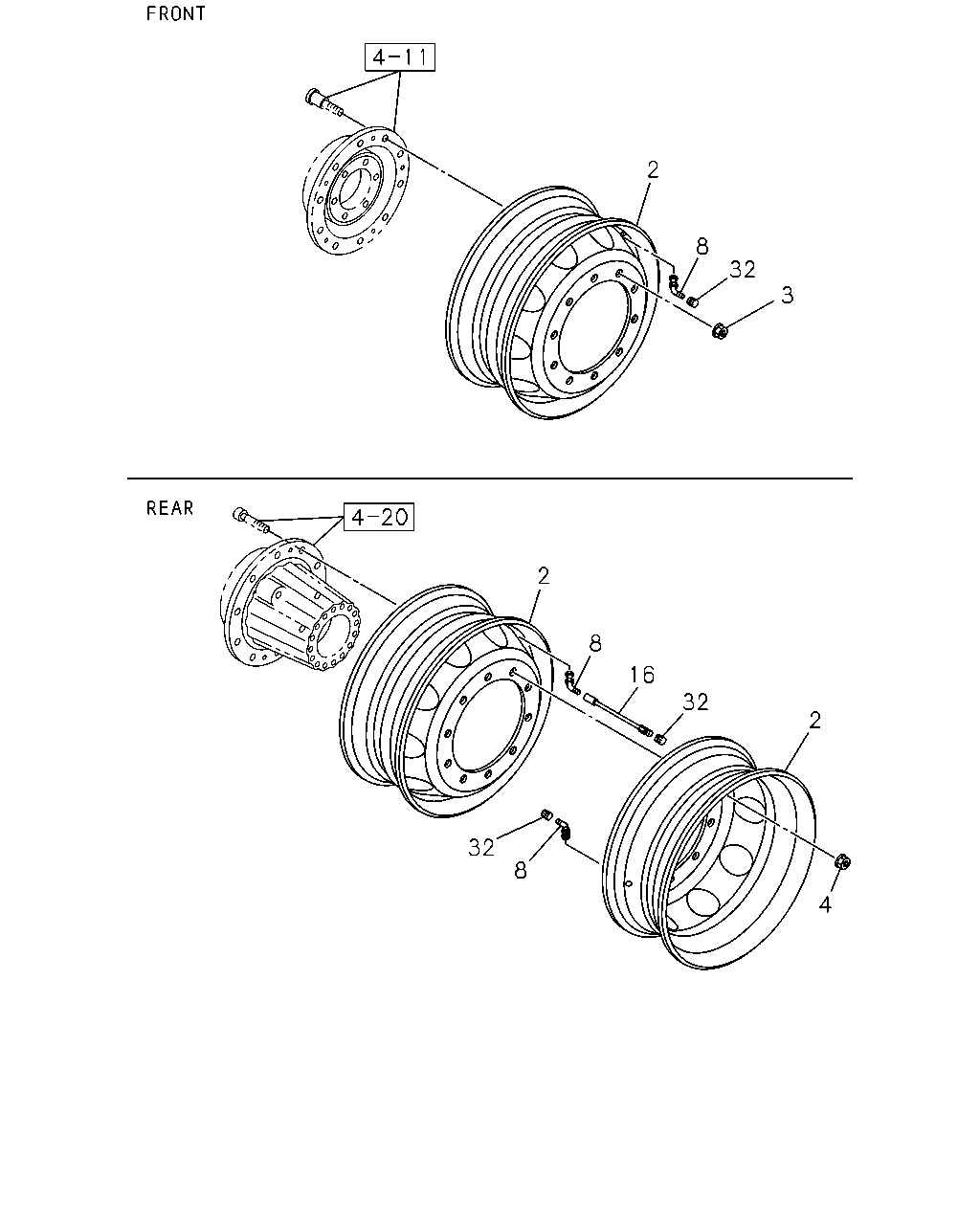

çizim 502320
2 8 32 3 2 8 16 32 2 4 8 32
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC
DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> FRONT 		8-98217-246-0 02 1 1511- ● ●
2 WHEEL; DISC
DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> REAR 		8-98217-246-0 08 1 1511- ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		8-98217-246-0 01 1 1511- ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> SPARE 		8-98281-497-0 01 1 1511- ● ●
2 WHEEL; DISC
WHEEL PAINTED LIGHT ARGENT<SKD> FRONT 		8-98281-497-0 02 1 1511- ● ●
2 WHEEL; DISC
WHEEL PAINTED LIGHT ARGENT<SKD> REAR 		8-98281-497-0 08 1 1511- ● ●
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-055-0 20 1 1511- ● ●
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-055-0 40 1 1511- ● ●
8 VALVE; TIRE
DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> FRONT 		1-42370-048-0 02 1 1511- ● ●
8 VALVE; TIRE
DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> REAR 		1-42370-048-0 08 1 1511- ● ●
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42370-048-0 01 1 1511- ● ●
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> SPARE 		1-42370-019-3 01 1 1511- ● ●
8 VALVE; TIRE
WHEEL PAINTED LIGHT ARGENT<SKD> FRONT 		1-42370-019-3 02 1 1511- ● ●
8 VALVE; TIRE
WHEEL PAINTED LIGHT ARGENT<SKD> REAR 		1-42370-019-3 08 1 1511- ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		8-98167-052-0 04 1 1511- ● ●
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 07 1 1511- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
