Isuzu WW
▶
TRUCKS
▶
FVM
▶
11718 - FVM AUST/NZ EURO5
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-71 - AIR SUSPENSION PIPING
▶

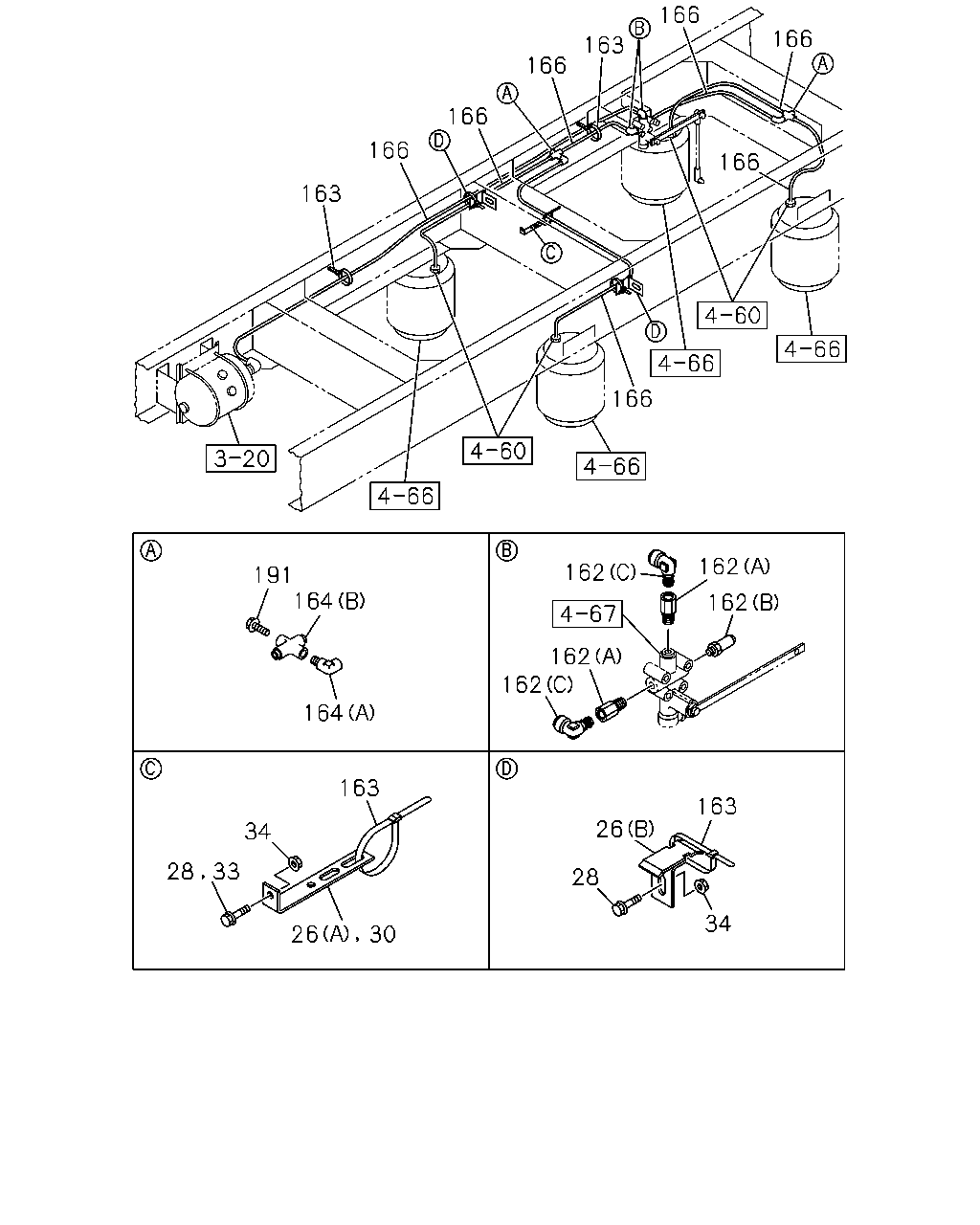

4-71 — AIR SUSPENSION PIPING
(#169908) — 19 parça
166
166
163
166
166
166
163
166
166
191
164
164
162
162
162
162
162
163
26
28
34
26
30
163
34
33
28
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
BRACKET; CLIP
(A) L=100 H=30
1-47477-645-2
01
1
1511-
26
BRACKET; CLIP
(B)
1-47479-693-0
02
1
1511-
28
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
1511-
28
BOLT; BRKT
M8X35 FLANGE
0-28650-835-0
01
1
1511-
30
BRACKET; CLIP
L=150 H=30
1-47477-629-2
01
1
1511-
33
BOLT; BRKT
M8X35 FLANGE
0-28650-835-0
01
1
1511-
34
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1511-
34
NUT; BRKT
M8 FLANGE
0-91180-108-0
03
1
1511-
162
UNION; TUBE
(B)
1-09661-289-0
01
1
1511-
162
UNION; TUBE
(C)
8-97633-775-0
02
1
1511-
162
UNION; TUBE
(A)
8-97633-779-0
02
1
1511-
163
CLIP; BAND
L=350
1-09707-183-0
02
1
1511-
163
CLIP; BAND
L=350
1-09707-183-0
12
1
1511-
164
CONNECTOR
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1511-
164
CONNECTOR
(B) DIN12X2 & R3/8 3WAY
1-09661-131-0
02
1
1511-
166
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1511-
166
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
1511-
191
BOLT; UNION
M8X16 FLANGE
0-28050-816-0
01
1
1511-
191
BOLT; UNION
M8X25 FLANGE
0-28650-825-0
01
1
1511-
