4-60 — REAR SUSPENSION (#169902) — 93 parça

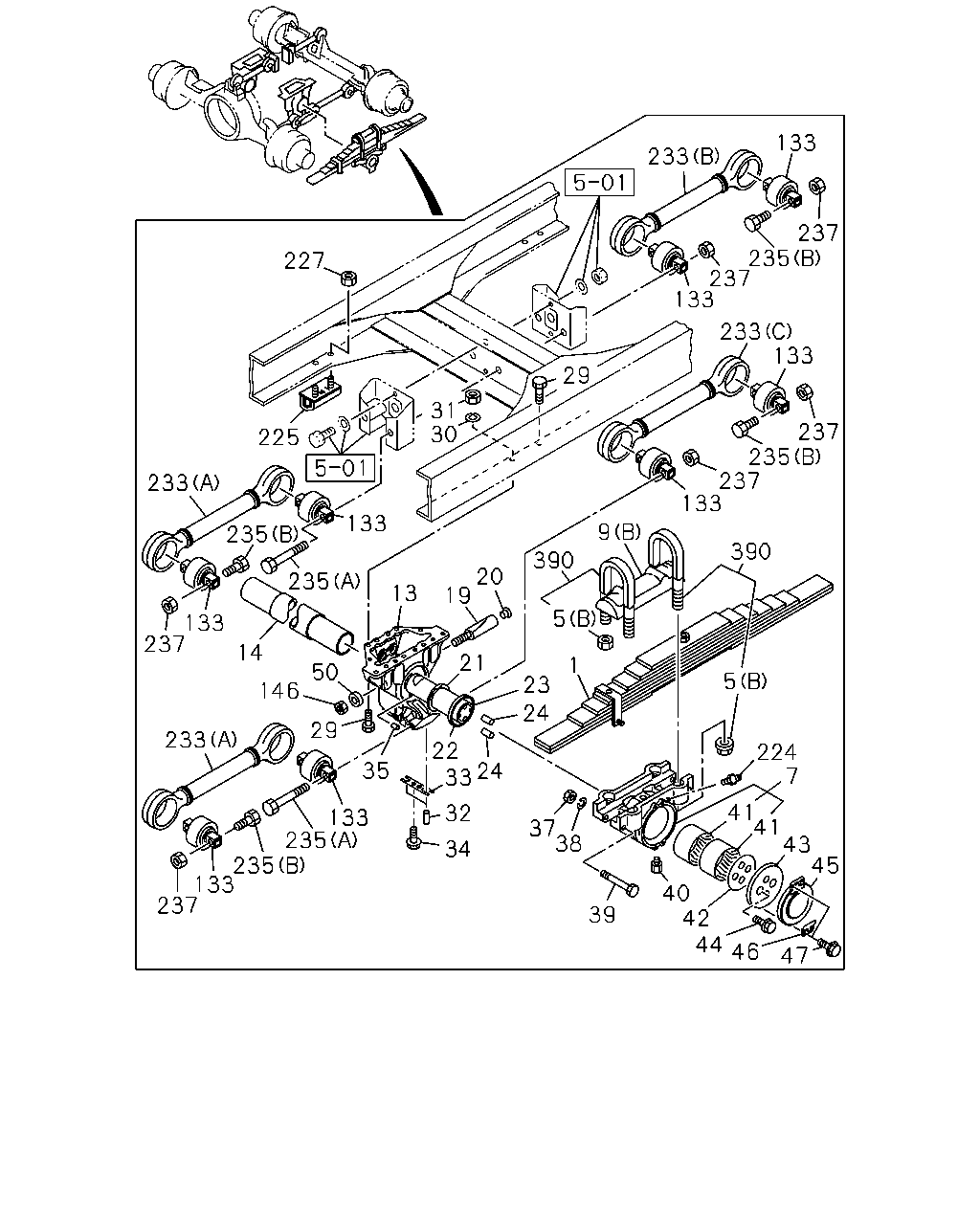

çizim 500981
227 225 233 133 235 133 237 14 235 13 19 20 21 50 146 29 35 133 233 133 237 235 235 34 32 33 22 24 24 23 1 5 9 390 39 38 37 40 42 44 46 47 45 43 41 41 224 7 5 390 133 237 235 237 233 133 133 29 30 31 237 235 237 133 233
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		1-51310-880-0 01 1 1511- ●
5 NUT; U-BOLT,RR SPR
(A) 		1-52179-039-0 02 1 1511- ●
5 NUT; U-BOLT,RR SPR
(B) M27 FLANGE 		1-09440-058-0 08 1 1511- ●
7 SEAT; SPR,LWR 8-97614-049-2 02 1 1511- ●
9 PAD; U BOLT,RR SPR
(A) 		1-51372-073-0 04 1 1511- ●
9 PAD; U BOLT,RR SPR
(B) 		8-98177-265-0 02 1 1511- ●
13 BRACKET; TRUNNION SHAFT 1-53361-079-0 02 1 1511- ●
14 PIPE; TRUNNION BRKT 1-51389-032-1 01 1 1511- ●
19 BOLT; KEY,SHAFT 1-51389-066-0 02 1 1511- ●
20 GROMMET; KEY BOLT 1-09333-057-0 02 1 1511- ●
21 WASHER; THRUST,TRUNNION SHAFT 1-51389-058-0 02 1 1511- ●
22 SHAFT; TRUNNION,RR SUSP 1-51381-022-3 02 1 1511- ●
23 SEAL; OIL,TRUNNION SHAFT 1-51389-005-0 02 1 1511- ●
24 PIN; SIDE PLATE TO SHAFT 1-09740-009-0 04 1 1511- ●
29 BOLT; BRKT TO FRAME
M18X75 		8-98012-872-0 24 1 1511- ●
29 BOLT; BRKT TO FRAME
M18X55 		9-92061-855-0 04 1 1511- ●
30 WASHER; PL,TRUNNION BRKT
ID=19 		1-09503-162-0 28 1 1511- ●
31 NUT; TRUNNION BRKT
M18 		0-91110-518-0 28 1 1511- ●
32 PIN; STRAIGHT 1-09740-027-0 04 1 1511- ●
33 PLATE; LK KNOCK PIN 1-53369-032-1 02 1 1511- ●
34 BOLT; LOCK PLATE
M10X16 FLANGE 		0-28051-016-0 02 1 1511- ●
35 PIN; TRUNNION SHAFT 1-09749-030-1 04 1 1511- ●
37 NUT; SPR SETTING
M22 		0-91110-522-0 04 1 1511- ●
38 WASHER; LK,SPR SETTING
ID=22.5 		0-91510-622-0 04 1 1511- ●
39 BOLT; SPR SETTING
M22X155 		9-09801-290-1 04 1 1511- ●
40 VALVE; GREASE ESCAPE 9-51389-010-0 02 1 1511- ●
41 BUSHING; TRUNNION SHAFT 8-98081-832-0 04 1 1511- ●
42 SHIM; SIDE PLATE TO SHAFT 1-51389-033-1 12 1 1511- ●
43 PLATE; SIDE,TRUNNION SHAFT 1-51382-010-4 02 1 1511- ●
44 BOLT; SIDE PLATE TO SHAFT
M18X48.5 FLANGE 		1-09044-038-2 04 1 1511- ●
45 COVER; SPR SEAT 1-51387-013-2 02 1 1511- ●
46 BRACKET; COVER 1-51387-015-2 02 1 1511- ●
47 BOLT; COVER TO SEAT
M8X12 FLANGE 		0-28050-812-0 08 1 1511- ●
50 WASHER; PL,TRUNNION SHAFT
ID=25 		8-98012-871-0 02 1 1511- ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 12 1 1511- ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 12 1 1511- ●
146 NUT; KEY BOLT
M24 		0-91110-524-0 02 1 1511- ●
224 NIPPLE; GREASE,SPR SEAT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1511- ●
225 RUBBER; CUSHION,RR SPR
FORWARD LH,REARWARD 		1-53366-072-2 03 1 1511- ●
225 RUBBER; CUSHION,RR SPR
FORWARD 		1-53366-143-1 01 1 1511- ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 08 1 1511- ●
233 ROD ASM; TORQUE,RR SUSP
(D) L=366 		1-51510-855-0 04 1 1511- ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=525 		1-51511-656-0 01 1 1511- ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=535 		1-51511-657-0 03 1 1511- ●
233 ROD ASM; TORQUE,RR SUSP
(C) L=510 		1-51511-671-0 02 1 1511- ●
235 BOLT; TORQUE ROD
(A) M18X265 		8-98012-875-0 06 1 1511- ●
235 BOLT; TORQUE ROD
(B) M18X102 		8-98012-877-0 12 1 1511- ●
237 NUT; TORQUE ROD
M18 		1-09464-011-0 18 1 1511- ●
390 U-BOLT SET; RR SPRING
L=310 		1-87870-166-3 04 1 1511- ●

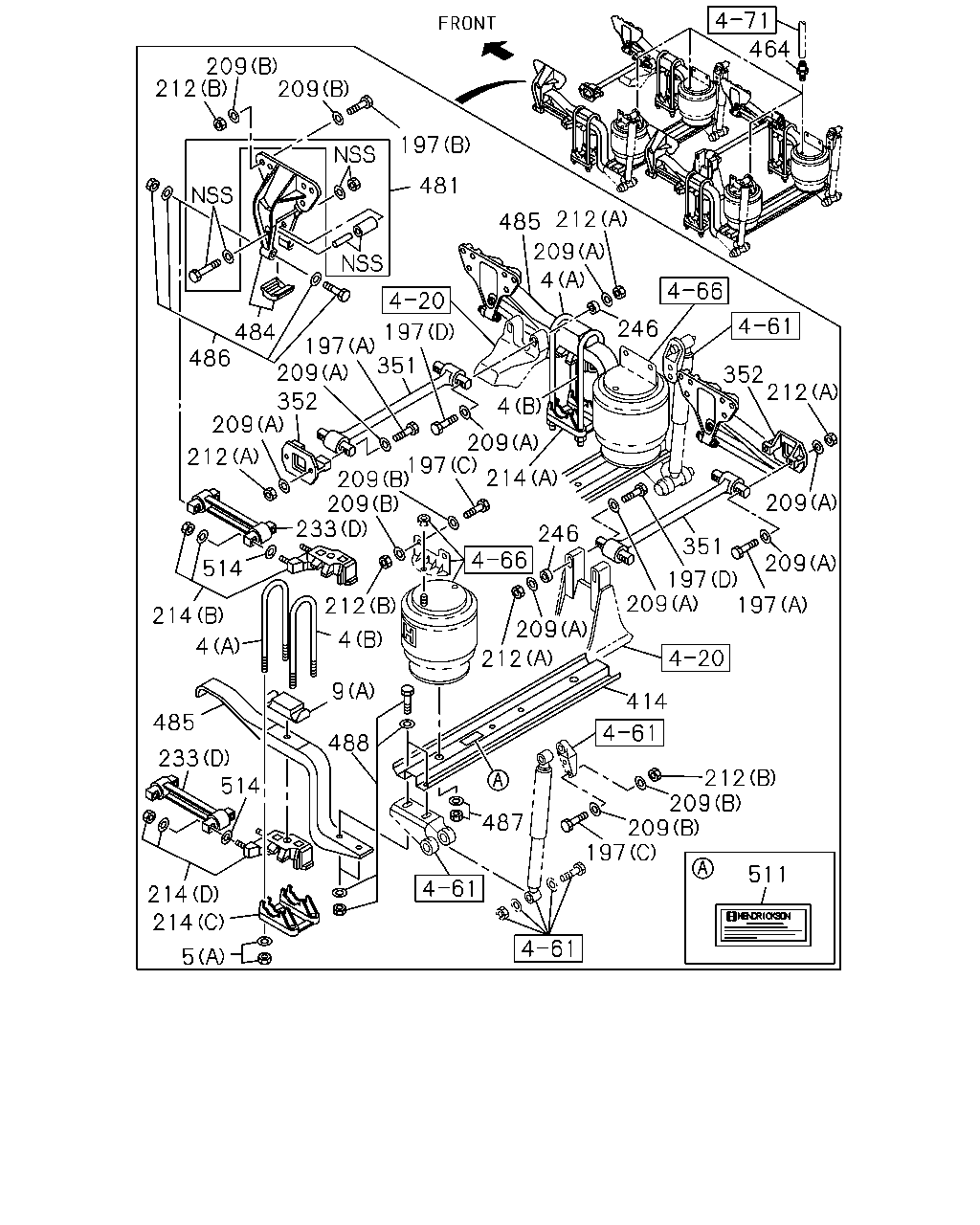

çizim 501748
209 212 209 197 481 485 209 212 4 246 352 212 209 209 351 197 209 197 414 209 212 246 214 209 351 197 209 209 212 352 486 484 197 209 209 233 514 214 4 212 4 9 488 514 233 485 214 214 5 487 197 209 209 212 511 4 197 464
BalonParca AdiParca NoAdetTipApplied Date A B
4 U-BOLT; RR SPR
(A) L=356 		1-51371-229-0 04 1 1511- ●
4 U-BOLT; RR SPR
(B) L=381 		1-51371-230-0 04 1 1511- ●
5 NUT; U-BOLT,RR SPR
(A) 		1-52179-039-0 02 1 1511- ●
5 NUT; U-BOLT,RR SPR
(B) M27 FLANGE 		1-09440-058-0 08 1 1511- ●
9 PAD; U BOLT,RR SPR
(A) 		1-51372-073-0 04 1 1511- ●
9 PAD; U BOLT,RR SPR
(B) 		8-98177-265-0 02 1 1511- ●
197 BOLT
(D) 		1-09000-767-0 04 1 1511- ●
197 BOLT
(A) 		1-09000-768-0 04 1 1511- ●
197 BOLT
(B) M20X65 		1-09000-769-0 24 1 1511- ●
197 BOLT
(C) 		1-09000-771-0 16 1 1511- ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 16 1 1511- ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 80 1 1511- ●
212 NUT
(A) M16 		1-09400-160-0 08 1 1511- ●
212 NUT
(B) M20 		1-09400-161-0 40 1 1511- ●
214 SEAT; SPR
(A) 		1-51385-103-0 02 1 1511- ●
214 SEAT; SPR
(C) 		1-51385-104-0 02 1 1511- ●
214 SEAT; SPR
(B) 		1-51385-105-0 02 1 1511- ●
214 SEAT; SPR
(D) 		1-51385-106-0 02 1 1511- ●
233 ROD ASM; TORQUE,RR SUSP
(D) L=366 		1-51510-855-0 04 1 1511- ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=525 		1-51511-656-0 01 1 1511- ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=535 		1-51511-657-0 03 1 1511- ●
233 ROD ASM; TORQUE,RR SUSP
(C) L=510 		1-51511-671-0 02 1 1511- ●
246 WASHER; TORQUE ROD 8-97372-224-0 02 1 1511- ●
351 ROD ASM; RADIUS 1-51510-867-0 02 1 1511- ●
352 BRACKET; RADIUS ROD,FRAME 1-53353-132-0 02 1 1511- ●
414 BEAM; AIR SPR 1-52172-036-0 02 1 1511- ●
464 UNION; AIR
DIN12 & R1/4 STRAIGHT 		1-09661-214-0 04 1 1511- ●
481 ROLLER; REBOUND 1-53357-043-0 02 1 1511- ●
484 BRACKET; REAR SPRING 1-53353-131-0 04 1 1511- ●
485 SPRING; LEAF 1-51410-240-0 04 1 1511- ●
486 FIXING KIT; TORQUE ROD 1-52000-165-0 02 1 1511- ●
487 FIXING KIT; AIR SPRING 1-52000-163-0 02 1 1511- ●
488 FIXING KIT; BEAM 1-52000-164-0 02 1 1511- ●
511 LABEL 1-51399-034-0 02 1 1511- ●
514 SPACER; TORQUE ROD 1-09503-299-0 08 1 1511- ●

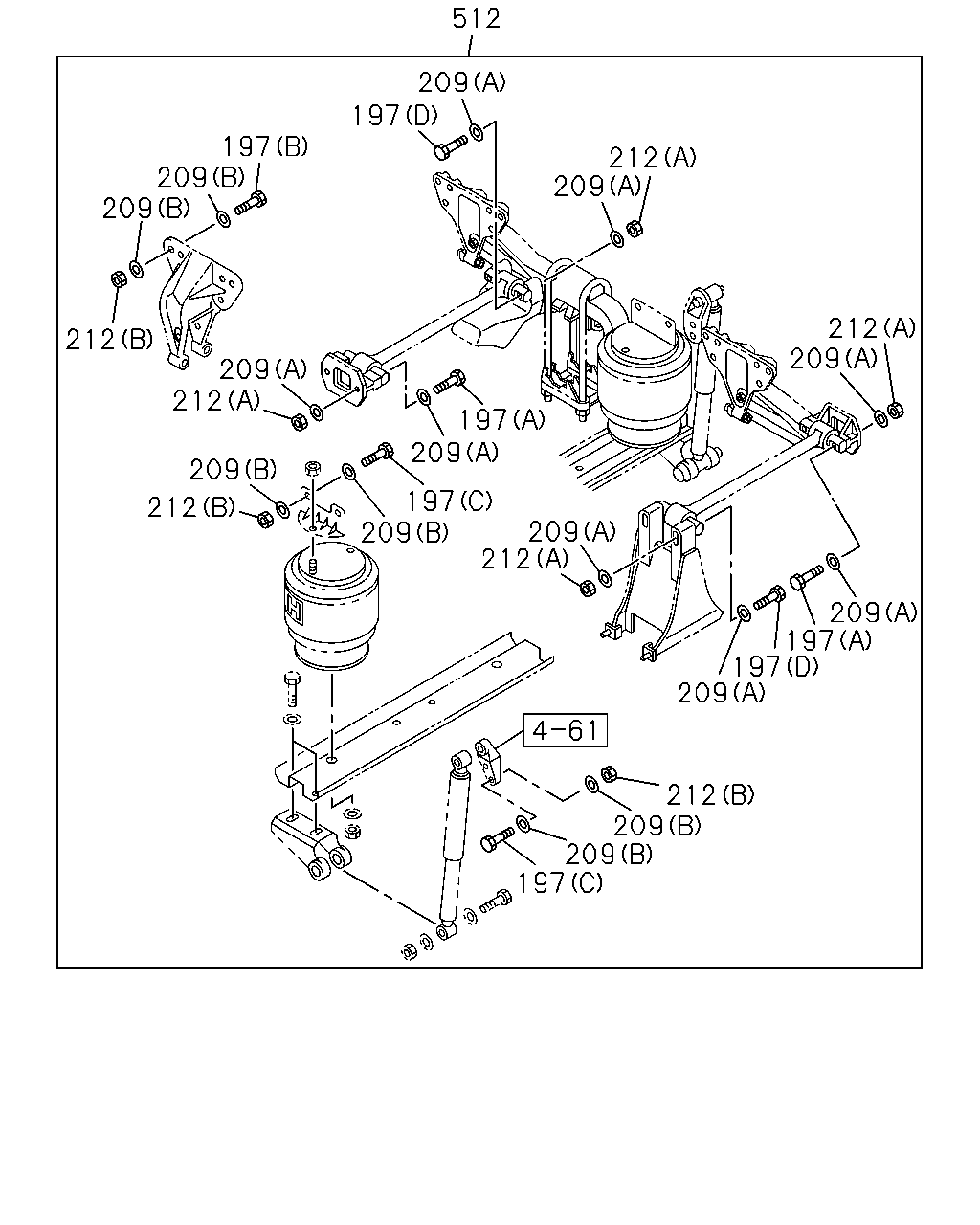

çizim 502605
512 209 197 212 209 212 209 197 209 197 209 212 209 209 212 212 209 212 209 209 197 209 197 197 209 212 209 209 197
BalonParca AdiParca NoAdetTipApplied Date A B
197 BOLT
(D) 		1-09000-767-0 04 1 1511- ●
197 BOLT
(A) 		1-09000-768-0 04 1 1511- ●
197 BOLT
(B) M20X65 		1-09000-769-0 24 1 1511- ●
197 BOLT
(C) 		1-09000-771-0 16 1 1511- ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 16 1 1511- ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 80 1 1511- ●
212 NUT
(A) M16 		1-09400-160-0 08 1 1511- ●
212 NUT
(B) M20 		1-09400-161-0 40 1 1511- ●
512 FIXING KIT; BRKT TO FRAME 8-98049-197-0 02 1 1511- ●
