◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11718 - FVM AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#169900) — 33 parça

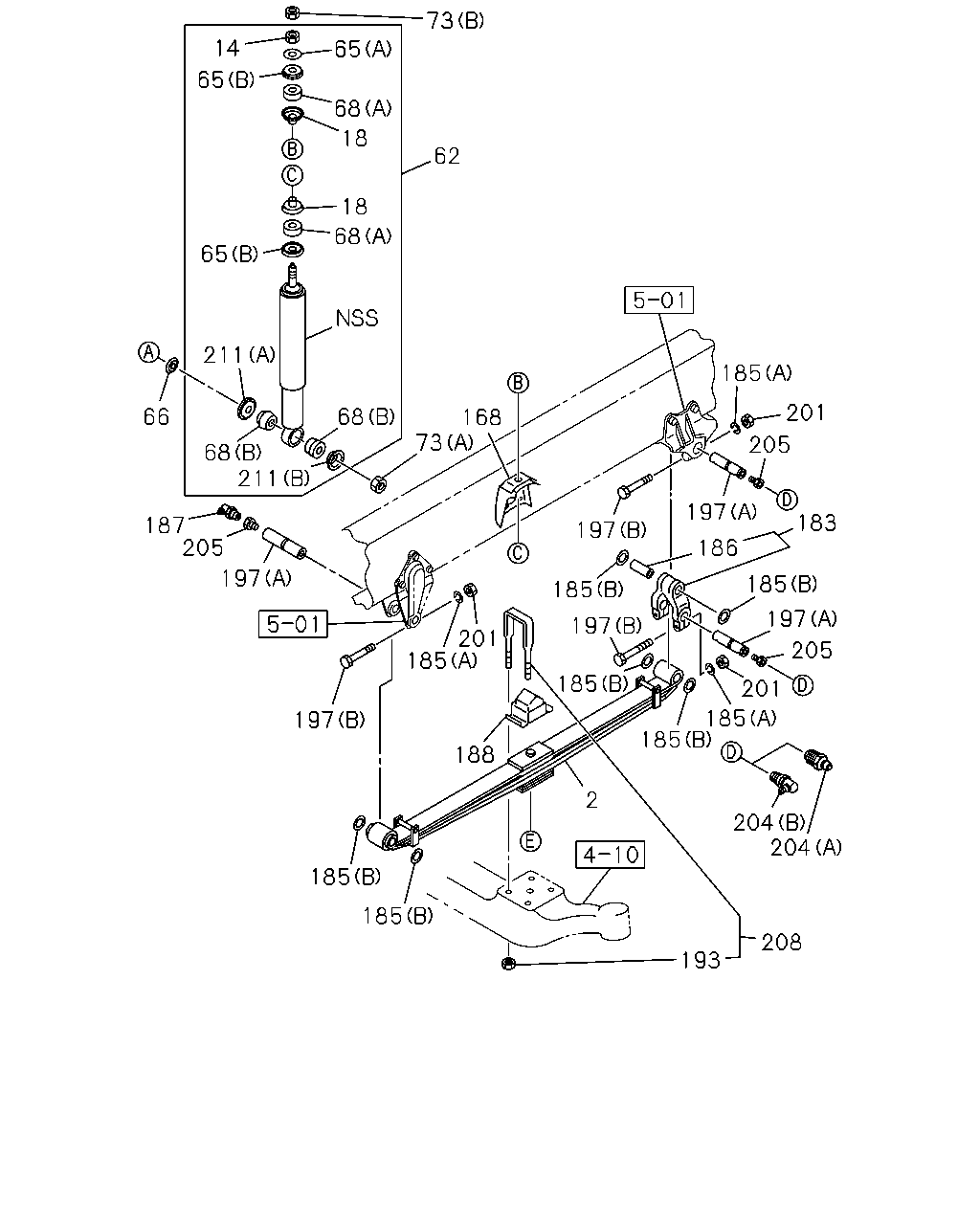

çizim 500922
73 65 14 65 68 62 18 18 65 68 211 68 168 73 68 66 187 205 197 197 185 188 185 197 201 185 197 197 186 185 183 137 205 201 185 185 2 185 185 204 204 208 193 201 211 185 205
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98069-483-0 02 1 1511- ● ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 1511- ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 1511- ● ●
62 ABSORBER ASM; SHOCK,FRT 8-98029-369-0 02 1 1511- ● ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 1511- ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 1511- ● ●
66 WASHER; LK,S/ABS SETTING
ID=21 		0-91610-520-0 02 1 1511- ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 1511- ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 1511- ● ●
73 NUT; BRKT,SHOCK
(A) M20 		0-91110-520-0 02 1 1511- ● ●
73 NUT; BRKT,SHOCK
(B) M14 		0-91111-514-0 02 1 1511- ● ●
137 BRACKET; STAB BAR TO FRAME 8-98128-356-1 02 1 1511- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 1511- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1511- ● ●
185 WASHER; LK,PIN
(A) ID=12.2 		0-91510-612-0 12 1 1511- ● ●
185 WASHER; LK,PIN
(B) ID=32.4 		1-51169-018-0 12 1 1511- ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1511- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1511- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-125-1 02 1 1511- ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1511- ● ●
197 PIN; FRT SPR,FRT
(B) M12X80 		0-10856-280-0 12 1 1511- ● ●
197 PIN; FRT SPR,FRT
(A) 		1-51161-031-0 06 1 1511- ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1511- ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1511- ● ●
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1511- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1511- ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-498-0 04 1 1511- ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 1511- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 1511- ● ●

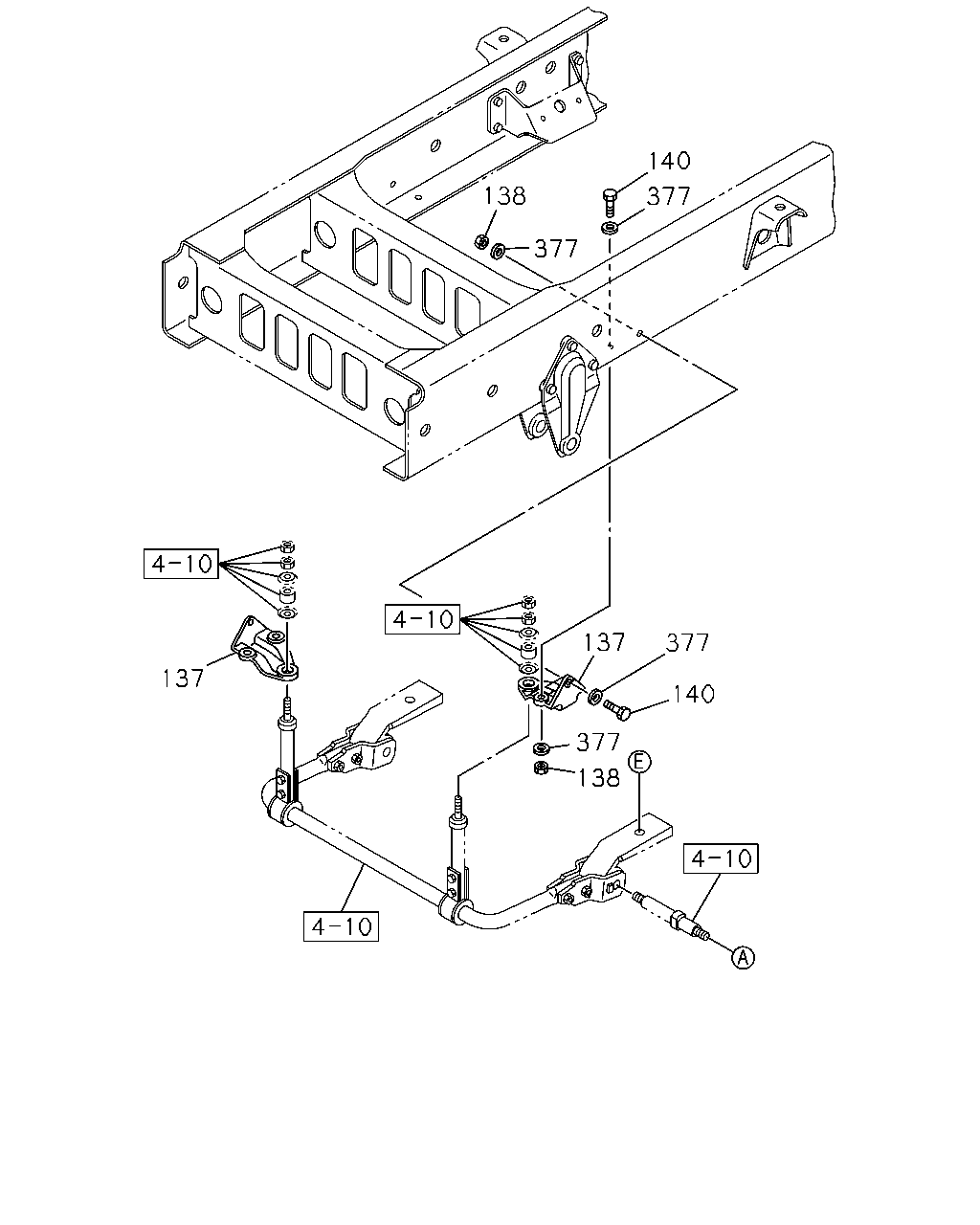

çizim 502634
138 377 377 140 137 377 140 377 138 137
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; STAB BAR TO FRAME 8-98128-356-1 02 1 1511- ● ●
138 NUT; BRKT
M14 		0-91110-514-0 06 1 1511- ● ●
140 BOLT; BRKT
M14X45 		9-92061-445-0 06 1 1511- ● ●
377 WASHER; LK,BRKT
ID=15 		8-98010-627-1 12 1 1511- ● ●
