Isuzu WW
▶
TRUCKS
▶
FSS
▶
10634 - FSS/FTS-RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

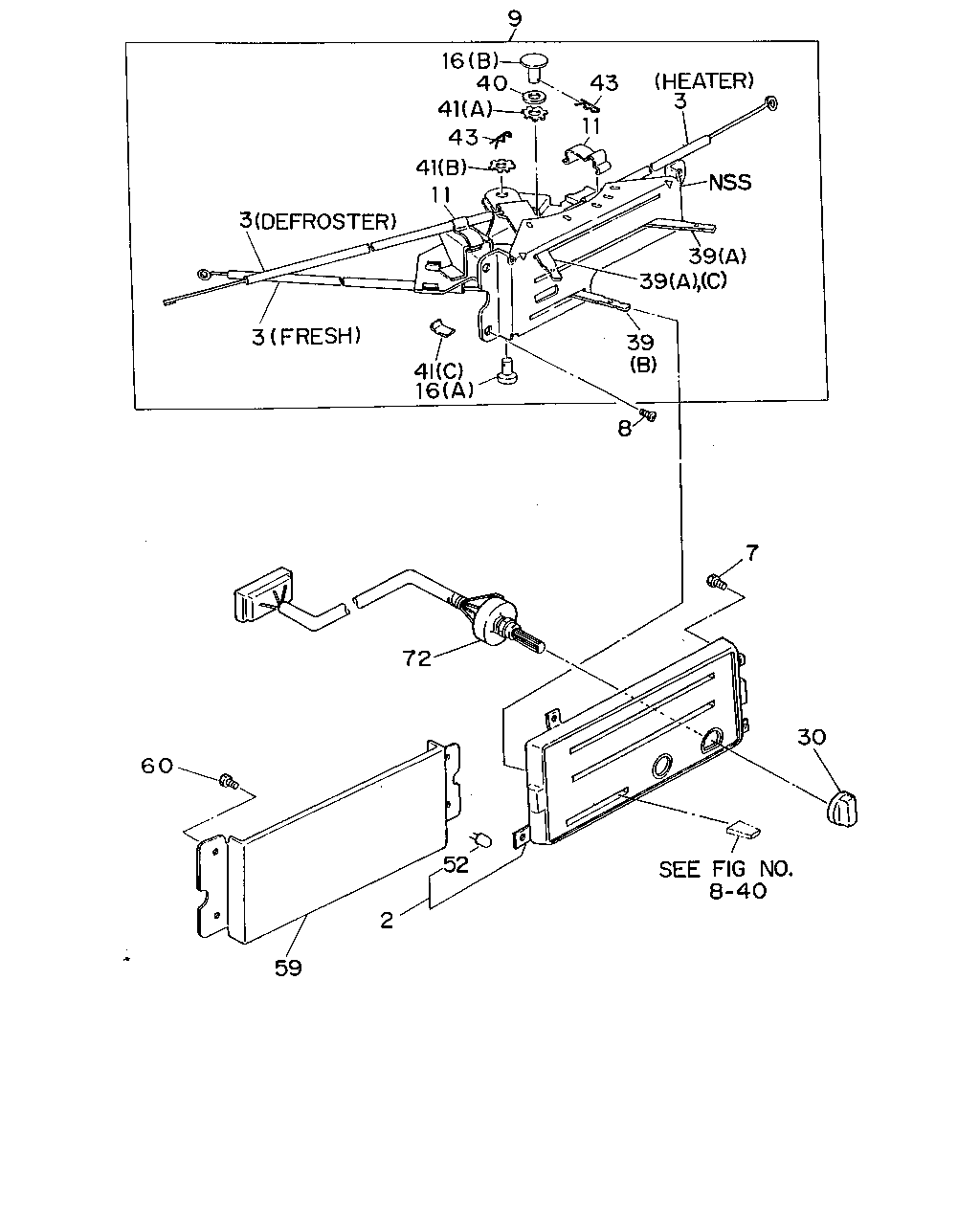

8-65 - CONTROL LEVER; HEATER AND AIR CON
▶
8-65 — CONTROL LEVER; HEATER AND AIR CON
(#1699) — 27 parça
Tümü
A - FSS5MC
B - FSS5MF
C - FTS5MC
D - FTS5MF
E - FTS5WF
9
16
43
40
41
43
41
11
3
3
41
16
11
3
39
39
39
8
7
30
72
60
59
2
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
2
PANEL ASM; CONT,ILLUMINATION
HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>
1-72410-155-2
01
1
9207-
●
●
●
●
●
2
PANEL ASM; CONT,ILLUMINATION
VENTILATOR&DEFROSTER WO/HEATER<SAZ>
1-72410-156-1
01
1
9207-
●
●
●
●
●
3
CABLE; HTR CONT LVR
DEFROSTER
1-83579-147-2
01
1
9207-
●
●
●
●
●
3
CABLE; HTR CONT LVR
FRESH
1-83579-149-2
01
1
9207-
●
●
●
●
●
3
CABLE; HTR CONT LVR
HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> HEATER
1-83579-148-1
01
1
9207-
●
●
●
●
●
7
SCREW; ILLUMINATION PNL
M5X14 W/PL WASHER
5-09981-050-0
04
1
9207-
●
●
●
●
●
8
SCREW; CONT LVR TO INST PNL
M5X14 W/PL WASHER
5-09981-050-0
03
1
9207-
●
●
●
●
●
9
LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>
1-83513-088-5
01
1
9207-
●
●
●
●
●
9
LEVER ASM; HTR & A/C CONT
VENTILATOR&DEFROSTER WO/HEATER<SAZ>
1-83513-089-3
01
1
9207-
●
●
●
●
●
11
CLIP; CABLE,HTR CONT LVR
HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>
1-83574-127-0
03
1
9207-
●
●
●
●
●
11
CLIP; CABLE,HTR CONT LVR
VENTILATOR&DEFROSTER WO/HEATER<SAZ>
1-83574-127-0
02
1
9207-
●
●
●
●
●
16
PIN; HTR CONT LVR
(A)
1-83579-459-0
01
1
9207-
●
●
●
●
●
16
PIN; HTR CONT LVR
(B)
1-83579-460-0
01
1
9207-
●
●
●
●
●
30
KNOB; FAN SW
1-82336-006-0
01
1
9207-
●
●
●
●
●
39
LEVER; HTR CONT LVR
(B)
1-83564-287-0
01
1
9207-
●
●
●
●
●
39
LEVER; HTR CONT LVR
HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> (A)
1-83564-286-0
02
1
9207-
●
●
●
●
●
39
LEVER; HTR CONT LVR
VENTILATOR&DEFROSTER WO/HEATER<SAZ> (C)
1-83564-286-0
01
1
9207-
●
●
●
●
●
40
COLLAR; HTR CONT LVR
HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>
1-83579-121-0
01
1
9207-
●
●
●
●
●
40
COLLAR; HTR CONT LVR
VENTILATOR&DEFROSTER WO/HEATER<SAZ>
1-83579-461-0
01
1
9207-
●
●
●
●
●
41
SPRING; HTR CONT LVR
(B)
1-83579-118-0
02
1
9207-
●
●
●
●
●
41
SPRING; HTR CONT LVR
(C)
1-83579-463-0
02
1
9207-
●
●
●
●
●
41
SPRING; HTR CONT LVR
HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> (A)
1-83579-462-0
01
1
9207-
●
●
●
●
●
43
PIN; HTR CONT LEVER
5-83519-020-0
02
1
9207-
●
●
●
●
●
52
BULB; PANEL ILLUMINATION
24V 1.2W
1-82194-045-0
02
1
9207-
●
●
●
●
●
59
PANEL; BLIND,HTR CONT
EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ>
1-72437-012-2
01
1
9207-
●
●
●
●
●
60
SCREW; BLIND PANEL
EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> M5X14 W/PL WASHER
5-09981-050-0
04
1
9207-
●
●
●
●
●
72
SWITCH; FAN MOTOR
1-82380-082-1
01
1
9207-
●
●
●
●
●
