◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11718 - FVM AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25B - REAR FINAL DRIVE ▶
4-25B — REAR FINAL DRIVE (#169892) — 53 parça

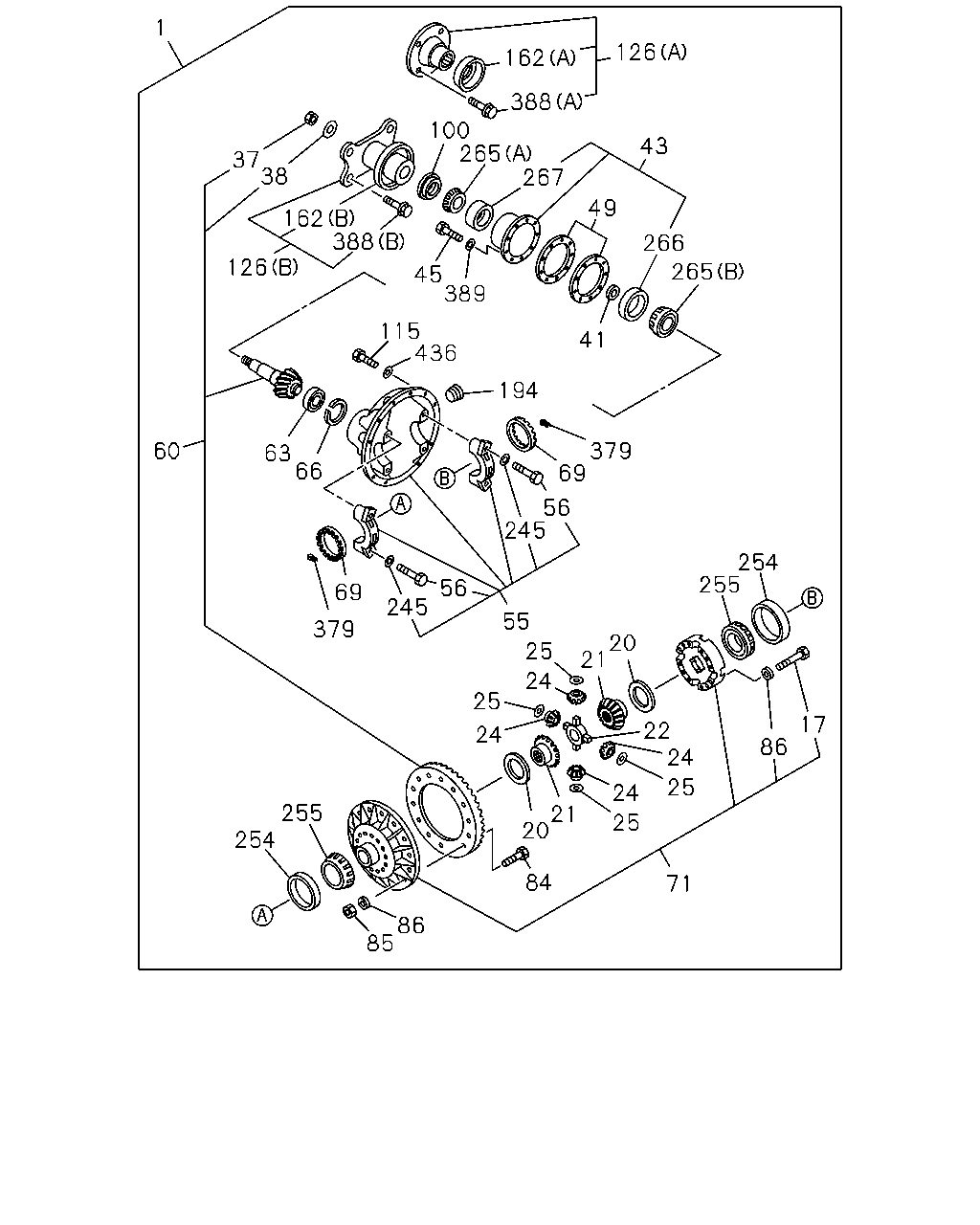

çizim 501346
1 37 38 126 60 63 66 69 379 245 56 245 115 162 388 100 162 126 388 265 45 436 389 49 267 43 266 265 41 194 69 379 56 55 25 24 21 20 25 24 255 254 85 86 84 20 21 69 24 25 71 25 22 24 86 17 254 255
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DRIVE ASM; FINAL,RR
43/7 		1-41002-745-0 01 1 1511- ●
1 DRIVE ASM; FINAL,RR
45/7 		1-41002-746-0 01 1 1511- ●
1 DRIVE ASM; FINAL,RR
41/6 		1-41002-747-0 01 1 1511- ●
17 BOLT; DIFF CAGE SETTING 1-41519-095-0 12 1 1511- ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41562-269-0 02 1 1511- ● ● ●
21 GEAR; SIDE,DIFF 1-41561-116-0 02 1 1511- ● ● ●
22 SPIDER; DIFF PINION 1-41521-054-0 01 1 1511- ● ● ●
24 GEAR; PINION,DIFF 1-41551-035-0 04 1 1511- ● ● ●
25 WASHER; THRUST,PINION 1-41552-037-0 04 1 1511- ● ● ●
37 NUT; DRIVING PINION 1-41219-028-0 01 1 1511- ● ● ●
38 WASHER; PL,DRIVING PINION 1-41349-058-0 01 1 1511- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG 1-41229-360-0 01 1 1511- ● ● ●
43 CAGE; FINAL PINION 1-41151-098-0 01 1 1511- ● ● ●
45 BOLT; FINAL PINION CAGE 1-41159-008-0 08 1 1511- ● ● ●
49 SHIM; FINAL PINION CAGE 1-41154-114-0 01 1 1511- ● ● ●
55 CARRIER; DIFF 1-41110-126-0 01 1 1511- ● ● ●
56 BOLT; BRG CAP 1-41119-066-0 04 1 1511- ● ● ●
60 GEAR SET; FINAL DRIVE,RR
43/7 		1-41210-652-0 01 1 1511- ●
60 GEAR SET; FINAL DRIVE,RR
45/7 		1-41210-653-0 01 1 1511- ●
60 GEAR SET; FINAL DRIVE,RR
41/6 		1-41210-654-0 01 1 1511- ●
63 BEARING; PINION PILOT 1-41219-036-0 01 1 1511- ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-037-0 01 1 1511- ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-040-0 01 1 1511- ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-049-0 01 1 1511- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-286-0 01 1 1511- ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41519-039-0 12 1 1511- ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 12 1 1511- ● ● ●
86 WASHER; PL,DIFF CAGE SETTING 1-41229-168-0 24 1 1511- ● ● ●
100 SEAL; OIL,FINAL PINION 1-41349-184-0 01 1 1511- ● ● ●
115 BOLT; DIFF CARRIER 1-41119-072-0 01 1 1511- ● ● ●
126 COUPLING; DRIVING PINION
ALLISON MD3560P A/T(Y3B) (B) 		1-37245-301-0 01 1 1511- ● ●
126 COUPLING; DRIVING PINION
ZF9S1110 M/T(Y5E) (A) 		1-37245-364-0 01 1 1511- ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-364-0 01 1 1511- ●
162 COVER; DUST,INPUT FLANGE
ALLISON MD3560P A/T(Y3B) (B) 		1-37249-161-0 01 1 1511- ● ●
162 COVER; DUST,INPUT FLANGE
ZF9S1110 M/T(Y5E) (A) 		1-37249-190-0 01 1 1511- ● ●
162 COVER; DUST,INPUT FLANGE
(A) 		1-37249-190-0 01 1 1511- ●
194 PLUG 1-41119-077-0 01 1 1511- ● ● ●
245 WASHER; PL,BRG CAP 1-41119-065-0 04 1 1511- ● ● ●
254 CUP; DIFF BRG 1-41229-131-0 01 1 1511- ● ● ●
254 CUP; DIFF BRG 1-41519-083-0 01 1 1511- ● ● ●
255 CONE; DIFF BRG 1-41519-032-0 01 1 1511- ● ● ●
255 CONE; DIFF BRG 1-41519-084-0 01 1 1511- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-033-0 01 1 1511- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-124-0 01 1 1511- ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER 1-41219-032-0 01 1 1511- ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER 1-41349-050-0 01 1 1511- ● ● ●
379 PIN; SPLIT 1-41129-012-0 01 1 1511- ● ● ●
379 PIN; SPLIT 1-41129-013-0 01 1 1511- ● ● ●
388 BOLT; COUPLING
ALLISON MD3560P A/T(Y3B) (B) 		1-37249-160-0 04 1 1511- ● ●
388 BOLT; COUPLING
ZF9S1110 M/T(Y5E) (A) 		1-37249-204-0 04 1 1511- ● ●
388 BOLT; COUPLING
(A) 		1-37249-204-0 04 1 1511- ●
389 WASHER; FINAL PINION CAGE 1-41329-084-0 08 1 1511- ● ● ●
436 WASHER; PL,DIFF CARRIER 1-41229-168-0 01 1 1511- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
