◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11718 - FVM AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#169890) — 249 parça

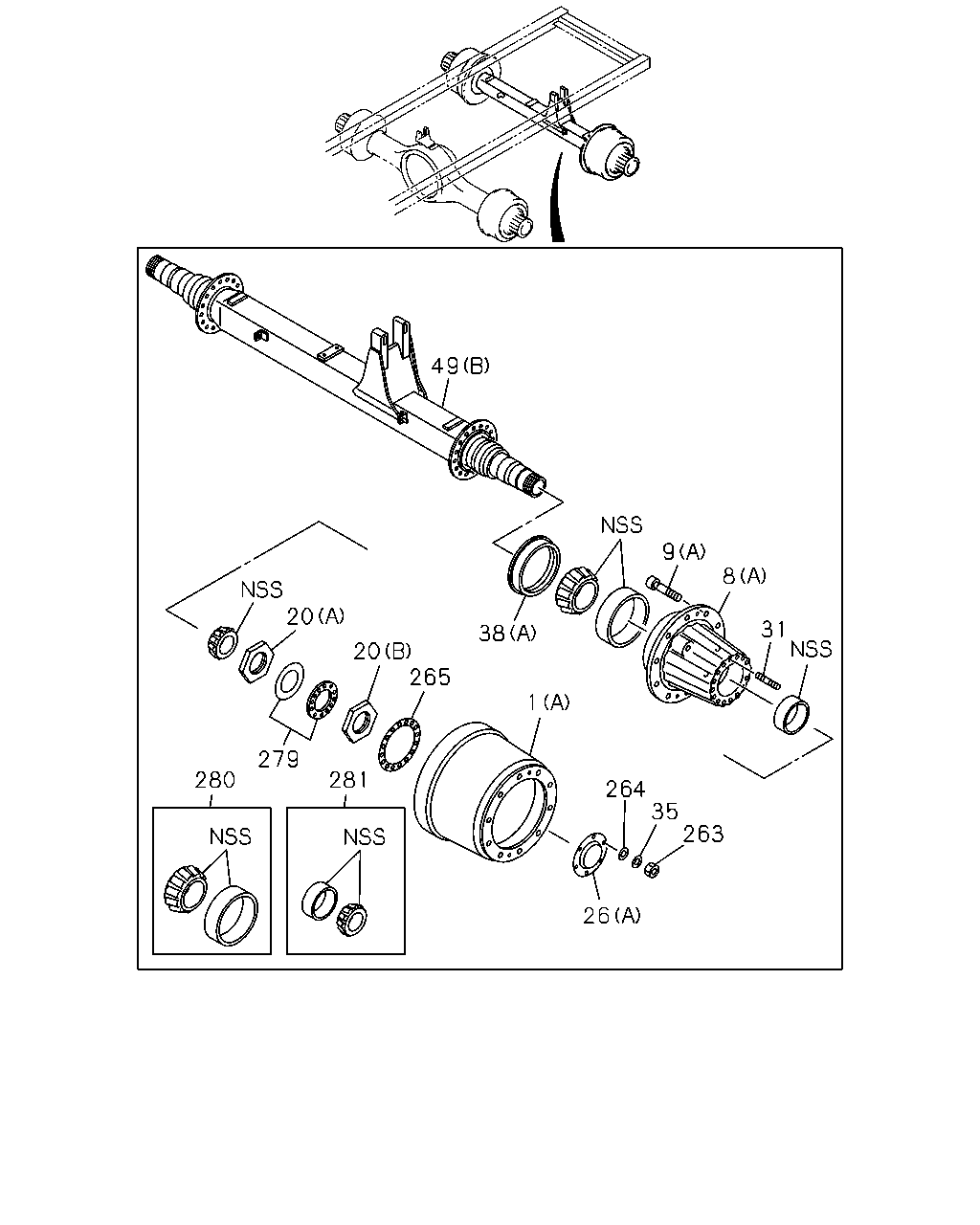

çizim 502484
280 281 265 264 35 263 31 279 49 9 8 38 1 26 20 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRUM; BRK,RR
(A) 		1-42315-422-0 02 1 1511- ●
1 DRUM; BRK,RR
(A) 		1-42315-422-0 02 1 1511- ●
1 DRUM; BRK,RR
(B) 		8-98119-857-1 02 1 1511- ●
1 DRUM; BRK,RR
(B) 		8-98119-857-1 02 1 1511- ●
8 HUB; RR AXLE
(A) 		1-42311-164-0 02 1 1511- ●
8 HUB; RR AXLE
(A) 		1-42311-164-0 02 1 1511- ●
8 HUB; RR AXLE
(B) 		8-98128-135-1 02 1 1511- ●
8 HUB; RR AXLE
(C) 		8-98128-136-1 02 1 1511- ●
9 PIN; WHEEL,RR AXLE
(A) 		1-42339-033-0 20 1 1511- ●
9 PIN; WHEEL,RR AXLE
(A) 		1-42339-033-0 20 1 1511- ●
9 PIN; WHEEL,RR AXLE
(B) M22X98 RH THREAD 		1-42337-095-1 20 1 1511- ●
9 PIN; WHEEL,RR AXLE
(B) M22X98 RH THREAD 		1-42337-095-1 20 1 1511- ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 1511- ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 1511- ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 1511- ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 1511- ●
20 NUT; BRG,RR HUB
(C) M88 		9-09843-062-2 02 1 1511- ●
20 NUT; BRG,RR HUB
(C) M88 		9-09843-062-2 02 1 1511- ●
26 CAP; HUB,RR AXLE
(A) 		1-42313-026-0 02 1 1511- ●
26 CAP; HUB,RR AXLE
(B) 		1-42313-011-1 02 1 1511- ●
31 STUD; AXLE SHAFT TO HUB 1-42319-171-0 16 1 1511- ●
35 WASHER; LK,HUB CAP 1-42179-003-0 16 1 1511- ●
38 SEAL; OIL,RR HUB,INNER
(A) 		1-42319-172-0 02 1 1511- ●
38 SEAL; OIL,RR HUB,INNER
(A) 		1-42319-172-0 02 1 1511- ●
38 SEAL; OIL,RR HUB,INNER
(B) NOK 		1-09625-265-0 02 1 1511- ●
38 SEAL; OIL,RR HUB,INNER
(B) NOK 		1-09625-265-0 02 1 1511- ●
38 SEAL; OIL,RR HUB,INNER
(B) TKK 		1-09625-350-0 02 1 1511- ●
38 SEAL; OIL,RR HUB,INNER
(B) TKK 		1-09625-350-0 02 1 1511- ●
49 CASE; RR AXLE
(B) 		1-42190-727-0 01 1 1511- ●
49 CASE; RR AXLE
(A) 		1-42190-754-0 01 1 1511- ●
49 CASE; RR AXLE
(D) 		8-98023-187-2 01 1 1511- ●
49 CASE; RR AXLE
(C) 		8-98024-650-1 01 1 1511- ●
263 NUT; HUB CAP 1-42179-005-0 16 1 1511- ●
264 SPACER; HUB CAP 1-42319-202-0 16 1 1511- ●
265 GASKET; HUB CAP 1-42175-013-0 02 1 1511- ●
279 RING & WASHER; LK,BRG NUT 1-42179-022-0 02 1 1511- ●
279 RING & WASHER; LK,BRG NUT 1-42179-022-0 02 1 1511- ●
280 BEARING SET; HUB,INNER 1-85573-012-0 02 1 1511- ●
280 BEARING SET; HUB,INNER 1-85573-012-0 02 1 1511- ●
281 BEARING SET; HUB,OUTER 1-85573-013-0 02 1 1511- ●
281 BEARING SET; HUB,OUTER 1-85573-013-0 02 1 1511- ●

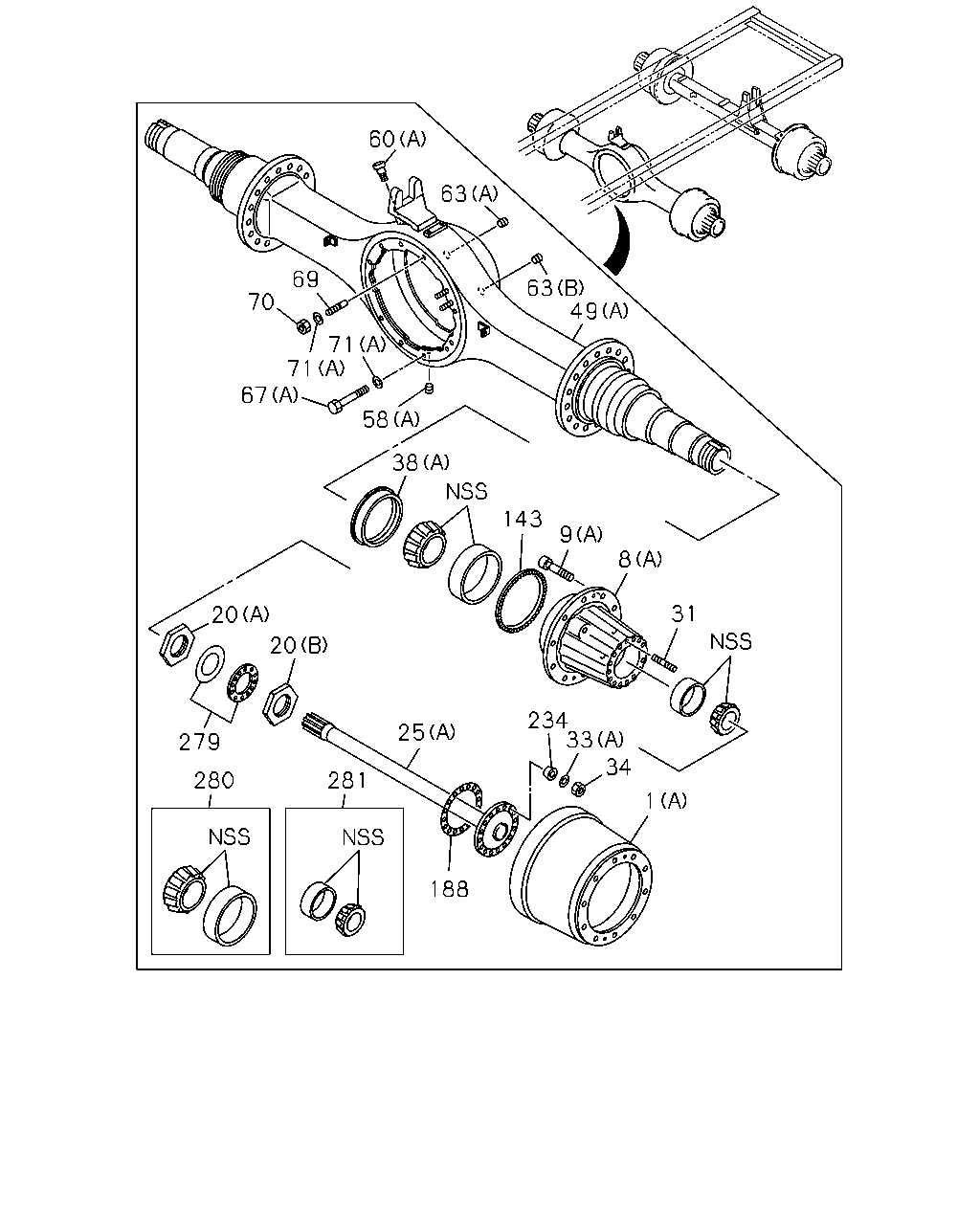

çizim 502626
60 69 63 63 70 71 71 49 67 58 9 143 38 20 20 279 280 281 25 188 234 33 34 1 31 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRUM; BRK,RR
(A) 		1-42315-422-0 02 1 1511- ●
1 DRUM; BRK,RR
(A) 		1-42315-422-0 02 1 1511- ●
1 DRUM; BRK,RR
(B) 		8-98119-857-1 02 1 1511- ●
1 DRUM; BRK,RR
(B) 		8-98119-857-1 02 1 1511- ●
8 HUB; RR AXLE
(A) 		1-42311-164-0 02 1 1511- ●
8 HUB; RR AXLE
(A) 		1-42311-164-0 02 1 1511- ●
8 HUB; RR AXLE
(B) 		8-98128-135-1 02 1 1511- ●
8 HUB; RR AXLE
(C) 		8-98128-136-1 02 1 1511- ●
9 PIN; WHEEL,RR AXLE
(A) 		1-42339-033-0 20 1 1511- ●
9 PIN; WHEEL,RR AXLE
(A) 		1-42339-033-0 20 1 1511- ●
9 PIN; WHEEL,RR AXLE
(B) M22X98 RH THREAD 		1-42337-095-1 20 1 1511- ●
9 PIN; WHEEL,RR AXLE
(B) M22X98 RH THREAD 		1-42337-095-1 20 1 1511- ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 1511- ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 1511- ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 1511- ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 1511- ●
20 NUT; BRG,RR HUB
(C) M88 		9-09843-062-2 02 1 1511- ●
20 NUT; BRG,RR HUB
(C) M88 		9-09843-062-2 02 1 1511- ●
25 SHAFT; AXLE,RR
(A) L=951 		1-42171-557-0 01 1 1511- ●
25 SHAFT; AXLE,RR
(A) L=1120 		1-42171-558-0 01 1 1511- ●
25 SHAFT; AXLE,RR
(B) L=1050 		8-98146-164-0 02 1 1511- ●
31 STUD; AXLE SHAFT TO HUB 1-42319-171-0 16 1 1511- ●
33 WASHER; AXLE SHAFT
(A) 		1-42179-003-0 16 1 1511- ●
33 WASHER; AXLE SHAFT
(B) ID=14.2 		0-91510-814-0 20 1 1511- ●
34 NUT; AXLE SHAFT 1-42179-005-0 16 1 1511- ●
38 SEAL; OIL,RR HUB,INNER
(A) 		1-42319-172-0 02 1 1511- ●
38 SEAL; OIL,RR HUB,INNER
(A) 		1-42319-172-0 02 1 1511- ●
38 SEAL; OIL,RR HUB,INNER
(B) NOK 		1-09625-265-0 02 1 1511- ●
38 SEAL; OIL,RR HUB,INNER
(B) NOK 		1-09625-265-0 02 1 1511- ●
38 SEAL; OIL,RR HUB,INNER
(B) TKK 		1-09625-350-0 02 1 1511- ●
38 SEAL; OIL,RR HUB,INNER
(B) TKK 		1-09625-350-0 02 1 1511- ●
49 CASE; RR AXLE
(B) 		1-42190-727-0 01 1 1511- ●
49 CASE; RR AXLE
(A) 		1-42190-754-0 01 1 1511- ●
49 CASE; RR AXLE
(D) 		8-98023-187-2 01 1 1511- ●
49 CASE; RR AXLE
(C) 		8-98024-650-1 01 1 1511- ●
58 PLUG; DRAIN,AXLE CASE
(A) 		1-42129-054-0 01 1 1511- ●
58 PLUG; DRAIN,AXLE CASE
(B) M24X17 FLANGE 		1-09604-023-0 01 1 1511- ●
60 BREATHER; RR AXLE CASE
(A) 		1-09893-032-0 01 1 1511- ●
60 BREATHER; RR AXLE CASE
(B) 		1-09893-003-0 01 1 1511- ●
63 PLUG; OIL FILLER,AXLE CASE
(A) 		1-42119-135-0 02 1 1511- ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42129-054-0 01 1 1511- ●
63 PLUG; OIL FILLER,AXLE CASE
(C) M24X17 FLANGE 		1-09604-022-0 01 1 1511- ●
67 BOLT; FINAL DRIVE SETTING
(A) 		1-42119-136-0 08 1 1511- ●
67 BOLT; FINAL DRIVE SETTING
(B) M16X70 		0-10956-670-0 04 1 1511- ●
67 BOLT; FINAL DRIVE SETTING
(B) M16X40 		0-20951-640-0 08 1 1511- ●
69 STUD; AXLE CASE
L=120.65 		1-42119-184-0 04 1 1511- ●
70 NUT; CARRIER 1-42179-005-0 04 1 1511- ●
71 WASHER; LK,FINAL DRIVE SETTING
(A) 		1-41229-168-0 12 1 1511- ●
71 WASHER; LK,FINAL DRIVE SETTING
(B) ID=16.2 		0-91510-816-0 12 1 1511- ●
143 RING; EXCITER 1-42319-224-0 02 1 1511- ●
143 RING; EXCITER 1-42319-173-0 02 1 1511- ●
188 GASKET; AXLE SHAFT 1-42175-013-0 02 1 1511- ●
234 DOWEL; AXLE SHAFT 1-42319-162-0 16 1 1511- ●
279 RING & WASHER; LK,BRG NUT 1-42179-022-0 02 1 1511- ●
279 RING & WASHER; LK,BRG NUT 1-42179-022-0 02 1 1511- ●
280 BEARING SET; HUB,INNER 1-85573-012-0 02 1 1511- ●
280 BEARING SET; HUB,INNER 1-85573-012-0 02 1 1511- ●
281 BEARING SET; HUB,OUTER 1-85573-013-0 02 1 1511- ●
281 BEARING SET; HUB,OUTER 1-85573-013-0 02 1 1511- ●

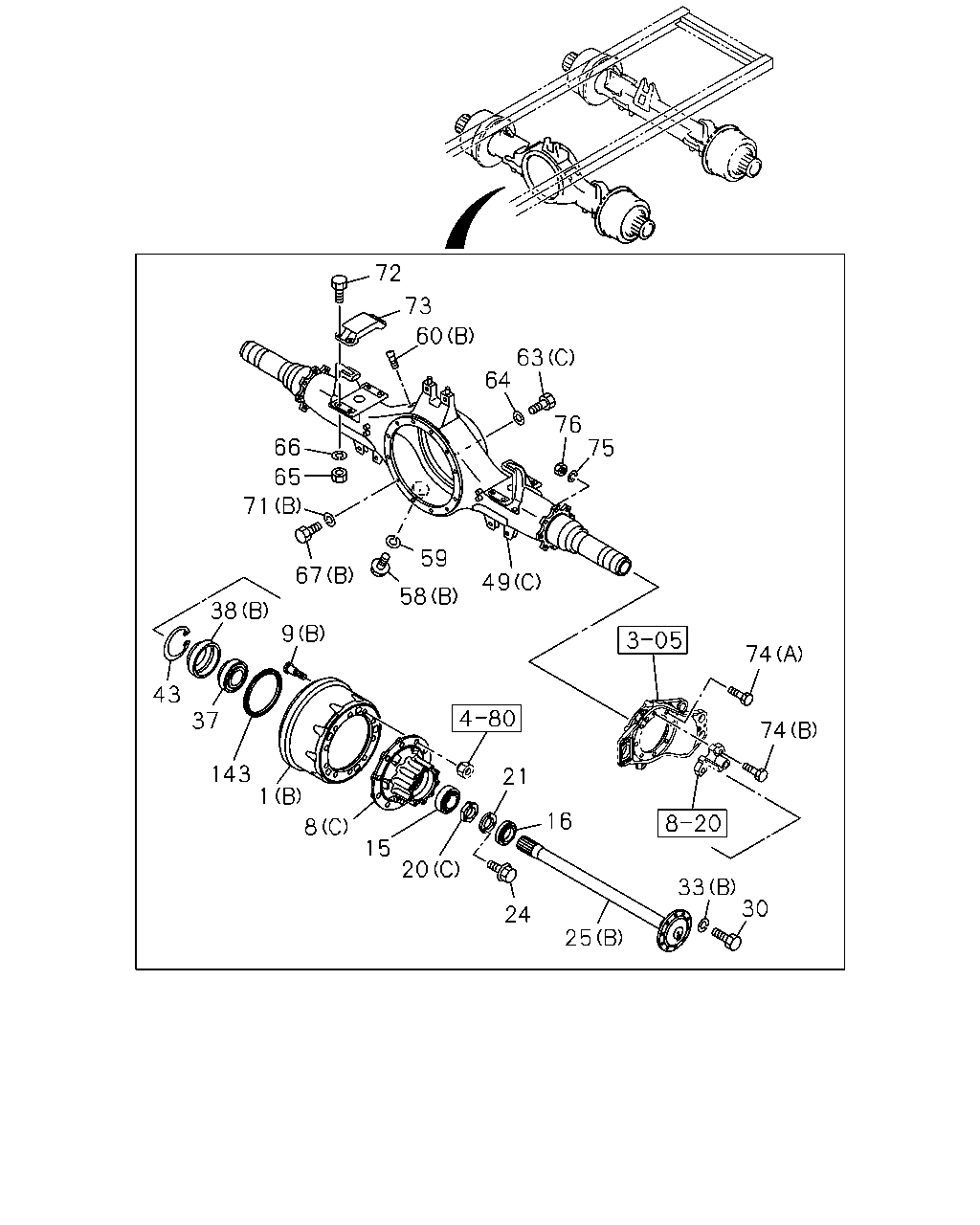

çizim 502627
43 37 143 15 24 30 16 21 59 75 76 73 72 64 66 65 60 63 71 67 58 49 9 38 74 74 20 25 8 1 33
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRUM; BRK,RR
(A) 		1-42315-422-0 02 1 1511- ●
1 DRUM; BRK,RR
(A) 		1-42315-422-0 02 1 1511- ●
1 DRUM; BRK,RR
(B) 		8-98119-857-1 02 1 1511- ●
1 DRUM; BRK,RR
(B) 		8-98119-857-1 02 1 1511- ●
8 HUB; RR AXLE
(A) 		1-42311-164-0 02 1 1511- ●
8 HUB; RR AXLE
(A) 		1-42311-164-0 02 1 1511- ●
8 HUB; RR AXLE
(B) 		8-98128-135-1 02 1 1511- ●
8 HUB; RR AXLE
(C) 		8-98128-136-1 02 1 1511- ●
9 PIN; WHEEL,RR AXLE
(A) 		1-42339-033-0 20 1 1511- ●
9 PIN; WHEEL,RR AXLE
(A) 		1-42339-033-0 20 1 1511- ●
9 PIN; WHEEL,RR AXLE
(B) M22X98 RH THREAD 		1-42337-095-1 20 1 1511- ●
9 PIN; WHEEL,RR AXLE
(B) M22X98 RH THREAD 		1-42337-095-1 20 1 1511- ●
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-232-0 02 1 1511- ●
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-232-0 02 1 1511- ●
15 BEARING; HUB OUTER,RR AXLE
SKF 		1-09812-256-0 02 1 1511- ●
15 BEARING; HUB OUTER,RR AXLE
SKF 		1-09812-256-0 02 1 1511- ●
15 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS 		1-87610-136-0 02 1 1511- ●
15 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS 		1-87610-136-0 02 1 1511- ●
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 1511- ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 1511- ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 1511- ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 1511- ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 1511- ●
20 NUT; BRG,RR HUB
(C) M88 		9-09843-062-2 02 1 1511- ●
20 NUT; BRG,RR HUB
(C) M88 		9-09843-062-2 02 1 1511- ●
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 1511- ●
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 1511- ●
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 06 1 1511- ●
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 06 1 1511- ●
25 SHAFT; AXLE,RR
(A) L=951 		1-42171-557-0 01 1 1511- ●
25 SHAFT; AXLE,RR
(A) L=1120 		1-42171-558-0 01 1 1511- ●
25 SHAFT; AXLE,RR
(B) L=1050 		8-98146-164-0 02 1 1511- ●
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 1511- ●
33 WASHER; AXLE SHAFT
(A) 		1-42179-003-0 16 1 1511- ●
33 WASHER; AXLE SHAFT
(B) ID=14.2 		0-91510-814-0 20 1 1511- ●
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-233-0 02 1 1511- ●
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-233-0 02 1 1511- ●
37 BEARING; HUB INNER,RR AXLE
SKF 		1-09812-257-0 02 1 1511- ●
37 BEARING; HUB INNER,RR AXLE
SKF 		1-09812-257-0 02 1 1511- ●
37 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		1-87610-138-0 02 1 1511- ●
37 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		1-87610-138-0 02 1 1511- ●
38 SEAL; OIL,RR HUB,INNER
(A) 		1-42319-172-0 02 1 1511- ●
38 SEAL; OIL,RR HUB,INNER
(A) 		1-42319-172-0 02 1 1511- ●
38 SEAL; OIL,RR HUB,INNER
(B) NOK 		1-09625-265-0 02 1 1511- ●
38 SEAL; OIL,RR HUB,INNER
(B) NOK 		1-09625-265-0 02 1 1511- ●
38 SEAL; OIL,RR HUB,INNER
(B) TKK 		1-09625-350-0 02 1 1511- ●
38 SEAL; OIL,RR HUB,INNER
(B) TKK 		1-09625-350-0 02 1 1511- ●
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 1511- ●
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 1511- ●
49 CASE; RR AXLE
(B) 		1-42190-727-0 01 1 1511- ●
49 CASE; RR AXLE
(A) 		1-42190-754-0 01 1 1511- ●
49 CASE; RR AXLE
(D) 		8-98023-187-2 01 1 1511- ●
49 CASE; RR AXLE
(C) 		8-98024-650-1 01 1 1511- ●
58 PLUG; DRAIN,AXLE CASE
(A) 		1-42129-054-0 01 1 1511- ●
58 PLUG; DRAIN,AXLE CASE
(B) M24X17 FLANGE 		1-09604-023-0 01 1 1511- ●
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 1511- ●
60 BREATHER; RR AXLE CASE
(A) 		1-09893-032-0 01 1 1511- ●
60 BREATHER; RR AXLE CASE
(B) 		1-09893-003-0 01 1 1511- ●
63 PLUG; OIL FILLER,AXLE CASE
(A) 		1-42119-135-0 02 1 1511- ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42129-054-0 01 1 1511- ●
63 PLUG; OIL FILLER,AXLE CASE
(C) M24X17 FLANGE 		1-09604-022-0 01 1 1511- ●
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 1511- ●
65 NUT
M14 		0-91110-514-0 08 1 1511- ●
65 NUT
M14 		0-91110-514-0 08 1 1511- ●
66 WASHER; LK
ID=14.2 		0-91510-814-0 08 1 1511- ●
66 WASHER; LK
ID=14.2 		0-91510-814-0 08 1 1511- ●
67 BOLT; FINAL DRIVE SETTING
(A) 		1-42119-136-0 08 1 1511- ●
67 BOLT; FINAL DRIVE SETTING
(B) M16X70 		0-10956-670-0 04 1 1511- ●
67 BOLT; FINAL DRIVE SETTING
(B) M16X40 		0-20951-640-0 08 1 1511- ●
71 WASHER; LK,FINAL DRIVE SETTING
(A) 		1-41229-168-0 12 1 1511- ●
71 WASHER; LK,FINAL DRIVE SETTING
(B) ID=16.2 		0-91510-816-0 12 1 1511- ●
72 BOLT; PAD FIX
M14X40 		0-20951-440-0 08 1 1511- ●
72 BOLT; PAD FIX
M14X40 		0-20951-440-0 08 1 1511- ●
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 1511- ●
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 1511- ●
74 BOLT; RR BRK ASM SETTING
(A) M14X50 		1-09040-066-0 12 1 1511- ●
74 BOLT; RR BRK ASM SETTING
(A) M14X50 		1-09040-066-0 16 1 1511- ●
74 BOLT; RR BRK ASM SETTING
(B) M14X60 		1-09040-084-0 04 1 1511- ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		0-91510-814-0 16 1 1511- ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		0-91510-814-0 16 1 1511- ●
76 NUT; RR BRK ASM SETTING
M14 		0-91110-514-0 16 1 1511- ●
76 NUT; RR BRK ASM SETTING
M14 		0-91110-514-0 16 1 1511- ●
143 RING; EXCITER 1-42319-224-0 02 1 1511- ●
143 RING; EXCITER 1-42319-173-0 02 1 1511- ●

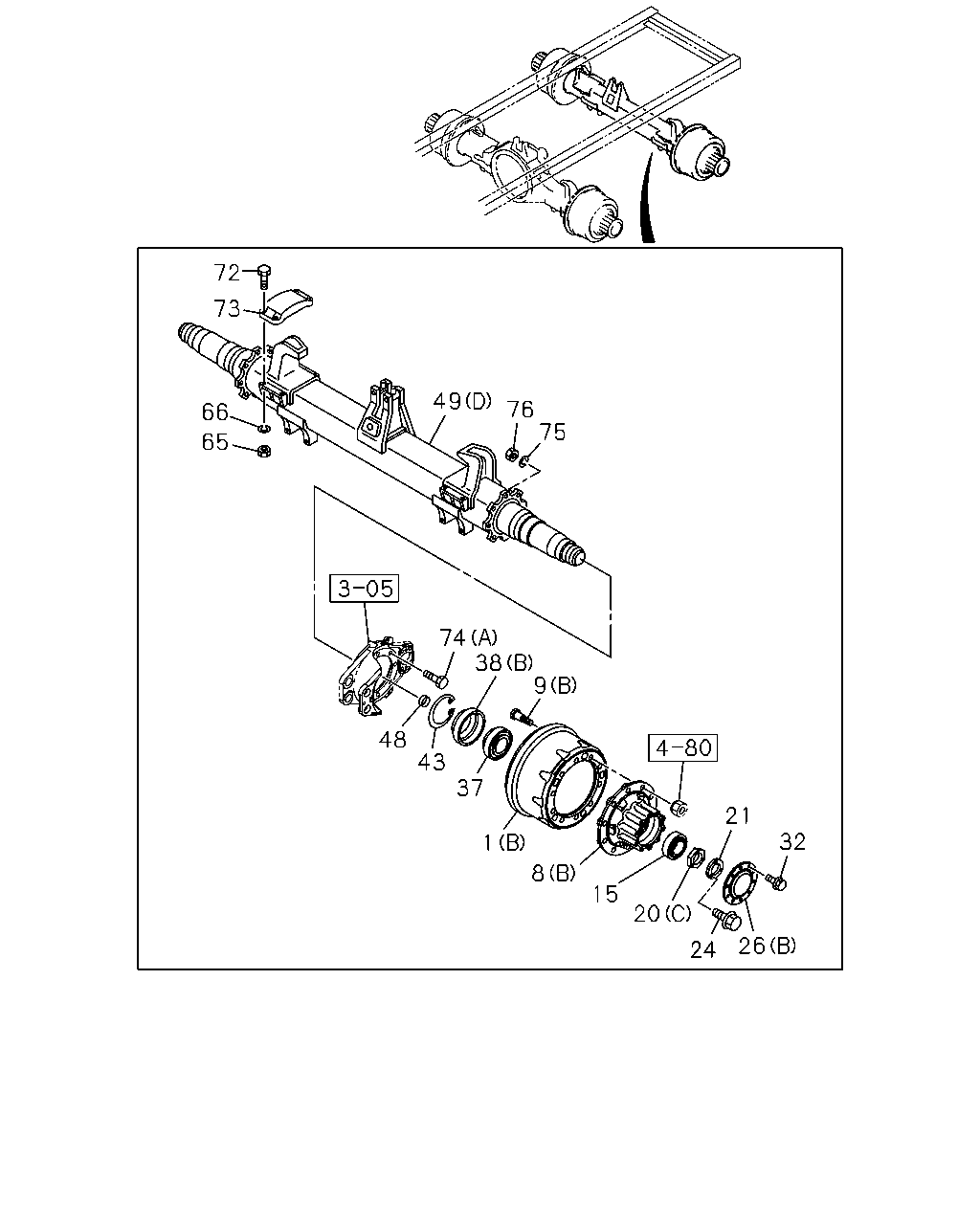

çizim 502654
72 66 73 65 76 48 43 37 15 24 21 32 75 49 74 38 9 1 8 20 26
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRUM; BRK,RR
(A) 		1-42315-422-0 02 1 1511- ●
1 DRUM; BRK,RR
(A) 		1-42315-422-0 02 1 1511- ●
1 DRUM; BRK,RR
(B) 		8-98119-857-1 02 1 1511- ●
1 DRUM; BRK,RR
(B) 		8-98119-857-1 02 1 1511- ●
8 HUB; RR AXLE
(A) 		1-42311-164-0 02 1 1511- ●
8 HUB; RR AXLE
(A) 		1-42311-164-0 02 1 1511- ●
8 HUB; RR AXLE
(B) 		8-98128-135-1 02 1 1511- ●
8 HUB; RR AXLE
(C) 		8-98128-136-1 02 1 1511- ●
9 PIN; WHEEL,RR AXLE
(A) 		1-42339-033-0 20 1 1511- ●
9 PIN; WHEEL,RR AXLE
(A) 		1-42339-033-0 20 1 1511- ●
9 PIN; WHEEL,RR AXLE
(B) M22X98 RH THREAD 		1-42337-095-1 20 1 1511- ●
9 PIN; WHEEL,RR AXLE
(B) M22X98 RH THREAD 		1-42337-095-1 20 1 1511- ●
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-232-0 02 1 1511- ●
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-232-0 02 1 1511- ●
15 BEARING; HUB OUTER,RR AXLE
SKF 		1-09812-256-0 02 1 1511- ●
15 BEARING; HUB OUTER,RR AXLE
SKF 		1-09812-256-0 02 1 1511- ●
15 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS 		1-87610-136-0 02 1 1511- ●
15 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS 		1-87610-136-0 02 1 1511- ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 1511- ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 1511- ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 1511- ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 1511- ●
20 NUT; BRG,RR HUB
(C) M88 		9-09843-062-2 02 1 1511- ●
20 NUT; BRG,RR HUB
(C) M88 		9-09843-062-2 02 1 1511- ●
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 1511- ●
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 1511- ●
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 06 1 1511- ●
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 06 1 1511- ●
26 CAP; HUB,RR AXLE
(A) 		1-42313-026-0 02 1 1511- ●
26 CAP; HUB,RR AXLE
(B) 		1-42313-011-1 02 1 1511- ●
32 BOLT; HUB CAP
M14X35 FLANGE 		0-28651-435-0 20 1 1511- ●
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-233-0 02 1 1511- ●
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-233-0 02 1 1511- ●
37 BEARING; HUB INNER,RR AXLE
SKF 		1-09812-257-0 02 1 1511- ●
37 BEARING; HUB INNER,RR AXLE
SKF 		1-09812-257-0 02 1 1511- ●
37 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		1-87610-138-0 02 1 1511- ●
37 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		1-87610-138-0 02 1 1511- ●
38 SEAL; OIL,RR HUB,INNER
(A) 		1-42319-172-0 02 1 1511- ●
38 SEAL; OIL,RR HUB,INNER
(A) 		1-42319-172-0 02 1 1511- ●
38 SEAL; OIL,RR HUB,INNER
(B) NOK 		1-09625-265-0 02 1 1511- ●
38 SEAL; OIL,RR HUB,INNER
(B) NOK 		1-09625-265-0 02 1 1511- ●
38 SEAL; OIL,RR HUB,INNER
(B) TKK 		1-09625-350-0 02 1 1511- ●
38 SEAL; OIL,RR HUB,INNER
(B) TKK 		1-09625-350-0 02 1 1511- ●
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 1511- ●
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 1511- ●
48 COVER; END 1-42119-035-1 02 1 1511- ●
49 CASE; RR AXLE
(B) 		1-42190-727-0 01 1 1511- ●
49 CASE; RR AXLE
(A) 		1-42190-754-0 01 1 1511- ●
49 CASE; RR AXLE
(D) 		8-98023-187-2 01 1 1511- ●
49 CASE; RR AXLE
(C) 		8-98024-650-1 01 1 1511- ●
65 NUT
M14 		0-91110-514-0 08 1 1511- ●
65 NUT
M14 		0-91110-514-0 08 1 1511- ●
66 WASHER; LK
ID=14.2 		0-91510-814-0 08 1 1511- ●
66 WASHER; LK
ID=14.2 		0-91510-814-0 08 1 1511- ●
72 BOLT; PAD FIX
M14X40 		0-20951-440-0 08 1 1511- ●
72 BOLT; PAD FIX
M14X40 		0-20951-440-0 08 1 1511- ●
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 1511- ●
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 1511- ●
74 BOLT; RR BRK ASM SETTING
(A) M14X50 		1-09040-066-0 12 1 1511- ●
74 BOLT; RR BRK ASM SETTING
(A) M14X50 		1-09040-066-0 16 1 1511- ●
74 BOLT; RR BRK ASM SETTING
(B) M14X60 		1-09040-084-0 04 1 1511- ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		0-91510-814-0 16 1 1511- ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		0-91510-814-0 16 1 1511- ●
76 NUT; RR BRK ASM SETTING
M14 		0-91110-514-0 16 1 1511- ●
76 NUT; RR BRK ASM SETTING
M14 		0-91110-514-0 16 1 1511- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
