4-10 — FRONT AXLE (#169888) — 199 parça

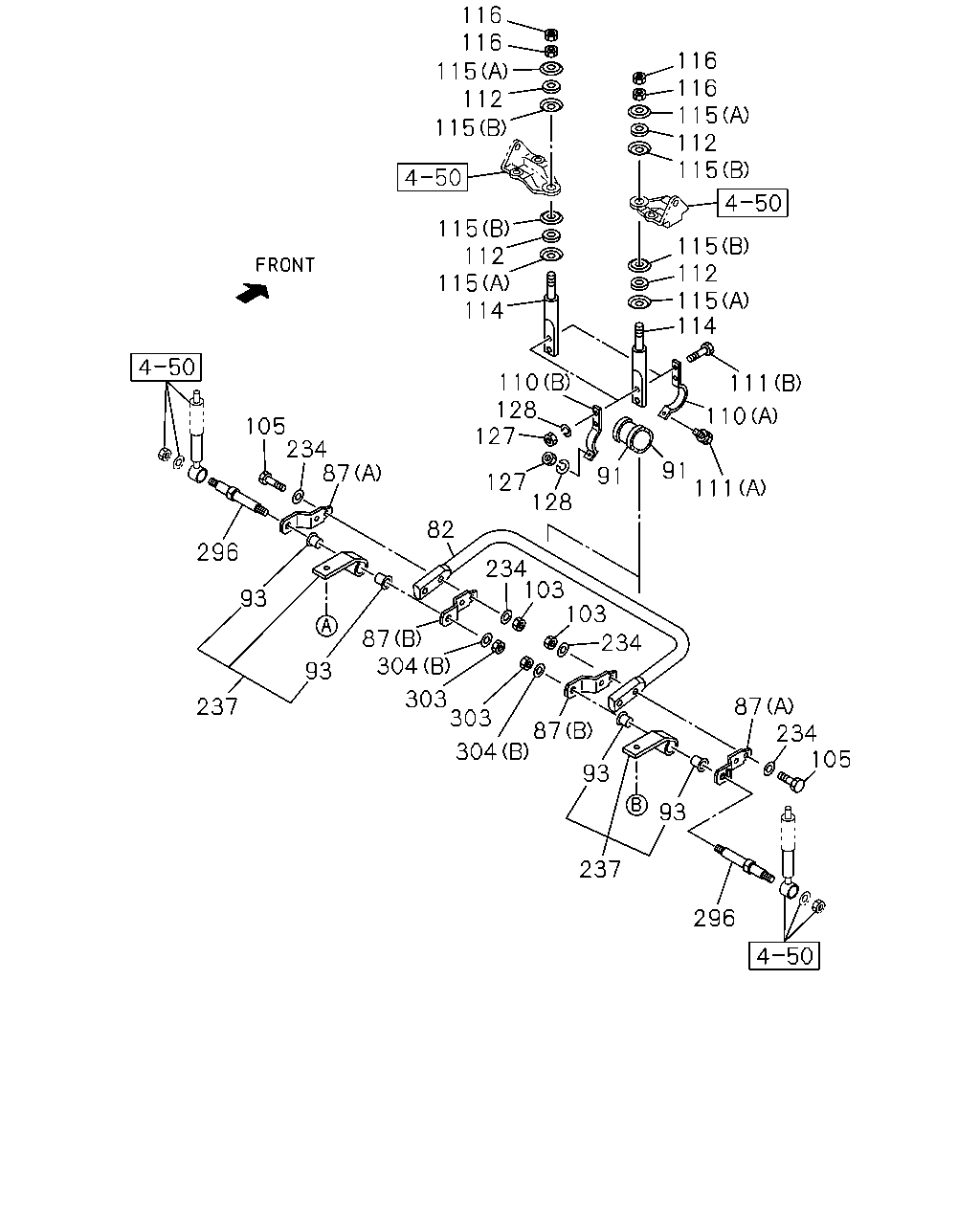

çizim 501374
116 115 116 112 115 115 115 112 114 105 296 234 93 237 93 87 82 87 304 303 303 304 234 103 103 234 87 93 93 237 296 105 234 87 111 91 91 128 127 127 128 110 110 111 114 115 112 115 115 112 115 116 116
BalonParca AdiParca NoAdetTipApplied Date A B
82 BAR; STAB,FRT SUSP 8-98012-961-1 01 1 1511- ● ●
87 BRACKET; STABILIZER
(A) 		8-98012-958-0 02 1 1511- ● ●
87 BRACKET; STABILIZER
(B) 		8-98012-959-0 02 1 1511- ● ●
91 BUSHING; RUBBER,STAB BAR 1-51779-079-1 04 1 1511- ● ●
93 BUSHING; STABILIZER 1-51689-015-3 04 1 1511- ● ●
103 NUT; BRKT FIX
M14 		0-91110-514-0 04 1 1511- ● ●
105 BOLT; BRKT FIX
M14X70 		0-10956-470-0 04 1 1511- ● ●
110 CLAMP; STAB TO ROD
(A) 		1-51789-027-2 02 1 1511- ● ●
110 CLAMP; STAB TO ROD
(B) 		1-51789-028-1 02 1 1511- ● ●
111 BOLT; CLAMP TO ROD
(A) M12X30 		0-20851-230-0 02 1 1511- ● ●
111 BOLT; CLAMP TO ROD
(B) M12X50 		0-20851-250-0 04 1 1511- ● ●
112 BUSHING; ROD 9-51631-050-0 04 1 1511- ● ●
114 ROD; STAB BAR 1-51773-065-0 02 1 1511- ● ●
115 WASHER; CENTER,STAB TO FRAME
(B) ID=16.8 		1-51631-022-0 04 1 1511- ● ●
115 WASHER; CENTER,STAB TO FRAME
(A) ID=14.5 		9-51631-051-0 04 1 1511- ● ●
116 NUT; LK,STAB TO FRAME
M14 		0-91111-514-0 04 1 1511- ● ●
127 NUT; CLAMP
M12 		0-91110-512-0 06 1 1511- ● ●
128 WASHER; LK,CLAMP
ID=12.2 		0-91510-812-0 06 1 1511- ● ●
234 WASHER; STAB
ID=15 		8-98010-627-1 08 1 1511- ● ●
237 SUPPORT; STAB BAR 1-51681-662-0 02 1 1511- ● ●
296 PIN; STAB 8-98022-874-1 02 1 1511- ● ●
303 NUT; PIN
M20 		0-91110-520-0 02 1 1511- ● ●
304 WASHER; PL
(A) 		1-43149-011-0 02 1 1511- ●
304 WASHER; PL
(B) ID=21 		9-09164-520-0 02 1 1511- ● ●
304 WASHER; PL
(C) ID=12.5 		0-91614-512-0 04 1 1511- ●

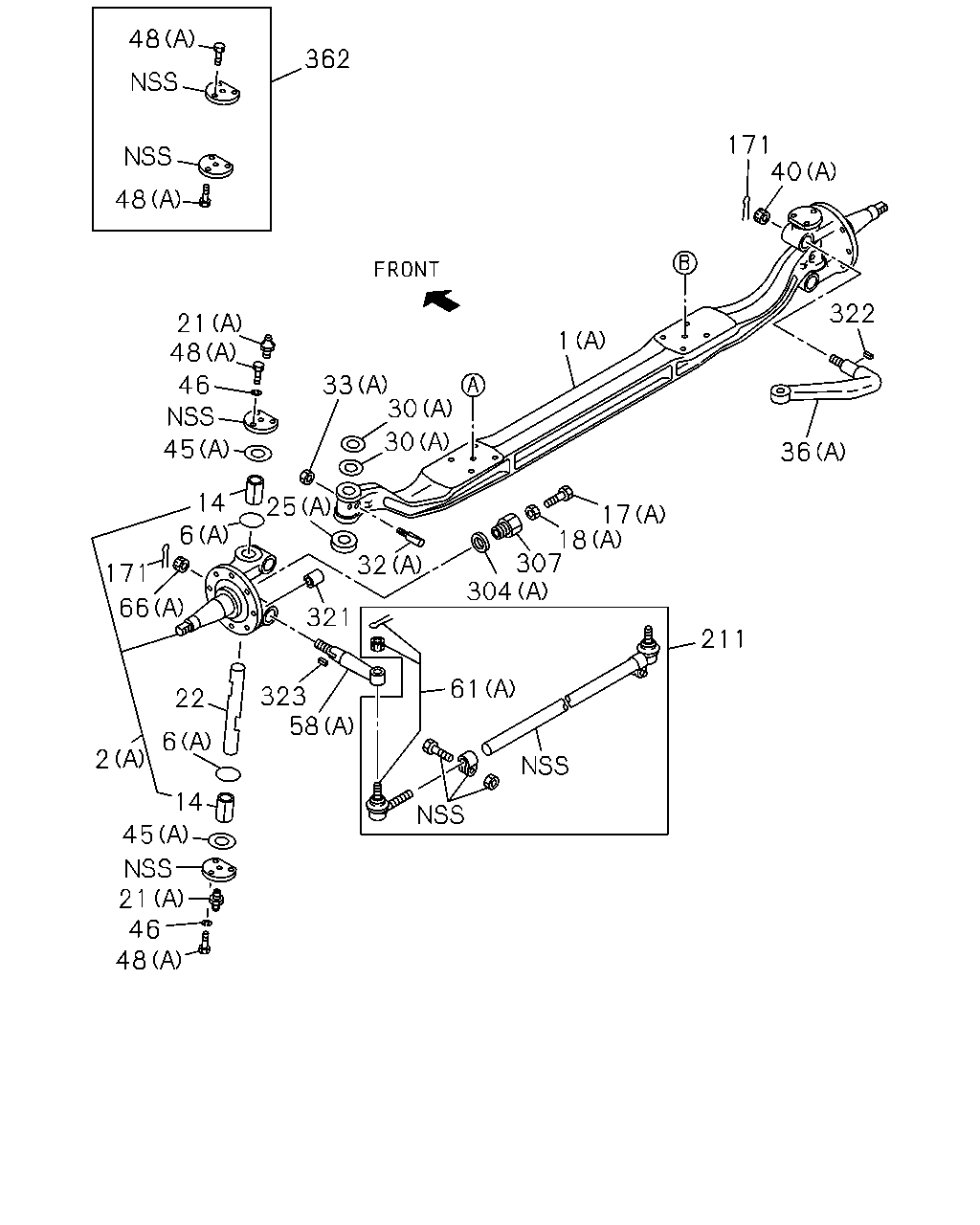

çizim 501657
48 48 21 48 46 45 14 6 171 66 22 6 2 14 45 21 46 48 33 30 30 32 321 323 58 1 17 18 307 304 61 211 36 322 40 171 362 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 AXLE; FRT
(A) 		1-43111-161-0 01 1 1511- ●
1 AXLE; FRT
(B) 		8-98170-180-2 01 1 1511- ●
2 KNUCKLE; FRT AXLE
(A) 		1-43131-108-0 01 1 1511- ●
2 KNUCKLE; FRT AXLE
(A) 		1-43132-107-0 01 1 1511- ●
2 KNUCKLE; FRT AXLE
(B) 		1-43131-118-1 01 1 1511- ●
2 KNUCKLE; FRT AXLE
(B) 		1-43132-101-1 01 1 1511- ●
6 SEAL; KING PIN
(A) 		1-09625-634-0 04 1 1511- ●
6 SEAL; KING PIN
(B) 		9-09926-024-0 04 1 1511- ●
14 BUSHING; KING PIN 1-43149-015-0 04 1 1511- ●
17 BOLT; STOPPER KNUCKLE
(A) 		1-43149-014-0 02 1 1511- ●
17 BOLT; STOPPER KNUCKLE
(C) M18X53 		1-09009-066-0 01 1 1511- ●
17 BOLT; STOPPER KNUCKLE
(B) M18X43 		1-09009-190-0 02 1 1511- ●
18 NUT; STOPPER BOLT,KNUCKLE
(A) 		1-43149-013-0 02 1 1511- ●
18 NUT; STOPPER BOLT,KNUCKLE
(B) M18 		0-91110-518-0 02 1 1511- ●
18 NUT; STOPPER BOLT,KNUCKLE
(C) OCTAGON M18 		1-09469-011-1 01 1 1511- ●
21 NIPPLE; GREASE,KING PIN
(A) 		1-48259-253-0 04 1 1511- ●
21 NIPPLE; GREASE,KING PIN
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1511- ●
22 PIN; KING,FRT AXLE 1-43161-016-0 02 1 1511- ●
25 BEARING; THRUST,KING PIN
(A) 		1-43173-004-0 02 1 1511- ●
25 BEARING; THRUST,KING PIN
(B) NSK 		1-09829-043-2 02 1 1511- ●
30 WASHER; THRUST,KING PIN
(A) T=0.015" 		1-43171-338-0 AR 1 1511- ●
30 WASHER; THRUST,KING PIN
(A) T=0.010" 		1-43171-339-0 AR 1 1511- ●
30 WASHER; THRUST,KING PIN
(A) T=0.005" 		1-43171-340-0 AR 1 1511- ●
30 WASHER; THRUST,KING PIN
(B) T=4.875 -4.900 		1-43171-185-0 AR 1 1511- ●
30 WASHER; THRUST,KING PIN
(B) T=4.900 -4.925 		1-43171-186-0 AR 1 1511- ●
30 WASHER; THRUST,KING PIN
(B) T=4.925 -4.950 		1-43171-187-0 AR 1 1511- ●
30 WASHER; THRUST,KING PIN
(B) T=4.950 -4.975 		1-43171-188-0 AR 1 1511- ●
30 WASHER; THRUST,KING PIN
(B) T=4.975 -5.000 		1-43171-189-0 AR 1 1511- ●
30 WASHER; THRUST,KING PIN
(B) T=5.000 -5.025 		1-43171-190-0 AR 1 1511- ●
30 WASHER; THRUST,KING PIN
(B) T=5.025 -5.050 		1-43171-191-0 AR 1 1511- ●
30 WASHER; THRUST,KING PIN
(B) T=5.050 -5.075 		1-43171-192-0 AR 1 1511- ●
30 WASHER; THRUST,KING PIN
(B) T=5.075 -5.100 		1-43171-193-0 AR 1 1511- ●
30 WASHER; THRUST,KING PIN
(B) T=5.100 -5.125 		1-43171-194-0 AR 1 1511- ●
30 WASHER; THRUST,KING PIN
(B) T=5.125 -5.150 		1-43171-195-0 AR 1 1511- ●
30 WASHER; THRUST,KING PIN
(B) T=5.150 -5.175 		1-43171-196-0 AR 1 1511- ●
30 WASHER; THRUST,KING PIN
(B) T=5.175 -5.200 		1-43171-197-0 AR 1 1511- ●
30 WASHER; THRUST,KING PIN
(B) T=5.200 -5.225 		1-43171-198-0 AR 1 1511- ●
30 WASHER; THRUST,KING PIN
(B) T=5.225 -5.250 		1-43171-199-0 AR 1 1511- ●
32 BOLT; KEY,KING PIN
(A) L=3.25" 		1-43116-006-0 02 1 1511- ●
32 BOLT; KEY,KING PIN
(A) L=98.4 		1-43116-014-0 02 1 1511- ●
32 BOLT; KEY,KING PIN
(B) 		1-43116-002-2 02 1 1511- ●
33 NUT; KEY BOLT
(A) 		1-43119-002-0 04 1 1511- ●
33 NUT; KEY BOLT
(B) M10 		0-91110-510-0 02 1 1511- ●
36 ARM; KNUCKLE
(A) 		1-43133-087-0 01 1 1511- ●
36 ARM; KNUCKLE
(B) 		1-43133-073-3 01 1 1511- ●
40 NUT; KNUCKLE ARM
(A) 		1-43139-059-0 01 1 1511- ●
40 NUT; KNUCKLE ARM
(B) M22 		1-09449-084-0 02 1 1511- ●
45 GASKET; KING PIN COVER
(A) 		1-43139-044-0 04 1 1511- ●
45 GASKET; KING PIN COVER
(B) 		8-98100-656-1 04 1 1511- ●
46 WASHER; LK,COVER 1-41519-055-0 12 1 1511- ●
48 BOLT; COVER
(A) 		1-43139-045-0 12 1 1511- ●
48 BOLT; COVER
(B) M10X25 FLANGE 		0-28751-025-0 12 1 1511- ●
58 ARM; TIE ROD
(A) 		1-43134-061-0 01 1 1511- ●
58 ARM; TIE ROD
(A) 		1-43135-066-0 01 1 1511- ●
58 ARM; TIE ROD
(B) 		1-43134-049-4 01 1 1511- ●
58 ARM; TIE ROD
(B) 		1-43135-049-4 01 1 1511- ●
61 ROD END; TIE ROD
(A) 		1-43155-058-0 01 1 1511- ●
61 ROD END; TIE ROD
(A) 		1-43156-058-0 01 1 1511- ●
61 ROD END; TIE ROD
(B) 		8-98228-106-0 01 1 1511- ●
61 ROD END; TIE ROD
(B) 		8-98228-107-0 01 1 1511- ●
66 NUT; TIE ROD END
(A) 		1-43139-052-0 02 1 1511- ●
66 NUT; TIE ROD END
(B) M24 		1-09442-032-0 02 1 1511- ●
171 PIN; SPLIT,STRG ARM 1-43139-048-0 03 1 1511- ●
211 ROD ASM; STEERING TIE ROD 1-43150-861-0 01 1 1511- ●
304 WASHER; PL
(A) 		1-43149-011-0 02 1 1511- ●
304 WASHER; PL
(B) ID=21 		9-09164-520-0 02 1 1511- ● ●
304 WASHER; PL
(C) ID=12.5 		0-91614-512-0 04 1 1511- ●
307 STOPPER; STEERING,RR 1-43149-012-0 02 1 1511- ●
321 BUSHING; KNUCKLE 1-42319-213-0 02 1 1511- ●
322 KEY; KNUCKLE ARM 1-43139-046-0 01 1 1511- ●
323 KEY; TIE ROD ARM 1-43139-046-0 02 1 1511- ●
362 COVER SET; KING PIN 1-43175-027-0 02 1 1511- ●

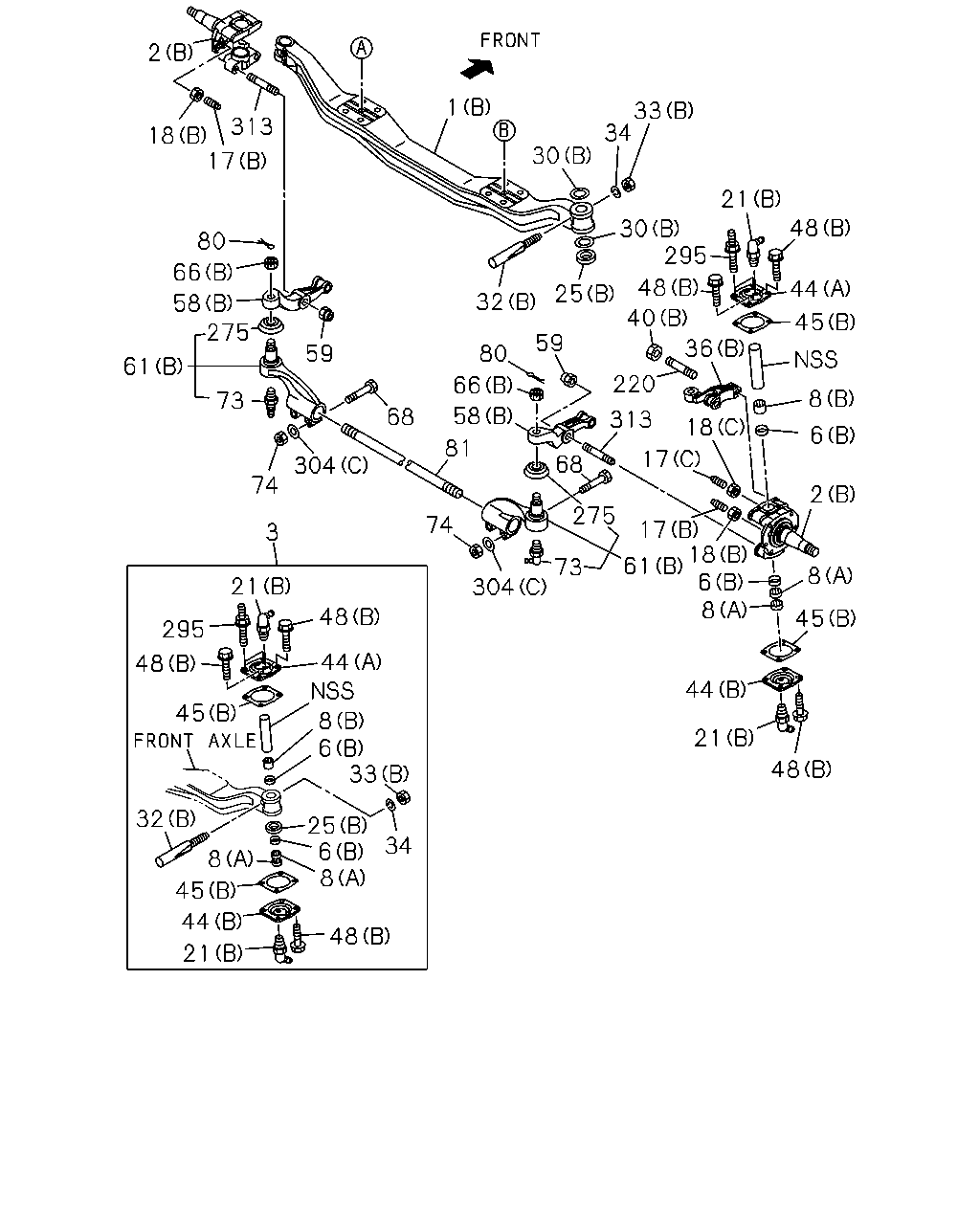

çizim 501974
2 18 313 17 80 66 275 58 61 74 73 59 304 68 74 3 21 48 48 48 48 44 295 45 32 8 45 44 21 8 25 6 33 34 6 8 81 304 21 48 44 8 61 73 275 68 58 66 80 32 25 30 1 34 33 21 30 48 220 17 313 17 18 6 45 2 8 6 8 45 44 48 18 36 295 59 40
BalonParca AdiParca NoAdetTipApplied Date A B
1 AXLE; FRT
(A) 		1-43111-161-0 01 1 1511- ●
1 AXLE; FRT
(B) 		8-98170-180-2 01 1 1511- ●
2 KNUCKLE; FRT AXLE
(A) 		1-43131-108-0 01 1 1511- ●
2 KNUCKLE; FRT AXLE
(A) 		1-43132-107-0 01 1 1511- ●
2 KNUCKLE; FRT AXLE
(B) 		1-43131-118-1 01 1 1511- ●
2 KNUCKLE; FRT AXLE
(B) 		1-43132-101-1 01 1 1511- ●
3 KING PIN SET 1-87831-410-2 02 1 1511- ●
6 SEAL; KING PIN
(A) 		1-09625-634-0 04 1 1511- ●
6 SEAL; KING PIN
(B) 		9-09926-024-0 04 1 1511- ●
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 1511- ●
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 1511- ●
17 BOLT; STOPPER KNUCKLE
(A) 		1-43149-014-0 02 1 1511- ●
17 BOLT; STOPPER KNUCKLE
(C) M18X53 		1-09009-066-0 01 1 1511- ●
17 BOLT; STOPPER KNUCKLE
(B) M18X43 		1-09009-190-0 02 1 1511- ●
18 NUT; STOPPER BOLT,KNUCKLE
(A) 		1-43149-013-0 02 1 1511- ●
18 NUT; STOPPER BOLT,KNUCKLE
(B) M18 		0-91110-518-0 02 1 1511- ●
18 NUT; STOPPER BOLT,KNUCKLE
(C) OCTAGON M18 		1-09469-011-1 01 1 1511- ●
21 NIPPLE; GREASE,KING PIN
(A) 		1-48259-253-0 04 1 1511- ●
21 NIPPLE; GREASE,KING PIN
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1511- ●
25 BEARING; THRUST,KING PIN
(A) 		1-43173-004-0 02 1 1511- ●
25 BEARING; THRUST,KING PIN
(B) NSK 		1-09829-043-2 02 1 1511- ●
30 WASHER; THRUST,KING PIN
(A) T=0.015" 		1-43171-338-0 AR 1 1511- ●
30 WASHER; THRUST,KING PIN
(A) T=0.010" 		1-43171-339-0 AR 1 1511- ●
30 WASHER; THRUST,KING PIN
(A) T=0.005" 		1-43171-340-0 AR 1 1511- ●
30 WASHER; THRUST,KING PIN
(B) T=4.875 -4.900 		1-43171-185-0 AR 1 1511- ●
30 WASHER; THRUST,KING PIN
(B) T=4.900 -4.925 		1-43171-186-0 AR 1 1511- ●
30 WASHER; THRUST,KING PIN
(B) T=4.925 -4.950 		1-43171-187-0 AR 1 1511- ●
30 WASHER; THRUST,KING PIN
(B) T=4.950 -4.975 		1-43171-188-0 AR 1 1511- ●
30 WASHER; THRUST,KING PIN
(B) T=4.975 -5.000 		1-43171-189-0 AR 1 1511- ●
30 WASHER; THRUST,KING PIN
(B) T=5.000 -5.025 		1-43171-190-0 AR 1 1511- ●
30 WASHER; THRUST,KING PIN
(B) T=5.025 -5.050 		1-43171-191-0 AR 1 1511- ●
30 WASHER; THRUST,KING PIN
(B) T=5.050 -5.075 		1-43171-192-0 AR 1 1511- ●
30 WASHER; THRUST,KING PIN
(B) T=5.075 -5.100 		1-43171-193-0 AR 1 1511- ●
30 WASHER; THRUST,KING PIN
(B) T=5.100 -5.125 		1-43171-194-0 AR 1 1511- ●
30 WASHER; THRUST,KING PIN
(B) T=5.125 -5.150 		1-43171-195-0 AR 1 1511- ●
30 WASHER; THRUST,KING PIN
(B) T=5.150 -5.175 		1-43171-196-0 AR 1 1511- ●
30 WASHER; THRUST,KING PIN
(B) T=5.175 -5.200 		1-43171-197-0 AR 1 1511- ●
30 WASHER; THRUST,KING PIN
(B) T=5.200 -5.225 		1-43171-198-0 AR 1 1511- ●
30 WASHER; THRUST,KING PIN
(B) T=5.225 -5.250 		1-43171-199-0 AR 1 1511- ●
32 BOLT; KEY,KING PIN
(A) L=3.25" 		1-43116-006-0 02 1 1511- ●
32 BOLT; KEY,KING PIN
(A) L=98.4 		1-43116-014-0 02 1 1511- ●
32 BOLT; KEY,KING PIN
(B) 		1-43116-002-2 02 1 1511- ●
33 NUT; KEY BOLT
(A) 		1-43119-002-0 04 1 1511- ●
33 NUT; KEY BOLT
(B) M10 		0-91110-510-0 02 1 1511- ●
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1511- ●
36 ARM; KNUCKLE
(A) 		1-43133-087-0 01 1 1511- ●
36 ARM; KNUCKLE
(B) 		1-43133-073-3 01 1 1511- ●
40 NUT; KNUCKLE ARM
(A) 		1-43139-059-0 01 1 1511- ●
40 NUT; KNUCKLE ARM
(B) M22 		1-09449-084-0 02 1 1511- ●
44 COVER; KING PIN
(A) 		8-98100-654-0 02 1 1511- ●
44 COVER; KING PIN
(B) 		8-98100-655-0 02 1 1511- ●
45 GASKET; KING PIN COVER
(A) 		1-43139-044-0 04 1 1511- ●
45 GASKET; KING PIN COVER
(B) 		8-98100-656-1 04 1 1511- ●
48 BOLT; COVER
(A) 		1-43139-045-0 12 1 1511- ●
48 BOLT; COVER
(B) M10X25 FLANGE 		0-28751-025-0 12 1 1511- ●
58 ARM; TIE ROD
(A) 		1-43134-061-0 01 1 1511- ●
58 ARM; TIE ROD
(A) 		1-43135-066-0 01 1 1511- ●
58 ARM; TIE ROD
(B) 		1-43134-049-4 01 1 1511- ●
58 ARM; TIE ROD
(B) 		1-43135-049-4 01 1 1511- ●
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 1511- ●
61 ROD END; TIE ROD
(A) 		1-43155-058-0 01 1 1511- ●
61 ROD END; TIE ROD
(A) 		1-43156-058-0 01 1 1511- ●
61 ROD END; TIE ROD
(B) 		8-98228-106-0 01 1 1511- ●
61 ROD END; TIE ROD
(B) 		8-98228-107-0 01 1 1511- ●
66 NUT; TIE ROD END
(A) 		1-43139-052-0 02 1 1511- ●
66 NUT; TIE ROD END
(B) M24 		1-09442-032-0 02 1 1511- ●
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 1511- ●
73 NIPPLE; GREASE,TIE ROD END 1-43159-133-0 02 1 1511- ●
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 1511- ●
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 1511- ●
81 ROD; TIE 8-98171-947-0 01 1 1511- ●
220 STUD; KNUCKLE ARM
M22X145 		1-09300-127-1 02 1 1511- ●
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1511- ●
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 1511- ●
304 WASHER; PL
(A) 		1-43149-011-0 02 1 1511- ●
304 WASHER; PL
(B) ID=21 		9-09164-520-0 02 1 1511- ● ●
304 WASHER; PL
(C) ID=12.5 		0-91614-512-0 04 1 1511- ●
313 STUD; TIE ROD ARM
M22X145 		1-09300-127-1 04 1 1511- ●

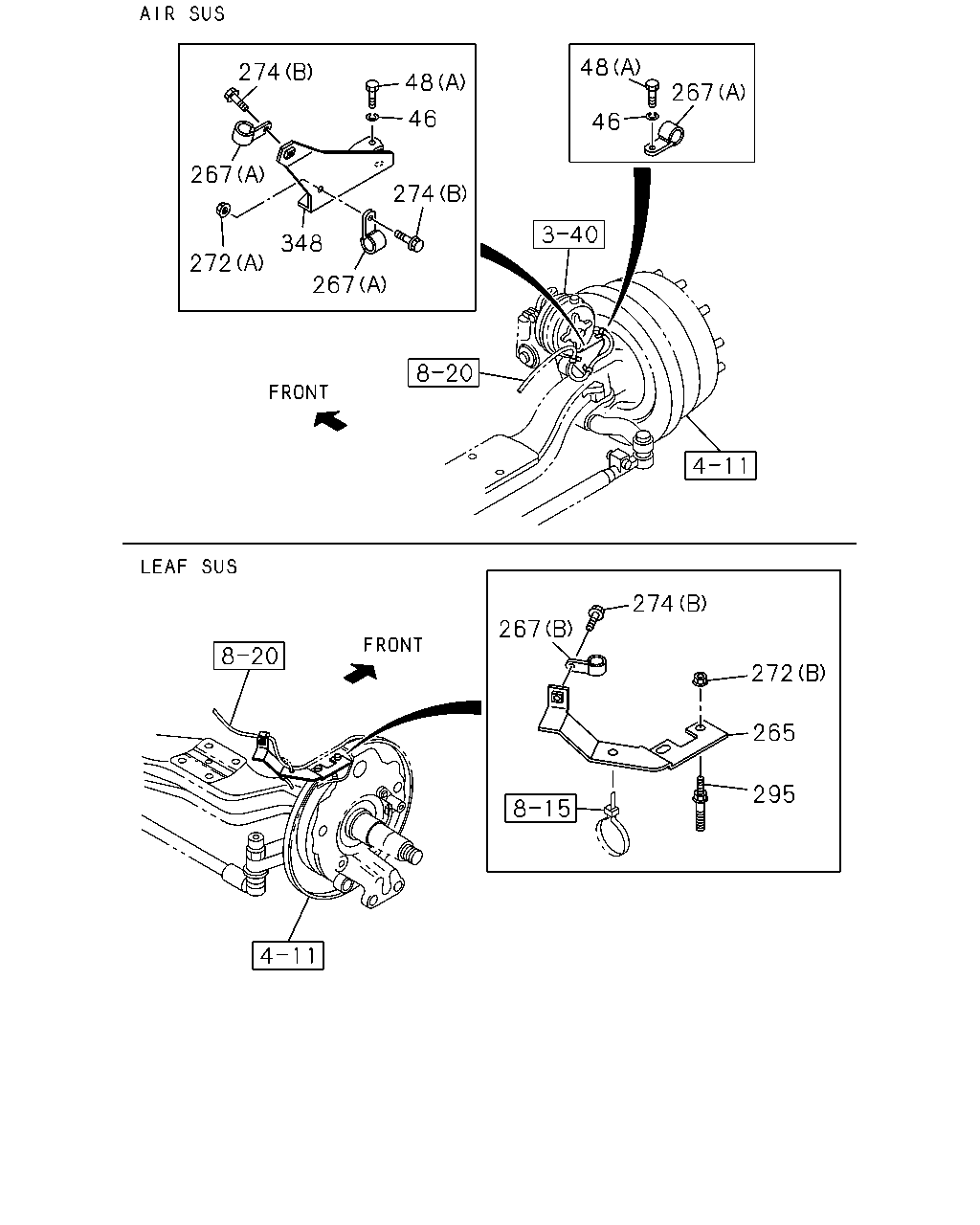

çizim 502572
274 48 274 267 272 267 348 48 267 274 272 265 295 267 46 46
BalonParca AdiParca NoAdetTipApplied Date A B
46 WASHER; LK,COVER 1-41519-055-0 12 1 1511- ●
48 BOLT; COVER
(A) 		1-43139-045-0 12 1 1511- ●
48 BOLT; COVER
(B) M10X25 FLANGE 		0-28751-025-0 12 1 1511- ●
265 BRACKET; CLIP I BEAM 8-98073-525-0 01 1 1511- ●
265 BRACKET; CLIP I BEAM 8-98073-526-0 01 1 1511- ●
267 CLIP; HARNESS
(A) ID=11 L=16 		0-95235-025-0 06 1 1511- ●
267 CLIP; HARNESS
(B) ID=11 L=20 		0-95235-035-0 02 1 1511- ●
272 NUT; CLIP
(A) M8 FLANGE 		0-91180-108-0 02 1 1511- ●
272 NUT; CLIP
(B) M10 FLANGE 		0-91180-110-0 04 1 1511- ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 09 1 1511- ●
274 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 04 1 1511- ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 08 1 1511- ●
274 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1511- ●
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 1511- ●
348 BRACKET; CLIP 8-98034-794-0 01 1 1511- ●
348 BRACKET; CLIP 8-98034-793-0 01 1 1511- ●

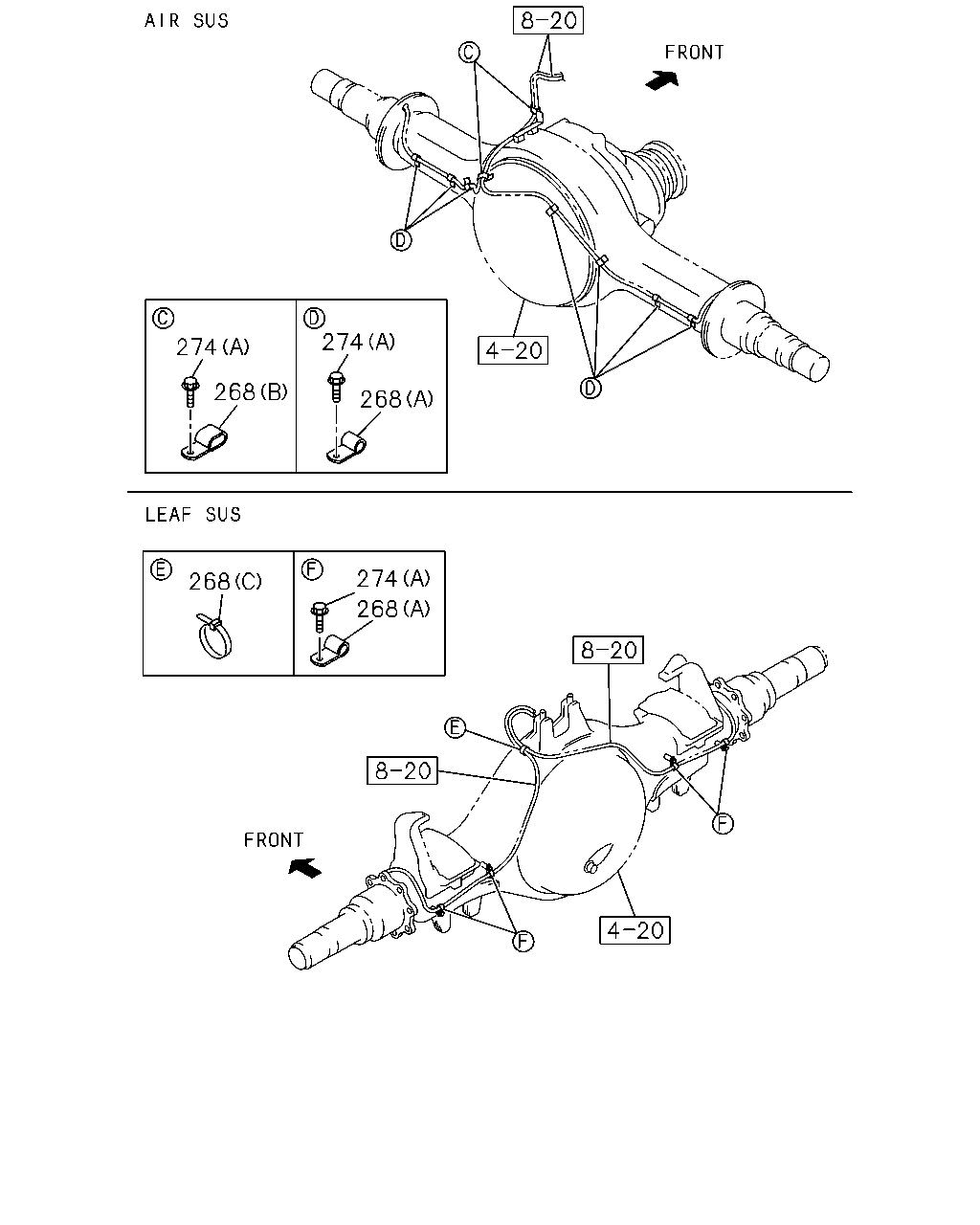

çizim 502595
274 268 268 274 268 268 274
BalonParca AdiParca NoAdetTipApplied Date A B
268 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 07 1 1511- ●
268 CLIP; HARNESS
(B) ID=11X2 L=16 		0-95325-025-0 02 1 1511- ●
268 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 04 1 1511- ●
268 CLIP; HARNESS
(C) L=140 		5-09707-031-1 01 1 1511- ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 09 1 1511- ●
274 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 04 1 1511- ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 08 1 1511- ●
274 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1511- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
