◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11718 - FVM AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#169887) — 268 parça

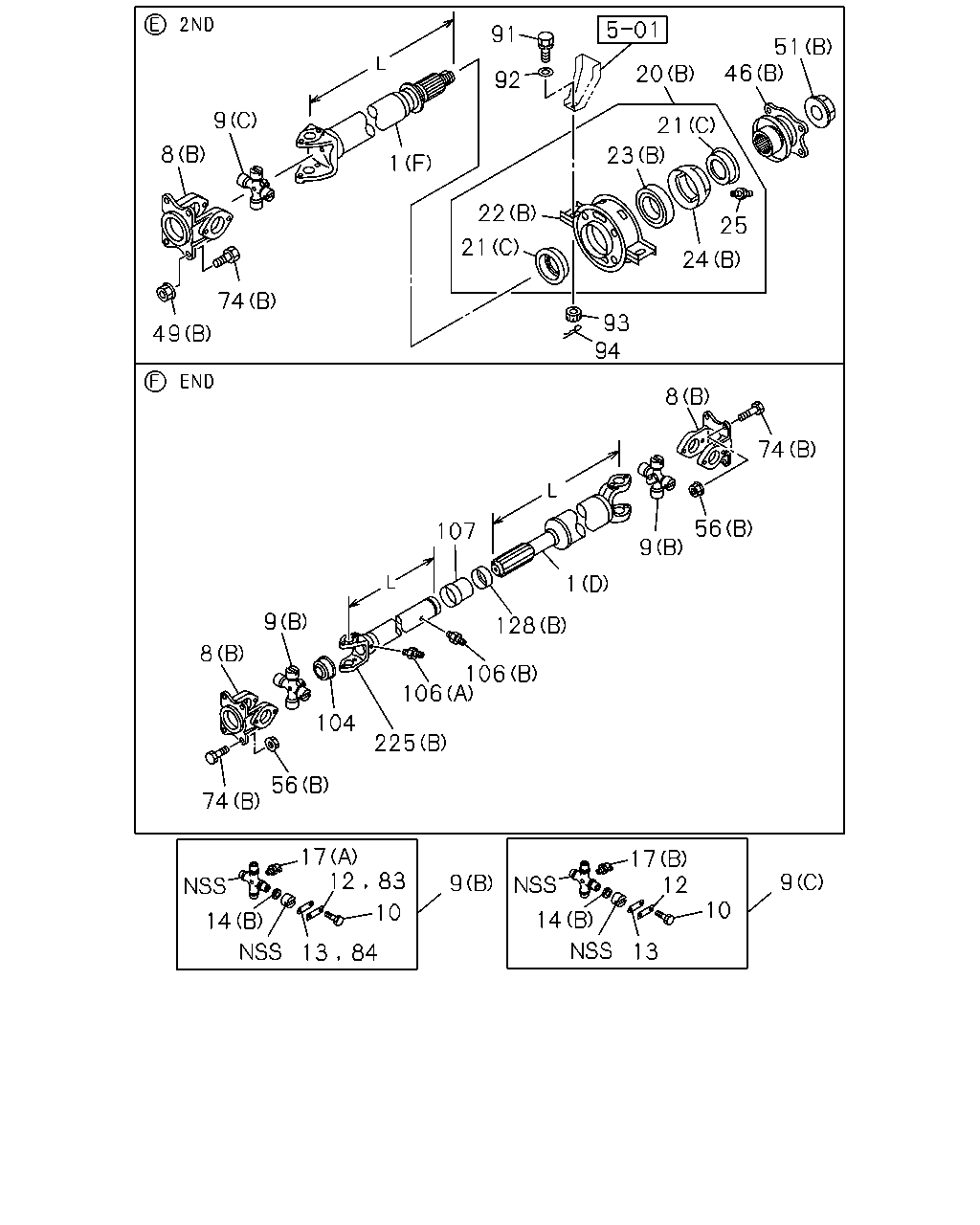

çizim 501197
13 10 12 17 14 9 9 13 84 12 83 10 17 14 74 56 104 225 106 106 128 1 9 56 74 8 107 9 8 94 93 24 25 21 23 22 21 49 74 1 9 8 92 91 20 46 51
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
ALLISON MD3560P A/T(Y3B) (F) L=1295 		8-98241-799-0 01 1 1511-
1 SHAFT; PROP
ALLISON MD3560P A/T(Y3B) (E) L=1154 		8-98241-800-0 01 1 1511-
1 SHAFT; PROP
ALLISON MD3560P A/T(Y3B) (D) L=989 		8-98241-801-0 01 1 1511-
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (B) L=1090 		8-98092-523-1 01 1 1511-
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (C) L=1215 		8-98092-404-1 01 1 1511-
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (A) L=1039 		8-98092-527-1 01 1 1511-
8 YOKE; FLANGE,PROP SHAFT
ALLISON MD3560P A/T(Y3B) (B) 		1-37211-072-1 04 1 1511-
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 01 1 1511-
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 03 1 1511-
9 JOURNAL ASM; PROP SHAFT
ALLISON MD3560P A/T(Y3B) (B) 		1-37300-094-1 03 1 1511-
9 JOURNAL ASM; PROP SHAFT
ALLISON MD3560P A/T(Y3B) (C) 		1-37300-095-1 01 1 1511-
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37300-110-0 01 1 1511-
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37300-110-0 03 1 1511-
10 BOLT; UJT
ALLISON MD3560P A/T(Y3B) M10X20 		0-20951-020-0 32 1 1511-
12 PLATE; LK,FRT UJT,PROP SHAFT
ALLISON MD3560P A/T(Y3B) 		1-37356-010-0 12 1 1511-
13 COVER; FRT UJT,PROP SHAFT
ALLISON MD3560P A/T(Y3B) T=6 		1-37355-022-0 12 1 1511-
14 COVER; DUST,SPIDER
ALLISON MD3560P A/T(Y3B) (B) 		9-37352-023-0 16 1 1511-
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E) (A) 		1-37249-131-0 04 1 1511-
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E) (A) 		1-37249-131-0 12 1 1511-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1511-
17 NIPPLE; GREASE,PROP SHAFT
ALLISON MD3560P A/T(Y3B) (B) PT1/8 ELBOW 		0-90301-610-0 01 1 1511-
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1511-
20 BEARING ASM; CTR,PROP SHAFT
ALLISON MD3560P A/T(Y3B) (B) 		1-37510-093-3 02 1 1511-
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) ID=60 		1-37510-115-0 01 1 1511-
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) ID=60 		1-37510-115-0 01 1 1511-
21 SEAL; OIL,CENTER BRG
ALLISON MD3560P A/T(Y3B) (C) D=120 		1-09625-126-0 04 1 1511-
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (A) D=120 		1-09625-127-0 01 1 1511-
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (A) D=120 		1-09625-127-0 01 1 1511-
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (B) 		1-09625-621-0 01 1 1511-
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (B) 		1-09625-621-0 01 1 1511-
22 RUBBER; CUSHION,CENTER BRG,1ST
ALLISON MD3560P A/T(Y3B) (B) 		1-37516-047-2 02 1 1511-
22 RUBBER; CUSHION,CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37516-048-2 01 1 1511-
22 RUBBER; CUSHION,CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37516-048-2 01 1 1511-
23 BEARING; CENTER,PROP SHAFT
ALLISON MD3560P A/T(Y3B) (B) 		9-00090-292-0 02 1 1511-
23 BEARING; CENTER,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		9-00090-256-0 01 1 1511-
23 BEARING; CENTER,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		9-00090-256-0 01 1 1511-
24 RETAINER; CENTER BRG,1ST
ALLISON MD3560P A/T(Y3B) (B) 		1-37529-039-0 02 1 1511-
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37529-109-0 01 1 1511-
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37529-109-0 01 1 1511-
25 NIPPLE; GREASE,CENTER BRG
ALLISON MD3560P A/T(Y3B) MT6 STRAIGHT 		1-09380-006-0 02 1 1511-
25 NIPPLE; GREASE,CENTER BRG
ZF9S1110 M/T(Y5E) MT6 STRAIGHT 		1-09380-006-0 01 1 1511-
25 NIPPLE; GREASE,CENTER BRG
ZF9S1110 M/T(Y5E) MT6 STRAIGHT 		1-09380-006-0 01 1 1511-
46 FLANGE; SPLINED,PROP SHAFT,1ST
ALLISON MD3560P A/T(Y3B) (B) 		1-37245-283-1 02 1 1511-
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37245-348-0 01 1 1511-
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37245-348-0 01 1 1511-
49 NUT; YOKE
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16 FLANGE 		1-09449-065-0 04 1 1511-
49 NUT; YOKE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14 FLANGE 		8-97365-444-0 04 1 1511-
51 NUT; FLANGE,SPLINED
ALLISON MD3560P A/T(Y3B) (B) M33 FLANGE 		1-09449-051-0 02 1 1511-
51 NUT; FLANGE,SPLINED
ZF9S1110 M/T(Y5E) (A) M39 FLANGE 		1-09440-046-0 01 1 1511-
51 NUT; FLANGE,SPLINED
ZF9S1110 M/T(Y5E) (A) M39 FLANGE 		1-09440-046-0 01 1 1511-
56 NUT; YOKE
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16 FLANGE 		1-09449-065-0 08 1 1511-
56 NUT; YOKE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14 FLANGE 		8-97365-444-0 08 1 1511-
74 BOLT; YOKE,TRANS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16X48 		1-09000-383-0 04 1 1511-
74 BOLT; YOKE,TRANS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16X48 		1-09000-383-0 08 1 1511-
74 BOLT; YOKE,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14X50 		1-09000-645-0 04 1 1511-
74 BOLT; YOKE,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14X50 		1-09000-645-0 08 1 1511-
83 PLATE; LK,UJT,PROP SHAFT
ALLISON MD3560P A/T(Y3B) 		1-37356-010-0 04 1 1511-
84 COVER; UJT,PROP SHAFT
ALLISON MD3560P A/T(Y3B) T=6 		1-37355-022-0 04 1 1511-
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 1511-
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 1511-
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1511-
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1511-
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 1511-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1511-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
ALLISON MD3560P A/T(Y3B) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1511-
107 COVER; RET,SLEEVE
ALLISON MD3560P A/T(Y3B) 		1-37249-137-1 01 1 1511-
128 SEAL; SLEEVE
ALLISON MD3560P A/T(Y3B) (B) 		1-37247-021-0 01 1 1511-
128 SEAL; SLEEVE
ZF9S1110 M/T(Y5E) (A) 		1-37247-019-0 01 1 1511-
225 YOKE; SLEEVE,PROP SHAFT
ALLISON MD3560P A/T(Y3B) (B) L=332 		1-37241-109-1 01 1 1511-
225 YOKE; SLEEVE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) L=330 		1-37241-124-0 01 1 1511-

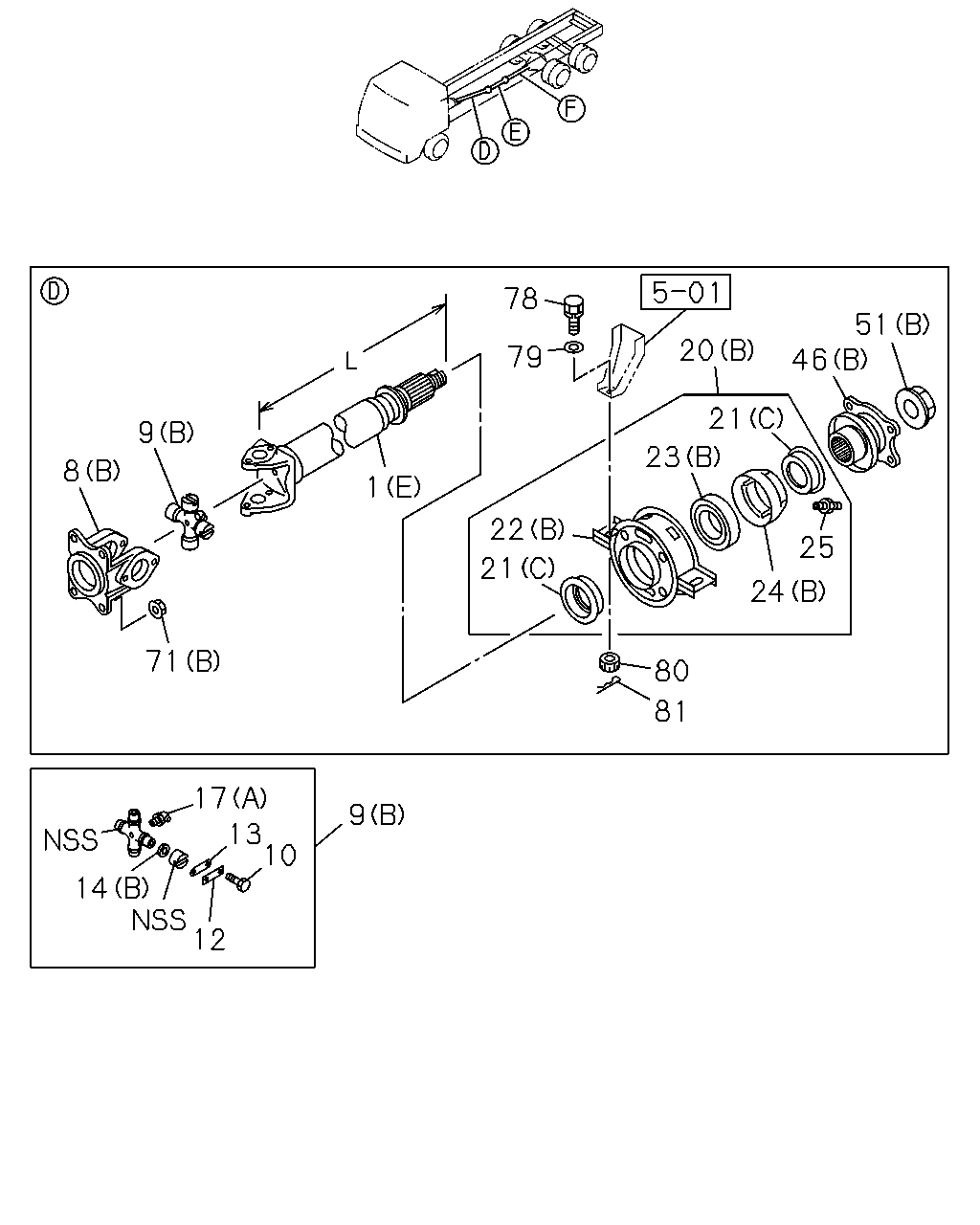

çizim 502383
12 14 10 13 17 9 71 8 9 1 21 22 80 81 24 25 23 21 20 46 51 79 78
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
ALLISON MD3560P A/T(Y3B) (F) L=1295 		8-98241-799-0 01 1 1511-
1 SHAFT; PROP
ALLISON MD3560P A/T(Y3B) (E) L=1154 		8-98241-800-0 01 1 1511-
1 SHAFT; PROP
ALLISON MD3560P A/T(Y3B) (D) L=989 		8-98241-801-0 01 1 1511-
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (B) L=1090 		8-98092-523-1 01 1 1511-
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (C) L=1215 		8-98092-404-1 01 1 1511-
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (A) L=1039 		8-98092-527-1 01 1 1511-
8 YOKE; FLANGE,PROP SHAFT
ALLISON MD3560P A/T(Y3B) (B) 		1-37211-072-1 04 1 1511-
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 01 1 1511-
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 03 1 1511-
9 JOURNAL ASM; PROP SHAFT
ALLISON MD3560P A/T(Y3B) (B) 		1-37300-094-1 03 1 1511-
9 JOURNAL ASM; PROP SHAFT
ALLISON MD3560P A/T(Y3B) (C) 		1-37300-095-1 01 1 1511-
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37300-110-0 01 1 1511-
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37300-110-0 03 1 1511-
10 BOLT; UJT
ALLISON MD3560P A/T(Y3B) M10X20 		0-20951-020-0 32 1 1511-
12 PLATE; LK,FRT UJT,PROP SHAFT
ALLISON MD3560P A/T(Y3B) 		1-37356-010-0 12 1 1511-
13 COVER; FRT UJT,PROP SHAFT
ALLISON MD3560P A/T(Y3B) T=6 		1-37355-022-0 12 1 1511-
14 COVER; DUST,SPIDER
ALLISON MD3560P A/T(Y3B) (B) 		9-37352-023-0 16 1 1511-
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E) (A) 		1-37249-131-0 04 1 1511-
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E) (A) 		1-37249-131-0 12 1 1511-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1511-
17 NIPPLE; GREASE,PROP SHAFT
ALLISON MD3560P A/T(Y3B) (B) PT1/8 ELBOW 		0-90301-610-0 01 1 1511-
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1511-
20 BEARING ASM; CTR,PROP SHAFT
ALLISON MD3560P A/T(Y3B) (B) 		1-37510-093-3 02 1 1511-
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) ID=60 		1-37510-115-0 01 1 1511-
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) ID=60 		1-37510-115-0 01 1 1511-
21 SEAL; OIL,CENTER BRG
ALLISON MD3560P A/T(Y3B) (C) D=120 		1-09625-126-0 04 1 1511-
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (A) D=120 		1-09625-127-0 01 1 1511-
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (A) D=120 		1-09625-127-0 01 1 1511-
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (B) 		1-09625-621-0 01 1 1511-
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (B) 		1-09625-621-0 01 1 1511-
22 RUBBER; CUSHION,CENTER BRG,1ST
ALLISON MD3560P A/T(Y3B) (B) 		1-37516-047-2 02 1 1511-
22 RUBBER; CUSHION,CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37516-048-2 01 1 1511-
22 RUBBER; CUSHION,CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37516-048-2 01 1 1511-
23 BEARING; CENTER,PROP SHAFT
ALLISON MD3560P A/T(Y3B) (B) 		9-00090-292-0 02 1 1511-
23 BEARING; CENTER,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		9-00090-256-0 01 1 1511-
23 BEARING; CENTER,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		9-00090-256-0 01 1 1511-
24 RETAINER; CENTER BRG,1ST
ALLISON MD3560P A/T(Y3B) (B) 		1-37529-039-0 02 1 1511-
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37529-109-0 01 1 1511-
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37529-109-0 01 1 1511-
25 NIPPLE; GREASE,CENTER BRG
ALLISON MD3560P A/T(Y3B) MT6 STRAIGHT 		1-09380-006-0 02 1 1511-
25 NIPPLE; GREASE,CENTER BRG
ZF9S1110 M/T(Y5E) MT6 STRAIGHT 		1-09380-006-0 01 1 1511-
25 NIPPLE; GREASE,CENTER BRG
ZF9S1110 M/T(Y5E) MT6 STRAIGHT 		1-09380-006-0 01 1 1511-
46 FLANGE; SPLINED,PROP SHAFT,1ST
ALLISON MD3560P A/T(Y3B) (B) 		1-37245-283-1 02 1 1511-
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37245-348-0 01 1 1511-
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37245-348-0 01 1 1511-
51 NUT; FLANGE,SPLINED
ALLISON MD3560P A/T(Y3B) (B) M33 FLANGE 		1-09449-051-0 02 1 1511-
51 NUT; FLANGE,SPLINED
ZF9S1110 M/T(Y5E) (A) M39 FLANGE 		1-09440-046-0 01 1 1511-
51 NUT; FLANGE,SPLINED
ZF9S1110 M/T(Y5E) (A) M39 FLANGE 		1-09440-046-0 01 1 1511-
71 NUT; YOKE
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16 FLANGE 		1-09449-065-0 04 1 1511-
71 NUT; YOKE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14 FLANGE 		8-97365-444-0 04 1 1511-
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1511-
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1511-
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1511-
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1511-
çizim 502569
91 24 46 21 25 23 22 21 20 1 9 8 74 49 92 94 9 17 14 19 93 51
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
ALLISON MD3560P A/T(Y3B) (F) L=1295 		8-98241-799-0 01 1 1511-
1 SHAFT; PROP
ALLISON MD3560P A/T(Y3B) (E) L=1154 		8-98241-800-0 01 1 1511-
1 SHAFT; PROP
ALLISON MD3560P A/T(Y3B) (D) L=989 		8-98241-801-0 01 1 1511-
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (B) L=1090 		8-98092-523-1 01 1 1511-
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (C) L=1215 		8-98092-404-1 01 1 1511-
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (A) L=1039 		8-98092-527-1 01 1 1511-
8 YOKE; FLANGE,PROP SHAFT
ALLISON MD3560P A/T(Y3B) (B) 		1-37211-072-1 04 1 1511-
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 01 1 1511-
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 03 1 1511-
9 JOURNAL ASM; PROP SHAFT
ALLISON MD3560P A/T(Y3B) (B) 		1-37300-094-1 03 1 1511-
9 JOURNAL ASM; PROP SHAFT
ALLISON MD3560P A/T(Y3B) (C) 		1-37300-095-1 01 1 1511-
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37300-110-0 01 1 1511-
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37300-110-0 03 1 1511-
14 COVER; DUST,SPIDER
ALLISON MD3560P A/T(Y3B) (B) 		9-37352-023-0 16 1 1511-
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E) (A) 		1-37249-131-0 04 1 1511-
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E) (A) 		1-37249-131-0 12 1 1511-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1511-
17 NIPPLE; GREASE,PROP SHAFT
ALLISON MD3560P A/T(Y3B) (B) PT1/8 ELBOW 		0-90301-610-0 01 1 1511-
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1511-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) T=2.2 		1-09587-102-1 04 1 1511-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) T=2.2 		1-09587-102-1 12 1 1511-
20 BEARING ASM; CTR,PROP SHAFT
ALLISON MD3560P A/T(Y3B) (B) 		1-37510-093-3 02 1 1511-
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) ID=60 		1-37510-115-0 01 1 1511-
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) ID=60 		1-37510-115-0 01 1 1511-
21 SEAL; OIL,CENTER BRG
ALLISON MD3560P A/T(Y3B) (C) D=120 		1-09625-126-0 04 1 1511-
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (A) D=120 		1-09625-127-0 01 1 1511-
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (A) D=120 		1-09625-127-0 01 1 1511-
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (B) 		1-09625-621-0 01 1 1511-
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (B) 		1-09625-621-0 01 1 1511-
22 RUBBER; CUSHION,CENTER BRG,1ST
ALLISON MD3560P A/T(Y3B) (B) 		1-37516-047-2 02 1 1511-
22 RUBBER; CUSHION,CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37516-048-2 01 1 1511-
22 RUBBER; CUSHION,CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37516-048-2 01 1 1511-
23 BEARING; CENTER,PROP SHAFT
ALLISON MD3560P A/T(Y3B) (B) 		9-00090-292-0 02 1 1511-
23 BEARING; CENTER,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		9-00090-256-0 01 1 1511-
23 BEARING; CENTER,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		9-00090-256-0 01 1 1511-
24 RETAINER; CENTER BRG,1ST
ALLISON MD3560P A/T(Y3B) (B) 		1-37529-039-0 02 1 1511-
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37529-109-0 01 1 1511-
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37529-109-0 01 1 1511-
25 NIPPLE; GREASE,CENTER BRG
ALLISON MD3560P A/T(Y3B) MT6 STRAIGHT 		1-09380-006-0 02 1 1511-
25 NIPPLE; GREASE,CENTER BRG
ZF9S1110 M/T(Y5E) MT6 STRAIGHT 		1-09380-006-0 01 1 1511-
25 NIPPLE; GREASE,CENTER BRG
ZF9S1110 M/T(Y5E) MT6 STRAIGHT 		1-09380-006-0 01 1 1511-
46 FLANGE; SPLINED,PROP SHAFT,1ST
ALLISON MD3560P A/T(Y3B) (B) 		1-37245-283-1 02 1 1511-
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37245-348-0 01 1 1511-
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37245-348-0 01 1 1511-
49 NUT; YOKE
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16 FLANGE 		1-09449-065-0 04 1 1511-
49 NUT; YOKE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14 FLANGE 		8-97365-444-0 04 1 1511-
51 NUT; FLANGE,SPLINED
ALLISON MD3560P A/T(Y3B) (B) M33 FLANGE 		1-09449-051-0 02 1 1511-
51 NUT; FLANGE,SPLINED
ZF9S1110 M/T(Y5E) (A) M39 FLANGE 		1-09440-046-0 01 1 1511-
51 NUT; FLANGE,SPLINED
ZF9S1110 M/T(Y5E) (A) M39 FLANGE 		1-09440-046-0 01 1 1511-
74 BOLT; YOKE,TRANS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16X48 		1-09000-383-0 04 1 1511-
74 BOLT; YOKE,TRANS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16X48 		1-09000-383-0 08 1 1511-
74 BOLT; YOKE,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14X50 		1-09000-645-0 04 1 1511-
74 BOLT; YOKE,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14X50 		1-09000-645-0 08 1 1511-
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 1511-
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 1511-
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1511-
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1511-

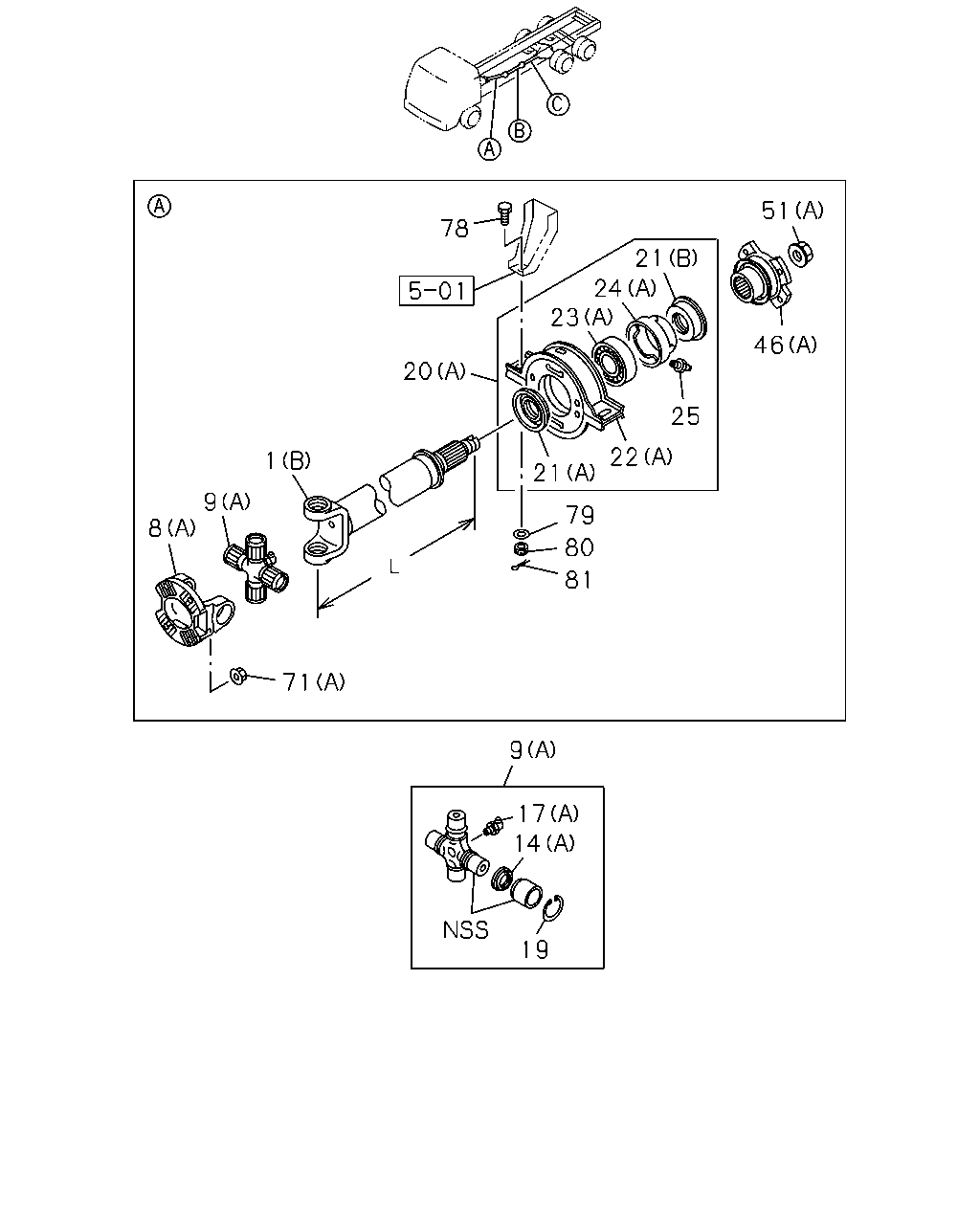

çizim 502593
78 51 20 46 25 22 21 1 9 8 23 24 21 71 79 80 81 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
ALLISON MD3560P A/T(Y3B) (F) L=1295 		8-98241-799-0 01 1 1511-
1 SHAFT; PROP
ALLISON MD3560P A/T(Y3B) (E) L=1154 		8-98241-800-0 01 1 1511-
1 SHAFT; PROP
ALLISON MD3560P A/T(Y3B) (D) L=989 		8-98241-801-0 01 1 1511-
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (B) L=1090 		8-98092-523-1 01 1 1511-
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (C) L=1215 		8-98092-404-1 01 1 1511-
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (A) L=1039 		8-98092-527-1 01 1 1511-
8 YOKE; FLANGE,PROP SHAFT
ALLISON MD3560P A/T(Y3B) (B) 		1-37211-072-1 04 1 1511-
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 01 1 1511-
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 03 1 1511-
9 JOURNAL ASM; PROP SHAFT
ALLISON MD3560P A/T(Y3B) (B) 		1-37300-094-1 03 1 1511-
9 JOURNAL ASM; PROP SHAFT
ALLISON MD3560P A/T(Y3B) (C) 		1-37300-095-1 01 1 1511-
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37300-110-0 01 1 1511-
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37300-110-0 03 1 1511-
14 COVER; DUST,SPIDER
ALLISON MD3560P A/T(Y3B) (B) 		9-37352-023-0 16 1 1511-
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E) (A) 		1-37249-131-0 04 1 1511-
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E) (A) 		1-37249-131-0 12 1 1511-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1511-
17 NIPPLE; GREASE,PROP SHAFT
ALLISON MD3560P A/T(Y3B) (B) PT1/8 ELBOW 		0-90301-610-0 01 1 1511-
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1511-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) T=2.2 		1-09587-102-1 04 1 1511-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) T=2.2 		1-09587-102-1 12 1 1511-
20 BEARING ASM; CTR,PROP SHAFT
ALLISON MD3560P A/T(Y3B) (B) 		1-37510-093-3 02 1 1511-
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) ID=60 		1-37510-115-0 01 1 1511-
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) ID=60 		1-37510-115-0 01 1 1511-
21 SEAL; OIL,CENTER BRG
ALLISON MD3560P A/T(Y3B) (C) D=120 		1-09625-126-0 04 1 1511-
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (A) D=120 		1-09625-127-0 01 1 1511-
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (A) D=120 		1-09625-127-0 01 1 1511-
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (B) 		1-09625-621-0 01 1 1511-
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (B) 		1-09625-621-0 01 1 1511-
22 RUBBER; CUSHION,CENTER BRG,1ST
ALLISON MD3560P A/T(Y3B) (B) 		1-37516-047-2 02 1 1511-
22 RUBBER; CUSHION,CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37516-048-2 01 1 1511-
22 RUBBER; CUSHION,CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37516-048-2 01 1 1511-
23 BEARING; CENTER,PROP SHAFT
ALLISON MD3560P A/T(Y3B) (B) 		9-00090-292-0 02 1 1511-
23 BEARING; CENTER,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		9-00090-256-0 01 1 1511-
23 BEARING; CENTER,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		9-00090-256-0 01 1 1511-
24 RETAINER; CENTER BRG,1ST
ALLISON MD3560P A/T(Y3B) (B) 		1-37529-039-0 02 1 1511-
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37529-109-0 01 1 1511-
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37529-109-0 01 1 1511-
25 NIPPLE; GREASE,CENTER BRG
ALLISON MD3560P A/T(Y3B) MT6 STRAIGHT 		1-09380-006-0 02 1 1511-
25 NIPPLE; GREASE,CENTER BRG
ZF9S1110 M/T(Y5E) MT6 STRAIGHT 		1-09380-006-0 01 1 1511-
25 NIPPLE; GREASE,CENTER BRG
ZF9S1110 M/T(Y5E) MT6 STRAIGHT 		1-09380-006-0 01 1 1511-
46 FLANGE; SPLINED,PROP SHAFT,1ST
ALLISON MD3560P A/T(Y3B) (B) 		1-37245-283-1 02 1 1511-
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37245-348-0 01 1 1511-
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37245-348-0 01 1 1511-
51 NUT; FLANGE,SPLINED
ALLISON MD3560P A/T(Y3B) (B) M33 FLANGE 		1-09449-051-0 02 1 1511-
51 NUT; FLANGE,SPLINED
ZF9S1110 M/T(Y5E) (A) M39 FLANGE 		1-09440-046-0 01 1 1511-
51 NUT; FLANGE,SPLINED
ZF9S1110 M/T(Y5E) (A) M39 FLANGE 		1-09440-046-0 01 1 1511-
71 NUT; YOKE
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16 FLANGE 		1-09449-065-0 04 1 1511-
71 NUT; YOKE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14 FLANGE 		8-97365-444-0 04 1 1511-
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1511-
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1511-
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1511-
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1511-
çizim 502676
74 8 104 225 128 1 9 56 74 8 106 56 9 17 14 19 9
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
ALLISON MD3560P A/T(Y3B) (F) L=1295 		8-98241-799-0 01 1 1511-
1 SHAFT; PROP
ALLISON MD3560P A/T(Y3B) (E) L=1154 		8-98241-800-0 01 1 1511-
1 SHAFT; PROP
ALLISON MD3560P A/T(Y3B) (D) L=989 		8-98241-801-0 01 1 1511-
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (B) L=1090 		8-98092-523-1 01 1 1511-
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (C) L=1215 		8-98092-404-1 01 1 1511-
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (A) L=1039 		8-98092-527-1 01 1 1511-
8 YOKE; FLANGE,PROP SHAFT
ALLISON MD3560P A/T(Y3B) (B) 		1-37211-072-1 04 1 1511-
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 01 1 1511-
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 03 1 1511-
9 JOURNAL ASM; PROP SHAFT
ALLISON MD3560P A/T(Y3B) (B) 		1-37300-094-1 03 1 1511-
9 JOURNAL ASM; PROP SHAFT
ALLISON MD3560P A/T(Y3B) (C) 		1-37300-095-1 01 1 1511-
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37300-110-0 01 1 1511-
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37300-110-0 03 1 1511-
14 COVER; DUST,SPIDER
ALLISON MD3560P A/T(Y3B) (B) 		9-37352-023-0 16 1 1511-
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E) (A) 		1-37249-131-0 04 1 1511-
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E) (A) 		1-37249-131-0 12 1 1511-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1511-
17 NIPPLE; GREASE,PROP SHAFT
ALLISON MD3560P A/T(Y3B) (B) PT1/8 ELBOW 		0-90301-610-0 01 1 1511-
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1511-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) T=2.2 		1-09587-102-1 04 1 1511-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) T=2.2 		1-09587-102-1 12 1 1511-
56 NUT; YOKE
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16 FLANGE 		1-09449-065-0 08 1 1511-
56 NUT; YOKE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14 FLANGE 		8-97365-444-0 08 1 1511-
74 BOLT; YOKE,TRANS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16X48 		1-09000-383-0 04 1 1511-
74 BOLT; YOKE,TRANS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16X48 		1-09000-383-0 08 1 1511-
74 BOLT; YOKE,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14X50 		1-09000-645-0 04 1 1511-
74 BOLT; YOKE,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14X50 		1-09000-645-0 08 1 1511-
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 1511-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1511-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
ALLISON MD3560P A/T(Y3B) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1511-
128 SEAL; SLEEVE
ALLISON MD3560P A/T(Y3B) (B) 		1-37247-021-0 01 1 1511-
128 SEAL; SLEEVE
ZF9S1110 M/T(Y5E) (A) 		1-37247-019-0 01 1 1511-
225 YOKE; SLEEVE,PROP SHAFT
ALLISON MD3560P A/T(Y3B) (B) L=332 		1-37241-109-1 01 1 1511-
225 YOKE; SLEEVE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) L=330 		1-37241-124-0 01 1 1511-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
