◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11718 - FVM AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#169886) — 100 parça

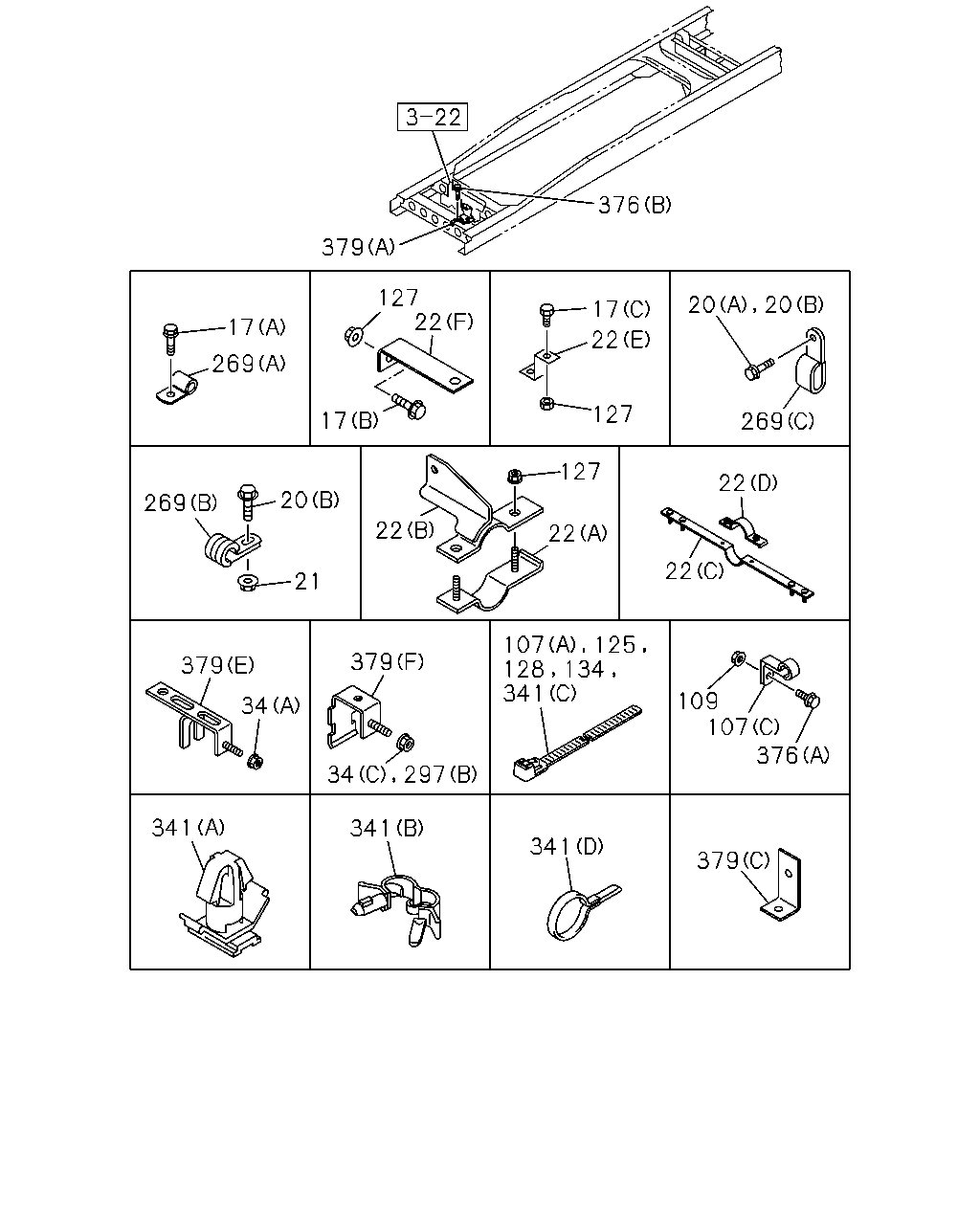

çizim 500947
379 376 127 379 379 379 269 269 269 17 22 22 17 20 20 22 22 109 107 376 125 134 107 128 341 34 297 341 341 341 127 17 21 34 127 22 22 20
BalonParca AdiParca NoAdetTipApplied Date A B
17 BOLT; CLIP BRKT
(B) M8X35 FLANGE 		0-28650-835-0 02 1 1511- ●
17 BOLT; CLIP BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1511- ●
17 BOLT; CLIP BRKT
(C) M10X35 FLANGE 		0-28651-035-0 01 1 1511- ●
20 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 03 1 1511- ●
20 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 01 1 1511- ●
20 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1511- ●
20 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 02 1 1511- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1511- ●
22 BRACKET; CLIP
(F) 		1-34656-009-0 02 1 1511- ●
22 BRACKET; CLIP
(A) 		8-98212-967-0 01 1 1511- ●
22 BRACKET; CLIP
(B) 		8-98212-968-0 01 1 1511- ●
22 BRACKET; CLIP
(E) 		1-47475-868-0 01 1 1511- ●
22 BRACKET; CLIP
(D) 		1-47479-546-0 01 1 1511- ●
22 BRACKET; CLIP
(C) 		1-47479-720-0 01 1 1511- ●
34 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 02 1 1511- ● ●
34 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
34 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 06 1 1511- ● ●
34 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 1511- ● ●
107 CLIP; NYLON TUBE
H.S.A SYSTEM<6EP> (B) ID=35 L=33 		1-09700-945-0 01 1 1511- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 1511- ● ●
107 CLIP; NYLON TUBE
(C) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1511- ● ●
107 CLIP; NYLON TUBE
EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33 		8-98009-359-0 01 1 1511- ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
125 CLIP; NYLON TUBE
L=350 		1-09707-183-0 03 1 1511- ● ●
125 CLIP; NYLON TUBE
L=350 		1-09707-183-0 05 1 1511- ● ●
125 CLIP; NYLON TUBE
L=350 		1-09707-183-0 19 1 1511- ● ●
125 CLIP; NYLON TUBE
L=350 		1-09707-183-0 24 1 1511- ● ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 03 1 1511- ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1511- ●
128 CLIP; NYLON TUBE
L=350 		1-09707-183-0 02 1 1511- ●
128 CLIP; NYLON TUBE
L=350 		1-09707-183-0 04 1 1511- ●
134 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 1511- ● ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 03 1 1511- ●
269 CLIP; BAND,NYLON TUBE
(A) ID=39 L=33 		8-98009-359-0 03 1 1511- ●
269 CLIP; BAND,NYLON TUBE
(C) ID=11X2 L=20 		0-95325-035-0 02 1 1511- ●
297 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 04 1 1511- ●
297 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1511- ●
341 CLIP; HARNESS
(D) ID=11 L=61 		1-09700-484-0 01 1 1511- ● ●
341 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 02 1 1511- ● ●
341 CLIP; HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 1511- ● ●
341 CLIP; HARNESS
(C) L=250 		5-09707-030-1 05 1 1511- ● ●
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1511- ● ●
376 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1511- ● ●
376 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 02 1 1511- ● ●
379 BRACKET; NYLON TUBE
(B) 		8-98044-013-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(A) 		8-98074-610-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(C) L=65 B=25 		8-98135-584-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(D) L=60 H=30 		1-47477-716-1 02 1 1511- ● ●
379 BRACKET; NYLON TUBE
(E) 		8-98177-873-0 04 1 1511- ● ●
379 BRACKET; NYLON TUBE
(F) 		8-98186-380-0 01 1 1511- ● ●

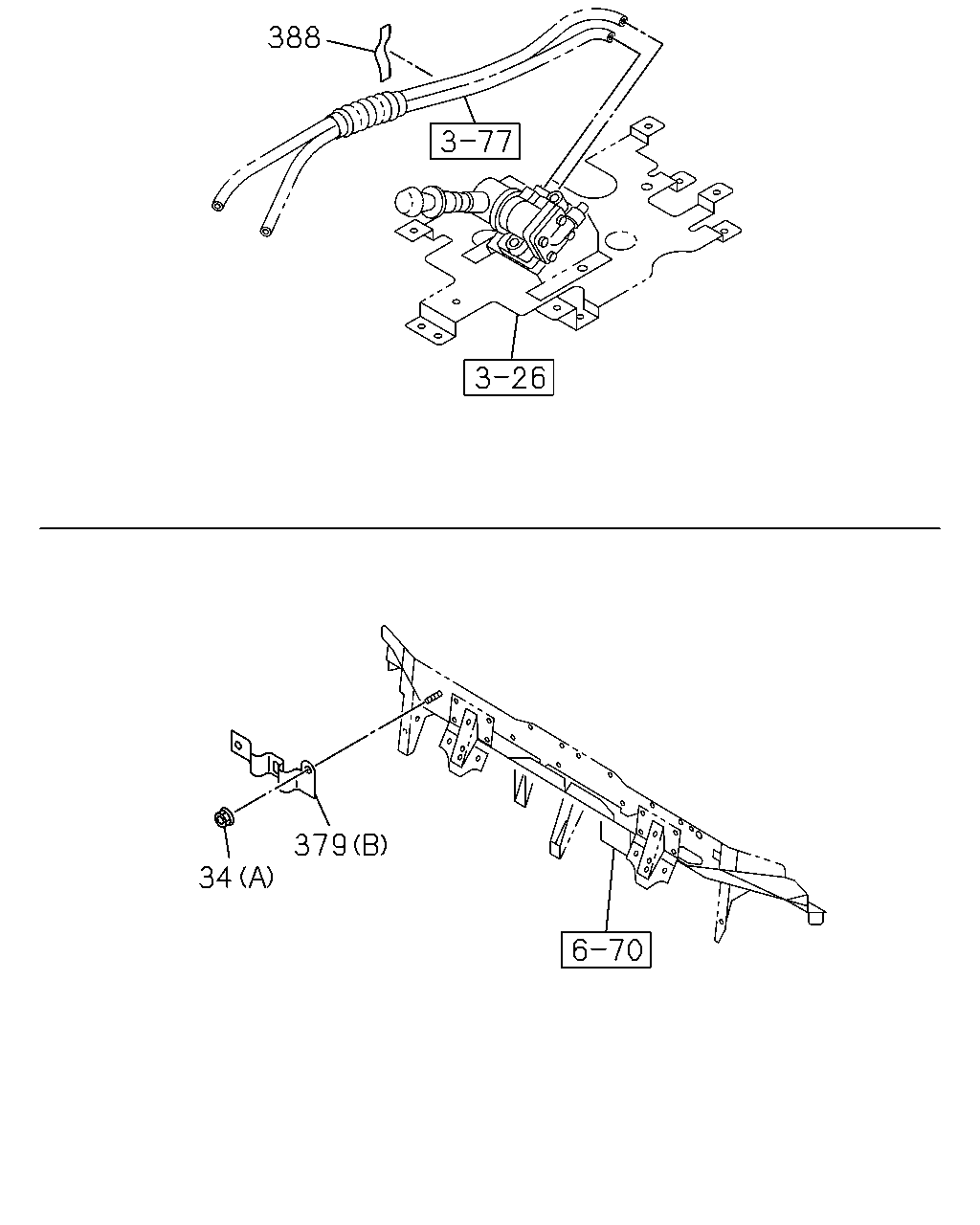

çizim 501254
388 379 34
BalonParca AdiParca NoAdetTipApplied Date A B
34 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 02 1 1511- ● ●
34 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
34 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 06 1 1511- ● ●
34 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(B) 		8-98044-013-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(A) 		8-98074-610-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(C) L=65 B=25 		8-98135-584-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(D) L=60 H=30 		1-47477-716-1 02 1 1511- ● ●
379 BRACKET; NYLON TUBE
(E) 		8-98177-873-0 04 1 1511- ● ●
379 BRACKET; NYLON TUBE
(F) 		8-98186-380-0 01 1 1511- ● ●
388 SEAL
100X40 		1-72498-022-1 03 1 1511- ● ●

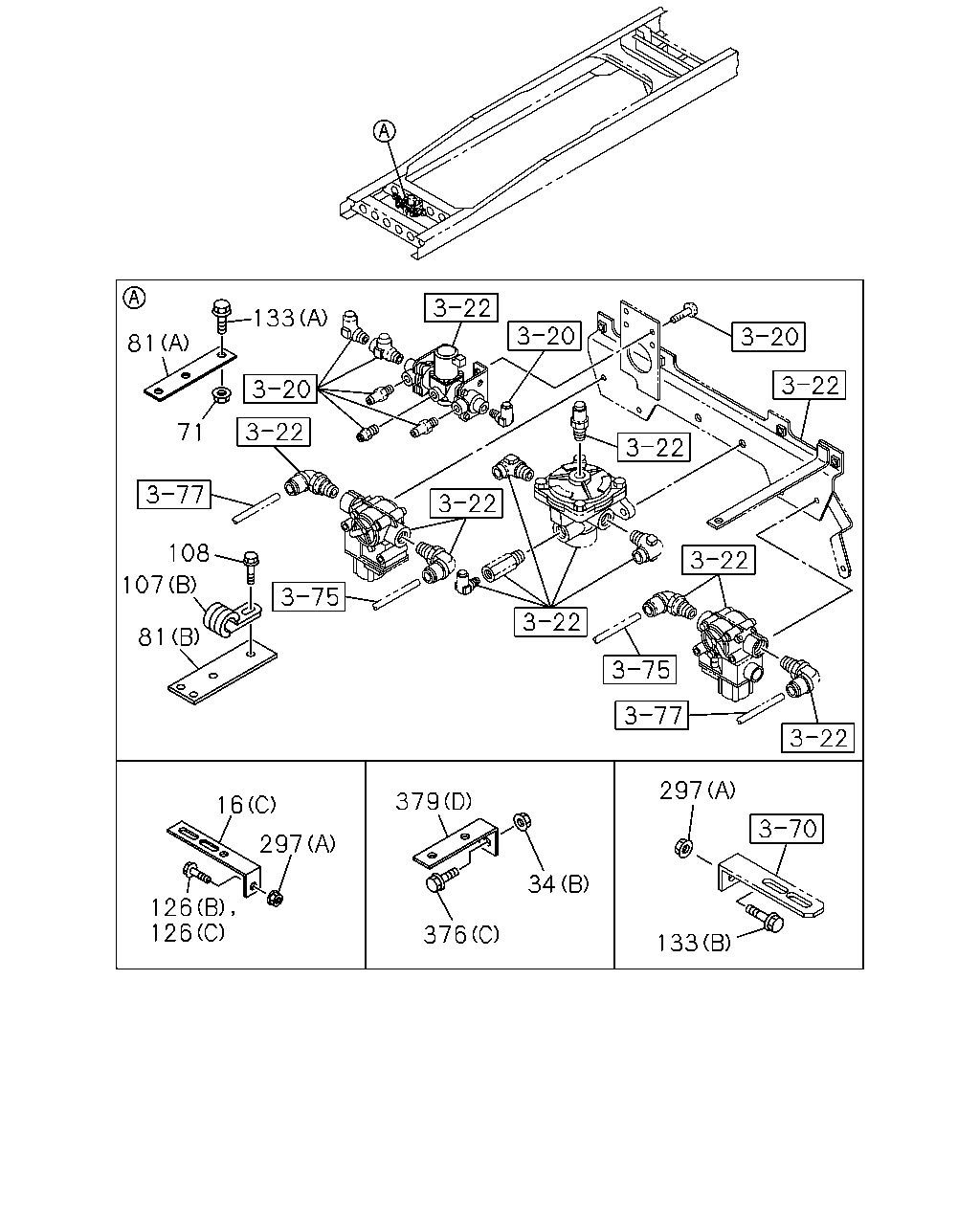

çizim 502457
133 81 71 108 297 133 34 379 297 16 126 126 376 107 81
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; PIPE CLIP
(A) FORWARD RH,REARWARD LH 		1-42129-481-2 02 1 1511- ●
16 BRACKET; PIPE CLIP
(B) FORWARD LH,REARWARD RH 		1-42129-482-2 02 1 1511- ●
16 BRACKET; PIPE CLIP
(C) L=100 H=30 		1-47477-645-2 03 1 1511- ●
16 BRACKET; PIPE CLIP
(C) L=100 H=30 		1-47477-645-2 01 1 1511- ●
34 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 02 1 1511- ● ●
34 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
34 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 06 1 1511- ● ●
34 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 1511- ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
81 BRACKET; CLIP
(A) L=170 		1-47479-380-0 01 1 1511- ● ●
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 1511- ● ●
107 CLIP; NYLON TUBE
H.S.A SYSTEM<6EP> (B) ID=35 L=33 		1-09700-945-0 01 1 1511- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 1511- ● ●
107 CLIP; NYLON TUBE
(C) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1511- ● ●
107 CLIP; NYLON TUBE
EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33 		8-98009-359-0 01 1 1511- ● ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1511- ● ●
126 BOLT; CLIP BRKT
(A) M8X16 FLANGE 		0-28050-816-0 08 1 1511- ●
126 BOLT; CLIP BRKT
(C) M8X35 FLANGE 		0-28650-835-0 02 1 1511- ●
126 BOLT; CLIP BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1511- ● ●
133 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1511- ● ●
133 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1511- ● ●
297 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 04 1 1511- ●
297 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1511- ●
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1511- ● ●
376 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1511- ● ●
376 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 02 1 1511- ● ●
379 BRACKET; NYLON TUBE
(B) 		8-98044-013-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(A) 		8-98074-610-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(C) L=65 B=25 		8-98135-584-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(D) L=60 H=30 		1-47477-716-1 02 1 1511- ● ●
379 BRACKET; NYLON TUBE
(E) 		8-98177-873-0 04 1 1511- ● ●
379 BRACKET; NYLON TUBE
(F) 		8-98186-380-0 01 1 1511- ● ●

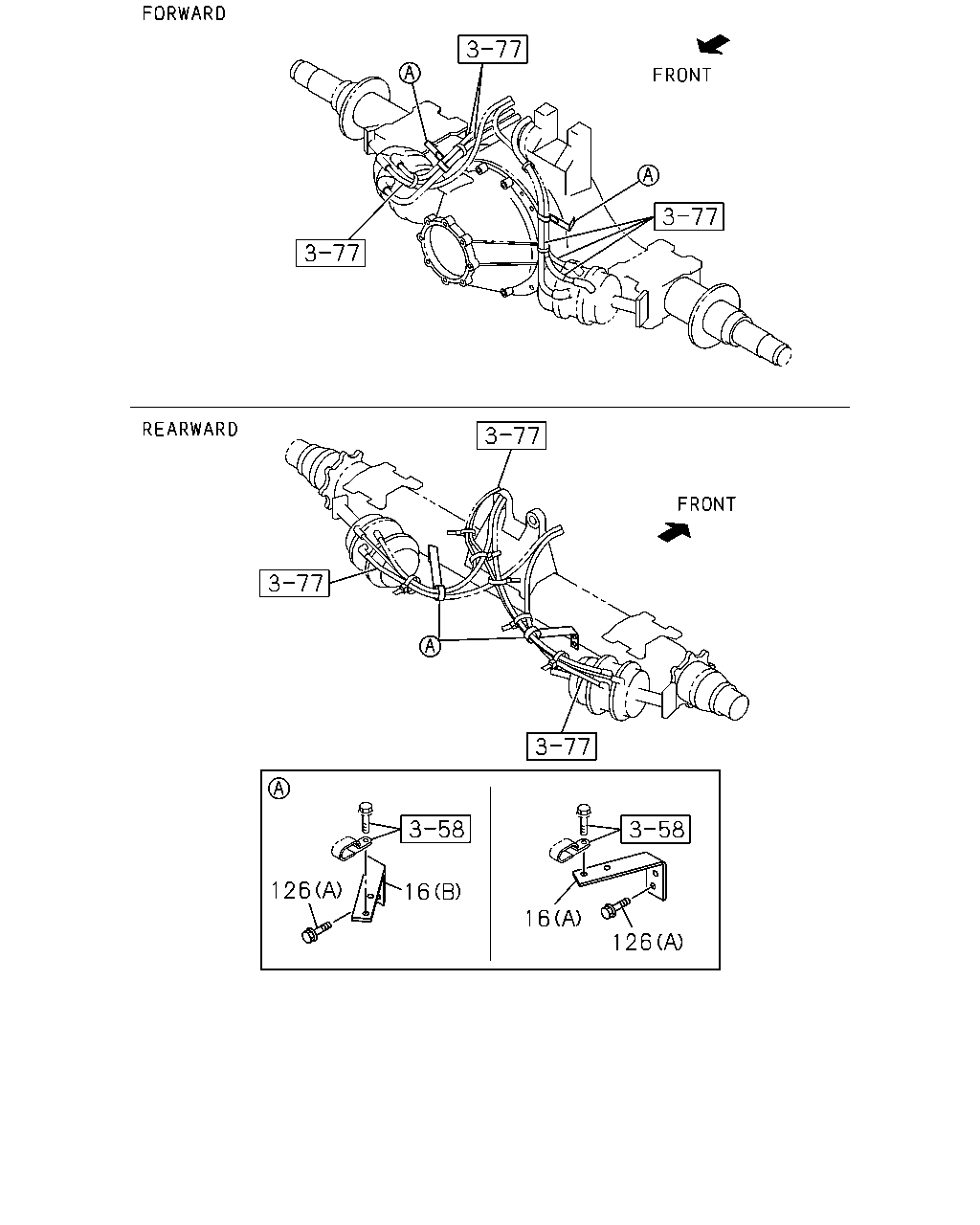

çizim 502548
16 126 126 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; PIPE CLIP
(A) FORWARD RH,REARWARD LH 		1-42129-481-2 02 1 1511- ●
16 BRACKET; PIPE CLIP
(B) FORWARD LH,REARWARD RH 		1-42129-482-2 02 1 1511- ●
16 BRACKET; PIPE CLIP
(C) L=100 H=30 		1-47477-645-2 03 1 1511- ●
16 BRACKET; PIPE CLIP
(C) L=100 H=30 		1-47477-645-2 01 1 1511- ●
126 BOLT; CLIP BRKT
(A) M8X16 FLANGE 		0-28050-816-0 08 1 1511- ●
126 BOLT; CLIP BRKT
(C) M8X35 FLANGE 		0-28650-835-0 02 1 1511- ●
126 BOLT; CLIP BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1511- ● ●
