3-70 — BRAKE PIPING; AIR,AIR MASTER (#169883) — 50 parça

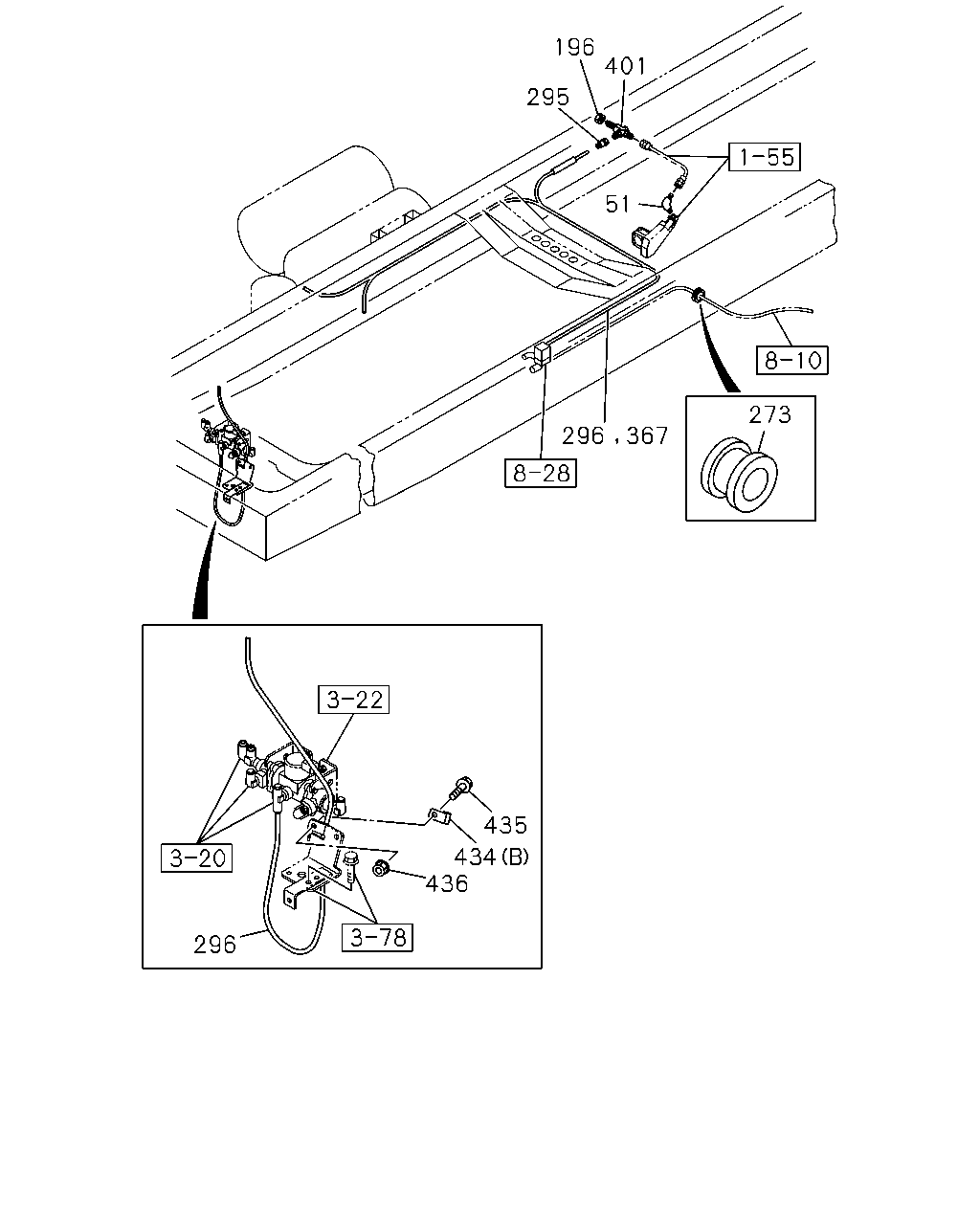

çizim 502377
295 196 51 401 296 367 273 296 436 435 434
BalonParca AdiParca NoAdetTipApplied Date A B
51 UNION
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1511- ● ●
196 NUT; FLEX HOSE
M12 		0-91111-512-0 01 1 1511- ● ●
273 GROMMET
ID=28 OD=35 T=25 		1-09332-011-1 01 1 1511- ● ●
295 CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1511- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1511- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1511- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1511- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1511- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1511- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1511- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1511- ● ●
401 CONNECTOR; FLEX HOSE
M12 2WAY 		1-09654-059-2 01 1 1511- ● ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 1511- ● ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 1511- ● ●
434 CLIP
(C) L=350 		1-09707-183-0 02 1 1511- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1511- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1511- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●

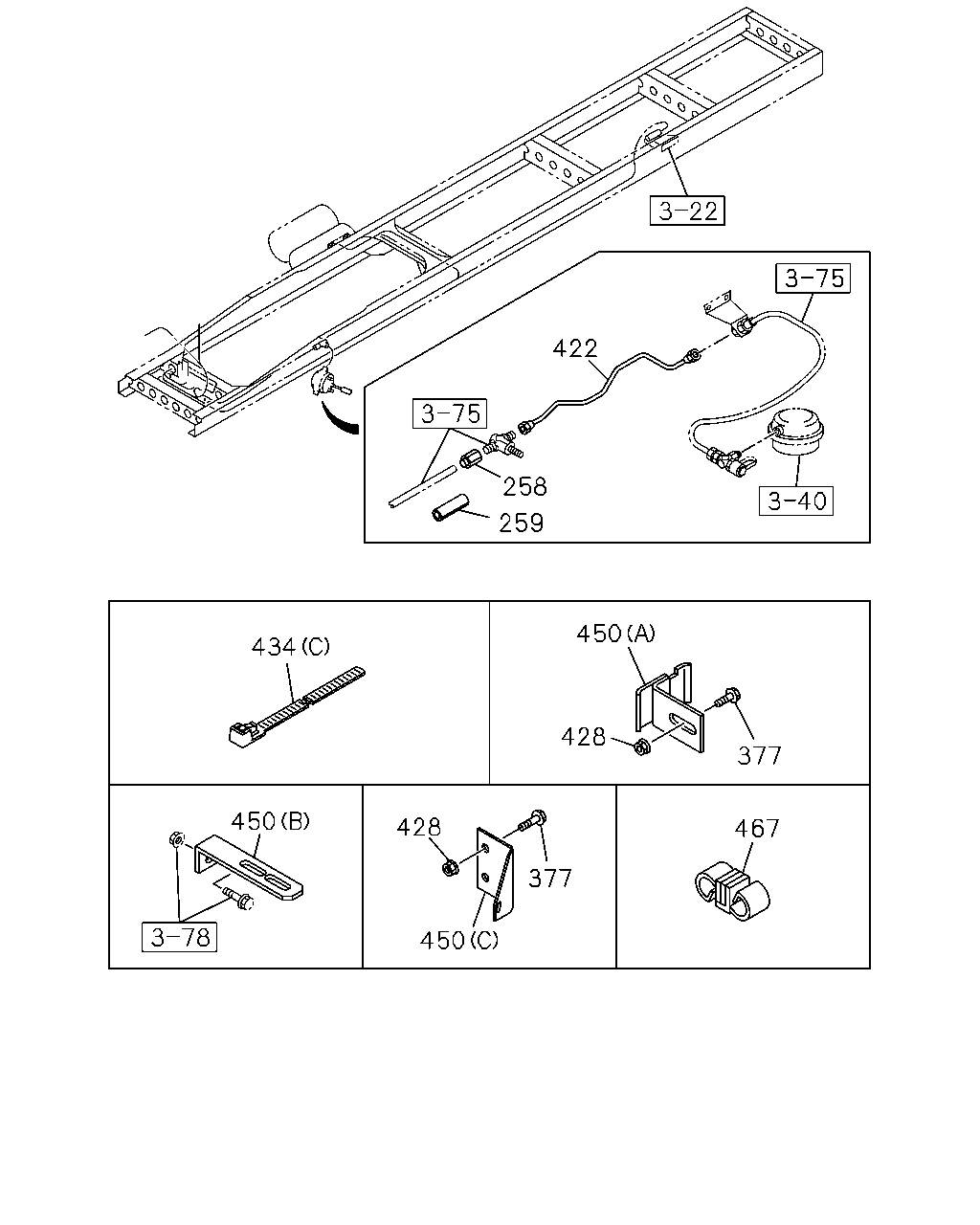

çizim 502474
422 258 259 450 428 377 467 434 450 428 377 450
BalonParca AdiParca NoAdetTipApplied Date A B
258 CONNECTOR; NYLON TUBE
DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 1511- ● ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 1511- ● ●
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 1511- ●
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 01 1 1511- ●
422 PIPE; AIR,AIR CHAMBER
L=500 		8-98091-274-1 01 1 1511- ● ●
422 PIPE; AIR,AIR CHAMBER
L=657 		8-98126-150-1 01 1 1511- ● ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1511- ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1511- ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 1511- ● ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 1511- ● ●
434 CLIP
(C) L=350 		1-09707-183-0 02 1 1511- ● ●
450 BRACKET; CLIP
(A) 		1-47479-693-0 02 1 1511- ●
450 BRACKET; CLIP
(B) L=150 H=30 		1-47477-629-2 01 1 1511- ● ●
450 BRACKET; CLIP
(C) 		1-47476-699-2 01 1 1511- ●
467 CLIP; NYLON TUBE
ID=12 & 15 		1-09709-281-1 01 1 1511- ● ●

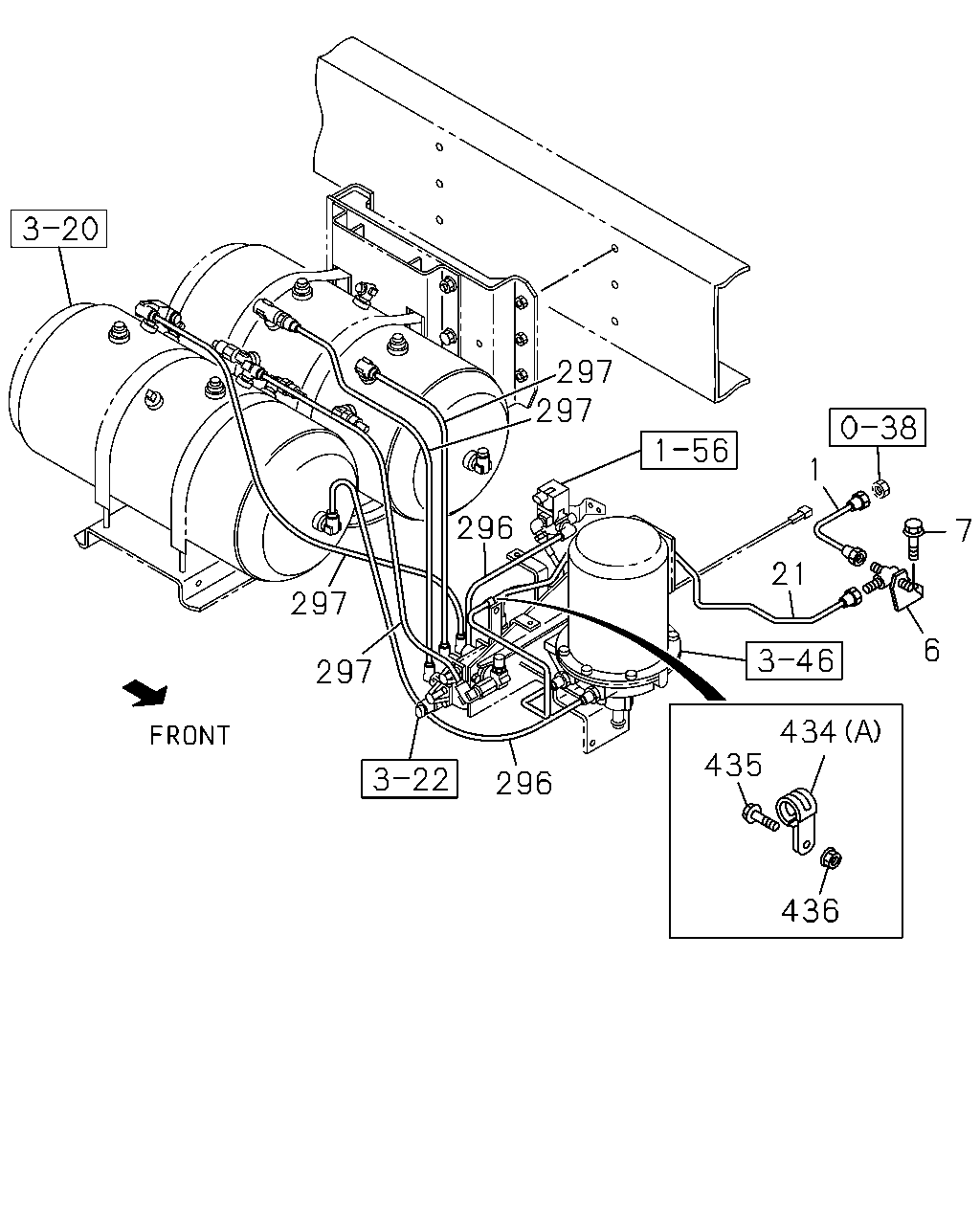

çizim 502644
297 297 296 296 297 297 1 21 7 6 434 435 436
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
L=320 		8-98067-411-0 01 1 1511- ● ●
6 BRACKET; FLEX HOSE,AIR TANK 8-98076-344-0 01 1 1511- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1511- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
L=1715 		8-98095-083-0 01 1 1511- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1511- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1511- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1511- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1511- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1511- ● ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 1511- ● ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 1511- ● ●
434 CLIP
(C) L=350 		1-09707-183-0 02 1 1511- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1511- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1511- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
