◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11718 - FVM AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-40 - FRONT BRAKE POWER CHAMBER ▶
3-40 — FRONT BRAKE POWER CHAMBER (#169879) — 16 parça

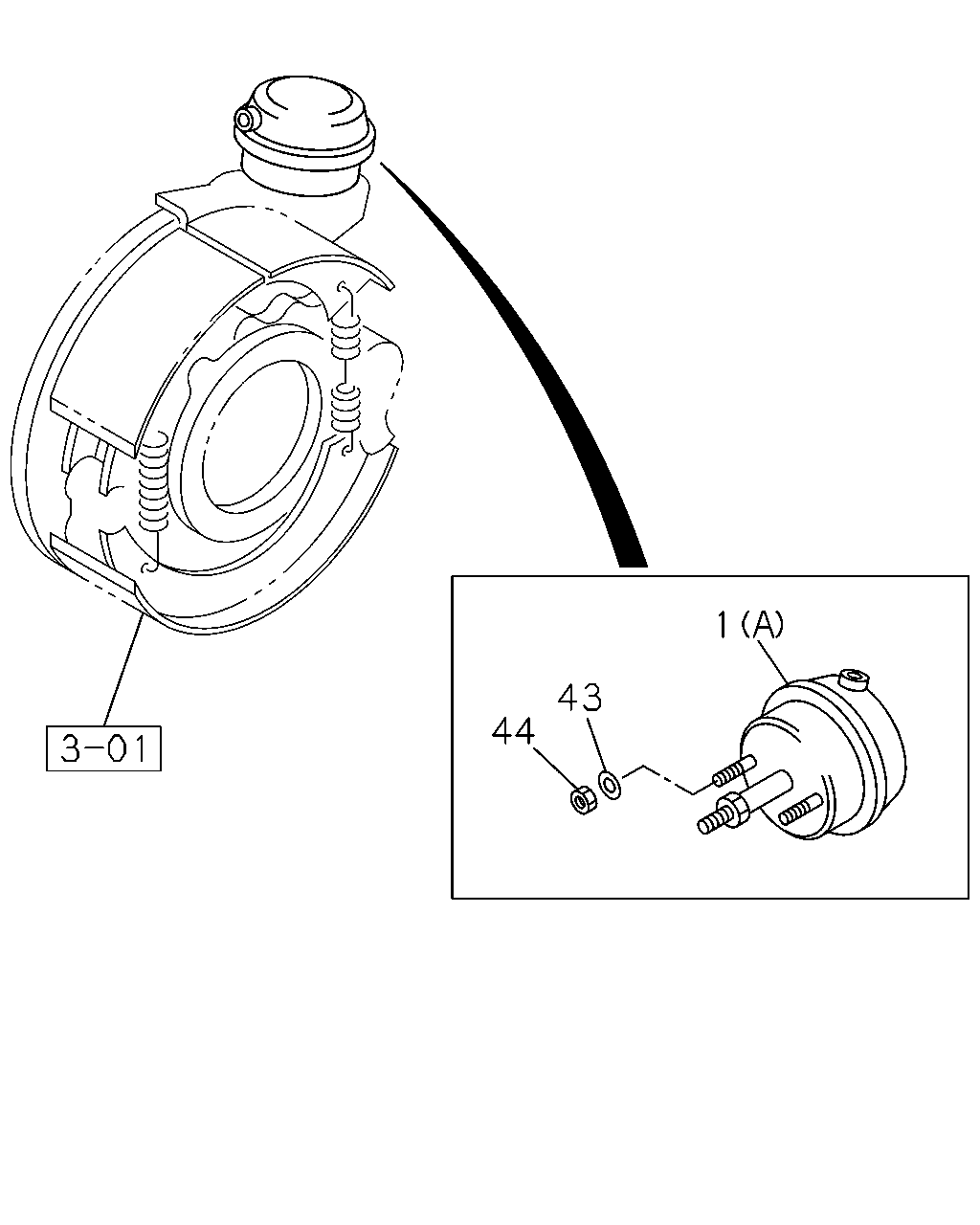

çizim 501444
44 43 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; POWER,FRT BRK
(A) 		1-48250-938-0 02 1 1511- ●
1 CHAMBER ASM; POWER,FRT BRK
(B) 		8-98145-680-1 02 1 1511- ●
43 WASHER; LK,POWER CHAMBER 1-41519-038-0 04 1 1511- ●
44 NUT; POWER CHAMBER 1-87050-052-0 04 1 1511- ●
çizim 502191
1 52 2 50 49 12 1 6 4 66 51 57
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; POWER,FRT BRK
(A) 		1-48250-938-0 02 1 1511- ●
1 CHAMBER ASM; POWER,FRT BRK
(B) 		8-98145-680-1 02 1 1511- ●
2 RING; CLAMP,SPR CHAMBER 1-48269-256-0 02 1 1511- ●
4 BOLT; CLAMP RING 1-48269-257-0 02 1 1511- ●
6 NUT; CLAMP RING 1-48269-147-0 02 1 1511- ●
12 COVER ASM; LWR,SPR CHAMBER 1-48251-103-0 02 1 1511- ●
49 ROD; PUSH,SPR CHAMBER 8-98146-969-1 02 1 1511- ●
50 GUIDE; SPR CHAMBER 8-98146-963-1 02 1 1511- ●
51 RING; SPR CHAMBER 8-98146-966-0 02 1 1511- ●
52 HOUSING; SPR CHAMBER 8-98248-793-0 02 1 1511- ●
57 REPAIR KIT; SPR CHAMBER 8-98146-978-0 02 1 1511- ●
66 SHIM 8-98146-965-0 AR 1 1511- ●
