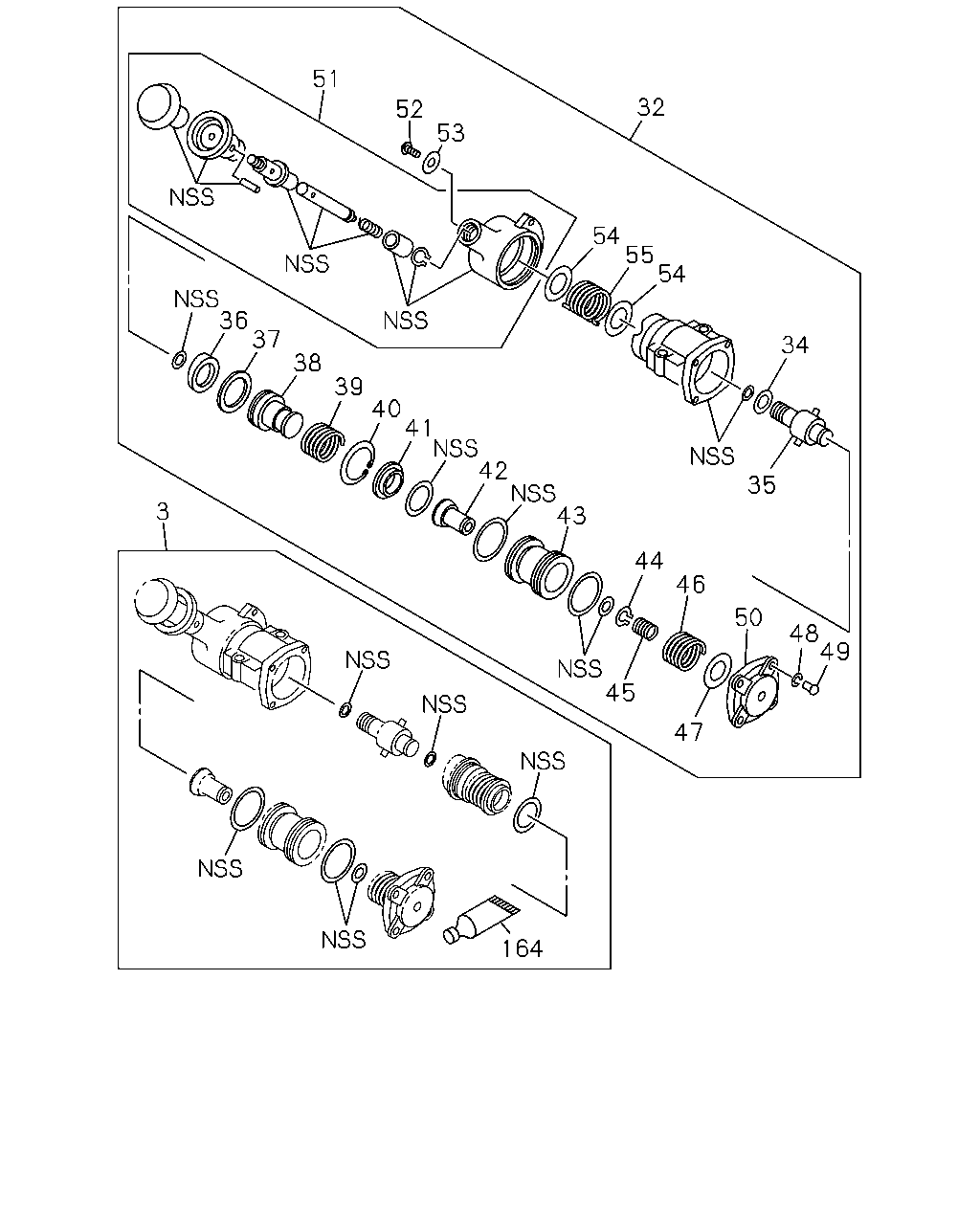

3-26 — TRAILER CONTROL (#169877) — 32 parça

3 164 36 39 38 37 40 42 41 43 45 44 46 50 47 48 49 35 34 51 53 52 32 54 54 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	REPAIR KIT; HAND BRK VLV	1-48469-096-0	01	1	1511-	●	●
32	VALVE; BRK,HAND CONT	1-48460-306-0	01	1	1511-	●	●
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	1511-	●	●
35	HOLDER; CAM	1-48469-054-0	01	1	1511-	●	●
36	RING; CAM	1-48469-056-0	01	1	1511-	●	●
37	GUIDE; CAM RING	1-48469-058-0	01	1	1511-	●	●
38	SEAT; EXH VLV	1-48469-057-0	01	1	1511-	●	●
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	1511-	●	●
40	RING; SNAP	1-48469-067-0	01	1	1511-	●	●
41	SEAT; FEED VLV	1-48469-066-0	01	1	1511-	●	●
42	VALVE; FEED	1-48469-065-0	01	1	1511-	●	●
43	PISTON; HAND BRK VLV	1-48469-064-0	01	1	1511-	●	●
44	RING; SNAP,FEED VLV	1-48469-068-0	02	1	1511-	●	●
45	SPRING; FEED VLV	1-48469-070-0	01	1	1511-	●	●
46	SPRING; MAIN,PISTON	1-48469-089-0	01	1	1511-	●	●
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	1511-	●	●
48	WASHER; COVER	1-48469-091-0	04	1	1511-	●	●
49	SCREW; COVER	1-48469-092-0	04	1	1511-	●	●
50	COVER; HAND BRK VLV	1-48469-090-0	01	1	1511-	●	●
51	HANDLE ASM; HAND BRK VLV	1-48469-122-0	01	1	1511-	●	●
52	SCREW; HANDLE	1-48469-062-0	01	1	1511-	●	●
53	WASHER; HANDLE	1-48469-061-0	01	1	1511-	●	●
54	SEAT; SPRING	1-48469-082-0	02	1	1511-	●	●
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	1511-	●	●
164	GREASE; HAND BRK VLV	1-48469-084-0	01	1	1511-	●	●

138 138 32 151 112 138 256 256

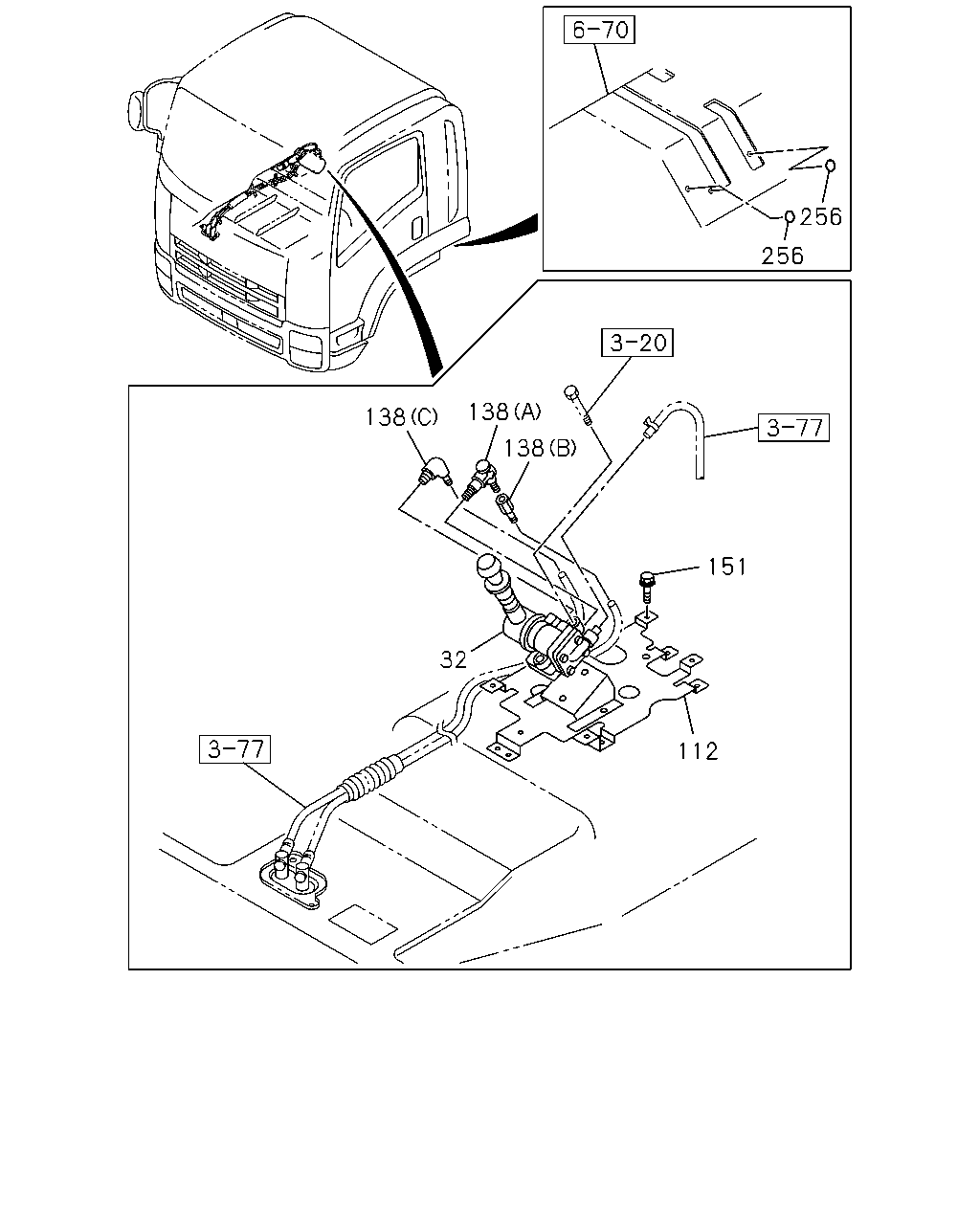

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	VALVE; BRK,HAND CONT	1-48460-306-0	01	1	1511-	●	●
112	BRACKET; CONT VLV	1-73908-054-7	01	1	1511-	●	●
138	CONNECTOR; DELIVERY (A)	1-09650-240-1	01	1	1511-	●	●
138	CONNECTOR; DELIVERY (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1511-	●	●
138	CONNECTOR; DELIVERY (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1511-	●	●
151	BOLT; VLV BRKT M6X16	0-52000-616-0	04	1	1511-	●	●
256	SEAL OD=25 BLACK	1-76798-019-0	08	1	1511-	●	●
