◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11718 - FVM AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#169875) — 104 parça

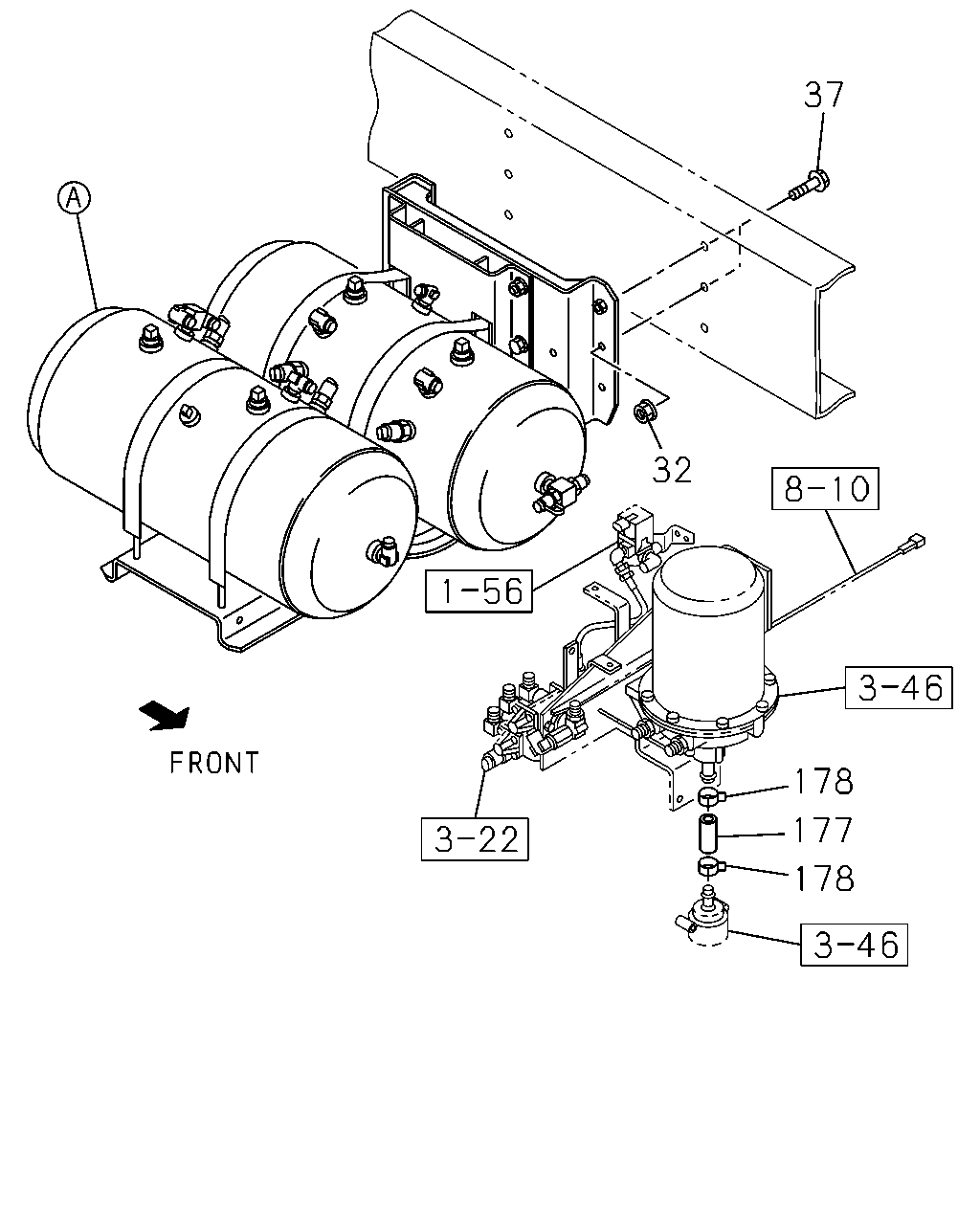

çizim 501688
37 32 178 177 178
BalonParca AdiParca NoAdetTipApplied Date A B
32 NUT; BRKT TO FRAME
M12 FLANGE 		0-91180-112-0 04 1 1511- ● ●
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28651-240-0 06 1 1511- ● ●
177 HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000 		0-03566-300-0 01 1 1511- ● ●
178 CLIP; HOSE
ID=21 		8-94242-034-0 02 1 1511- ● ●

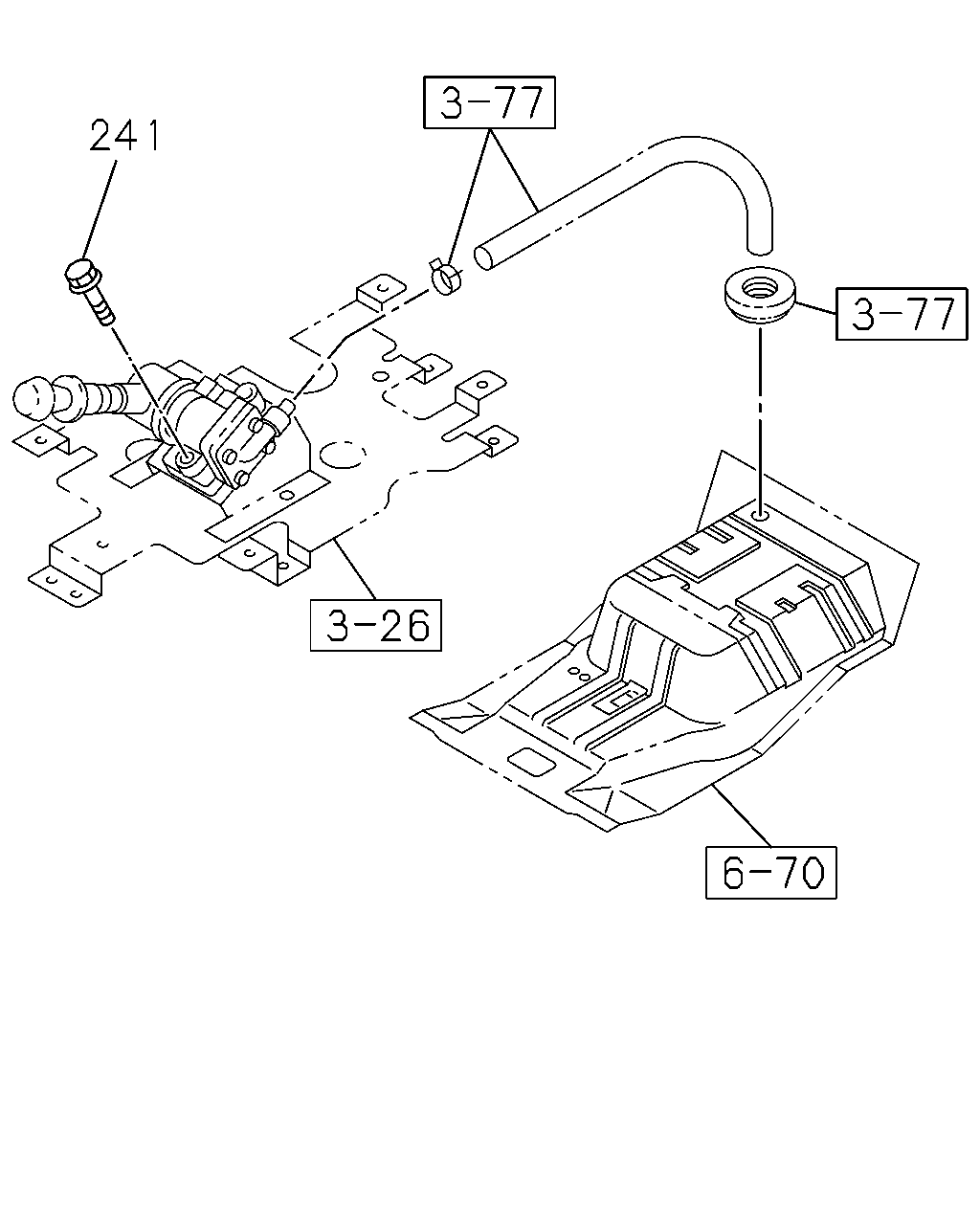

çizim 501787
241
BalonParca AdiParca NoAdetTipApplied Date A B
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28050-870-0 02 1 1511- ● ●

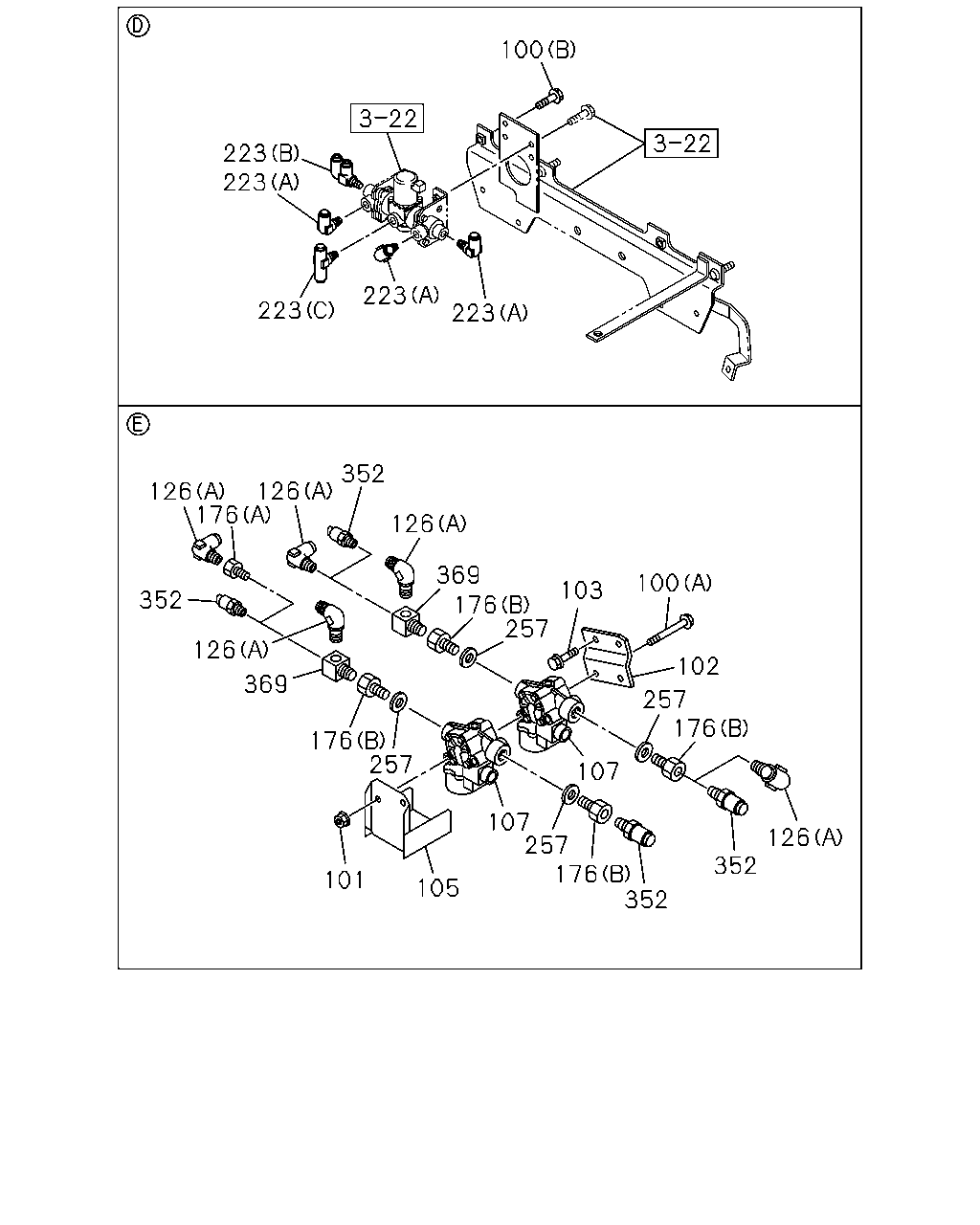

çizim 501870
100 223 223 223 223 223 126 126 352 126 369 176 103 100 257 176 352 126 369 176 257 101 105 107 257 176 352 107 176 257 352 102 126
BalonParca AdiParca NoAdetTipApplied Date A B
100 BOLT; MODULATOR
(A) M8X140 FLANGE 		0-28055-814-0 02 1 1511- ● ●
100 BOLT; MODULATOR
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1511- ● ●
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
102 BRACKET; MODULATOR 8-98273-170-0 01 1 1511- ● ●
103 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1511- ● ●
105 COVER; MODULATOR 8-98272-749-0 01 1 1511- ●
107 MODULATOR; RR 8-98215-454-0 02 1 1511- ● ●
126 CONNECTOR; ELBOW
(B) PT1/4 2WAY 		1-09660-693-0 02 1 1511- ● ●
126 CONNECTOR; ELBOW
(F) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1511- ● ●
126 CONNECTOR; ELBOW
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1511- ● ●
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 05 1 1511- ● ●
126 CONNECTOR; ELBOW
(G) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 03 1 1511- ● ●
126 CONNECTOR; ELBOW
(E) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 03 1 1511- ● ●
126 CONNECTOR; ELBOW
(D) R3/8 & RC3/8 & RC1/4 3WAY 		8-98166-127-0 04 1 1511- ● ●
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1511- ●
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1511- ●
176 ADAPTER
(A) PT3/8 		1-09664-210-0 01 1 1511- ●
176 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1511- ● ●
223 UNION
H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 03 1 1511- ● ●
223 UNION
H.S.A SYSTEM<6EP> (B) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1511- ● ●
223 UNION
H.S.A SYSTEM<6EP> (C) 		1-09661-073-0 01 1 1511- ● ●
257 GASKET; PLUG
ID=22.5 		9-09571-422-0 04 1 1511- ● ●
352 CONNECTOR; STRAIGHT
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1511- ●
352 CONNECTOR; STRAIGHT
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 03 1 1511- ●
369 CONNECTOR; 3WAY
PT3/8 3WAY 		1-09661-300-0 02 1 1511- ● ●
çizim 501979

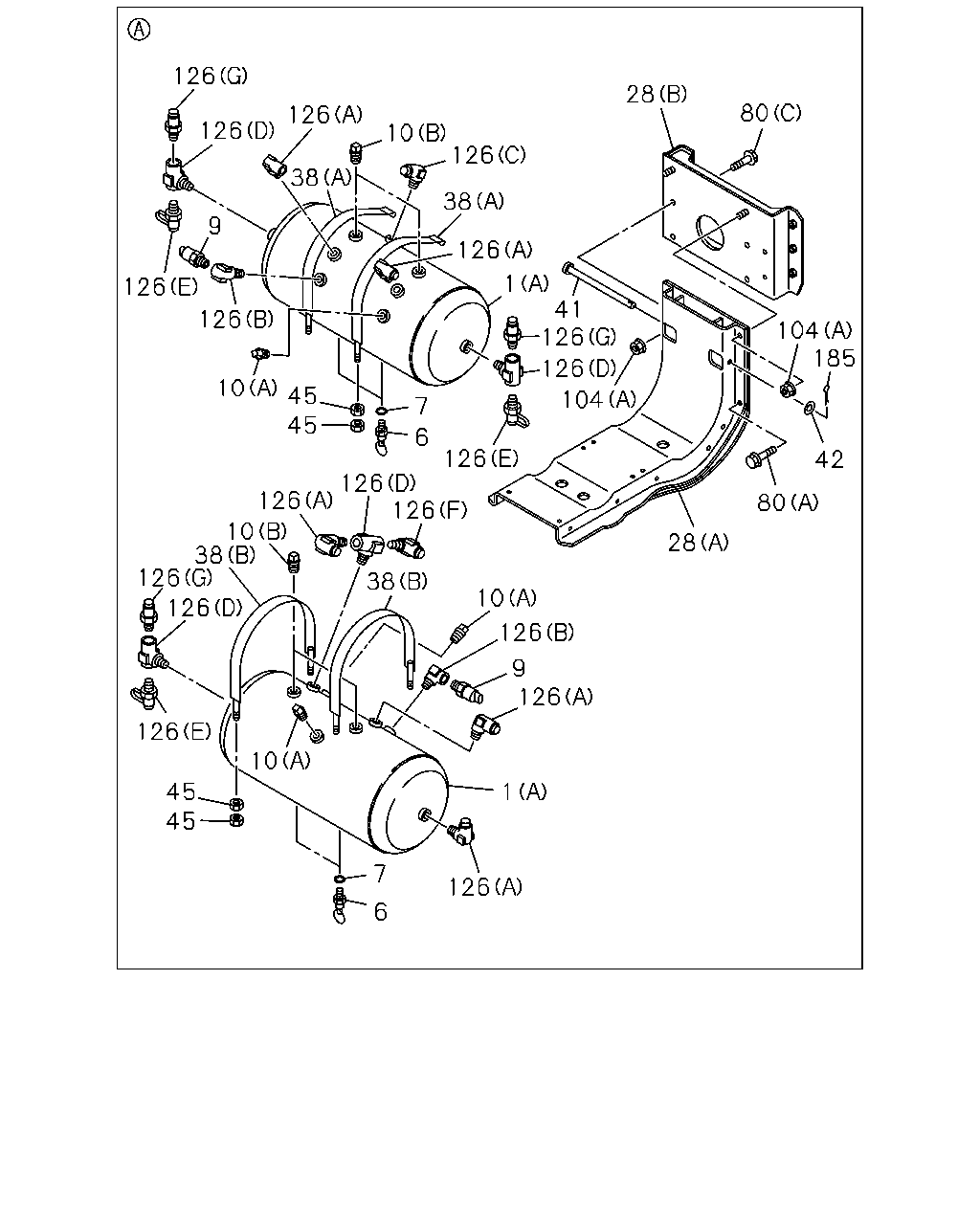

126 126 126 126 10 38 126 10 126 45 126 45 126 7 126 6 38 126 126 41 1 126 28 80 104 42 80 28 185 104 10 126 9 126 1 126 7 6 10 45 45 126 126 126 10 38 126 38 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(C) 		1-48371-435-0 01 1 1511- ● ●
1 TANK ASM; AIR
(A) 		1-48370-961-0 02 1 1511- ● ●
1 TANK ASM; AIR
(B) 		8-98081-870-1 01 1 1511- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1511- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1511- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 1511- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1511- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1511- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1511- ● ●
9 SWITCH; LOW PRESSURE GAGE,AIR TANK 8-97615-622-0 02 1 1511- ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1511- ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 1511- ●
10 PLUG; AIR TANK
(B) PT3/4 		9-09204-526-0 04 1 1511- ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1511- ●
28 BRACKET; AIR TANK
(E) 		8-98047-746-2 01 1 1511- ● ●
28 BRACKET; AIR TANK
(A) 		8-98048-199-0 01 1 1511- ● ●
28 BRACKET; AIR TANK
(B) 		8-98048-200-2 01 1 1511- ● ●
28 BRACKET; AIR TANK
(C) 		8-98092-756-1 01 1 1511- ● ●
28 BRACKET; AIR TANK
(D) 		8-98092-757-0 01 1 1511- ● ●
38 BAND; AIR TANK
(A) 		1-48317-108-2 02 1 1511- ● ●
38 BAND; AIR TANK
(B) 		1-48317-109-2 02 1 1511- ● ●
41 PIN; BAND FIX 1-09744-068-0 01 1 1511- ● ●
42 WASHER; PL
ID=10.5 		0-91614-510-0 01 1 1511- ● ●
45 NUT; AIR TANK,MAIN
M8 		0-91110-508-0 12 1 1511- ● ●
80 BOLT; BRKT
(A) M12X35 FLANGE 		0-28651-235-0 04 1 1511- ● ●
80 BOLT; BRKT
(B) M10X25 FLANGE 		0-28651-025-0 04 1 1511- ● ●
80 BOLT; BRKT
(C) M10X35 FLANGE 		0-28651-035-0 04 1 1511- ● ●
104 NUT; BRKT
(A) M12 FLANGE 		0-91180-212-0 02 1 1511- ● ●
104 NUT; BRKT
(B) M10 		0-91110-510-0 04 1 1511- ● ●
126 CONNECTOR; ELBOW
(B) PT1/4 2WAY 		1-09660-693-0 02 1 1511- ● ●
126 CONNECTOR; ELBOW
(F) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1511- ● ●
126 CONNECTOR; ELBOW
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1511- ● ●
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 05 1 1511- ● ●
126 CONNECTOR; ELBOW
(G) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 03 1 1511- ● ●
126 CONNECTOR; ELBOW
(E) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 03 1 1511- ● ●
126 CONNECTOR; ELBOW
(D) R3/8 & RC3/8 & RC1/4 3WAY 		8-98166-127-0 04 1 1511- ● ●
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1511- ●
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1511- ●
185 PIN; SNAP
L=32.6 		8-98062-280-0 01 1 1511- ● ●

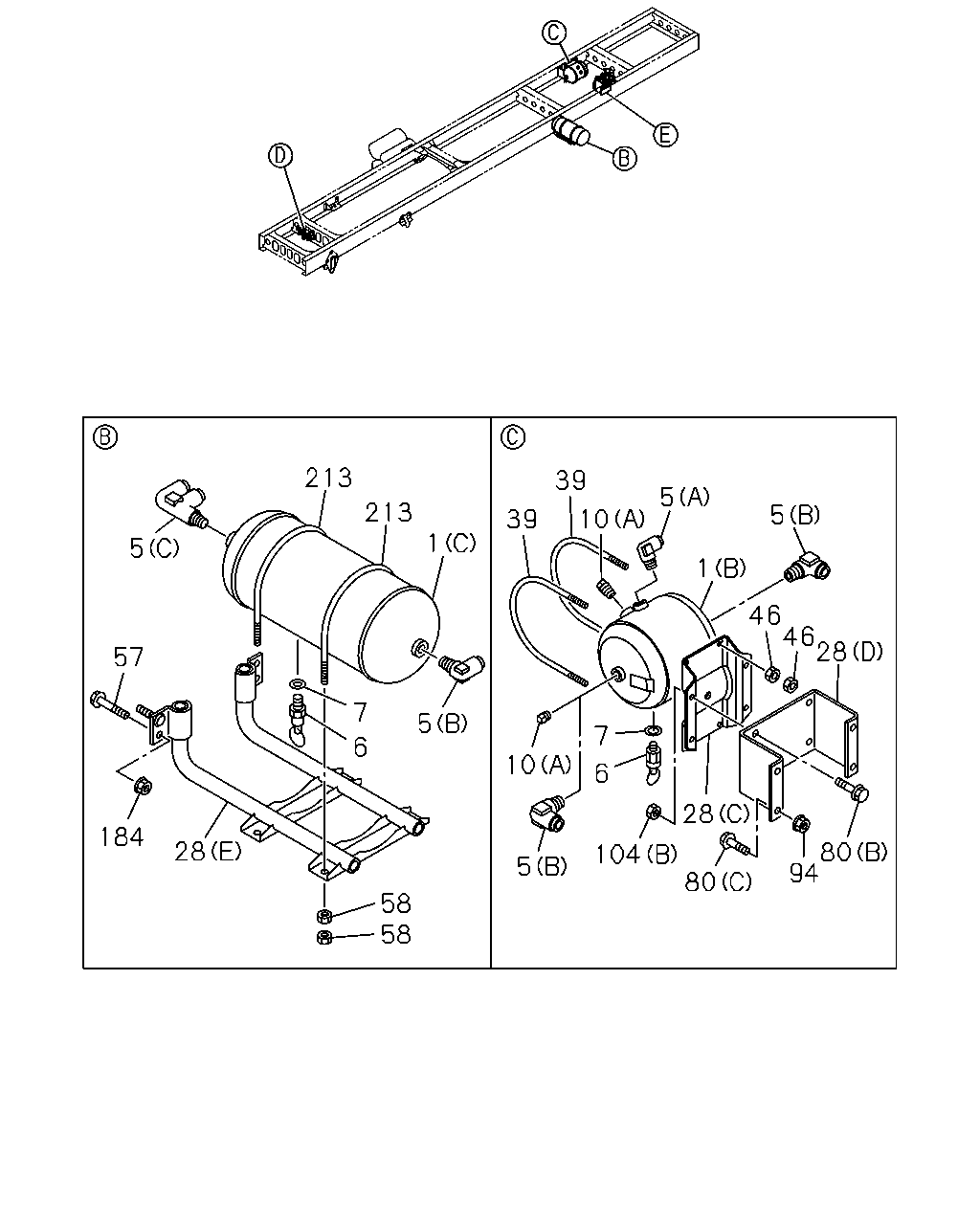

çizim 502262
5 213 213 1 5 7 6 58 58 28 184 57 39 5 39 10 1 5 46 46 28 80 94 80 28 104 5 10 6 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(C) 		1-48371-435-0 01 1 1511- ● ●
1 TANK ASM; AIR
(A) 		1-48370-961-0 02 1 1511- ● ●
1 TANK ASM; AIR
(B) 		8-98081-870-1 01 1 1511- ● ●
5 UNION; AIR TANK
(C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1511- ● ●
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1511- ●
5 UNION; AIR TANK
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1511- ● ●
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1511- ● ●
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1511- ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1511- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1511- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 1511- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1511- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1511- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1511- ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1511- ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 1511- ●
10 PLUG; AIR TANK
(B) PT3/4 		9-09204-526-0 04 1 1511- ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1511- ●
28 BRACKET; AIR TANK
(E) 		8-98047-746-2 01 1 1511- ● ●
28 BRACKET; AIR TANK
(A) 		8-98048-199-0 01 1 1511- ● ●
28 BRACKET; AIR TANK
(B) 		8-98048-200-2 01 1 1511- ● ●
28 BRACKET; AIR TANK
(C) 		8-98092-756-1 01 1 1511- ● ●
28 BRACKET; AIR TANK
(D) 		8-98092-757-0 01 1 1511- ● ●
39 U-BOLT; AIR TANK
L=210 		1-48317-458-1 02 1 1511- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1511- ● ●
57 BOLT; BRKT,AIR TANK TO FRAME
M14X50 		0-20851-450-0 03 1 1511- ● ●
58 NUT; BAND,AIR TANK
M8 		0-91110-508-0 08 1 1511- ● ●
80 BOLT; BRKT
(A) M12X35 FLANGE 		0-28651-235-0 04 1 1511- ● ●
80 BOLT; BRKT
(B) M10X25 FLANGE 		0-28651-025-0 04 1 1511- ● ●
80 BOLT; BRKT
(C) M10X35 FLANGE 		0-28651-035-0 04 1 1511- ● ●
94 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
104 NUT; BRKT
(A) M12 FLANGE 		0-91180-212-0 02 1 1511- ● ●
104 NUT; BRKT
(B) M10 		0-91110-510-0 04 1 1511- ● ●
184 NUT; BRKT
M14 		0-91110-514-0 04 1 1511- ● ●
213 BOLT; U AIR TANK 8-98218-512-0 02 1 1511- ● ●
