3-10 — BRAKE PEDAL AND CONTROL (#169873) — 30 parça

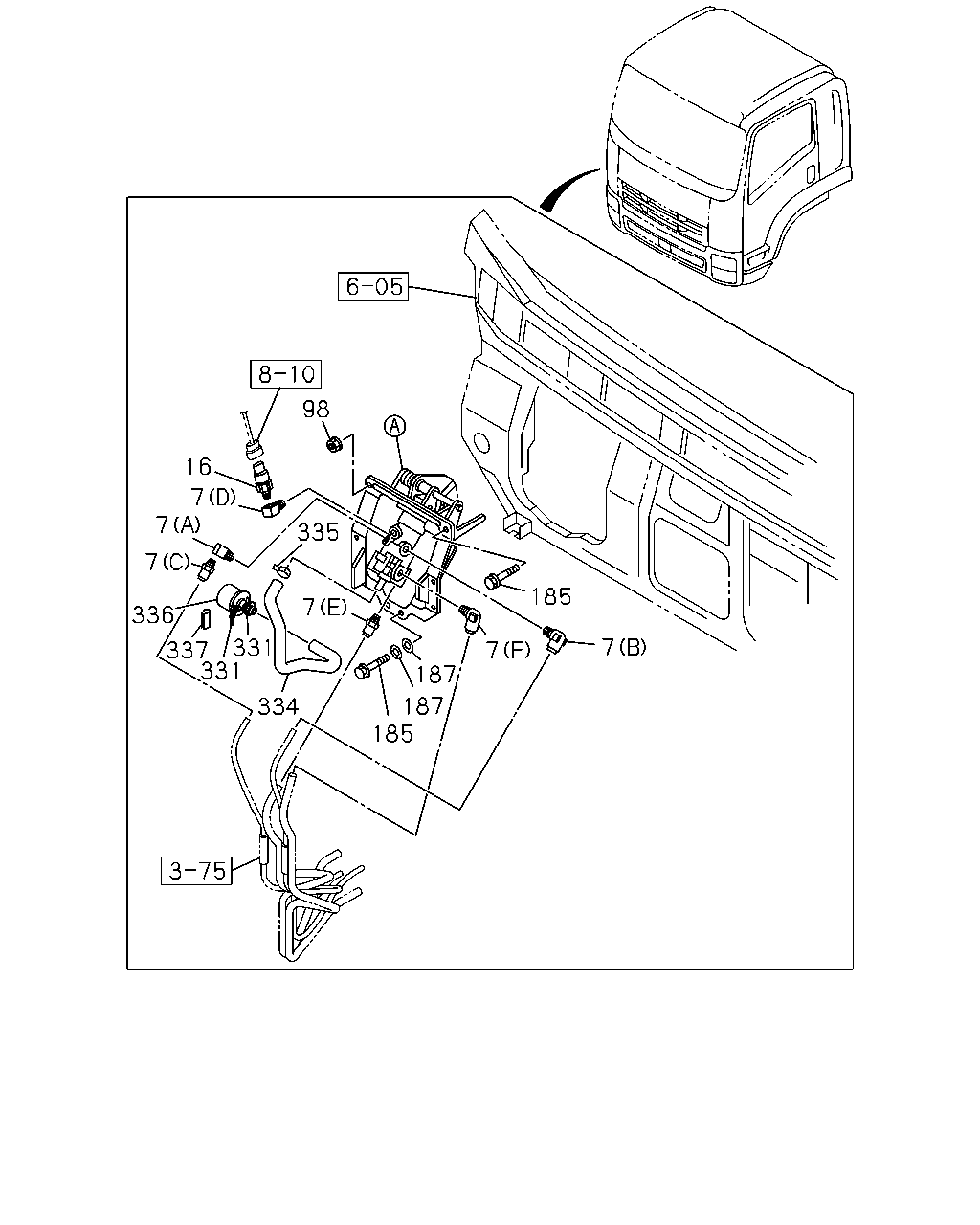

çizim 502084
98 16 7 7 7 336 337 331 331 334 185 187 187 7 185 7 7 335
BalonParca AdiParca NoAdetTipApplied Date A B
7 CONNECTOR; BRK VALVE
(D) PT1/4 2WAY 		1-09660-693-0 01 1 1511- ● ●
7 CONNECTOR; BRK VALVE
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 1511- ● ●
7 CONNECTOR; BRK VALVE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1511- ● ●
7 CONNECTOR; BRK VALVE
(F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1511- ● ●
7 CONNECTOR; BRK VALVE
(C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1511- ● ●
7 CONNECTOR; BRK VALVE
(E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1511- ● ●
16 SWITCH; STOP LAMP
STAMP 0.3 		8-98010-857-0 01 1 1511- ● ●
98 NUT; BRKT
M8 FLANGE 		0-91180-208-0 01 1 1511- ● ●
185 BOLT; BRKT
M8X25 HEXALOBULAR 		8-98316-699-0 07 1 1511- ● ●
187 WASHER; PL,BRKT
ID=8.4 OD=26 		8-98316-762-0 04 1 1511- ● ●
331 CLIP; BAND
L=197 		1-83574-032-0 02 1 1511- ● ●
334 HOSE; AIR,BRK 8-98017-118-4 01 1 1511- ● ●
335 CLAMP; HOSE
ID=24 		8-98025-921-0 01 1 1511- ● ●
336 SILENCER; AIR 1-48199-544-0 01 1 1511- ● ●
337 PROTECTOR; AIR BRK
L=50 		8-94270-377-1 01 1 1511- ● ●

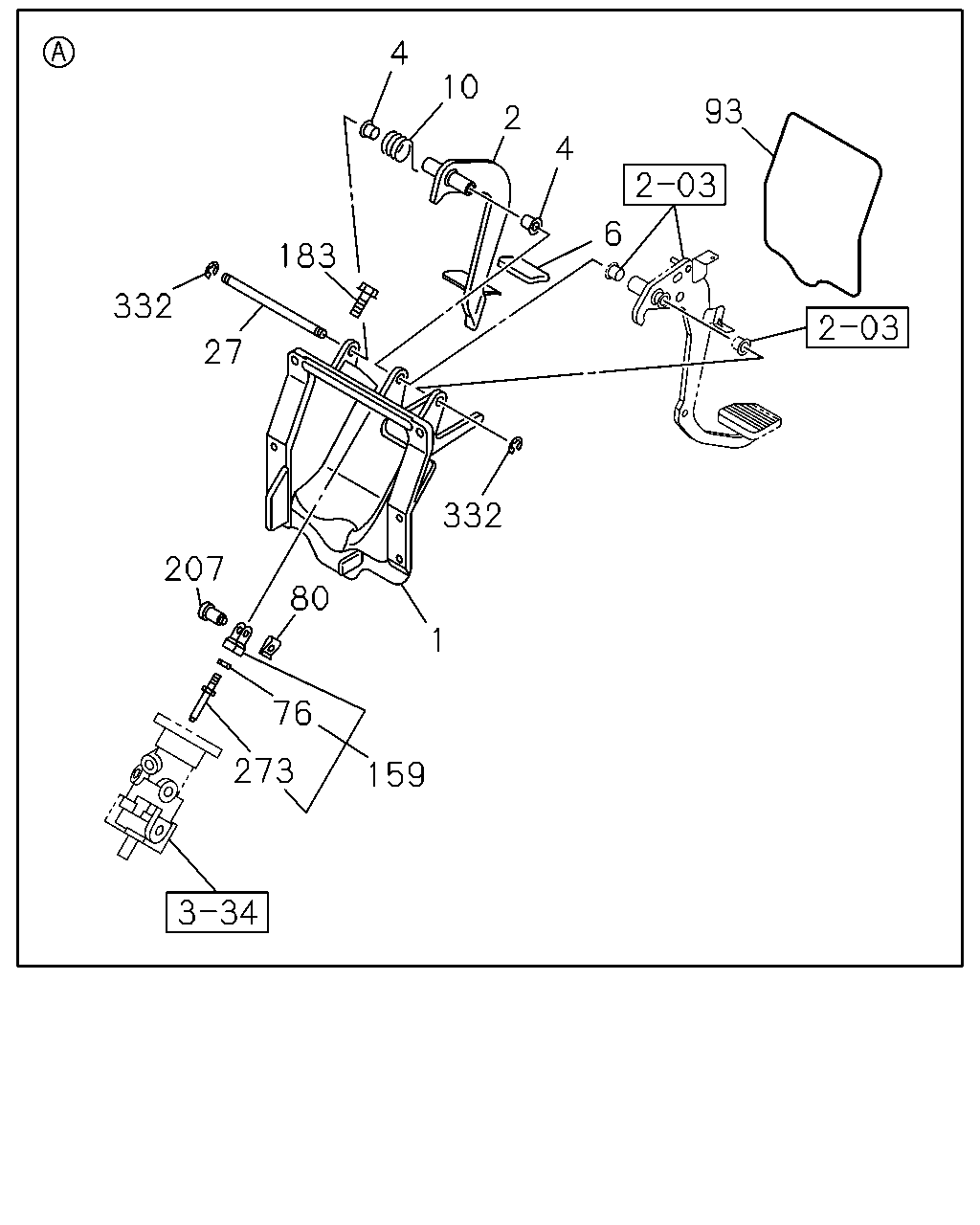

çizim 502259
4 10 2 4 93 6 183 27 332 207 1 332 80 76 273 159
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET ASM; PEDAL
ALLISON MD3560P A/T(Y3B) 		8-98071-973-1 01 1 1511- ●
1 BRACKET ASM; PEDAL
ZF9S1110 M/T(Y5E) 		8-98071-972-1 01 1 1511- ● ●
2 PEDAL; BRK 8-98057-226-0 01 1 1511- ● ●
4 BUSHING; BRK PEDAL 8-94238-596-0 02 1 1511- ● ●
6 COVER; BRK PEDAL 8-98056-865-0 01 1 1511- ● ●
10 SPRING; RETURN,BRK PEDAL 8-98057-232-1 01 1 1511- ● ●
27 SHAFT; BRK PEDAL 8-98057-231-0 01 1 1511- ● ●
76 NUT; PUSH ROD
M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
80 PIN; SNAP,BRK PEDAL 8-98007-161-0 01 1 1511- ● ●
93 SEAL; BRK PEDAL 1-48199-534-0 01 1 1511- ● ●
159 ROD ASM; PUSH,BRK 8-98057-234-0 01 1 1511- ● ●
183 BOLT; BRK VLV
M8X30 FLANGE 		0-28660-830-0 04 1 1511- ● ●
207 PIN; JOINT,BRK PEDAL LINK 8-98147-657-0 01 1 1511- ● ●
273 ROD; PULL 8-98057-233-0 01 1 1511- ● ●
332 RING; SNAP
ID=12 		0-91805-512-0 02 1 1511- ● ●
