3-05 — REAR WHEEL BRAKE (#169871) — 229 parça

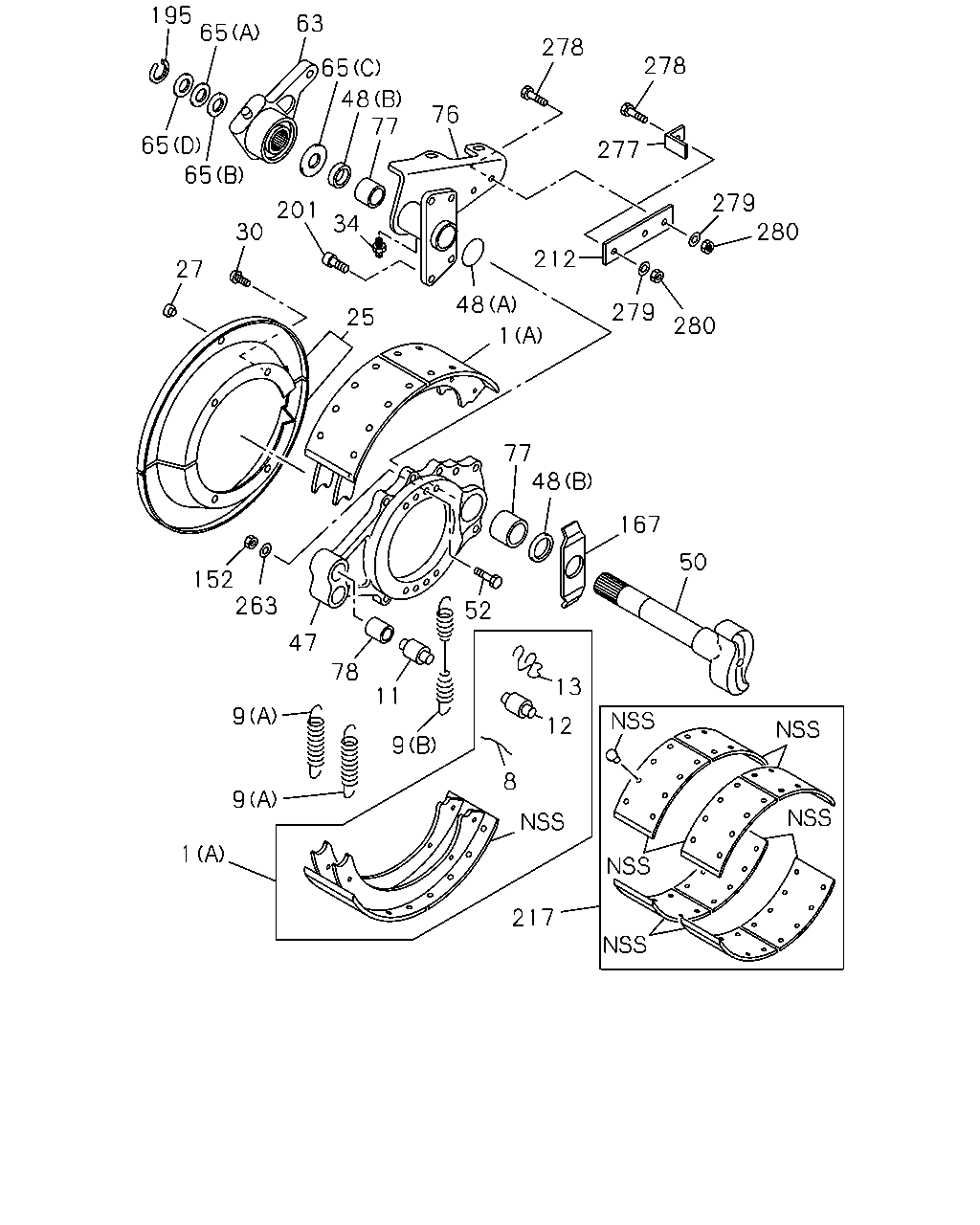

çizim 501129
50 167 48 77 52 13 12 217 9 11 78 47 263 152 9 9 1 279 280 280 279 278 277 278 76 48 65 63 201 25 34 65 65 195 27 8 212 48 1 77 30 65
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR
(A) 		1-47120-734-0 04 1 1511- ●
1 SHOE; BRK,RR
(A) 		1-47120-734-0 04 1 1511- ●
1 SHOE; BRK,RR
(B) LEADING 		1-47170-504-0 01 1 1511- ●
1 SHOE; BRK,RR
(B) LEADING 		1-47170-504-0 01 1 1511- ●
1 SHOE; BRK,RR
(B) TRAILING 		1-47170-505-0 01 1 1511- ●
1 SHOE; BRK,RR
(B) TRAILING 		1-47170-505-0 01 1 1511- ●
1 SHOE; BRK,RR
(B) LEADING 		1-47170-506-0 01 1 1511- ●
1 SHOE; BRK,RR
(B) LEADING 		1-47170-506-0 01 1 1511- ●
1 SHOE; BRK,RR
(B) TRAILING 		1-47170-507-0 01 1 1511- ●
1 SHOE; BRK,RR
(B) TRAILING 		1-47170-507-0 01 1 1511- ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-116-0 04 1 1511- ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-116-0 04 1 1511- ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-175-0 04 1 1511- ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-175-0 04 1 1511- ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 04 1 1511- ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 04 1 1511- ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 02 1 1511- ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 02 1 1511- ●
9 SPRING; RETURN,BRK SHOE
(C) 		1-09583-376-0 02 1 1511- ●
9 SPRING; RETURN,BRK SHOE
(C) 		1-09583-376-0 02 1 1511- ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 04 1 1511- ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 04 1 1511- ●
11 PIN; ANCHOR,RR WHEEL BRK
L=138.5 		1-47131-045-0 04 1 1511- ●
11 PIN; ANCHOR,RR WHEEL BRK
L=138.5 		1-47131-045-0 04 1 1511- ●
12 ROLLER; CAM,BRK SHOE 1-47119-141-0 04 1 1511- ●
12 ROLLER; CAM,BRK SHOE 1-47119-141-0 04 1 1511- ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 04 1 1511- ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 04 1 1511- ●
25 COVER SET; RR BRK DRUM 1-47151-774-0 02 1 1511- ●
25 COVER SET; RR BRK DRUM 1-47151-774-0 02 1 1511- ●
25 COVER SET; RR BRK DRUM
FORWARD RH,REARWARD LH 		1-47151-806-0 01 1 1511- ●
25 COVER SET; RR BRK DRUM
FORWARD RH,REARWARD LH 		1-47151-806-0 01 1 1511- ●
25 COVER SET; RR BRK DRUM
FORWARD LH,REARWARD RH 		1-47151-807-0 01 1 1511- ●
25 COVER SET; RR BRK DRUM
FORWARD LH,REARWARD RH 		1-47151-807-0 01 1 1511- ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 1511- ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 1511- ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 1511- ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 1511- ●
30 BOLT; DRUM COVER 1-47159-176-0 12 1 1511- ●
30 BOLT; DRUM COVER 1-47159-176-0 12 1 1511- ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 1511- ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 1511- ●
34 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 1511- ●
34 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 1511- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-374-0 02 1 1511- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-374-0 02 1 1511- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
REARWARD 		8-98091-253-1 02 1 1511- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FORWARD 		8-98091-254-1 01 1 1511- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FORWARD 		8-98091-255-1 01 1 1511- ●
48 SEAL; OIL,CM/SHF,RR BRK
(A) 		1-47149-056-0 02 1 1511- ●
48 SEAL; OIL,CM/SHF,RR BRK
(A) 		1-47149-056-0 02 1 1511- ●
48 SEAL; OIL,CM/SHF,RR BRK
(B) 		1-47149-057-0 04 1 1511- ●
48 SEAL; OIL,CM/SHF,RR BRK
(B) 		1-47149-057-0 04 1 1511- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-124-0 01 1 1511- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-124-0 01 1 1511- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-125-0 01 1 1511- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-125-0 01 1 1511- ●
52 BOLT; ANCHOR BRKT 1-47139-122-0 16 1 1511- ●
52 BOLT; ANCHOR BRKT 1-47139-122-0 16 1 1511- ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-106-0 02 1 1511- ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-106-0 02 1 1511- ●
65 SPACER; SLACK ADJ,BRK
(A) T=0.06" 		1-47139-121-0 02 1 1511- ●
65 SPACER; SLACK ADJ,BRK
(A) T=0.06" 		1-47139-121-0 02 1 1511- ●
65 SPACER; SLACK ADJ,BRK
(B) 		1-47149-059-0 02 1 1511- ●
65 SPACER; SLACK ADJ,BRK
(B) 		1-47149-059-0 02 1 1511- ●
65 SPACER; SLACK ADJ,BRK
(D) T=0.03" 		1-47149-060-0 02 1 1511- ●
65 SPACER; SLACK ADJ,BRK
(D) T=0.03" 		1-47149-060-0 02 1 1511- ●
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-065-0 02 1 1511- ●
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-065-0 02 1 1511- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FORWARD 		1-47145-022-0 01 1 1511- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FORWARD 		1-47145-023-0 01 1 1511- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
REARWARD 		1-47145-024-0 01 1 1511- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
REARWARD 		1-47145-025-0 01 1 1511- ●
77 BUSHING 1-47146-012-0 04 1 1511- ●
77 BUSHING 1-47146-012-0 04 1 1511- ●
78 BUSHING; BRKT 1-47139-117-0 04 1 1511- ●
78 BUSHING; BRKT 1-47139-117-0 04 1 1511- ●
152 NUT; ANCHOR BRKT 1-41229-169-0 16 1 1511- ●
152 NUT; ANCHOR BRKT 1-41229-169-0 16 1 1511- ●
167 WASHER; ADJ CAM 1-47149-077-0 02 1 1511- ●
167 WASHER; ADJ CAM 1-47149-077-0 02 1 1511- ●
195 RING; SNAP,CM/SHF 1-87050-005-0 02 1 1511- ●
195 RING; SNAP,CM/SHF 1-87050-005-0 02 1 1511- ●
201 BOLT; BRKT,POWER CHAMBER 1-47139-119-0 08 1 1511- ●
201 BOLT; BRKT,POWER CHAMBER 1-47139-119-0 08 1 1511- ●
212 STAY 1-47149-081-0 02 1 1511- ●
212 STAY 1-47149-081-0 02 1 1511- ●
217 LINING KIT; RR BRK 1-87050-157-0 01 1 1511- ●
217 LINING KIT; RR BRK 1-87050-157-0 01 1 1511- ●
263 WASHER; PL,ANCHOR BRKT 1-41519-038-0 16 1 1511- ●
263 WASHER; PL,ANCHOR BRKT 1-41519-038-0 16 1 1511- ●
277 SUPPORT; BRKT 1-47149-099-0 02 1 1511- ●
278 BOLT; SUPPORT 1-41329-038-0 06 1 1511- ●
278 BOLT; SUPPORT 1-41329-038-0 06 1 1511- ●
279 WASHER; SUPPORT 1-47149-083-0 06 1 1511- ●
279 WASHER; SUPPORT 1-47149-083-0 06 1 1511- ●
280 NUT; SUPPORT 1-47149-082-0 06 1 1511- ●
280 NUT; SUPPORT 1-47149-082-0 06 1 1511- ●

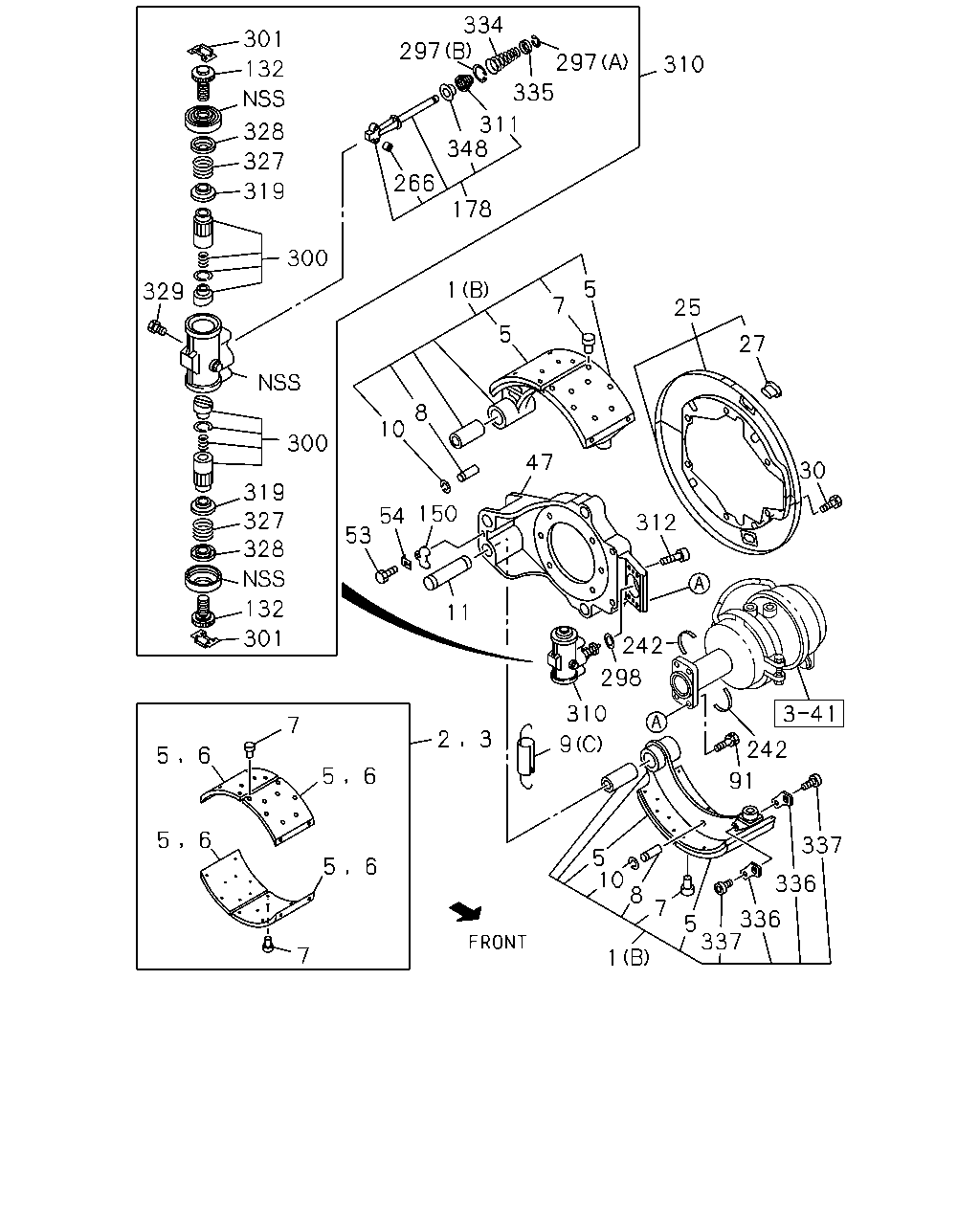

çizim 501509
310 297 335 311 348 266 178 297 334 301 132 328 327 319 300 329 300 319 327 328 132 301 7 5 6 6 5 6 5 5 6 7 1 5 7 5 25 27 30 312 47 8 10 150 54 53 11 2 3 242 298 310 9 242 91 337 336 336 337 5 7 8 10 5 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR
(A) 		1-47120-734-0 04 1 1511- ●
1 SHOE; BRK,RR
(A) 		1-47120-734-0 04 1 1511- ●
1 SHOE; BRK,RR
(B) LEADING 		1-47170-504-0 01 1 1511- ●
1 SHOE; BRK,RR
(B) LEADING 		1-47170-504-0 01 1 1511- ●
1 SHOE; BRK,RR
(B) TRAILING 		1-47170-505-0 01 1 1511- ●
1 SHOE; BRK,RR
(B) TRAILING 		1-47170-505-0 01 1 1511- ●
1 SHOE; BRK,RR
(B) LEADING 		1-47170-506-0 01 1 1511- ●
1 SHOE; BRK,RR
(B) LEADING 		1-47170-506-0 01 1 1511- ●
1 SHOE; BRK,RR
(B) TRAILING 		1-47170-507-0 01 1 1511- ●
1 SHOE; BRK,RR
(B) TRAILING 		1-47170-507-0 01 1 1511- ●
2 LINING SET; RR BRK,STANDARD 1-88310-773-1 02 1 1511- ●
2 LINING SET; RR BRK,STANDARD 1-88310-773-1 02 1 1511- ●
3 LINING SET; RR BRK,OVER SIZE 1-88310-774-1 02 1 1511- ●
3 LINING SET; RR BRK,OVER SIZE 1-88310-774-1 02 1 1511- ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-091-0 08 1 1511- ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-091-0 08 1 1511- ●
6 LINING; RR BRK SHOE,OVER SIZE 1-47126-092-0 08 1 1511- ●
6 LINING; RR BRK SHOE,OVER SIZE 1-47126-092-0 08 1 1511- ●
7 RIVET; LINING,RR BRK
L=15.5 		1-09732-053-0 AR 1 1511- ●
7 RIVET; LINING,RR BRK
L=15.5 		1-09732-053-0 AR 1 1511- ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-116-0 04 1 1511- ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-116-0 04 1 1511- ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-175-0 04 1 1511- ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-175-0 04 1 1511- ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 04 1 1511- ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 04 1 1511- ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 02 1 1511- ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 02 1 1511- ●
9 SPRING; RETURN,BRK SHOE
(C) 		1-09583-376-0 02 1 1511- ●
9 SPRING; RETURN,BRK SHOE
(C) 		1-09583-376-0 02 1 1511- ●
10 RING; SNAP,SPR PIN
ID=10 		0-91805-510-0 04 1 1511- ●
10 RING; SNAP,SPR PIN
ID=10 		0-91805-510-0 04 1 1511- ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 04 1 1511- ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 04 1 1511- ●
11 PIN; ANCHOR,RR WHEEL BRK
L=138.5 		1-47131-045-0 04 1 1511- ●
11 PIN; ANCHOR,RR WHEEL BRK
L=138.5 		1-47131-045-0 04 1 1511- ●
25 COVER SET; RR BRK DRUM 1-47151-774-0 02 1 1511- ●
25 COVER SET; RR BRK DRUM 1-47151-774-0 02 1 1511- ●
25 COVER SET; RR BRK DRUM
FORWARD RH,REARWARD LH 		1-47151-806-0 01 1 1511- ●
25 COVER SET; RR BRK DRUM
FORWARD RH,REARWARD LH 		1-47151-806-0 01 1 1511- ●
25 COVER SET; RR BRK DRUM
FORWARD LH,REARWARD RH 		1-47151-807-0 01 1 1511- ●
25 COVER SET; RR BRK DRUM
FORWARD LH,REARWARD RH 		1-47151-807-0 01 1 1511- ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 1511- ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 1511- ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 1511- ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 1511- ●
30 BOLT; DRUM COVER 1-47159-176-0 12 1 1511- ●
30 BOLT; DRUM COVER 1-47159-176-0 12 1 1511- ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 1511- ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 1511- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-374-0 02 1 1511- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-374-0 02 1 1511- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
REARWARD 		8-98091-253-1 02 1 1511- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FORWARD 		8-98091-254-1 01 1 1511- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FORWARD 		8-98091-255-1 01 1 1511- ●
53 BOLT; LOCK PLATE
M10X16 		1-47139-173-0 02 1 1511- ●
53 BOLT; LOCK PLATE
M10X16 		1-47139-173-0 02 1 1511- ●
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 1511- ●
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 1511- ●
91 BOLT; CHAMBER
M10X45 		1-47139-174-0 08 1 1511- ●
91 BOLT; CHAMBER
M10X45 		1-47139-174-0 08 1 1511- ●
132 SCREW; ADJ,RR BRK 1-47623-035-2 04 1 1511- ●
132 SCREW; ADJ,RR BRK 1-47623-035-2 04 1 1511- ●
150 PLATE; LK,ANCHOR PIN 1-47133-010-0 02 1 1511- ●
150 PLATE; LK,ANCHOR PIN 1-47133-010-0 02 1 1511- ●
178 WEDGE; RR WHEEL CYL 1-47640-012-0 02 1 1511- ●
178 WEDGE; RR WHEEL CYL 1-47640-012-0 02 1 1511- ●
242 SEAL 1-47159-186-0 04 1 1511- ●
242 SEAL 1-47159-186-0 04 1 1511- ●
266 ROLLER; WEDGE 1-47643-007-0 04 1 1511- ●
266 ROLLER; WEDGE 1-47643-007-0 04 1 1511- ●
297 RING; SNAP
(A) 		1-47649-031-0 02 1 1511- ●
297 RING; SNAP
(A) 		1-47649-031-0 02 1 1511- ●
297 RING; SNAP
(B) 		1-47649-034-1 02 1 1511- ●
297 RING; SNAP
(B) 		1-47649-034-1 02 1 1511- ●
298 GASKET 1-48259-231-0 02 1 1511- ●
298 GASKET 1-48259-231-0 02 1 1511- ●
300 SLEEVE 1-47629-247-1 04 1 1511- ●
300 SLEEVE 1-47629-247-1 04 1 1511- ●
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 1511- ●
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 1511- ●
310 EXPANDER 1-47601-087-0 02 1 1511- ●
310 EXPANDER 1-47601-087-0 02 1 1511- ●
311 BOOT; WEDGE 1-47649-042-0 02 1 1511- ●
311 BOOT; WEDGE 1-47649-042-0 02 1 1511- ●
312 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 1511- ●
312 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 1511- ●
319 RING; DRIVE 1-47629-200-0 04 1 1511- ●
319 RING; DRIVE 1-47629-200-0 04 1 1511- ●
327 SPRING; ADJ 1-47629-196-0 04 1 1511- ●
327 SPRING; ADJ 1-47629-196-0 04 1 1511- ●
328 CAGE; SPRING 1-47629-192-0 04 1 1511- ●
328 CAGE; SPRING 1-47629-192-0 04 1 1511- ●
329 SCREW; LOCATING 1-47619-149-1 04 1 1511- ●
329 SCREW; LOCATING 1-47619-149-1 04 1 1511- ●
334 SPRING; ROD 1-47649-041-0 02 1 1511- ●
334 SPRING; ROD 1-47649-041-0 02 1 1511- ●
335 RETAINER; SPRING 1-47649-020-0 02 1 1511- ●
335 RETAINER; SPRING 1-47649-020-0 02 1 1511- ●
336 PLATE; PIVOT 1-47119-152-0 04 1 1511- ●
336 PLATE; PIVOT 1-47119-152-0 04 1 1511- ●
337 BOLT; PLATE 1-47119-153-0 04 1 1511- ●
337 BOLT; PLATE 1-47119-153-0 04 1 1511- ●
348 CAP; EXPANDER 1-47649-044-0 02 1 1511- ●
348 CAP; EXPANDER 1-47649-044-0 02 1 1511- ●
çizim 502121
346 301 328 319 334 297 348 311 335 297 329 329 319 327 328 301 347 301 301 327
BalonParca AdiParca NoAdetTipApplied Date A B
297 RING; SNAP
(A) 		1-47649-031-0 02 1 1511- ●
297 RING; SNAP
(A) 		1-47649-031-0 02 1 1511- ●
297 RING; SNAP
(B) 		1-47649-034-1 02 1 1511- ●
297 RING; SNAP
(B) 		1-47649-034-1 02 1 1511- ●
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 1511- ●
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 1511- ●
311 BOOT; WEDGE 1-47649-042-0 02 1 1511- ●
311 BOOT; WEDGE 1-47649-042-0 02 1 1511- ●
319 RING; DRIVE 1-47629-200-0 04 1 1511- ●
319 RING; DRIVE 1-47629-200-0 04 1 1511- ●
327 SPRING; ADJ 1-47629-196-0 04 1 1511- ●
327 SPRING; ADJ 1-47629-196-0 04 1 1511- ●
328 CAGE; SPRING 1-47629-192-0 04 1 1511- ●
328 CAGE; SPRING 1-47629-192-0 04 1 1511- ●
329 SCREW; LOCATING 1-47619-149-1 04 1 1511- ●
329 SCREW; LOCATING 1-47619-149-1 04 1 1511- ●
334 SPRING; ROD 1-47649-041-0 02 1 1511- ●
334 SPRING; ROD 1-47649-041-0 02 1 1511- ●
335 RETAINER; SPRING 1-47649-020-0 02 1 1511- ●
335 RETAINER; SPRING 1-47649-020-0 02 1 1511- ●
346 REPAIR KIT; EXPANDER 1-85576-403-0 02 1 1511- ●
346 REPAIR KIT; EXPANDER 1-85576-403-0 02 1 1511- ●
347 REPAIR KIT; BOOT,EXPANDER 1-85576-404-0 02 1 1511- ●
347 REPAIR KIT; BOOT,EXPANDER 1-85576-404-0 02 1 1511- ●
348 CAP; EXPANDER 1-47649-044-0 02 1 1511- ●
348 CAP; EXPANDER 1-47649-044-0 02 1 1511- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
