◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11718 - FVM AUST/NZ EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-41 - AUTO TRANS CASE,CONVERTER AND OIL PUMP ▶
2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#169864) — 19 parça

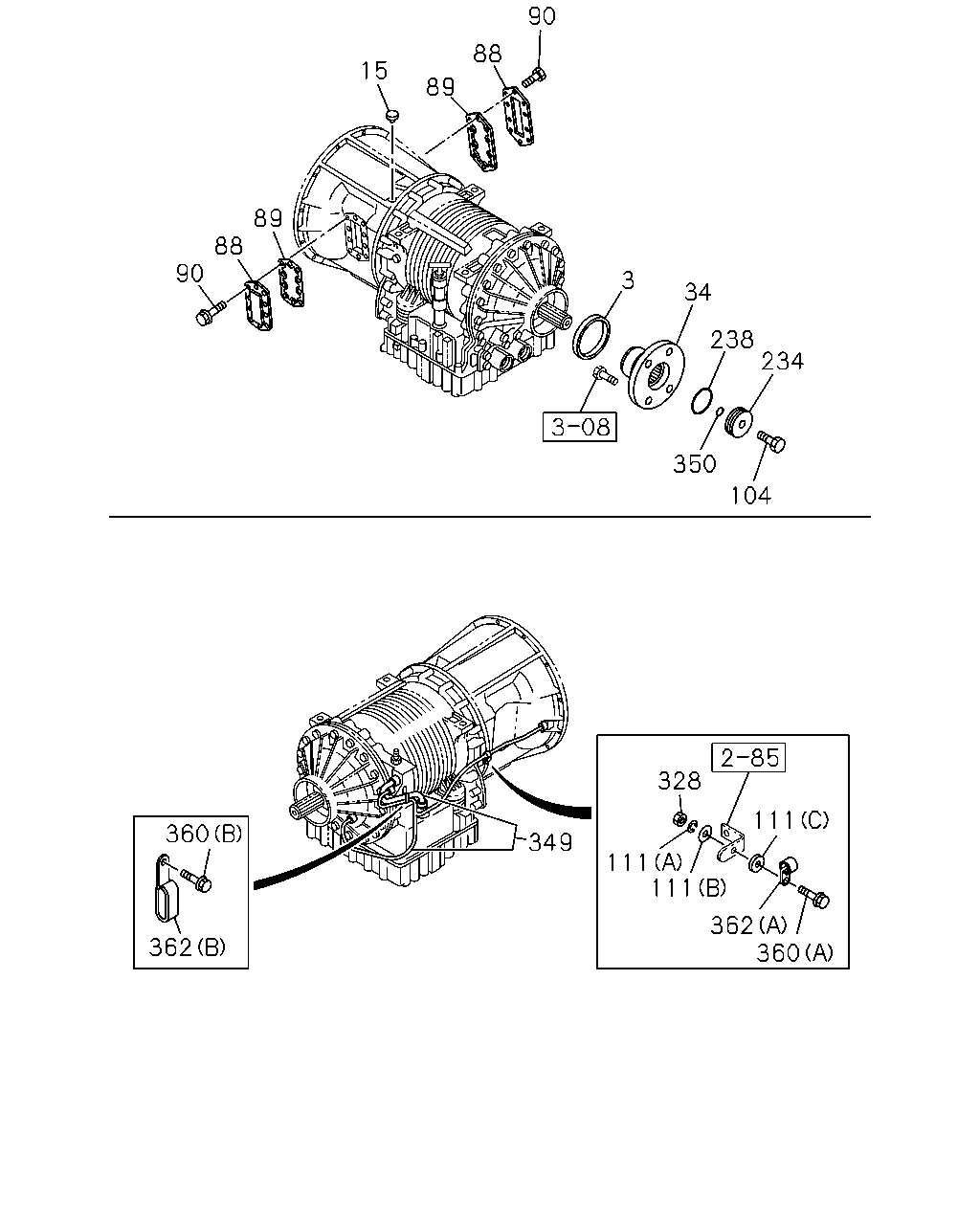

çizim 500662
90 88 89 15 89 88 90 3 34 238 234 350 104 360 362 349 328 111 111 111 362 360
BalonParca AdiParca NoAdetTipApplied Date
3 SEAL; OIL,RR COVER,A/T 1-34119-071-0 01 1 1511-
15 BREATHER; A/T CASE 8-98243-392-0 01 1 1511-
34 FLANGE; OIL PUMP,A/T 1-37243-412-0 01 1 1511-
88 COVER; SIDE,A/T 1-38181-011-0 02 1 1511-
89 GASKET; SIDE COVER 1-38183-012-0 02 1 1511-
90 BOLT; SIDE COVER 1-34119-068-0 20 1 1511-
104 BOLT; RET 1-09029-100-0 01 1 1511-
111 WASHER; PL,RR COVER
(C) ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 1511-
111 WASHER; PL,RR COVER
(B) 		1-34119-091-0 01 1 1511-
111 WASHER; PL,RR COVER
(A) 		1-34119-092-0 01 1 1511-
234 PLATE; RETAINER 1-37249-192-0 01 1 1511-
238 GASKET; PLUG 1-09623-634-0 01 1 1511-
328 NUT; RR COVER 1-34119-093-0 01 1 1511-
349 HARNESS; SENSOR 8-98080-446-0 01 1 1511-
350 GASKET; BOLT,FLANGE 1-09623-674-0 01 1 1511-
360 BOLT; CLIP
(A) M6X1.00 		1-34119-090-0 01 1 1511-
360 BOLT; CLIP
(B) 		8-98149-708-0 01 1 1511-
362 CLIP; HARNESS
(B) ID=19 L=20 		0-95235-836-0 01 1 1511-
362 CLIP; HARNESS
(A) ID=9 L=30 		1-34119-089-0 01 1 1511-
