2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#169860) — 68 parça

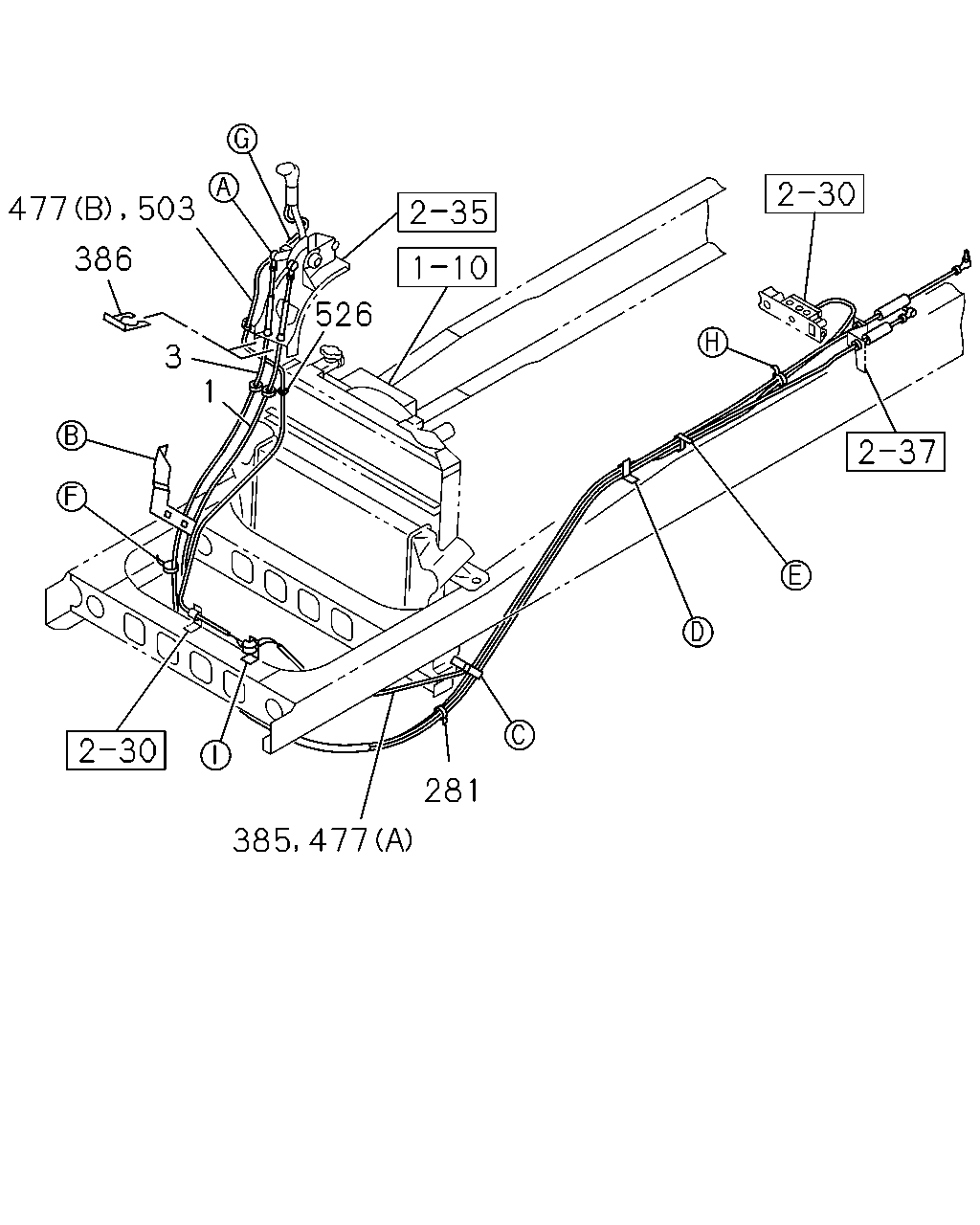

477 503 386 3 1 526 281 477 385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8> L=3620	8-98099-965-2	01	1	1511-	●
1	CABLE; SHIFT,TRANS CONT L=3620	8-98099-965-2	01	1	1511-		●
3	CABLE; SELECT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8> L=3700	8-98099-967-1	01	1	1511-	●
3	CABLE; SELECT,TRANS CONT L=3700	8-98099-967-1	01	1	1511-		●
281	CLIP; BAND ASSISTOR SHIFT CONTROL<WX8> L=300	1-09707-001-1	01	1	1511-	●
281	CLIP; BAND ASSISTOR SHIFT CONTROL<WX8> L=300	1-09707-001-1	01	1	1511-	●
281	CLIP; BAND L=300	1-09707-001-1	01	1	1511-		●
281	CLIP; BAND L=300	1-09707-001-1	01	1	1511-		●
385	TUBE; NYLON ZF9S1110 M/T(Y5E) SERVICED BY L=4000 OD=4	1-87410-078-0	02	1	1511-	●	●
386	CLIP; CONT CABLE & TUBE ASSISTOR SHIFT CONTROL<WX8>	1-09700-966-1	02	1	1511-	●
386	CLIP; CONT CABLE & TUBE	1-09700-966-1	02	1	1511-		●
477	TUBE; CORRUGATE ZF9S1110 M/T(Y5E) (B) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	1511-	●	●
477	TUBE; CORRUGATE ZF9S1110 M/T(Y5E) (A) SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	1511-	●	●
503	TUBE; NYLON ZF9S1110 M/T(Y5E) SERVICED BY L=2000 OD=4	1-87410-077-0	02	1	1511-	●	●
526	GROMMET ZF9S1110 M/T(Y5E)	5-09333-062-0	01	1	1511-	●	●

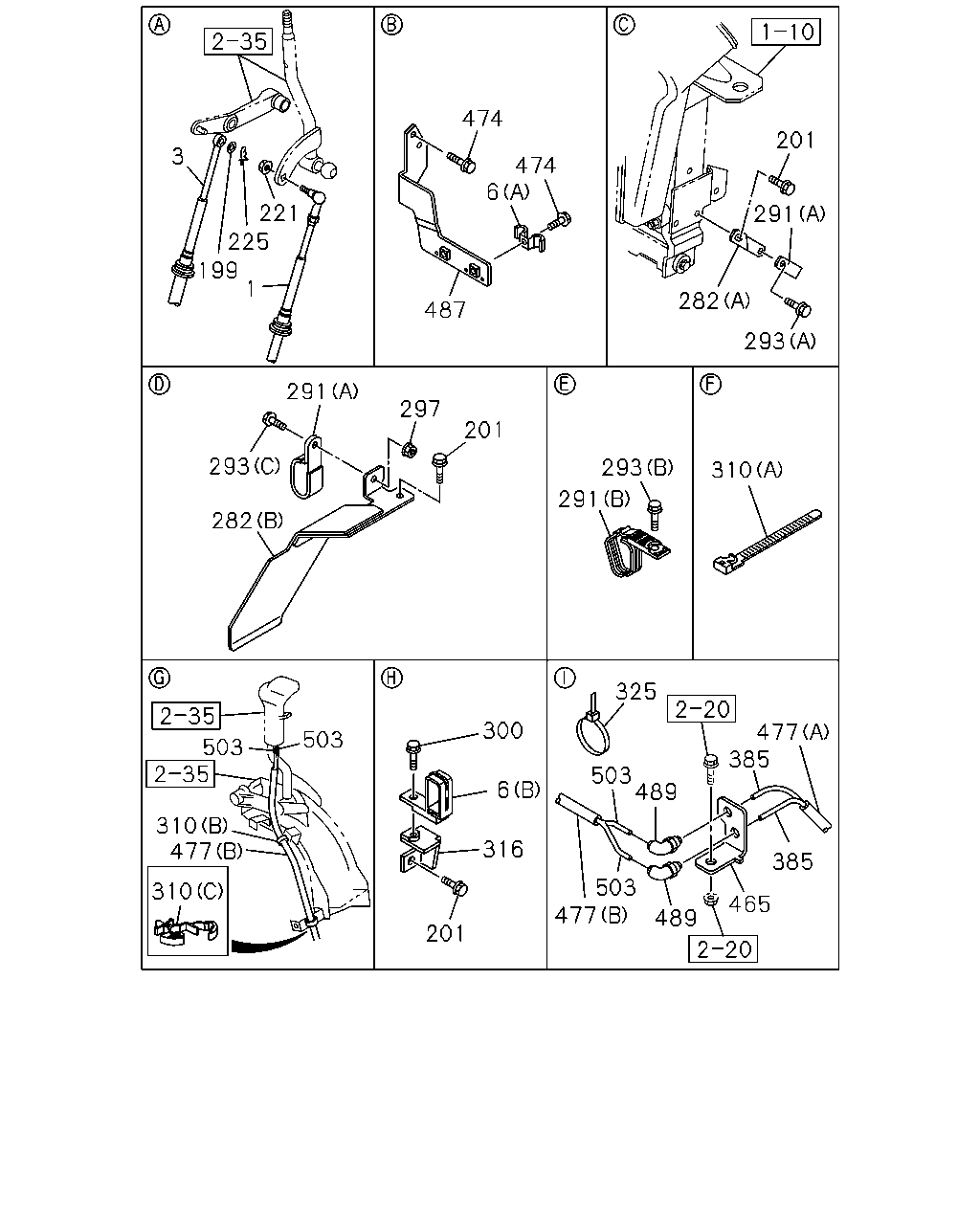

3 221 225 199 1 474 474 6 487 201 291 293 282 291 297 201 293 282 291 293 310 503 503 310 477 310 300 6 316 201 325 503 489 477 385 385 465 489 503 477

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8> L=3620	8-98099-965-2	01	1	1511-	●
1	CABLE; SHIFT,TRANS CONT L=3620	8-98099-965-2	01	1	1511-		●
3	CABLE; SELECT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8> L=3700	8-98099-967-1	01	1	1511-	●
3	CABLE; SELECT,TRANS CONT L=3700	8-98099-967-1	01	1	1511-		●
6	CLIP; CABLE ASSISTOR SHIFT CONTROL<WX8> (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1511-	●
6	CLIP; CABLE (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1511-		●
6	CLIP; CABLE ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1511-	●
6	CLIP; CABLE (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1511-		●
199	WASHER; PL,SELECT ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=16	0-91614-508-0	01	1	1511-	●
199	WASHER; PL,SELECT ID=8.4 OD=16	0-91614-508-0	01	1	1511-		●
201	BOLT; BRKT ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	02	1	1511-	●
201	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	1511-		●
201	BOLT; BRKT ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28050-820-0	01	1	1511-	●
201	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	01	1	1511-		●
201	BOLT; BRKT ZF9S1110 M/T(Y5E) M12X35 FLANGE	0-28151-235-0	01	1	1511-	●	●
221	NUT; SHIFT WIRE TO LEVER ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-062-1	01	1	1511-	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-062-1	01	1	1511-		●
225	PIN; SELECT CABLE ASSISTOR SHIFT CONTROL<WX8> L=27.7	8-94111-137-0	01	1	1511-	●
225	PIN; SELECT CABLE L=27.7	8-94111-137-0	01	1	1511-		●
282	BRACKET; TRANS SIDE ASSISTOR SHIFT CONTROL<WX8> (A)	8-98098-265-2	01	1	1511-	●
282	BRACKET; TRANS SIDE (A)	8-98098-265-2	01	1	1511-		●
282	BRACKET; TRANS SIDE ASSISTOR SHIFT CONTROL<WX8> (B)	8-98171-762-0	01	1	1511-	●
282	BRACKET; TRANS SIDE (B)	8-98171-762-0	01	1	1511-		●
291	CLIP; SHIFT TO SELECT,FRAME ASSISTOR SHIFT CONTROL<WX8> (A) ID=11X2 L=16	0-95325-026-0	02	1	1511-	●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	0-95325-026-0	02	1	1511-		●
291	CLIP; SHIFT TO SELECT,FRAME ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1511-	●
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1511-		●
293	BOLT; CLIP,SHIFT TO SELECT ASSISTOR SHIFT CONTROL<WX8> (A) M8X16 FLANGE	0-28050-816-0	01	1	1511-	●
293	BOLT; CLIP,SHIFT TO SELECT (A) M8X16 FLANGE	0-28050-816-0	01	1	1511-		●
293	BOLT; CLIP,SHIFT TO SELECT ASSISTOR SHIFT CONTROL<WX8> (B) M8X20 FLANGE	0-28050-820-0	01	1	1511-	●
293	BOLT; CLIP,SHIFT TO SELECT (B) M8X20 FLANGE	0-28050-820-0	01	1	1511-		●
293	BOLT; CLIP,SHIFT TO SELECT ASSISTOR SHIFT CONTROL<WX8> (C) M8X20 FLANGE	0-28650-820-0	01	1	1511-	●
293	BOLT; CLIP,SHIFT TO SELECT (C) M8X20 FLANGE	0-28650-820-0	01	1	1511-		●
297	NUT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91180-108-0	01	1	1511-	●
297	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1511-		●
300	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	01	1	1511-	●
300	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1511-		●
310	CLIP; TUBE ZF9S1110 M/T(Y5E) (A) L=100	5-09707-036-1	01	1	1511-	●	●
310	CLIP; TUBE ZF9S1110 M/T(Y5E) (B) ID=12	8-94218-436-0	01	1	1511-	●	●
310	CLIP; TUBE ZF9S1110 M/T(Y5E) (C) ID=6 & 10-13	8-97069-515-0	01	1	1511-	●	●
316	BRACKET; CLIP ZF9S1110 M/T(Y5E)	8-98086-439-0	01	1	1511-	●	●
325	CLIP; NYLON TUBE ZF9S1110 M/T(Y5E) L=350	1-09707-183-0	01	1	1511-	●
325	CLIP; NYLON TUBE L=350	1-09707-183-0	01	1	1511-		●
385	TUBE; NYLON ZF9S1110 M/T(Y5E) SERVICED BY L=4000 OD=4	1-87410-078-0	02	1	1511-	●	●
465	BRACKET; CONNECTOR ZF9S1110 M/T(Y5E)	8-98141-474-0	01	1	1511-	●	●
474	BOLT; BRKT ASSISTOR SHIFT CONTROL<WX8> M8X25 W/WASHER	0-51640-825-0	03	1	1511-	●
474	BOLT; BRKT M8X25 W/WASHER	0-51640-825-0	03	1	1511-		●
477	TUBE; CORRUGATE ZF9S1110 M/T(Y5E) (B) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	1511-	●	●
477	TUBE; CORRUGATE ZF9S1110 M/T(Y5E) (A) SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	1511-	●	●
487	BRACKET; CONT CABLE ASSISTOR SHIFT CONTROL<WX8>	8-98180-729-0	01	1	1511-	●
487	BRACKET; CONT CABLE	8-98180-729-0	01	1	1511-		●
489	CONNECTOR ZF9S1110 M/T(Y5E)	8-98085-747-0	02	1	1511-	●	●
503	TUBE; NYLON ZF9S1110 M/T(Y5E) SERVICED BY L=2000 OD=4	1-87410-077-0	02	1	1511-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
