2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#169859) — 26 parça

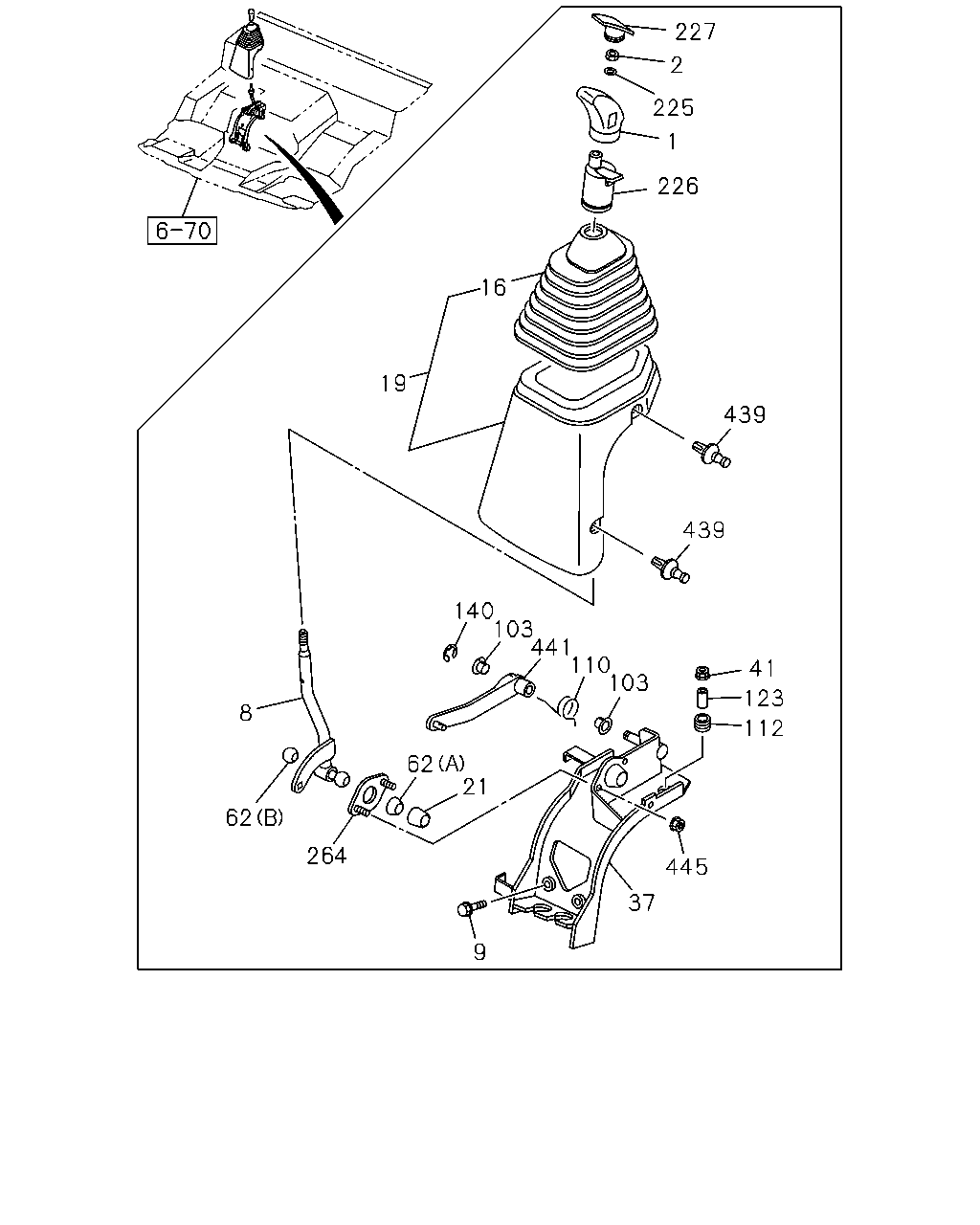

çizim 500866
227 2 225 1 226 16 19 439 439 41 123 112 445 37 9 264 62 8 62 21 140 103 441 110 103
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER
ZF9S1110 M/T(Y5E) 		1-33611-038-0 01 1 1511- ● ●
2 NUT; KNOB
ZF9S1110 M/T(Y5E) M10 FLANGE 		0-91180-210-0 01 1 1511- ● ●
8 LEVER; CHANGE
ZF9S1110 M/T(Y5E) 		8-98071-308-0 01 1 1511- ● ●
9 BOLT; CHANGE LEVER
ASSISTOR SHIFT CONTROL<WX8> M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1511- ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1511- ●
16 BOOT; CHANGE LEVER
ZF9S1110 M/T(Y5E) 		1-79998-751-4 01 1 1511- ● ●
19 COVER; CHANGE LEVER
ZF9S1110 M/T(Y5E) GRAY 		8-97407-954-0 01 1 1511- ● ●
21 SEAT; CHANGE LEVER
ZF9S1110 M/T(Y5E) 		1-33619-429-0 01 1 1511- ● ●
37 BRACKET; CHANGE LEVER SUPPORT
ZF9S1110 M/T(Y5E) 		8-98071-307-0 01 1 1511- ● ●
41 NUT; CHANGE LEVER
ASSISTOR SHIFT CONTROL<WX8> M8 W/DISHED WASHER 		8-97329-625-0 02 1 1511- ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 1511- ●
62 SEAT; BALL,CHANGE LEVER
ZF9S1110 M/T(Y5E) (A) 		1-33619-427-0 01 1 1511- ● ●
62 SEAT; BALL,CHANGE LEVER
ZF9S1110 M/T(Y5E) (B) 		8-97049-147-0 01 1 1511- ● ●
103 BUSHING; RELAY LEVER
ZF9S1110 M/T(Y5E) ID=14 OD=16 		8-94252-671-0 02 1 1511- ● ●
110 SPRING; RETURN,CHANGE LEVER
ZF9S1110 M/T(Y5E) 		1-33619-586-0 01 1 1511- ● ●
112 RUBBER; CUSHION
ZF9S1110 M/T(Y5E) 		1-33619-442-0 04 1 1511- ● ●
123 COLLAR; DIST,CHANGE LEVER
ZF9S1110 M/T(Y5E) 		1-33619-443-0 04 1 1511- ● ●
140 RING; SNAP
ZF9S1110 M/T(Y5E) ID=10 		0-91805-510-0 01 1 1511- ● ●
225 WASHER; PL,KNOB
ZF9S1110 M/T(Y5E) ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 1511- ● ●
226 VALVE; SELECTOR
ZF9S1110 M/T(Y5E) 		1-33710-008-0 01 1 1511- ● ●
227 COVER; KNOB
ZF9S1110 M/T(Y5E) 		8-98013-168-0 01 1 1511- ● ●
264 PLATE; COVER
ZF9S1110 M/T(Y5E) 		1-33619-430-0 01 1 1511- ● ●
439 FASTENER; COVER
MANUAL TRANSMISSION<X9C> GRAY 		8-97407-955-0 04 1 1511- ●
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1511- ●
441 LEVER; SELECT
ZF9S1110 M/T(Y5E) 		8-98071-283-0 01 1 1511- ● ●
445 NUT; PLATE
ZF9S1110 M/T(Y5E) M6 FLANGE 		0-91180-106-0 02 1 1511- ● ●
